| ₹ 2466.3 includes GST and import duties. | |
| B2B customers can avail ₹ 376.11 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

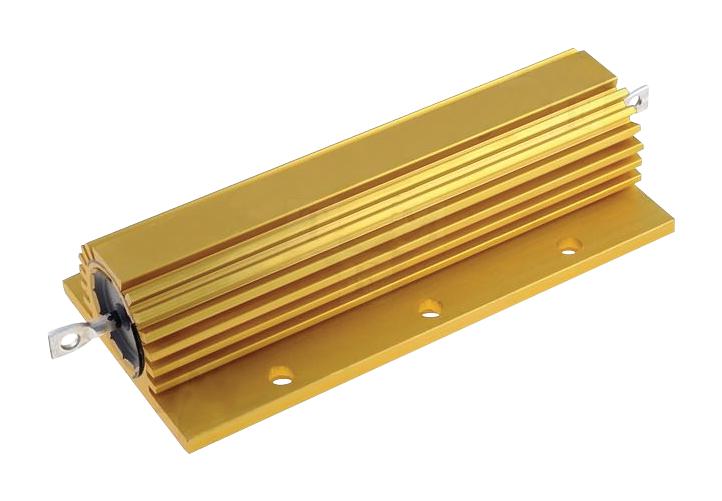

The HS150 15R F from Arcol/Ohmite is HS series 150W aluminium housed resistor. Manufactured in line with the requirements of MIL 18546 and IEC 115, designed for direct heatsink mounting with thermal compound to achieve maximum performance. The wire wound design is used to maximise the high pulse characteristics, the power dissipates linearly to zero, even at high ambient temperatures. Its advanced design optimises stability, linearity and reliability making the HS resistors suitable for many applications including braking resistor, inrush limiter, inverter/converter, snubber and balancing resistor.
- Resistance value is 15ohm with 1% tolerance
- Temperature coefficient is 100ppm
- Minimum insulation resistance is 10000Mohm
- Limiting element voltage is 2500V
- Voltage proof AC RMS is 4500V
- Power rating without heatsink is 45W
- High Power Resistor
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Resistance: 15ohm |
| Product Range: HS Series |
| Power Rating: 150W |
| Resistance Tolerance: ± 1% |
| Resistor Terminals: Solder Lug |
| Voltage Rating: 2.5kV |
| Resistor Technology: Wirewound |
| Temperature Coefficient: ± 100ppm/°C |
| Resistor Type: High Power |
| Resistor Mounting: Panel Mount |
| Product Length: 97.7mm |
| Product Width: 47.5mm |
| Product Height: 24.1mm |
| Operating Temperature Min: - |
| Operating Temperature Max: - |
| Qualification: MIL-PRF-18546 |
Other details
| Brand | ARCOL |
| Part Number | HS150 15R F |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2416.97 |
| 3-5 | ₹ 2392.31 |
| 5-10 | ₹ 2342.99 |
| 10+ | ₹ 2293.66 |
Bulk discount will be automatically applied during checkout based on quantity.
