Description

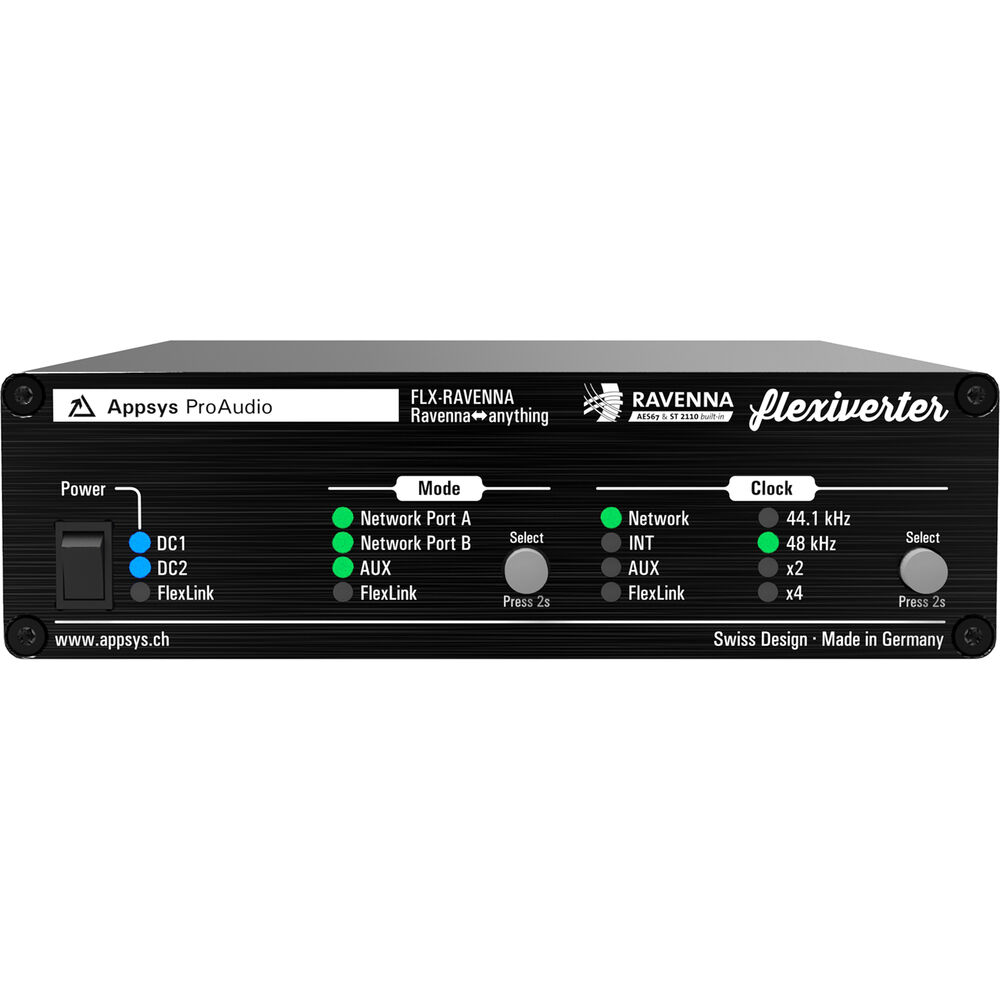

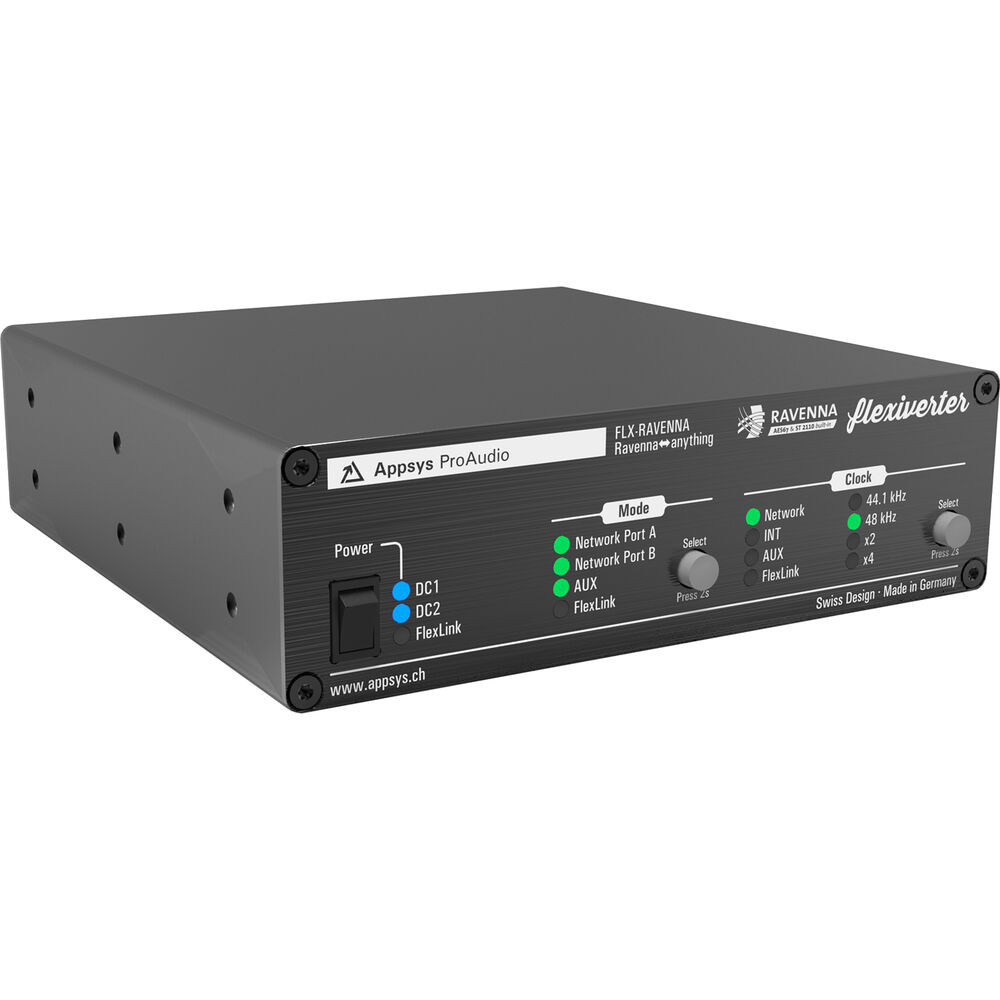

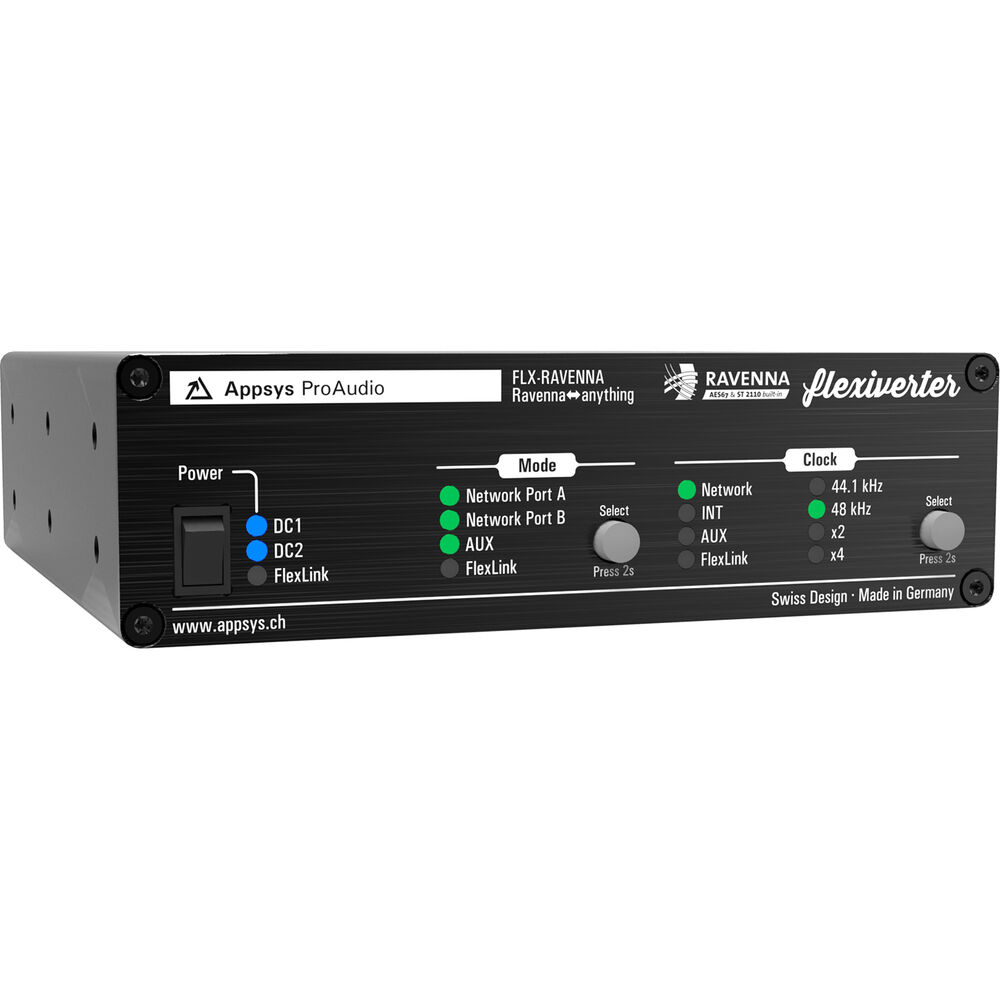

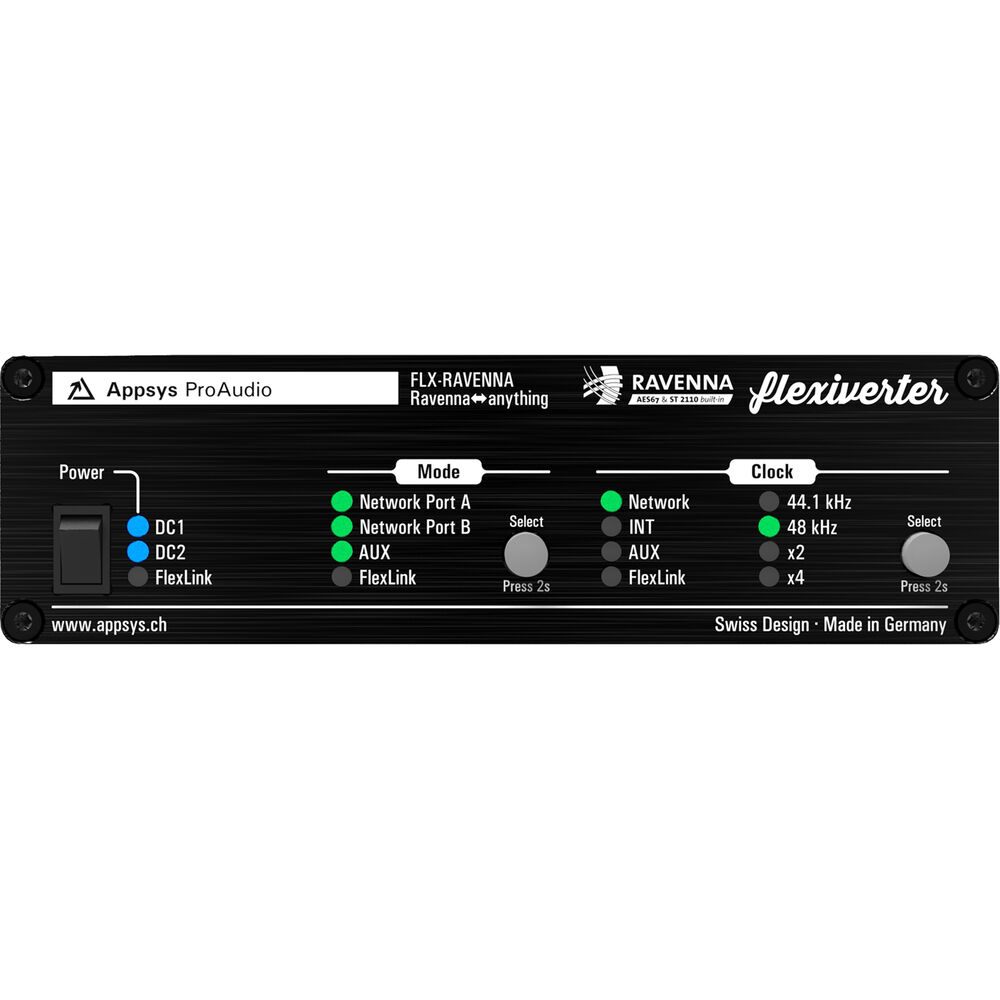

Appsys ProAudio FLX-RAVENNA Overview
The Appsys FLX-RAVENNA Converter is a powerful, flexible solution designed to bridge RAVENNA networks with virtually any other audio protocol. Built around a 64x64-channel RAVENNA port, this compact converter enables seamless integration between networked audio systems by leveraging its modular AUX slot, allowing you to tailor connectivity to your specific workflow. Whether you?re converting RAVENNA to another format or bringing external audio into a RAVENNA network, the FLX-RAVENNA delivers a scalable, high-performance platform for modern audio environments.
Flexible Network Conversion
At the core of the FLX-RAVENNA is its built-in 64x64-channel RAVENNA interface, capable of being converted to any protocol supported by installed AUX cards. This modular approach ensures compatibility with a wide range of systems, making it a highly adaptable tool for broadcast, live sound, and installed audio applications.
Built for Scalable Systems
Designed with expansion in mind, the FLX-RAVENNA routes both its internal channels and AUX card channels through the FlexLink port. This allows it to function as an extension to larger systems such as the MVR-64 or other Flexiverter units, supporting complex, high-channel-count workflows with ease.
Advanced Networking and Audio Performance

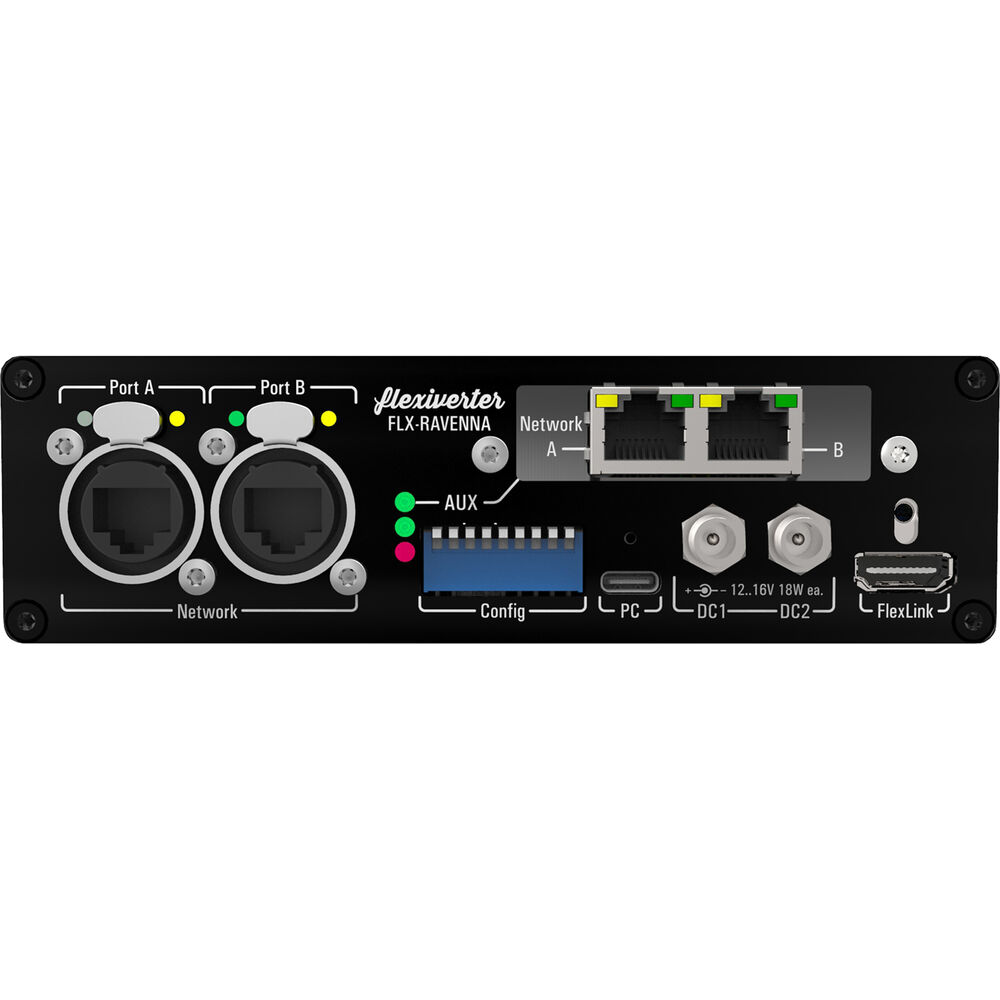

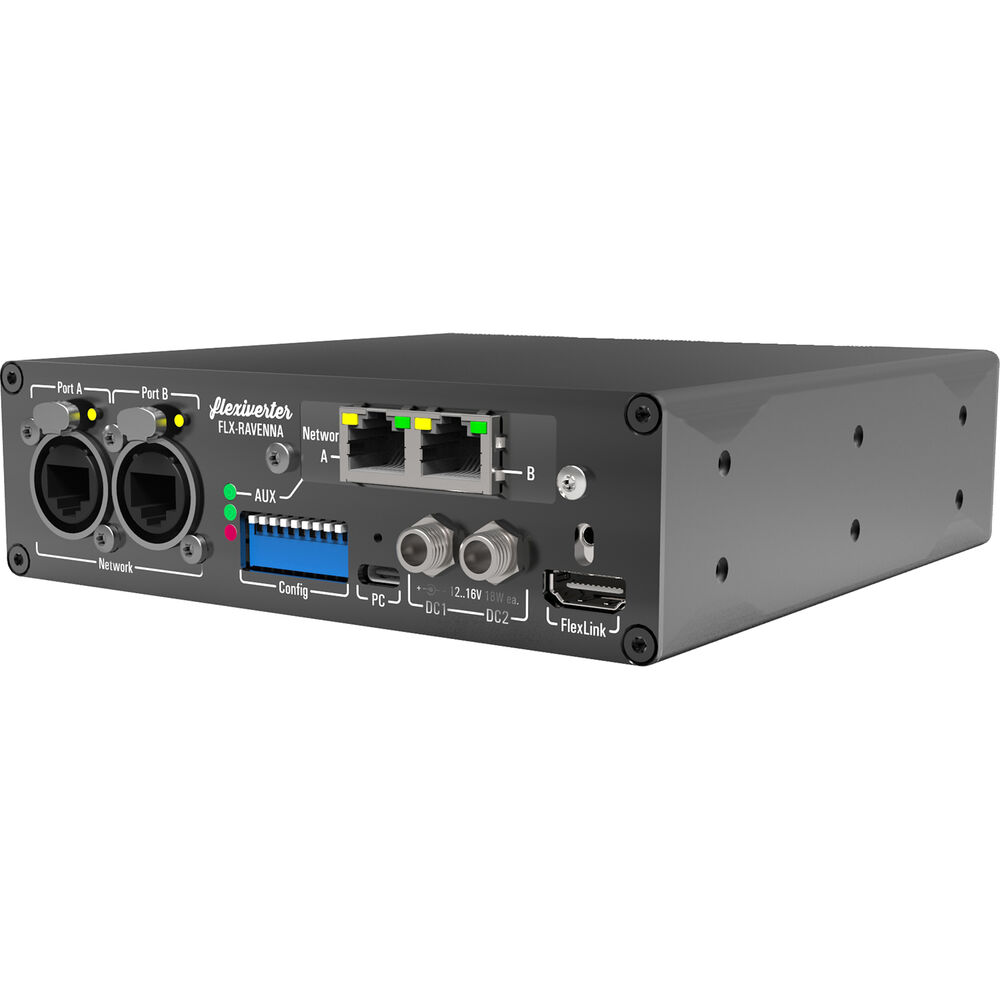

Equipped with dual RAVENNA ports on Ethercon connectors, the unit supports ST2110 and AES67 standards, ensuring interoperability in professional IP-based audio environments. Based on the proven Merging/Sennheiser ZMAN module, it delivers reliable, high-quality performance across sample rates from 44.1 to 192 kHz.
Low-Latency FlexLink Connectivity
The FlexLink port enables ultralow-latency, bidirectional transfer of up to 192 channels of audio, along with clock and power. This streamlined connection simplifies system design while maintaining high performance and synchronization across devices.
Remote Control and Reliable Operation
The FLX-RAVENNA offers convenient remote control via USB, accessible through a web-based interface without the need for additional software, or via UART command line for deeper integration. A triple-redundant power supply ensures dependable operation in mission-critical environments.
Enhanced Functionality with Multiverter Integration
When connected to the Multiverter, the FLX-RAVENNA unlocks additional capabilities, including true channel-wise routing across all available channels and sample-rate conversion via the SRC-64, providing greater flexibility and control in complex audio systems.
UPC: 700613618127
- Appsys ProAudio FLX-RAVENNA Converter
- Limited 2-Year Manufacturer Warranty
No additional resources available
Appsys ProAudio FLX-RAVENNA Specs
Key Specs
| Maximum Sampling Rate |
192 kHz / 16-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
1x USB-C
|
| Power Requirements |
AC/DC Power Adapter (Included)
|
General
| Display |
No
|
| Built-In DSP |
No
|
| Maximum Sampling Rate |
192 kHz / 16-Bit
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
Signal Processing
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
Connectivity
| Analog Audio I/O |
No
|
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection / USB |
1x USB-C
|
| Host Connection Protocol |
USB 3.0 / 3.1/3.2 Gen 1
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
2x etherCON/RJ45 AES67
|
| MIDI I/O |
No
|
| Expansion Slots |
1x Network I/O Slot
|
| Other I/O |
1x HDMI Expansion
|
| Wireless |
No
|
Digital Audio
| Sample Rates |
44.1 to 192 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
16-Bit
|
| Sync Sources |
RAVENNA
|
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
Windows
|
| Required Hardware |
USB-C Port
|
Power
| Power Requirements |
AC/DC Power Adapter (Included)
|
| AC/DC Power Adapter |
Included
|
| Power Consumption |
18 W
|
