Description

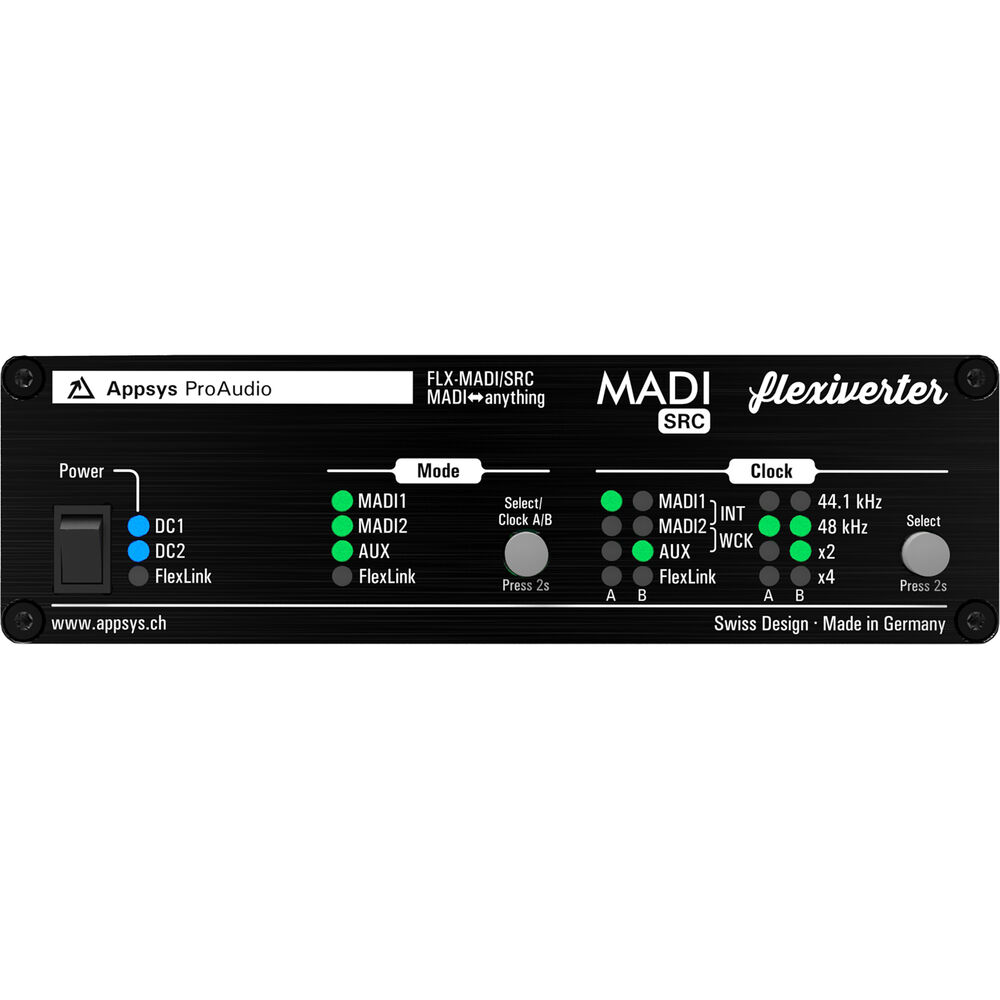

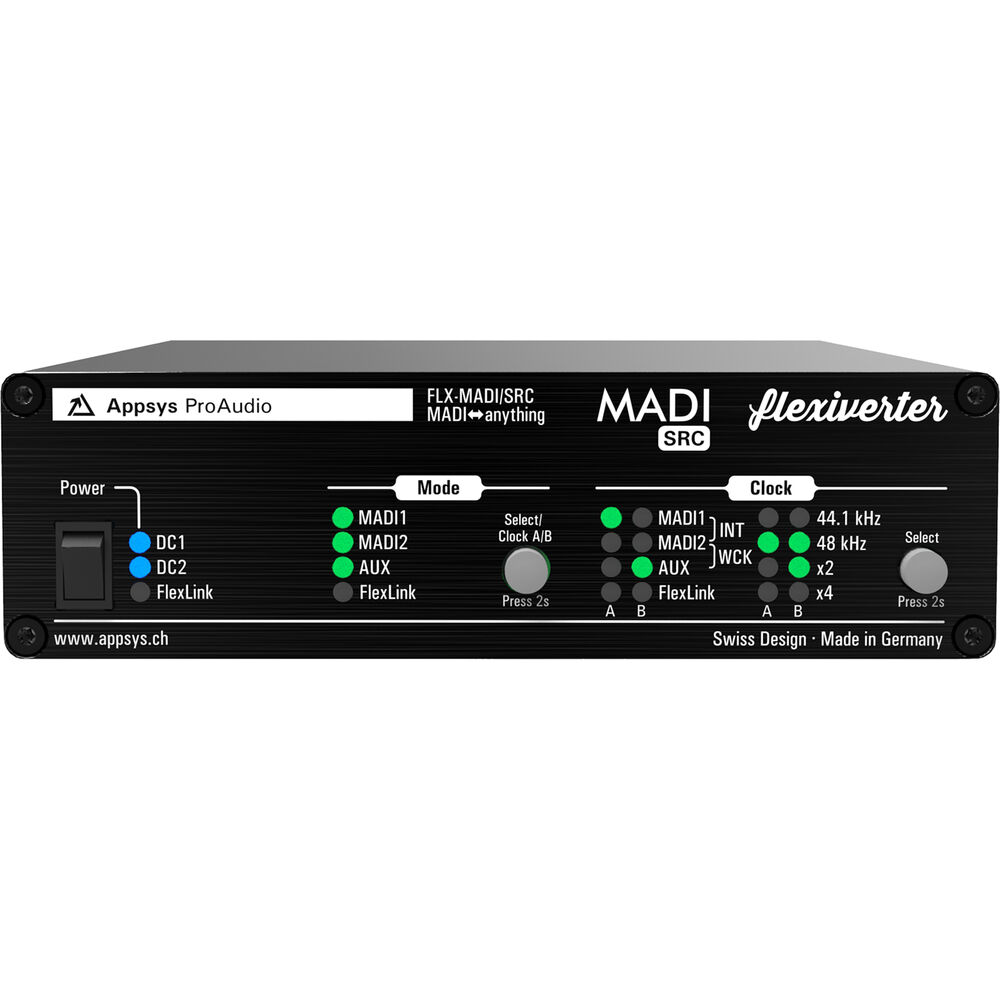

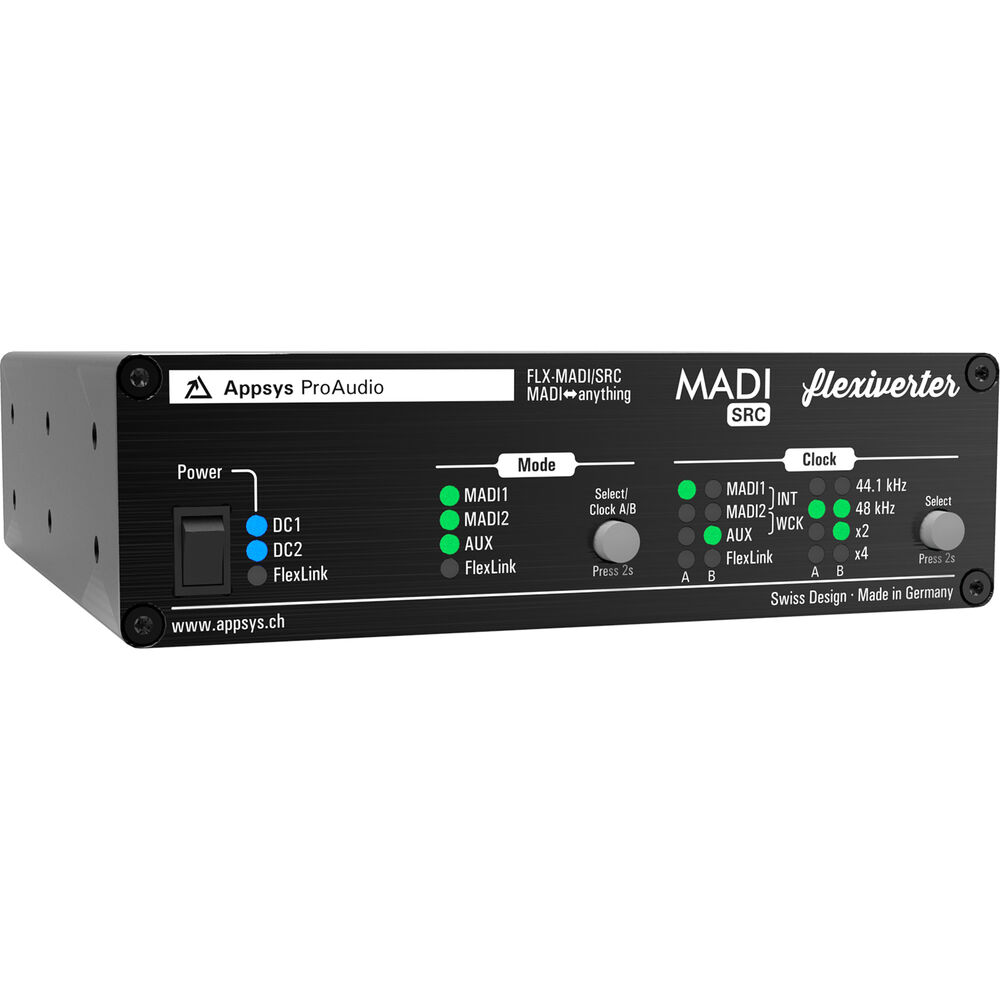

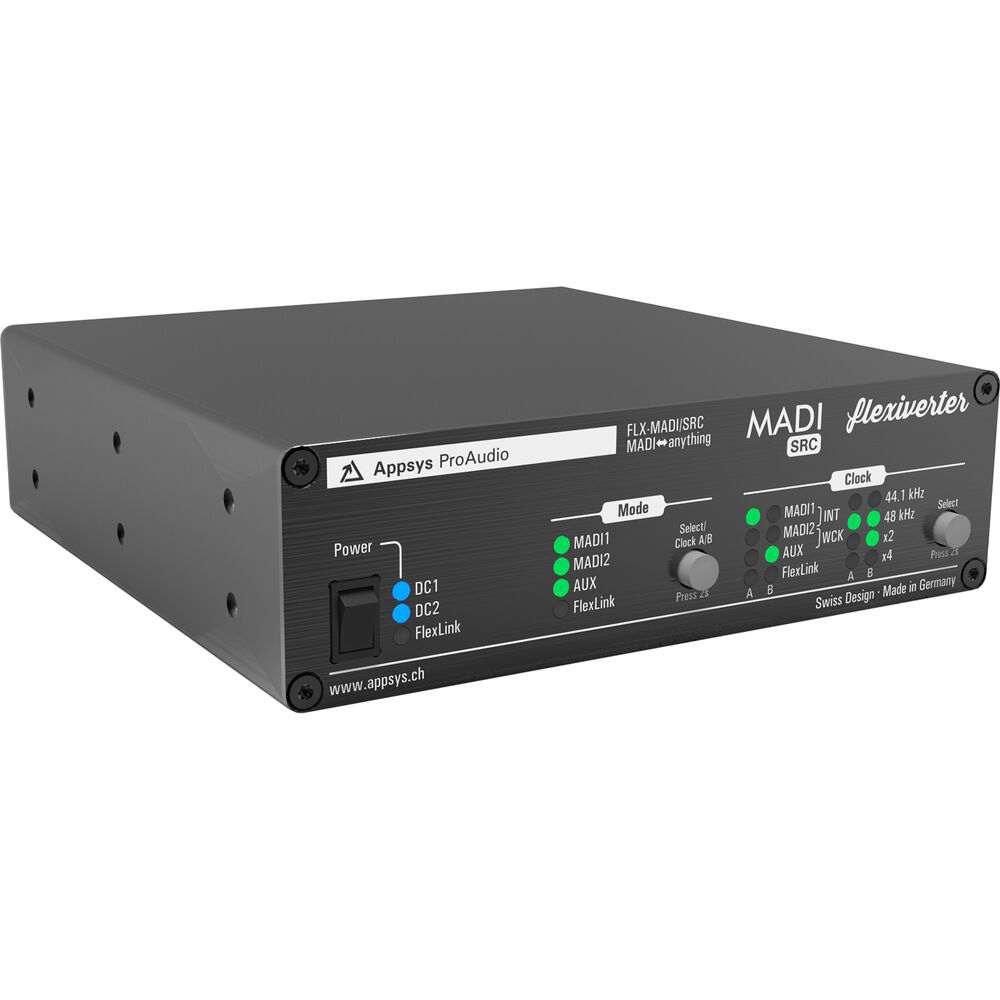

Appsys ProAudio FLX-MADI/SRC-SFP Overview
The Appsys FLX-MADI/SRC-SFP Converter is a powerful, compact solution designed to bridge MADI optical systems with virtually any audio protocol?while maintaining pristine audio quality across clock domains. With dual MADI SFP ports and a built-in 64x64-channel sample rate converter, it enables seamless, high-channel-count audio conversion at up to 96 kHz, making it ideal for demanding broadcast, live sound, and studio environments. Whether you?re integrating disparate systems or expanding an existing setup, the FLX-MADI/SRC-SFP delivers flexibility, precision, and rock-solid performance.
MADI Optical to Anything, with SRC Built In
At the core of the FLX-MADI/SRC-SFP is a 64x64-channel bidirectional sample rate converter with exceptional audio performance, offering >120 dB THD+N and >134 dB dynamic range. This allows you to convert between clock domains without compromising fidelity, and the SRC can be bypassed when not needed. Supporting sample rates from 44.1 to 192 kHz on either side, the unit ensures compatibility across a wide range of professional audio systems.
Flexible Conversion via AUX Expansion
The integrated AUX slot allows the FLX-MADI/SRC-SFP to interface with a wide variety of protocols using optional AUX cards. Whether you're converting to another MADI format or targeting protocols like Dante, the system adapts to your needs. When paired with AUX-MADI-COAX-DUAL or AUX-MADI-SFP-DUAL cards, it functions as a full MADI-to-MADI bridge with complete network and clock domain separation for up to 64x64 channels at 96 kHz.
Built for Scalable, High-Channel Systems
For larger configurations, the FLX-MADI/SRC-SFP provides a FlexLink port capable of handling up to 192 channels of bidirectional audio, along with clock and power, at ultralow latency. This makes it an ideal extension unit for systems like the MVR-mkII or other Flexiverter setups. When connected to the MVR-mkII, it enables true channel-wise routing across all available channels, including those from installed AUX cards.
Robust Connectivity and Control

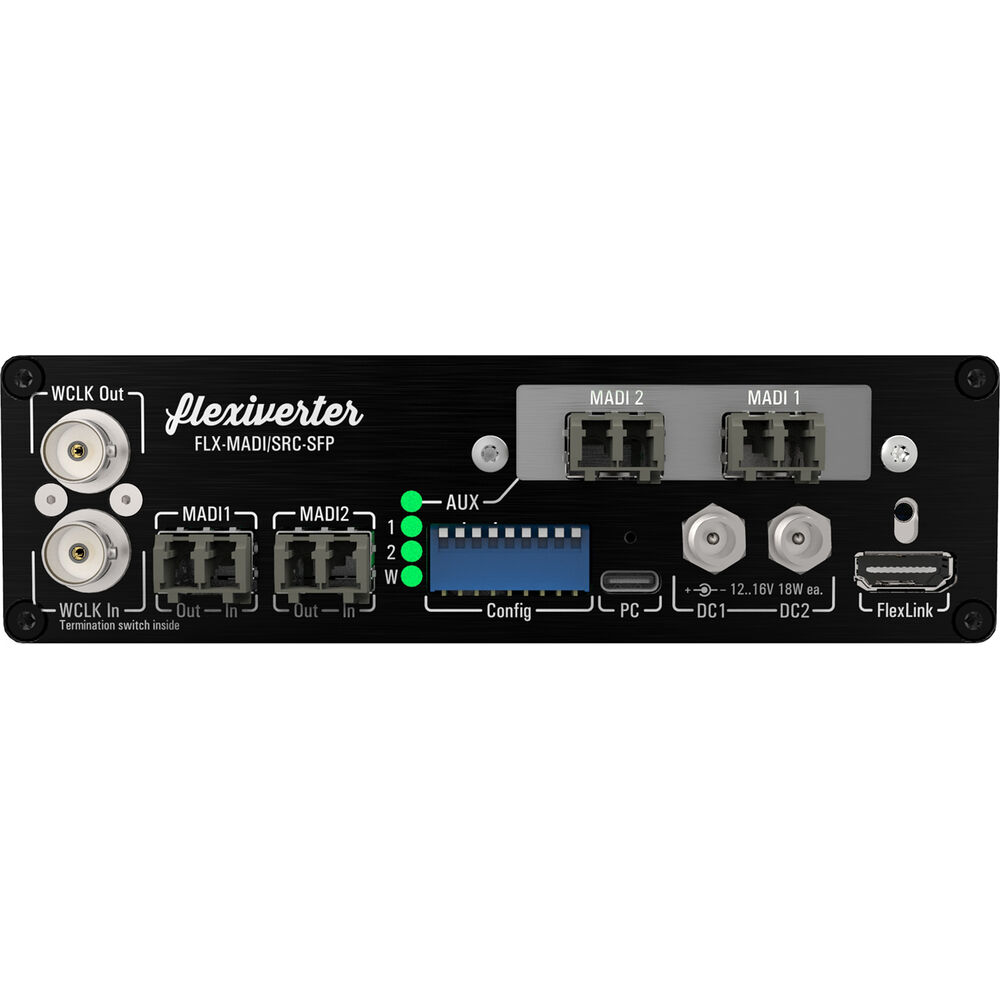

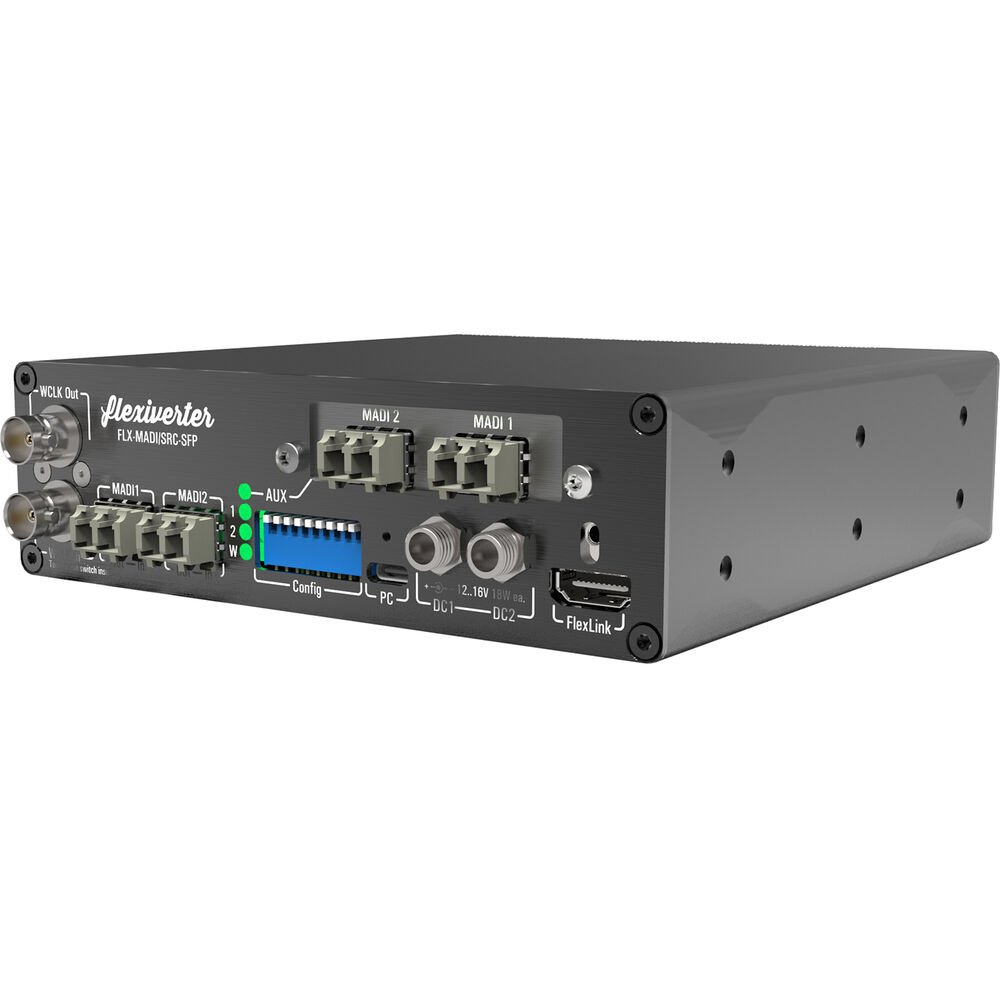

Equipped with two MADI SFP ports that accept any brand of SFP module, as well as wordclock input and output, the unit easily integrates into a variety of setups. Remote control is handled via USB using a browser-based interface?no software installation required?or via UART command line for advanced users.
Reliable Operation for Critical Environments
A triple-redundant power supply ensures continuous operation in mission-critical applications, providing peace of mind in live or broadcast scenarios where downtime is not an option.
UPC: 700613618110
- Appsys ProAudio FLX-MADI/SRC-SFP Converter
- Limited 2-Year Manufacturer Warranty
No additional resources available
Appsys ProAudio FLX-MADI/SRC-SFP Specs
Key Specs
| Form Factor |
Desktop
|
| Converter Type |
AD/DA Converter
|
| Number of Channels |
64x A/D (at 96 kHz)
64x D/A (at 96 kHz) |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
No
|
| Digital Audio I/O |
TOSLINK Optical ADAT Input
TOSLINK Optical ADAT Output |
General
| Form Factor |
Desktop
|
| Converter Type |
AD/DA Converter
|
| Number of Channels |
64x A/D (at 96 kHz)
64x D/A (at 96 kHz) |
| Conversion Formats |
MADI (Optical)
|
| Display |
No
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Inputs |
No
|
Connectivity
| Analog Audio I/O |
No
|
| Phantom Power |
No
|
| Digital Audio I/O |
4x TOSLINK Optical ADAT Input
4x TOSLINK Optical ADAT Output |
| Host Connection / USB |
1x USB-C
|
| USB (Non-Host) |
No
|
| Sync I/O |
1x BNC Word Clock Input
1x BNC Word Clock Output |
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
1x I/O Slot
|
| Wireless |
No
|
Performance
| Dynamic Range |
> 134 dB
|
| THD+N |
> 120 dB
|
Digital Audio
| Sample Rates |
Up to 192 kHz
|
| Sample Rate Conversion |
On All Inputs
|
| Bit Depths |
24-Bit
|
| Sync Sources |
MADI, Word Clock
|
Compatibility
| OS Compatibility |
No
|
| Mobile Device Compatibility |
No
|
Power
| Power Requirements |
DC Input
|
| DC Input Power |
12 to 16 VDC
|
| Power Consumption |
18 W
|
Physical
| Rackmount Size |
1 U (1/2-Rack)
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
