Description

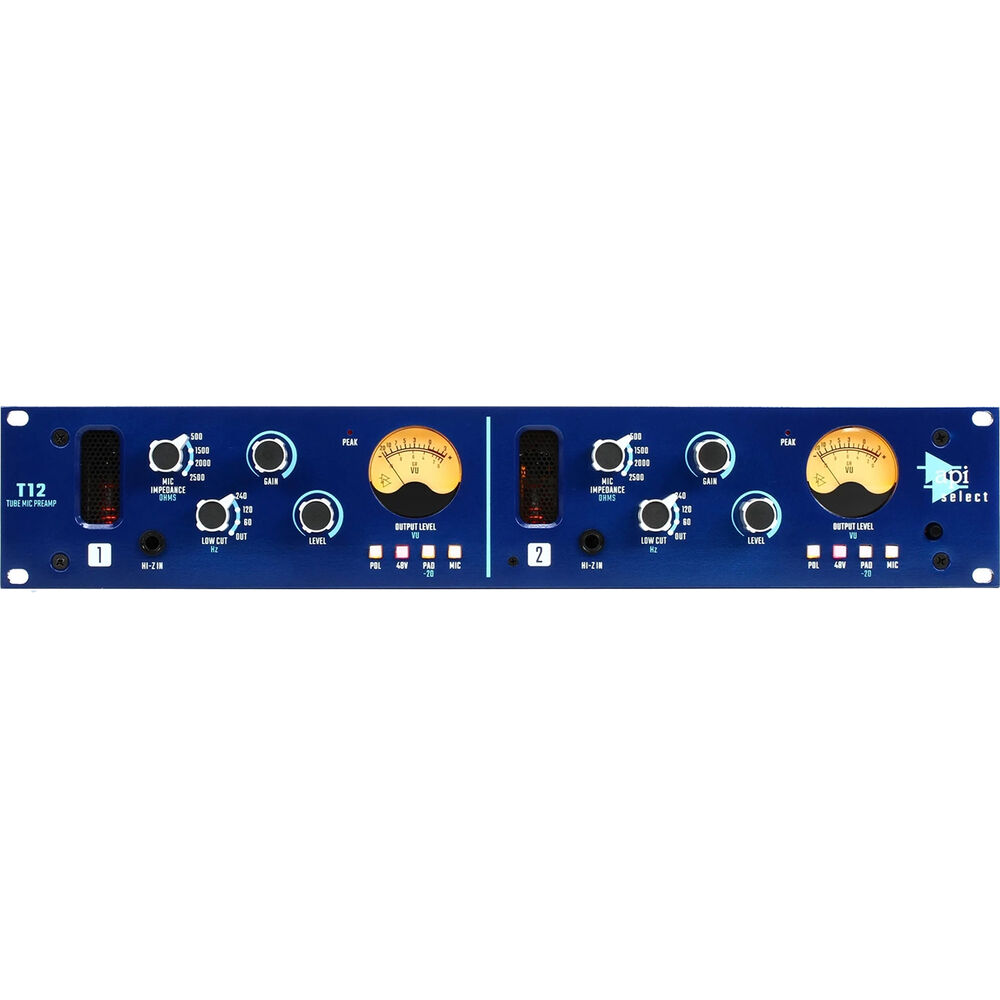

API AUDIO T12 Overview
Give your signals the best possible start with the API Audio T12, a 2-channel mic preamp with stereo capabilities and an all-tube, Class-A design. Sporting 12AT7WC and 12BH7 dual-triode tubes, the AP2516 input transformer, and a custom output transformer, this 2-channel mic pre provides excellent warmth, character, and a very high headroom of up to 70 dB of gain.

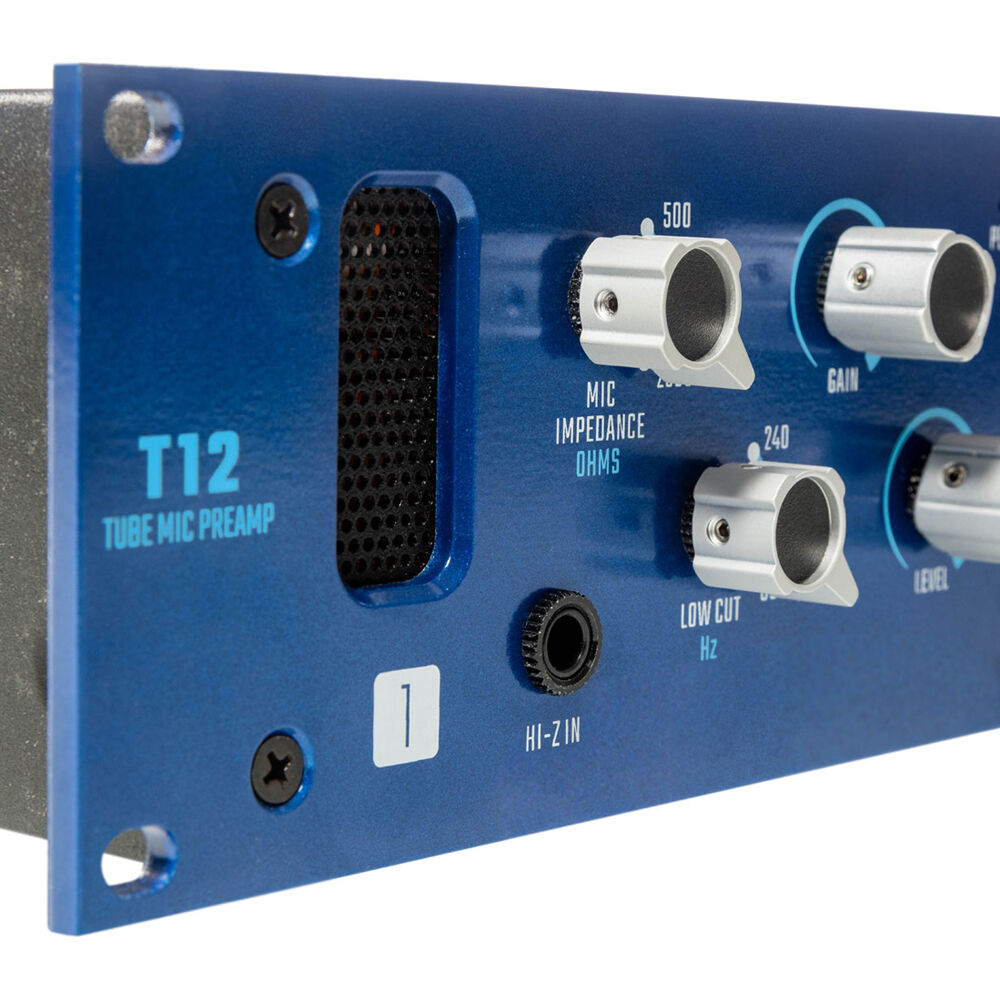

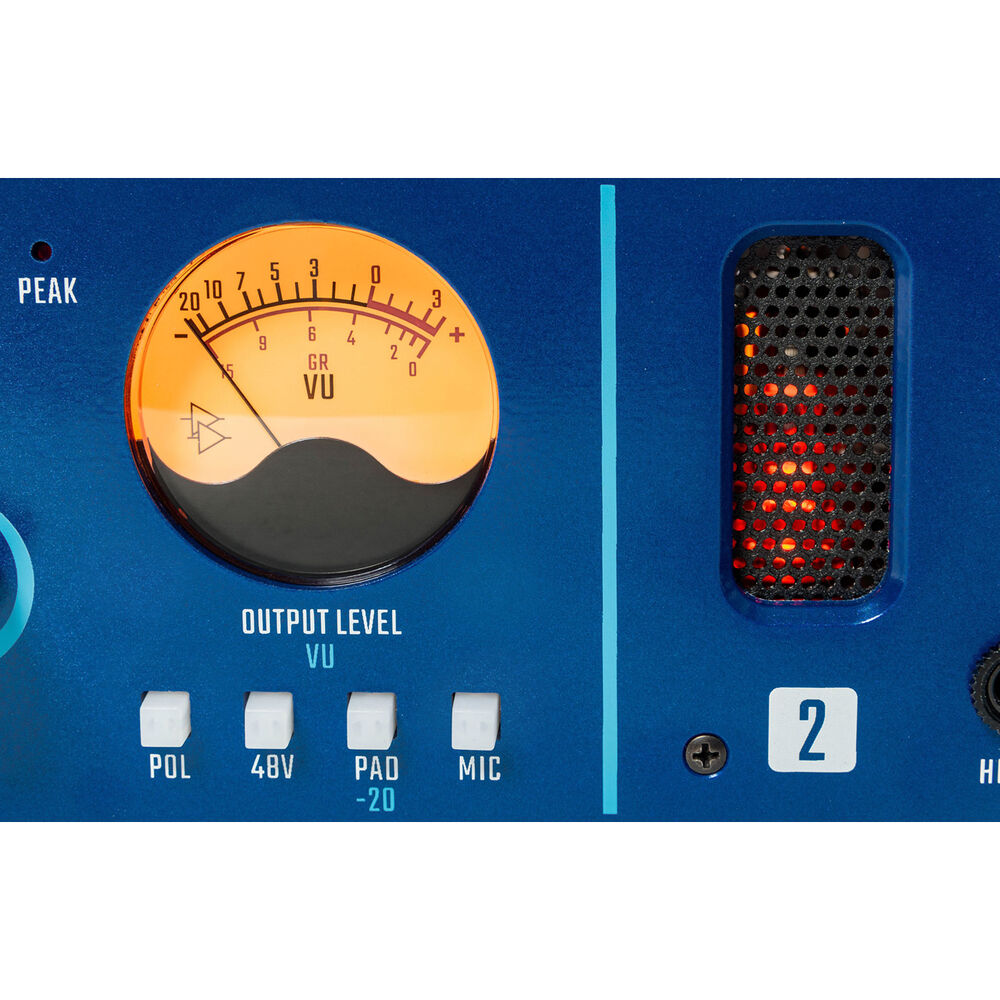

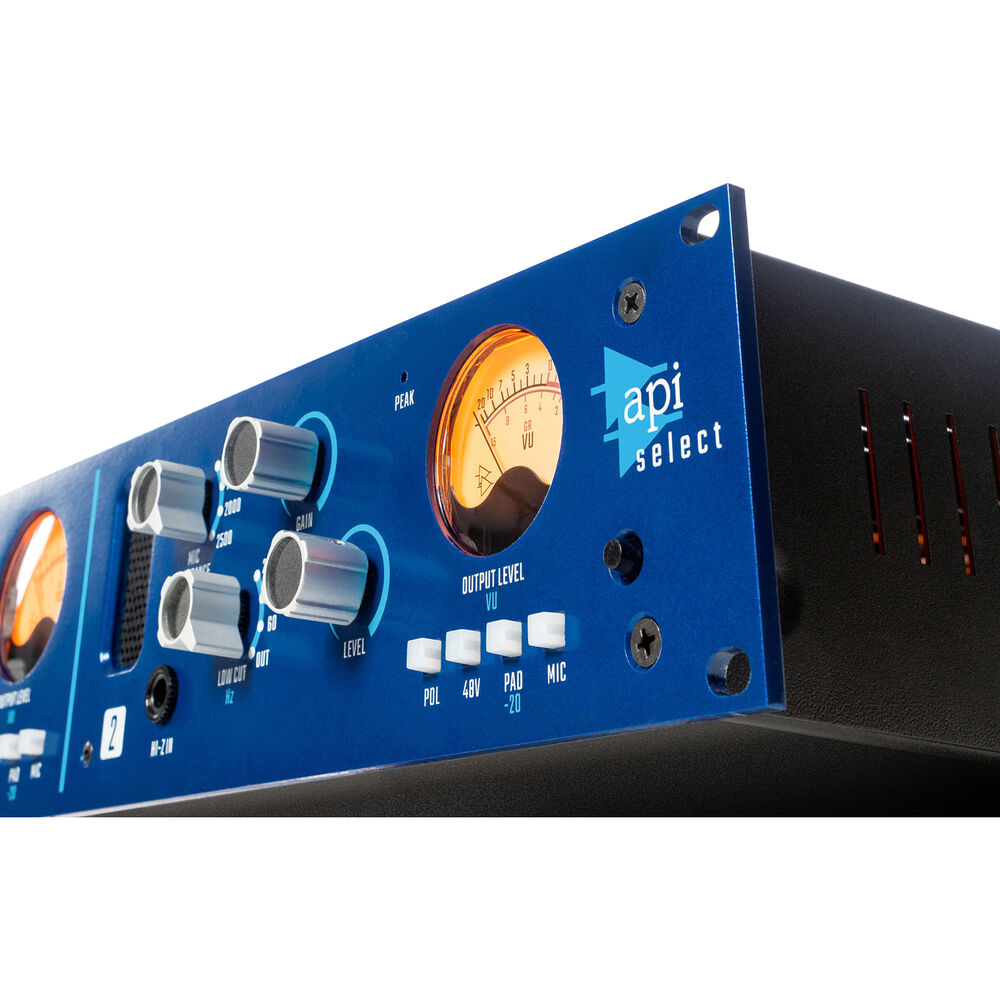

The T12 sports plenty of control options for modifying your signal inputs, including mic impedance control from 500 ohms to 2.5 kilohms, a low-cut filter with three fixed frequencies (240, 120, and 60 Hz), and 11-step detented controls for input gain and output trim. The stepped, detented controls allow for easy recall, and the output trim provides 0.5 dB steps for precision attenuation. Each channel also includes buttons for engaging polarity inversion, 48V phantom power, a -20 dB pad, and selection between mic / Hi-Z input. The front-panel 1/4" Hi-Z inputs are ideal for instruments like guitar and keyboard, while the balanced rear-panel XLR inputs are dedicated to mics. The T12 features XLR and 1/4" TRS outputs. With vintage-style illuminated VU meters, you can keep an eye on your signals at all times, whether they are single-mono, dual-mono, or stereo signals.
Items Included
- API AUDIO T12 2-Channel Tube Microphone Preamp
- Limited 5-Year Manufacturer Warranty
Additional Resources
API AUDIO T12 Specs
| Input Impedance |
Mic: 500 Ohms to 2.5 Kilohms (Variable)
Hi-Z: 500 Kilohms |
| Output Impedance |
75 Ohms
|
| Maximum Input Level |
+24 dBu (with -20 dB Pad Engaged)
|
| Maximum Output Level |
+24 dBu
|
| Gain Control |
0 to +70 dB
|
| Signal-to-Noise Ratio |
98 dB
|
| Frequency Response |
20 Hz to 30 kHz (+0/-1 dB)
|

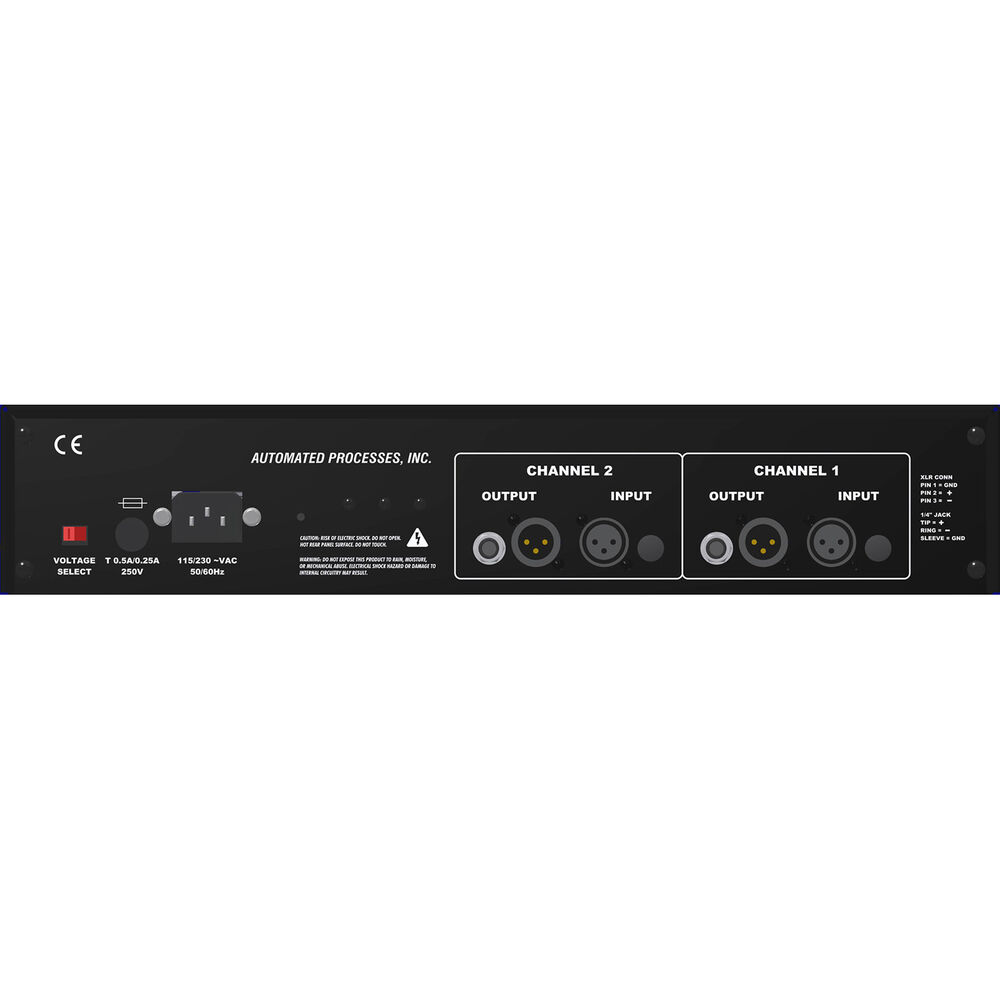

| Audio I/O |
2x XLR 3-Pin Mic Input
2x XLR 3-Pin Line Output 2x 1/4" Line Output |
| Power Source |
AC Adapter with Power Brick
|
| AC Input Power |
Changing Voltage Requires Manual Switching
115 to 230 VAC, 50 / 60 Hz |
| Power Consumption |
40 W
|
| Mounting |
Back: 4x Standard Rack Screw
|
| Color |
Blue
|
| Material of Construction |
Metal
|
| Dimensions |
19 x 12 x 3.5" / 48.3 x 30.5 x 8.9 cm
|
| Weight |
14 lb / 6.4 kg
|
