Description

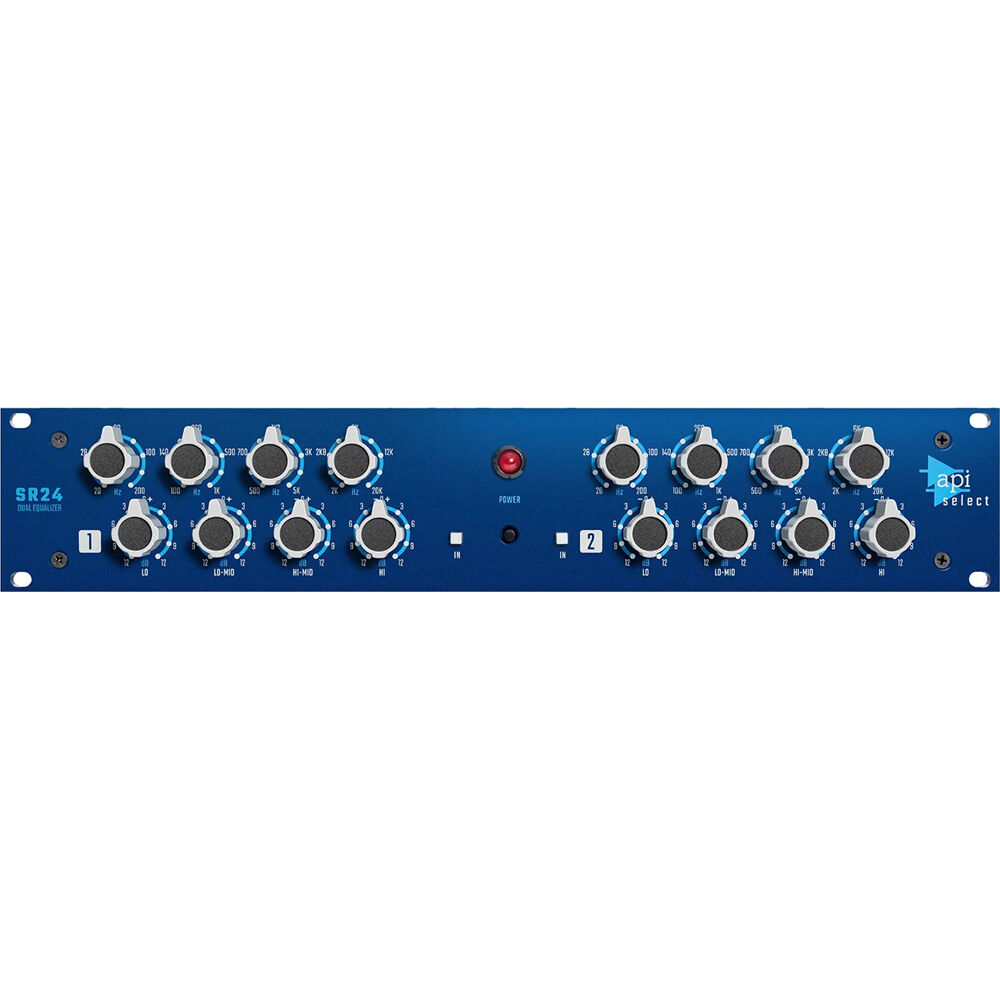

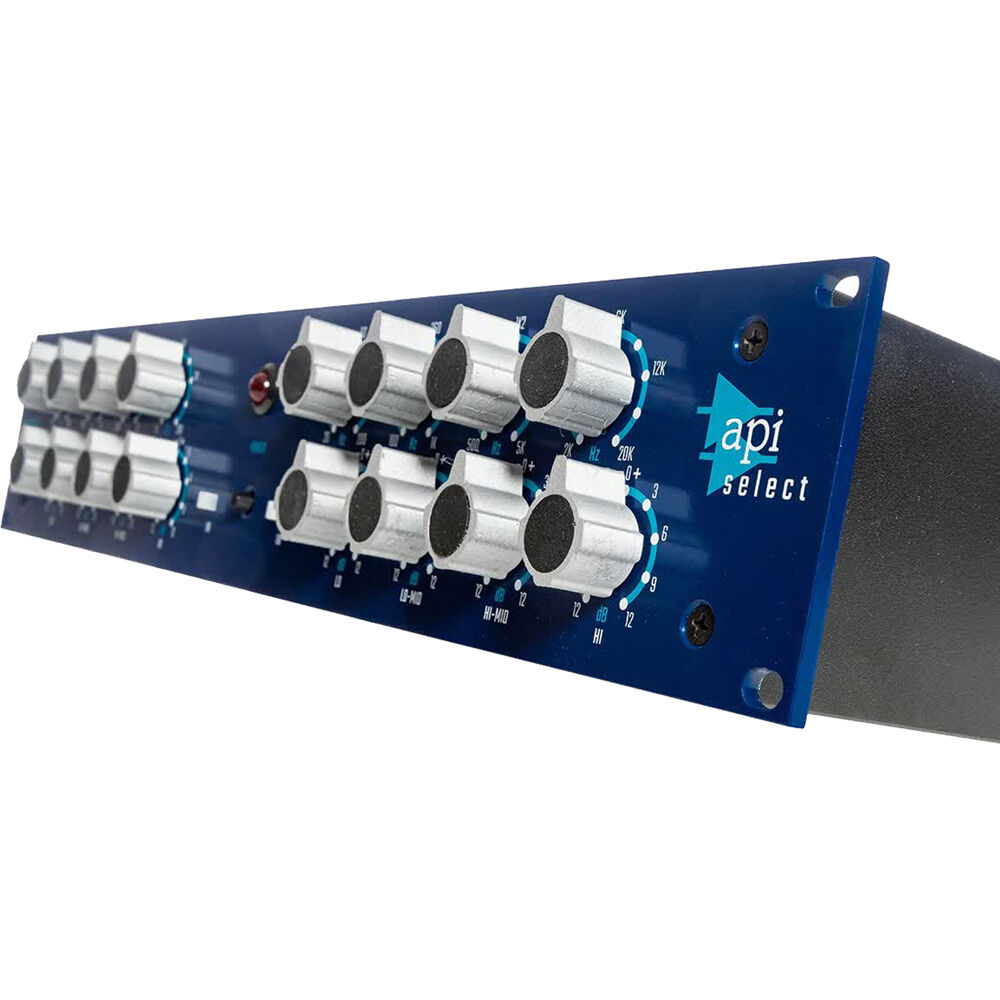

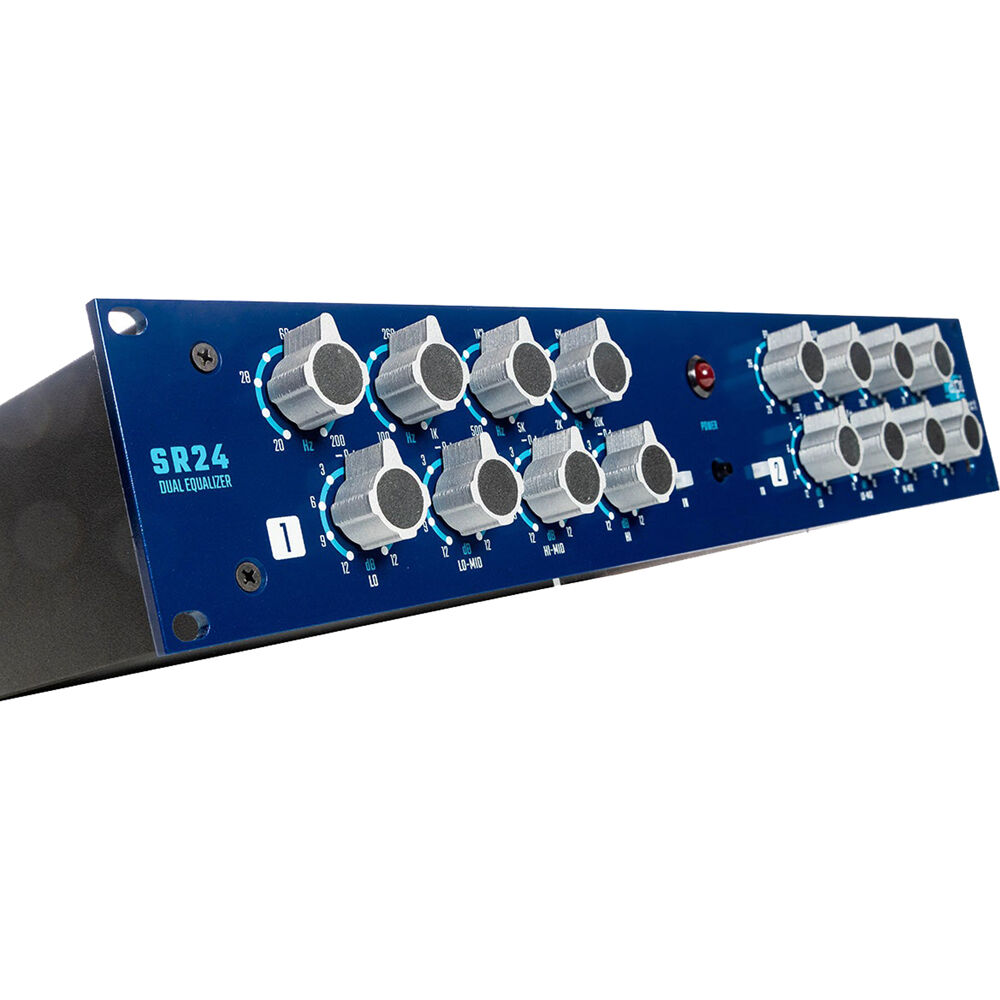

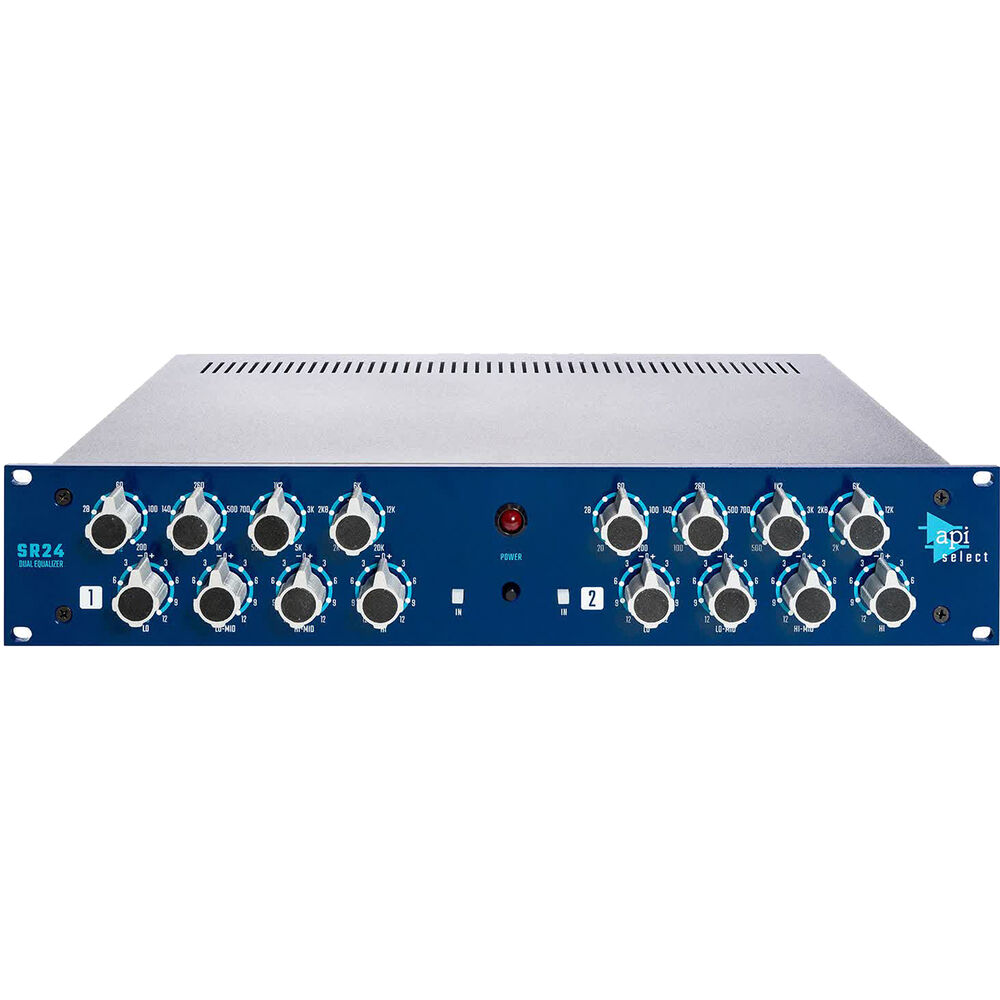

API AUDIO SR24 Overview
Delivering classic analog equalizing based on the vintage model 562, the API Audio SR24 is a dual-channel, 4-band fully parametric EQ designed for standard equipment racks. With continuously variable frequency and gain control and up to 12 dB of boost or cut per band, this EQ allows for quick and precise sculpting of frequencies.
The SR24 sports fully balanced inputs and outputs, including XLR 3-pin and 1/4" TRS jacks, which support dual-mono or stereo processing. The outputs feature transformer balancing via API's custom output transformer. The circuitry supports massive headroom, up to +24 dB, allowing you to handle a wide range of signals in professional applications. Both channels are linked to the master on/off switch, and each channel has an independent EQ-In button, allowing you to use either or both channels at your leisure.
Over the last several decades, these EQ modules have remained a favorite among many studio engineers, but have become increasingly difficult to find. The SR24 is a faithfully re-engineered version of the original 562, offering the user two channels of classic analog EQ in one rackmount unit.
- 20 to 200 Hz
- 100 Hz to 1 kHz
- 500 Hz to 5 kHz
- 2 kHz to 20 kHz
Items Included
- API AUDIO SR24 Dual-Channel Parametric EQ
- Limited 5-Year Manufacturer Warranty (Parts)
- Limited 1-Year Manufacturer Warranty (Labor)
Additional Resources
API AUDIO SR24 Specs
| Input Impedance |
12 Kilohms
|
| Output Impedance |
300 Ohms (Transformer Balanced)
|
| Frequency Range |
20 Hz to 20 kHz
|
| Maximum Input Level |
+23 dBu
|
| THD + N |
0.01%
|
| Signal-to-Noise Ratio |
-100 dB
|
| Audio I/O |
2x XLR 3-Pin Line Input (1 Stereo Pair, Balanced)
2x 1/4" TRS Line Input (1 Stereo Pair, Balanced) 2x XLR 3-Pin Line Output (1 Stereo Pair, Transformer Balanced) 2x 1/4" TRS Line Output (1 Stereo Pair, Transformer Balanced) |
| Power Source |
AC Input
|
| AC Input Power |
Changing Voltage Requires Manual Switching
115 to 230 VAC, 50 / 60 Hz |
| Power Consumption |
10 W
|
| Mounting |
Front: 4x Standard Rack Screw
|
| Color |
Blue
|
| Material of Construction |
Metal
|
| Dimensions |
19 x 10 x 3.5" / 48.3 x 25.4 x 8.9 cm (2 RU)
|
| Weight |
13 lb / 5.9 kg
|
| Package Weight |
14.33 lb
|
| Box Dimensions (LxWxH) |
21.1 x 14.7 x 8.7"
|
