Description
API AUDIO MC531 Overview

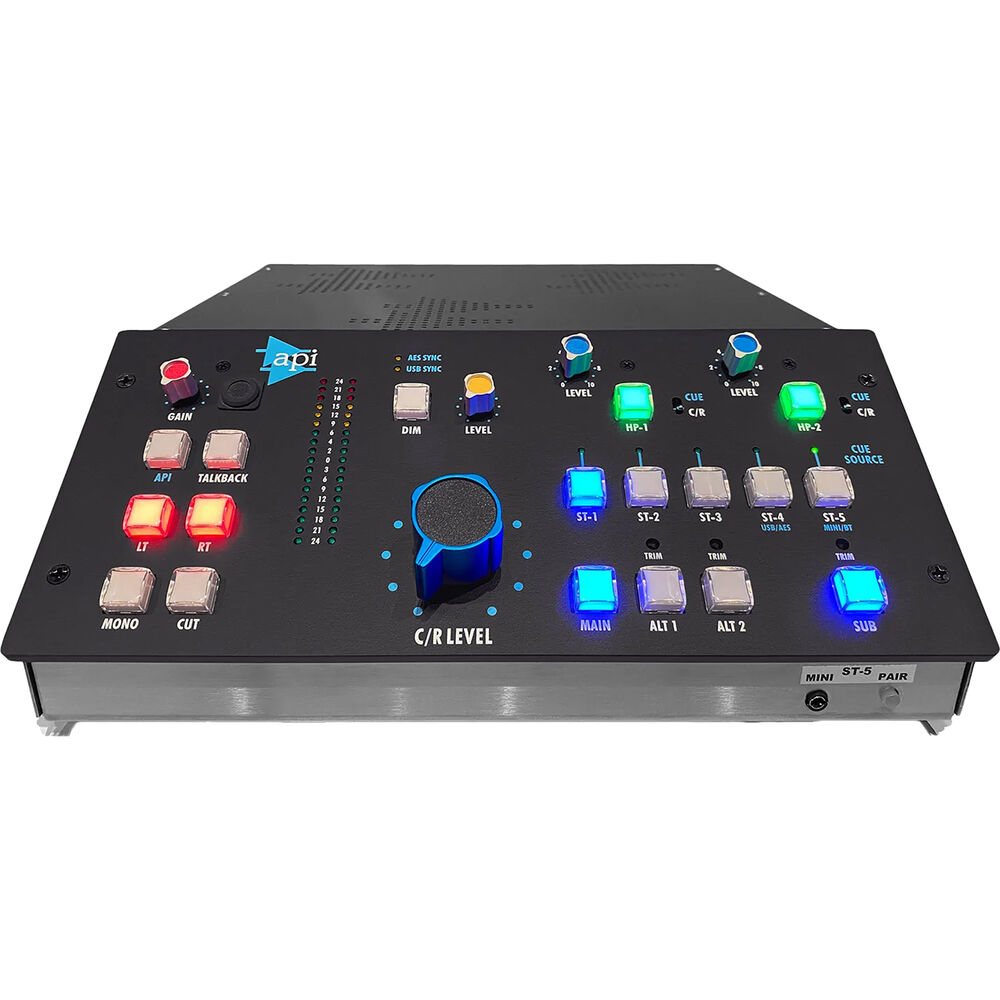

Derived directly from the center section of API Audio pro mixing consoles, the MC531 is a desktop monitor controller with comprehensive control functions. Sporting three balanced, line-level inputs and outputs, you can easily integrate the MC531 into any professional audio system for precision control and monitoring via up to three selectable monitor destinations.

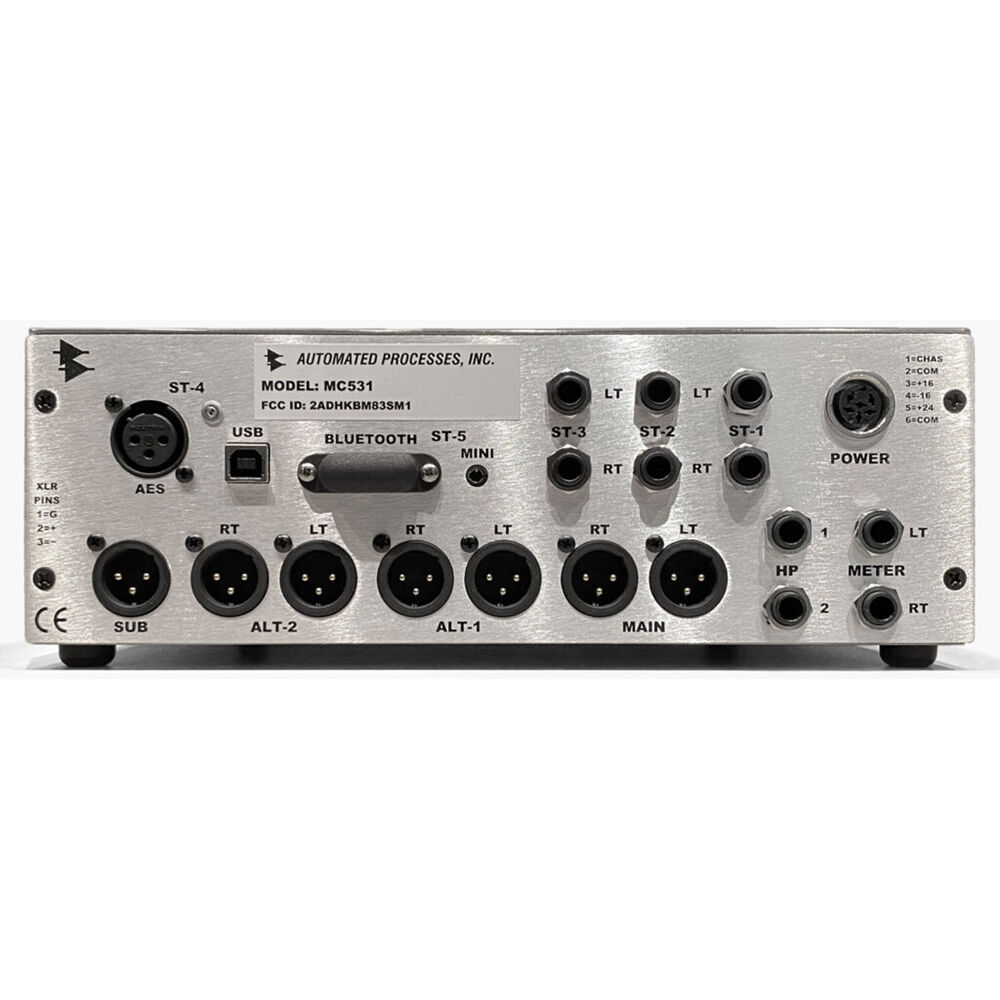

Along with the three stereo line-level inputs, the MC531 features both rear- and front-panel 3.5mm stereo inputs. All five analog inputs are buffered with 2510 op-amps. The unit also features selectable digital input via AES3 or USB as well as wireless Bluetooth connectivity. All three balanced stereo outputs sport adjustable trim levels, along with a mono balanced output ideal for feeding a subwoofer. The Sub is independently assignable and all stereo outputs and includes mute, mono, and DIM controls. Two 1/4" headphone outputs are available and feature toggles for C/R and Cue Source (selectable from any of the inputs). The MC531 sports an integrated talkback mic with gain control. The 18-segment stereo LED meter lets you keep an eye on things, and you can also utilize a balanced, stereo, unity-level meter output for external meter systems. The MC531 includes an external power supply with locking DC power connector.
- C/R level volume pot controls the output level for your selected monitor system
- Dim level and activation button reduces the output level of selected monitors per the dedicated volume pot
- Selectable API 2520 op-amp/transformer or electronically balanced output stage
- Mono summing button sums all channels to a single mono output channel
- LT and RT are mute buttons which the cut left or right channel feeds on monitors
- Cut fully mutes the selected monitors
Items Included
- API AUDIO MC531 Desktop Monitor Controller
- Power Supply
- Limited 5-Year Manufacturer Warranty
Additional Resources
API AUDIO MC531 Specs
| Maximum Input Level |
+28 dBu
|
| Maximum Output Level |
+28 dBu
|
| Frequency Response |
20 Hz to 50 kHz (?0.5 dB)
|
| Signal-to-Noise Ratio |
115 dB
|
| USB I/O |
1 x USB-B Female Input
|
| Audio I/O |
1x XLR 3-Pin AES3 Input
6x 1/4" TRS Line Input (3 Stereo Pairs, Balanced) 2x 1/8" / 3.5 mm TRS Line Input (Front Panel and Rear Panel) 6x XLR 3-Pin Monitor Output (3 Stereo Pairs, Balanced) 1x XLR 3-Pin Speaker Output (Subwoofer) 2x 1/4" TRS Headphone Output 2x 1/4" TRS Output (Meter, Balanced, Unity Gain) |
| Wireless |
Bluetooth
|
| Power Source |
AC Adapter with Power Brick (Included)
|
| Power Consumption |
16 W
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
12.75 x 11 x 4" / 32.38 x 27.9 x 10.2 cm
|
| Weight |
8.5 lb / 3.9 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
