Description
API AUDIO SM164 Overview

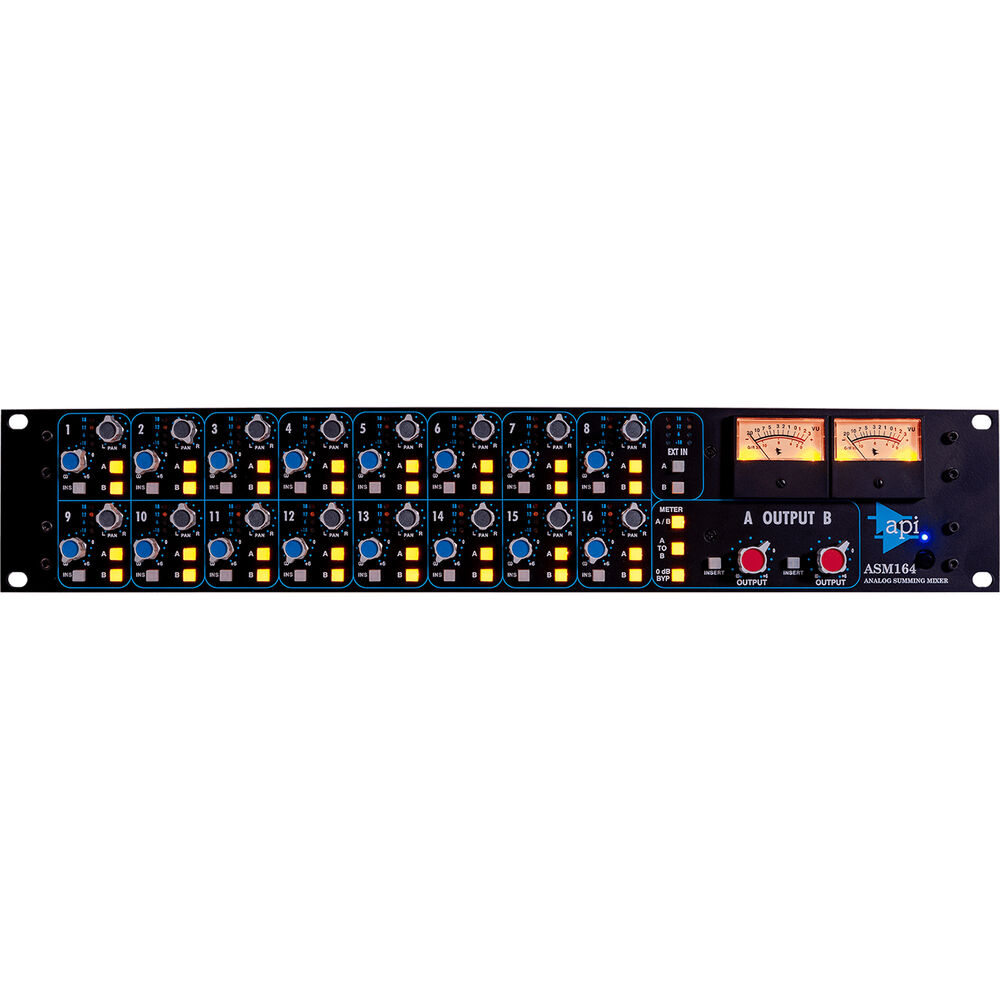

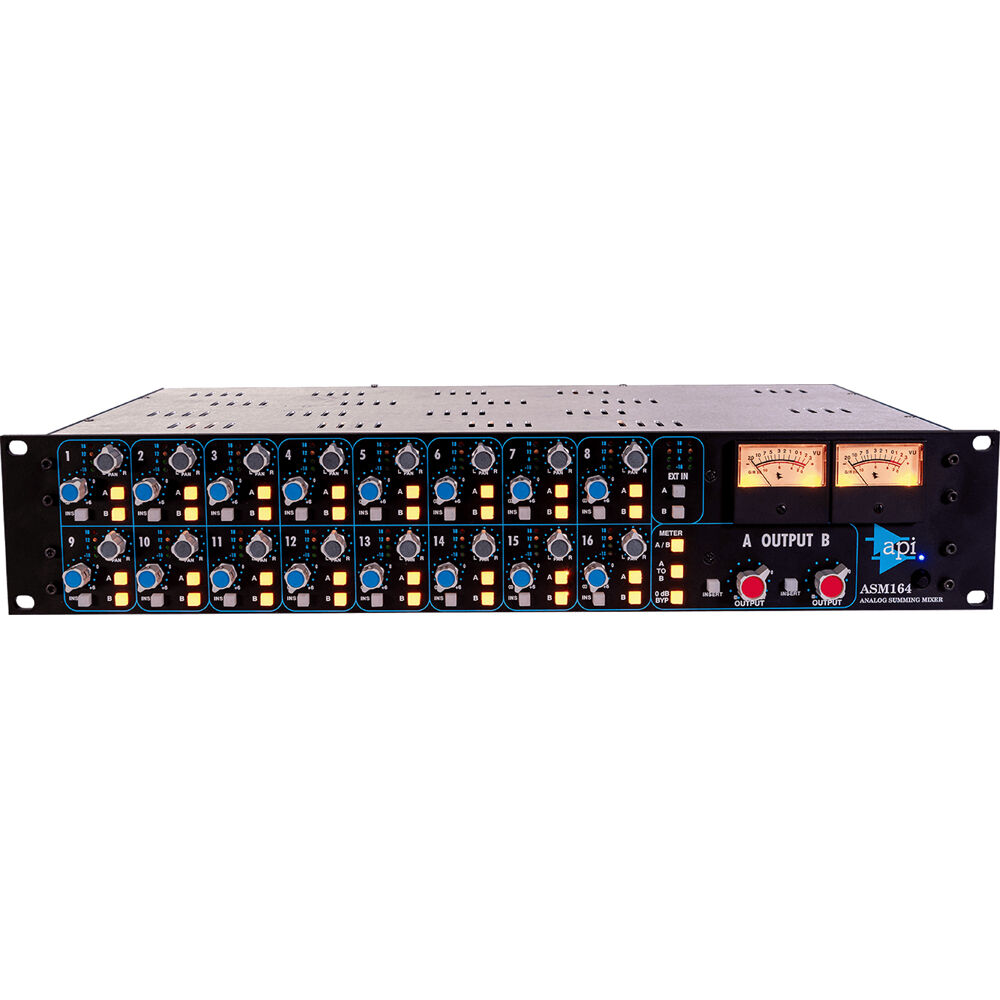

Building upon API Audio's rich history of designing high-quality mixing consoles, the ASM164 is a 16-channel rackmounted summing mixer with the same 2510 input op-amp as The BOX. With 31-step detented level control, variable pan control, Mix-A or Mix-B assignment, and a 4-segment LED level meter per channel, the ASM164 is a comprehensive 2 RU summing mixer.

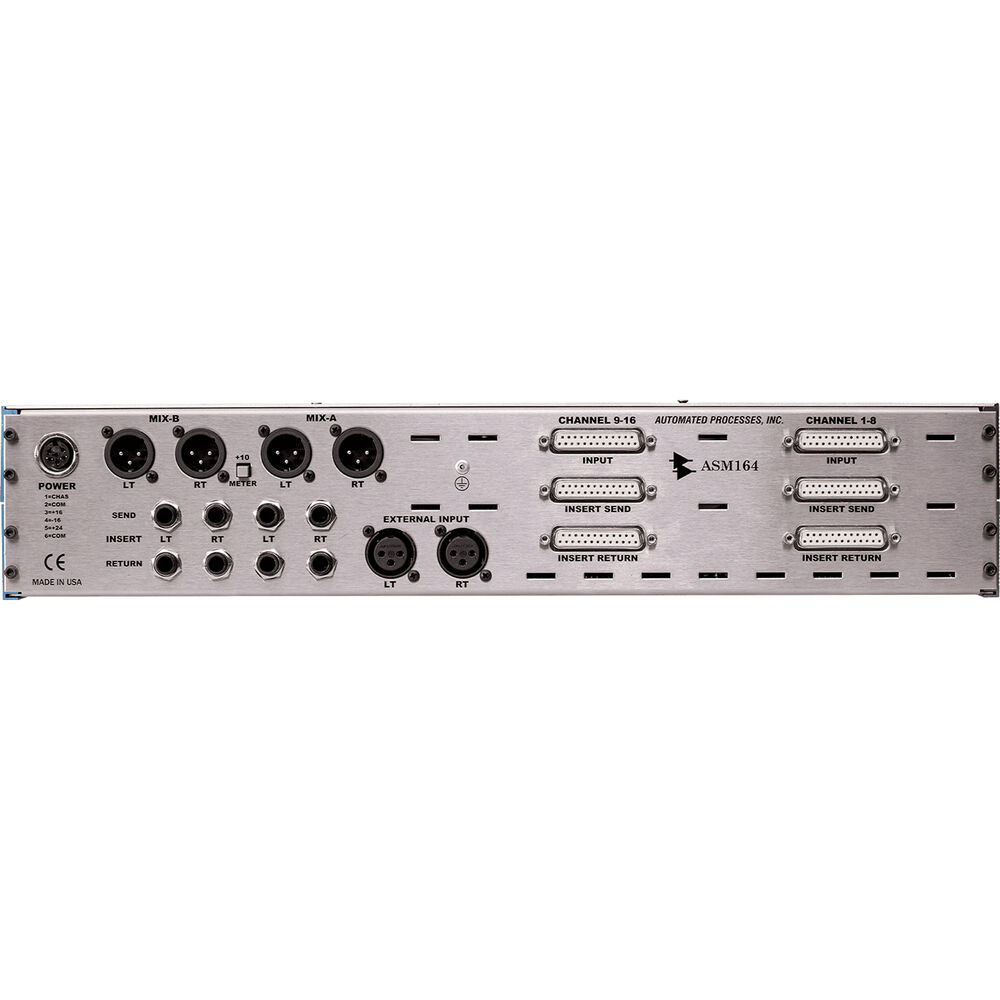

Each channel sports insert sends and returns via balanced 1/4" TRS and DB25 connectors, with inserts selectable on each channel via push button. The ASM164 also includes line-level DB25 connections for the main channel inputs, XLR 3-pin jacks for stereo input, and stereo XLR pairs for Mix-A and Mix-B output. Complimenting the 2510 circuitry on the input, the ASM164 also features 2520 op-amps and a custom output transformer, delivering the signature API discrete analog sound. An illuminated global 0 dB channel level control bypass is available on the main control section, along with Mix-A to Mix-B bus summing and a button for routing Mix-A or Mix-B to the analog VU meters for monitoring output level. The ASM164 includes an external power supply with a locking 6-pin DC power connector.
- Two DB25 connectors for line-level input (8 channels each)
- DB25 connectors for insert send and return connections with external FX
- Stereo pair of balanced XLR 3-pin inputs for external signals
- Two stereo pairs of XLR 3-pin male outputs for Mix-A and Mix-B
- Balanced 1/4" TRS inputs and outputs for alternate insert send/return connections
- 31-step, detented level control on each channel
- Pan pot with center detent on each channel
- Button on each channel for assigning input to Mix-A or Mix-B
- Illuminated buttons on each channel for engaging balanced inserts
- Buttons for assigning external XLR input to either Mix-A or Mix-B
- 31-position detented stereo output level control for Mix-A and Mix-B
- Illuminated buttons for inserts on either Mix-A or Mix-B
- 0 dB bypass switch for deactivating channel level control, setting each to unity gain
- A to B button sums Mix-A to Mix-B
Items Included
- API AUDIO ASM164 16-Channel Summing Mixer
- External Power Supply
- Limited 5-Year Manufacturer Warranty (Parts)
- Limited 1-Year Manufacturer Warranty (Labor)
Additional Resources
API AUDIO SM164 Specs
| Inputs |
2 x DB25 Female Input
2 x XLR 3-Pin Female Input (1 Stereo Pair) |
| Outputs |
4 x XLR 3-Pin Male Output (2 Stereo Pairs, Mix-A, Mix-B)
|
| Inserts |
2 x DB25 Female Input (Insert Return)
4 x 1/4" TRS Input (2 Stereo Pairs, Insert Return) 2 x DB25 Female Output (Insert Send) 4 x 1/4" TRS Output (2 Stereo Pairs, Insert Send) |
| On-Board Processors |
None
|
| Gain Control |
31-Step, Center Detented
|
| Maximum Output Level |
+25 dBu
|
| Frequency Response |
20 Hz to 40 kHz (?0.5 dB)
|
| THD + N |
<0.02%
|
| Signal-to-Noise Ratio |
-112 dBr
|
| Dimensions |
19 x 11.25 x 3.5" / 48.26 x 28.57 x 8.89 cm
|
| Weight |
12 lb / 5.5 kg
|
