| ₹ 144300.0 includes GST and import duties. | |
| B2B customers can avail ₹ 22005.75 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
API AUDIO 512C Overview

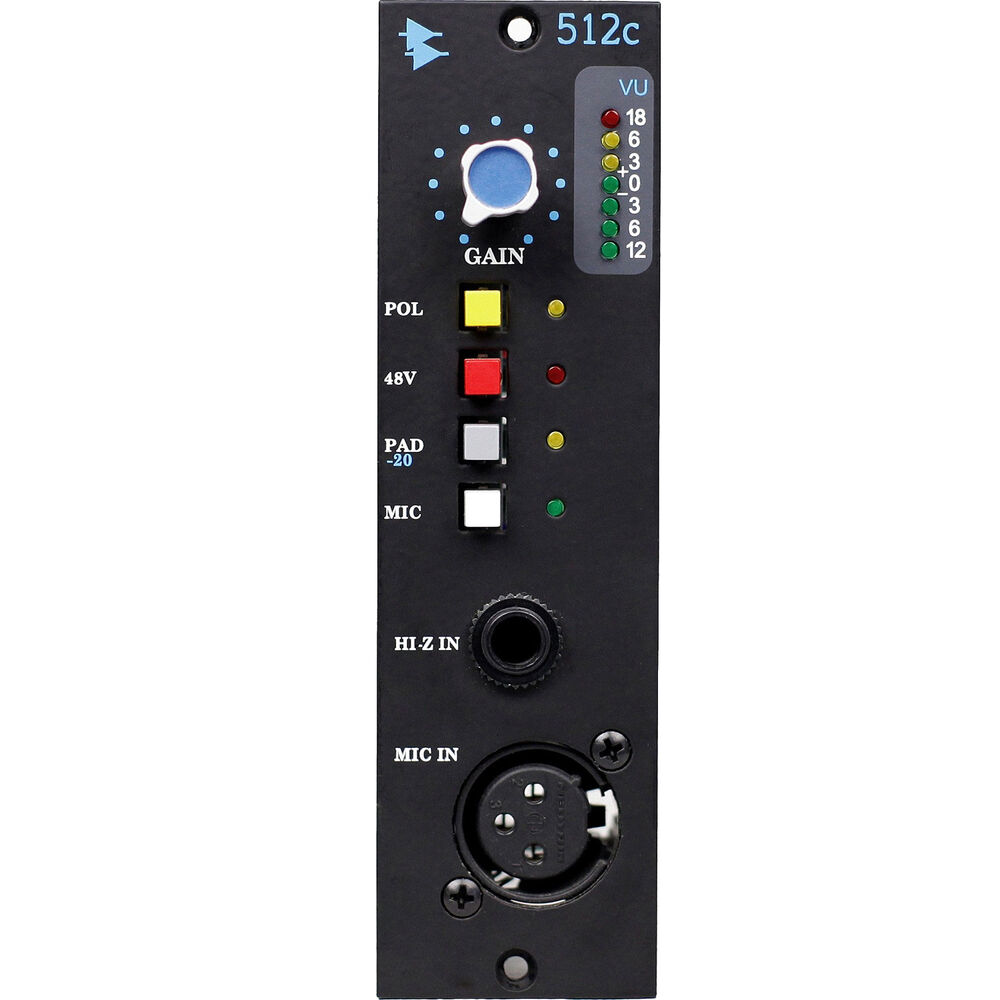

Ideal as a front end in studios for recording a wide range of input sources, the API Audio 512c mic pre is a mic/line/instrument preamp module designed for 500-series racks. Sporting up to 65 dB of mic gain (45 dB of instrument gain) and front-panel XLR mic and 1/4" Hi-Z / line input jacks, as well as rear panel mic input support, this module provides low-noise input for any signal.
The 48V phantom power is available on tap for condensers and other active mics. When taking in excessively hot signals, such as those already boosted by a preamp, a -20 dB pad is available. You can also engage a polarity flip switch. A switchable input selector lets you choose between the XLR mic and 1/4" instrument/line inputs. You can also engage an internal rear connection selection jumper to engage parallel rear-panel XLR mic inputs on compatible 500-series rack chassis. An LED VU meter lets you keep an eye on your signal levels. With discrete circuitry and the signature 2520 op-amp, this preamp module offers an excellent front-end sound, with warmth and reliability.
Items Included
- API AUDIO 512c 500-Series Mic/Line/Instrument Preamp Module
- Limited 5-Year Manufacturer Warranty
Not Included
-
Expansion ChassisEssential
Additional Resources
API AUDIO 512C Specs
| Audio I/O |
1x XLR 3-Pin Mic Input (Front Panel)
1x 1/4" TS Hi-Z/Instrument/Line Input (Front Panel) |
| Power Source |
Proprietary Interface
|
| DC Input Power |
16 VDC
|
| Operating Current |
60 mA
|
| Mounting |
Front: 2x 500-Series Rack Screw
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
7 x 5.25 x 1.5" / 17.8 x 13.34 x 3.8 cm
|
| Weight |
1.41 lb / 0.64 kg
|
| Package Weight |
1.9 lb
|
| Box Dimensions (LxWxH) |
10.1 x 6.4 x 4.7"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 141414.0 |
| 3-5 | ₹ 139971.0 |
| 5-10 | ₹ 137085.0 |
| 10+ | ₹ 134199.0 |
Bulk discount will be automatically applied during checkout based on quantity.
