Description

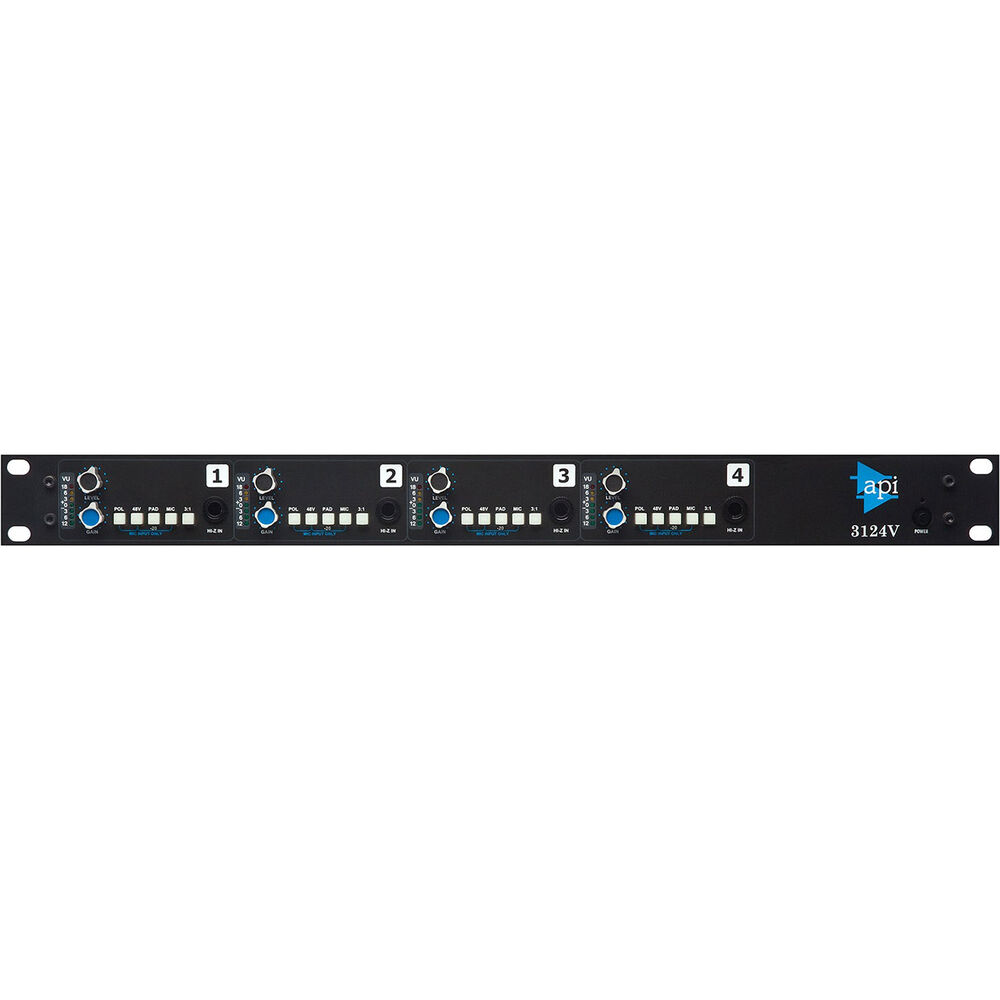

API AUDIO 3124V Overview
Ideal as a front-end mic pre in studios and mobile recording setups, the API Audio 3124V is a 4-channel mic pre with variable output control. Offering up to 65 dB of clean mic gain, front-panel Hi-Z inputs, and LED VU meters on each channel, the 3124V is an optimal start for any signal.

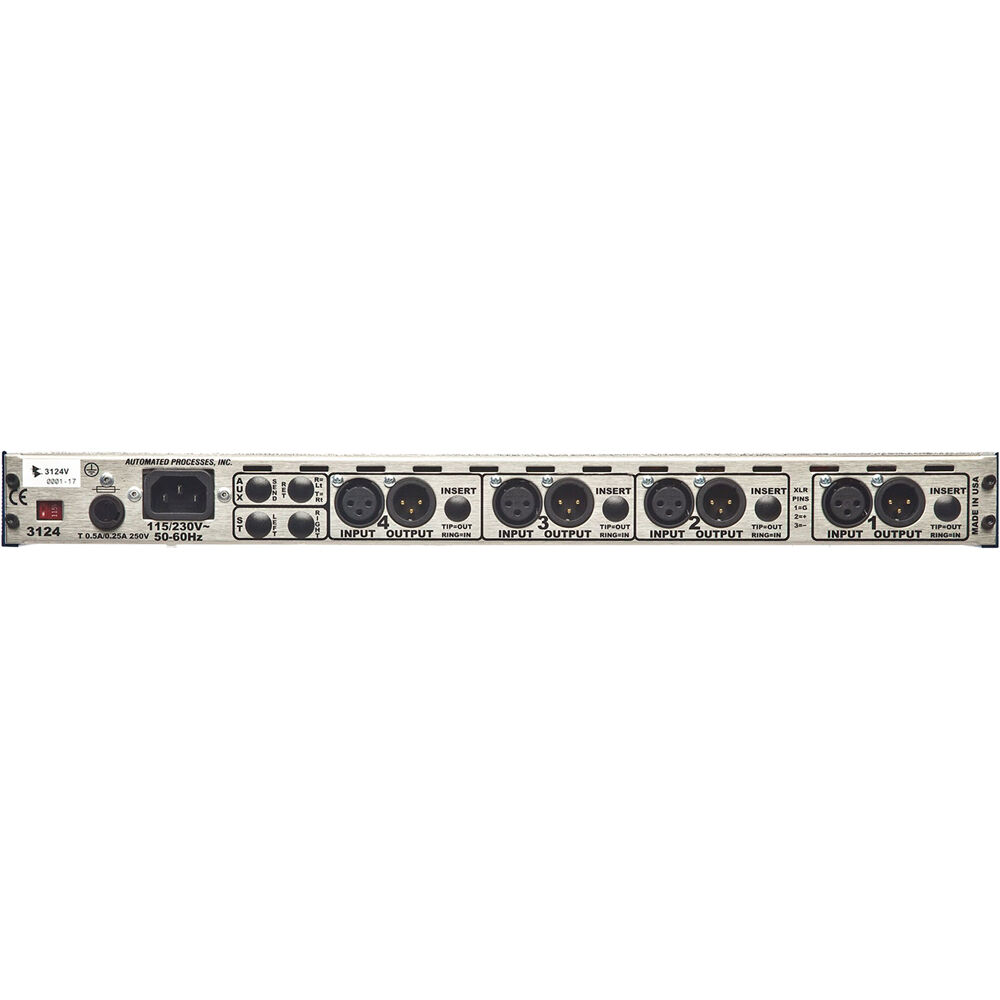

The 3124MV features pristine API circuitry, including the AP2516 input transformer, 2520 op-amps, and a custom output transformer. Each input channel sports level and gain controls, as well as buttons for polarity inversion, 48V phantom power, a -20 dB pad, mic/line input selection, and the 3:1 transformer tap function, which reduces the gain ratio from 1:3 to 1:1. Rear-panel connections include balanced XLR inputs and outputs per channel. Finally, the unit sports a universal internal power supply with manual switching, supporting international power standards.
Items Included
- API AUDIO 3124V 4-Channel Microphone Preamp
- Limited 5-Year Manufacturer Warranty
Additional Resources
API AUDIO 3124V Specs
| Input Impedance |
Mic: 1.5 Kilohms>br> Hi-Z: 470 Kilohms
|
| Output Impedance |
<75 Ohms
|
| Frequency Response |
10 Hz to 20 kHz
|
| EIN |
-129 dB
|
| Noise |
-91 dBm
|
| THD |
0.09% (Max)
|
| Audio I/O |
4x XLR 3-Pin Mic Input
4x 1/4" TS Hi-Z/Instrument Input 4x XLR 3-Pin Line Output (Transformer Balanced) |
| Power Source |
AC Input
|
| AC Input Power |
Changing Voltage Requires Manual Switching
115 to 230 VAC, 50 / 60 Hz |
| Power Consumption |
19.2 W
|
| Mounting |
Front: 4x Standard Rack Screw
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
19 x 11 x 1.75" / 48.3 x 27.9 x 4.45 cm
|
| Weight |
10.38 lb / 4.71 kg
|
| Package Weight |
14.365 lb
|
| Box Dimensions (LxWxH) |
23 x 16 x 6.5"
|
