Description
API AUDIO 312 Overview

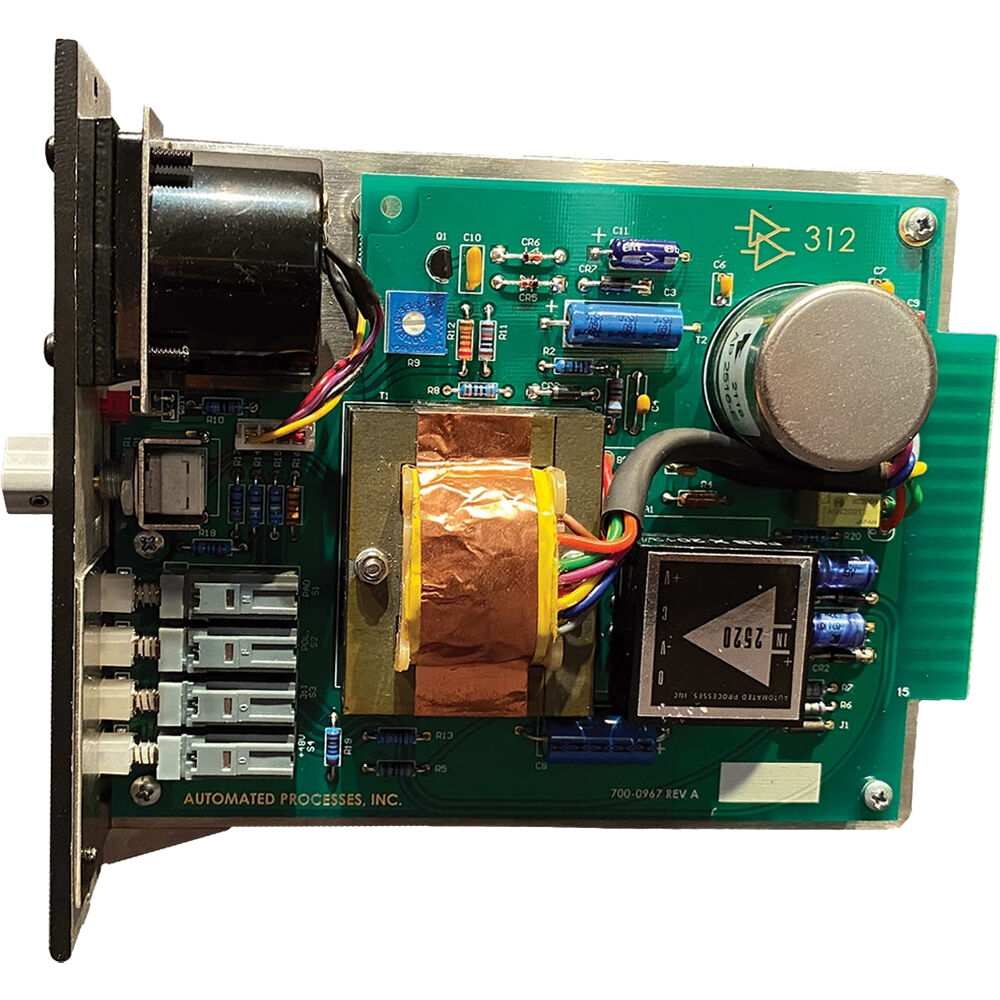

Faithfully recreating one of the most sought-after API Audio mic preamps, the 312 is a 500-series mic preamp module sporting 69 dB of warm, vintage-style gain. Loaded with API's proprietary 2520 op-amp, AP2516 input transformer, and discrete circuitry all around, this legendary mic pre provides massive headroom and a smooth sound for a diversity of studio applications.

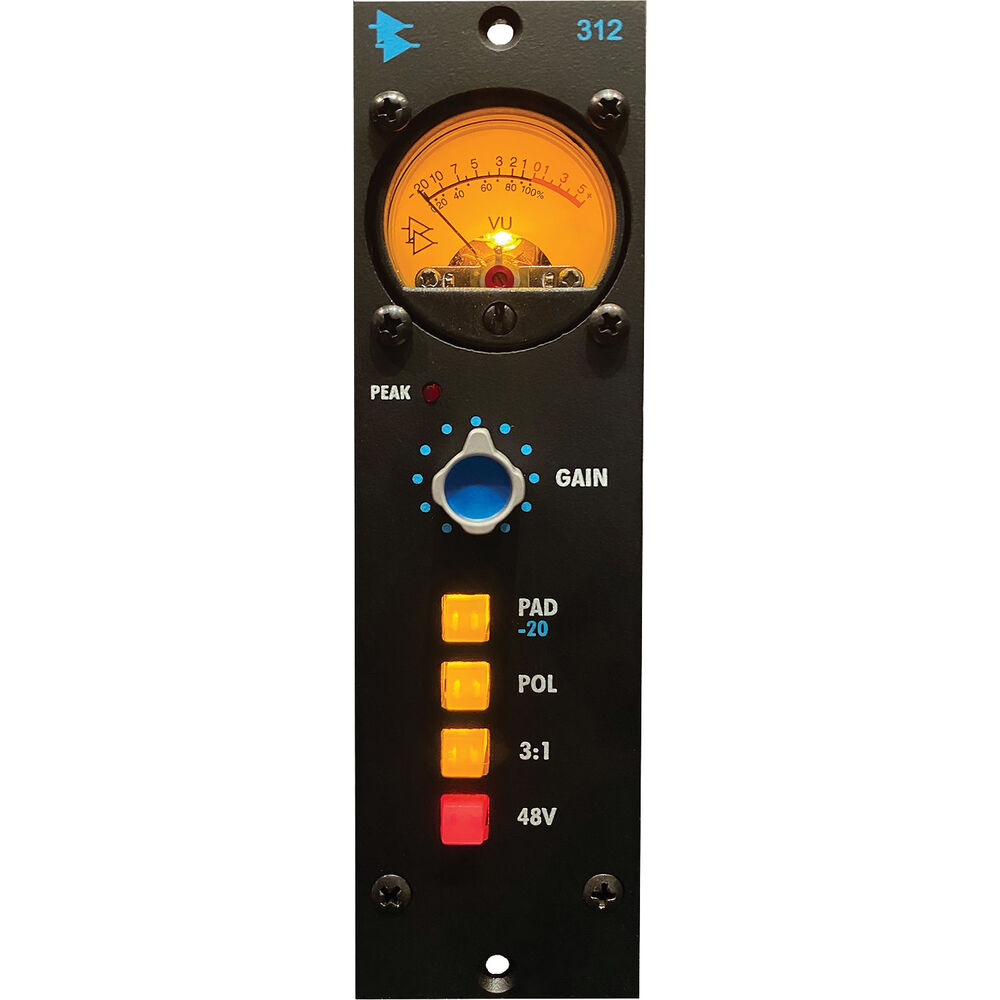

The 312 sports a -20 dB pad switch for handling excessively loud inputs. Input monitoring is enabled via the illuminated VU meter (0 VU = +4 dBu) and a red peak LED indicator. By hitting the 3:1 output transformer tap selector button, the preamp reduces the output gain ratio from 1:3 to 1:1, which equates to approximately 10 dB. The mic pre also features selectable 48V phantom power and a polarity inversion switch. The onboard gain control provides adjustment from +34 to +69 dB (without the pad engaged).
Based on API cofounder Saul Walker?s original designs, the API 312 Mic Pre combines API's 2520 op-amps and proprietary transformers. It delivers the analog warmth, massive headroom, and unmistakable sound for which API is known, in a convenient 500-series format.
Items Included
- API AUDIO 312 500-Series Microphone Preamp Module
- Limited 5-Year Manufacturer Warranty
Not Included
-
Expansion ChassisEssential
Additional Resources
API AUDIO 312 Specs
| Gain Control |
+34 to +69 dB (+14 to +49 dB with Pad)
|
| Maximum Input Level |
-4 dBu (+16 dBu with Pad)
|
| Maximum Output Level |
+31 dBu
|
| Output Impedance |
<70 Ohms (Transformer Balanced)
|
| Frequency Response |
20 Hz to 40 kHz (?0.5 dB)
|
| Signal-to-Noise Ratio |
120 dB
|
| Power Source |
Proprietary Interface
|
| DC Input Power |
16 VDC
|
| Operating Current |
55 mA
|
| Mounting |
Front: 2x 500-Series Rack Screw
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
6.75 x 5.25 x 1.5" / 17.14 x 13.34 x 3.8 cm
|
| Weight |
1.5 lb / 0.7 kg
|
