Description

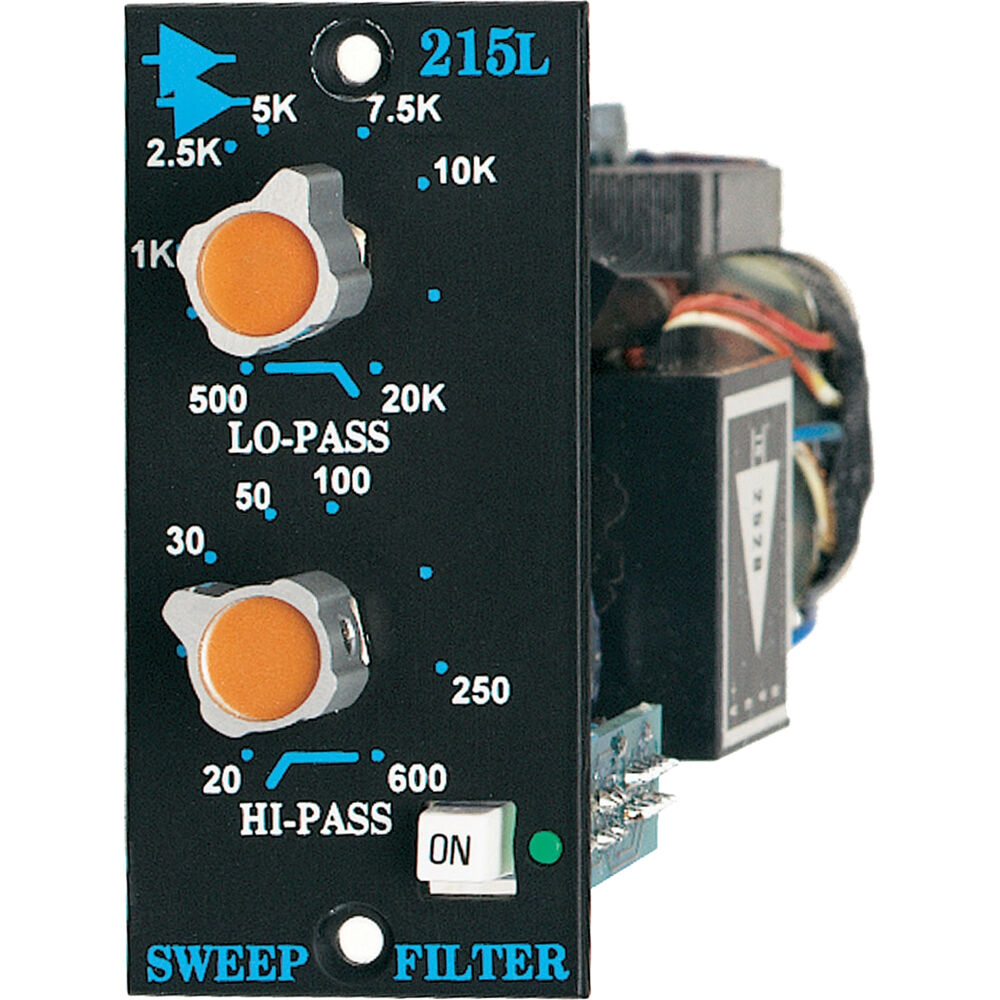

API AUDIO 215L Overview
Designed for use with 200-series API Audio hardware such as the Legacy and Vision consoles and the L200 rack enclosure, the 215L is a high-pass/low-pass sweep filter module designed to cover a 20 Hz to 20 kHz range. With a 6 dB per octave low-pass filter and 12 dB per octave high-pass filter, the 215L makes it easy to shape frequencies while preserving natural tone.
The 215L sports a passive filter design, which ensures a smooth tone with sculpting frequencies. The circuit features unity gain throughout and a transformer-balanced output set to +28 dBu. The module includes a hardwired bypass switch for silently disengaging the filter. With a fully discrete analog design that includes the reliable 2510 and 2520 op-amps, the 215L provides the signature sound API hardware is known for.
The 215L can be used in the Legacy, Legacy Plus, or Vision series consoles, or in the L200 Rack. The 215L filter makes use of the 2520 and 2510 op-amps and therefore exhibits the reliability, long life, and uniformity which are characteristic of API products.
Items Included
- API AUDIO 215L 200-Series High-Pass / Low-Pass Sweep Filter Module
- Limited 5-Year Manufacturer Warranty (Parts)
- Limited 1-Year Manufacturer Warranty (Labor)
Not Included
-
Expansion ChassisEssential
Additional Resources
No additional resources available
API AUDIO 215L Specs
| Compatibility |
API Audio Legacy Consoles / Vision Consoles / L200R Rack Chassis
|
| Input Impedance |
>20 Kilohms (Balanced)
|
| Output Impedance |
85 Ohms (Transformer Balanced)
|
| Maximum Input Level |
+28 dBu
|
| Frequency Response |
30 to 20 kHz
|
| Noise |
98 dB
|
| THD |
0.02%
|
| Power Source |
Proprietary Interface
|
| DC Input Power |
16 VDC
|
| Operating Current |
60 mA (Maximum)
|
| Mounting |
Front: 1x 200-Series Rack Screw
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
6.75 x 2.65 x 1.25" / 17.14 x 6.73 x 3.17 cm
|
| Weight |
0.51 lb / 0.23 kg
|
