Description

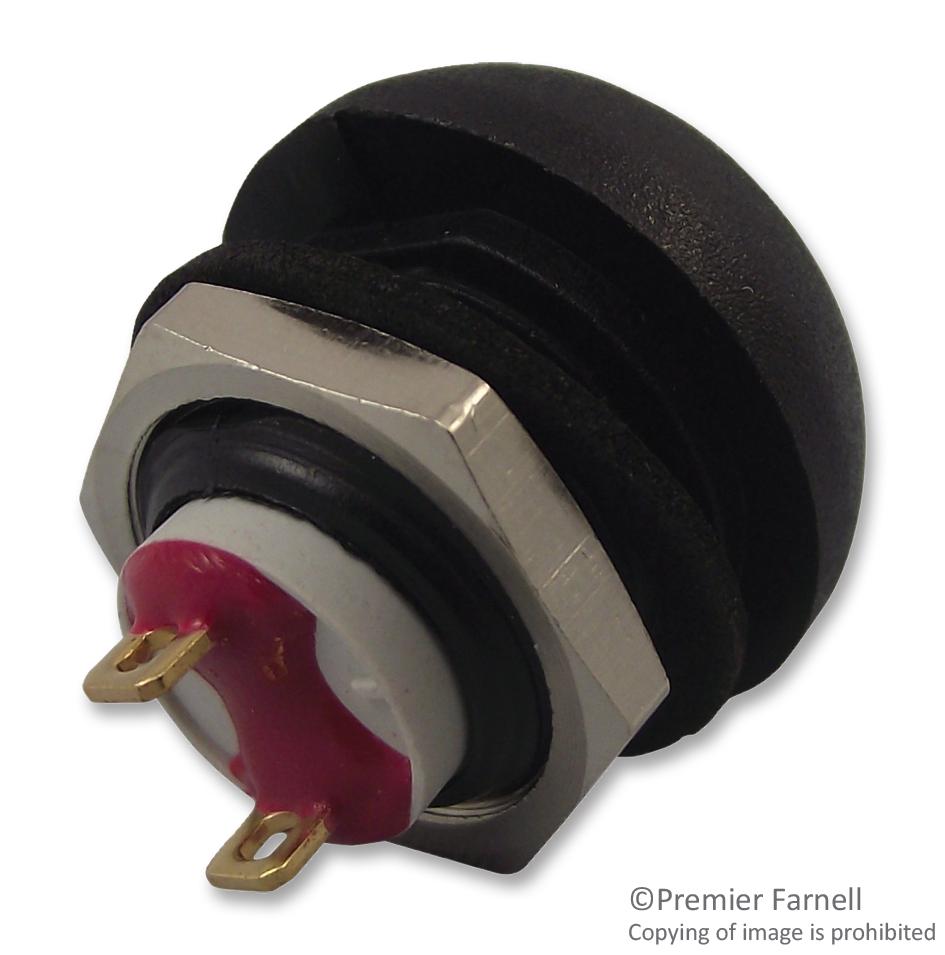

The IS series sealed momentary Pushbutton Switch with gold-plated silver contacts. It is made of thermoplastic case with polyamide 6/6 actuator.
- Snap-in and threaded bushing
- Compact and lightweight
- Behind-panel depth of 13mm
- 50% reduction in weight compared to metallic models
- Tactile feedback
- Sealed to IP54
- UL94-V0 Flammability rating
Applications
Industrial
Product details
| Product Range: IS Series |
| Panel Cutout Diameter: 13.6mm |
| Contact Configuration: SPST-NO |
| Switch Operation: Momentary |
| Pushbutton Actuator Style: Round |
| Actuator / Cap Colour: Blue |
| Contact Current AC Max: 400mA |
| Contact Voltage VAC: 32V |
| Contact Current DC Max: 100mA |
| Contact Voltage VDC: 50V |
| IP Rating: IP67 |
| Switch Mounting: Panel Mount |
| Switch Terminals: Solder Lug |
| Illumination Colour: Non Illuminated |
| Panel Cutout (H x W): - |
Other details
| Brand | APEM |
| Part Number | ISR3SAD100160 |
| Quantity | Each |
| Technical Data Sheet EN |  |
