Description

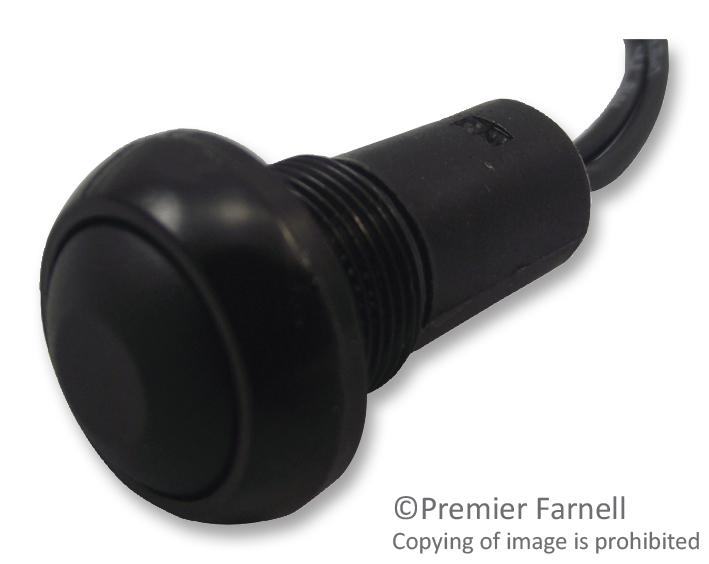

The IP series latching Pushbutton Switch with gold-plated silver contacts. It is made of thermoplastic case with polyamide 6/6 actuator.
- Illuminated or non-illuminated
- Compact
- Behind-panel depth less than 20mm
- Flat round actuator for optional marking
- Sealed to IP67
- -40 to 85°C Operating temperature range
Applications
Industrial
Product details
| Product Range: IP |
| Panel Cutout Diameter: 13.6mm |
| Contact Configuration: SPST-NO |
| Switch Operation: Momentary |
| Pushbutton Actuator Style: Round |
| Actuator / Cap Colour: Black |
| Contact Current AC Max: 500mA |
| Contact Voltage VAC: 48V |
| Contact Current DC Max: 5A |
| Contact Voltage VDC: 28V |
| IP Rating: IP67, IP69K |
| Switch Mounting: Panel Mount |

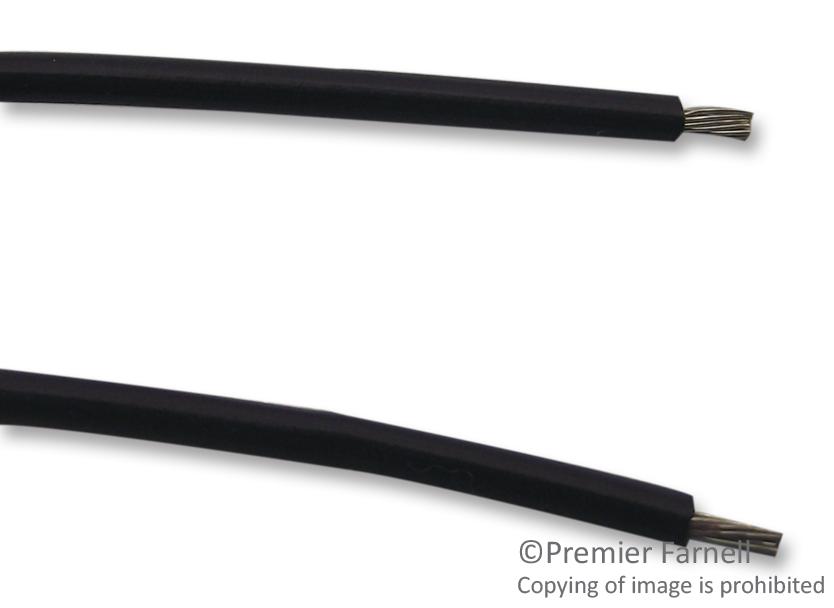

| Switch Terminals: Wire Leaded |
| Illumination Colour: Non Illuminated |
| Panel Cutout (H x W): - |
Other details
| Brand | APEM |
| Part Number | IPR3FAD2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
