| ₹ 2505.04 includes GST and import duties. | |
| B2B customers can avail ₹ 382.02 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

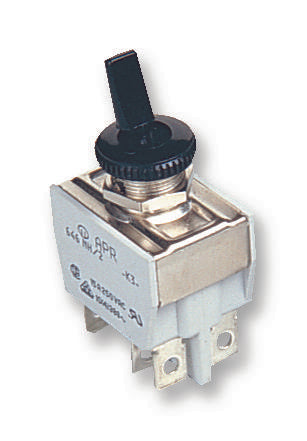

The 600NH series high-amperage Toggle Switch with insulated lever. It is available in 1, 2 and 3 poles in numerous configurations, solder lug/quick connect or screw terminals. The contacts are resistance-welded to the terminal for increased mechanical strength. The terminal and contact support are manufactured from a single piece of metal. The contacts are resistance-welded to the terminal for increased mechanical strength. These switches are suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC.
- Up to 15A current rating plus
- 2 and 3 Maintained or momentary positions
- Solder lug/quick-connect terminals 6.35 x 0.8mm or screw terminals + clamp
- 1, 2 and 3 pole configurations
- Normalized quick-connect terminals
Audio, Commercial, Communications & Networking, Industrial
Other details
| Brand | APEM |
| Part Number | 649NH/2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 2454.94 |
| 3-5 | ₹ 2429.89 |
| 5-10 | ₹ 2379.79 |
| 10+ | ₹ 2329.69 |
Bulk discount will be automatically applied during checkout based on quantity.
