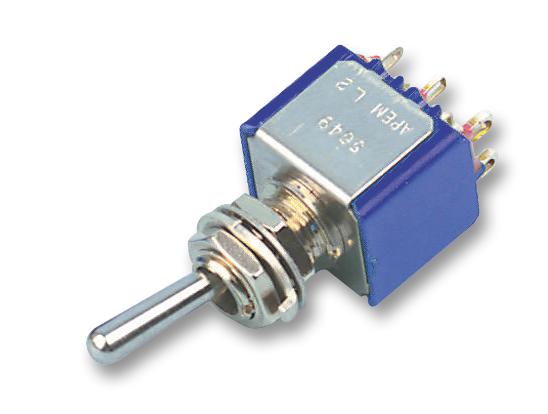

The 5000 series Miniature Toggle Switch available in wide range models and amp options. It is available in 1, 2, 3 and 4-pole configurations. It has solder lug and PC terminals, gold plated or silver contacts, 17 actuators including toggles, paddle levers and locking levers in different lengths. It is available in 12-terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap.
- Threaded bushing versions for panel mounting and plain bushing versions for PCB
- 5 Contact materials from dry circuit to 6A 125VAC and high inrush up to 120A 2ms
- 8 Functions including maintained and momentary versions
- 6 Bushing styles from 6mm (.236") plain to 11.9mm (15/32") threaded
- 3 Types of finish including military black
- 4 Types of sealing for terminal or front panel requirements
- Numerous accessories available for actuator and bushing option
Applications
Audio, Commercial, Communications & Networking, Industrial
Product details
| Switch Operation |
(On)-Off-(On) |
| Contact Configuration |
DPDT |
| Illumination |
Non Illuminated |
| Product Range |
5000 Series |
| Contact Current Max |
6A |
| Switch Mounting |
Panel |
| Contact Voltage AC Nom |
125V |
| Switch Terminals |
Solder |
| Contact Voltage DC Nom |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
APEM |
| Part Number |
5647AB |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
