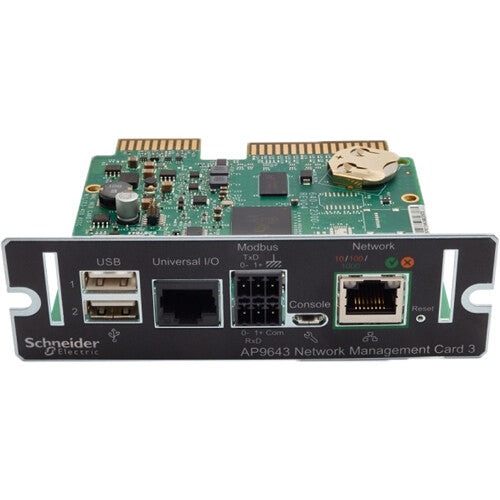

APC AP9643 Overview
The UPS Network Management Card 3 from APC is compatible with Smart-UPS devices with a SmartSlot with the SUM, SURT, SURTA, SURTD, SMT, SMX, and SRT prefixes, and SUA devices manufactured after 2008. It is also compatible with single phase Symmetra UPS devices. It provides users with two USB ports, which support grading the NMC and UPS firmware from a USB flash drive, plus the optional APC USB Wi-Fi Device. It also supports one universal input/output port, which lets you connect a temperature or temperature/humidity sensor, or relay an input/output connector that supports two input contacts and one output relay using the optional AP9810 Dry Contact I/O Accessory. Using the serial RS485 sport, you'll be able to take advantage of Modbus RU support.
- Provides UPS control and self-test scheduling features
- Provides data and event logs
- Enables you to set up notifications through event logging, e-mail, Syslog and SNMP traps
- Provides support for PowerChute Network Shutdown
- Supports using a Dynamic Host Configuration Protocol (DHCP) or BOOTstrap Protocol (BOOTP) server to provide the network (TCP/IP) values of the NMC
- Provides the ability to export a user configuration (.ini) file from a configured card to one or more unconfigured cards without converting the file to a binary file
- Provides a selection of security protocols for authentication and encryption
- Communicates with StruxureWare Data Center Expert, StruxureWare Operations, or EcoStruxure IT
- Supports Modbus TCP/IP
- Supports BACnet/IP
In the Box
- APC UPS Network Management Card 3 with Environmental Monitoring and MODBUS
- Temperature Sensor
- USB Cable
- Limited 2-Year Manufacturer Warranty
APC AP9643 Specs
General
| Compatibility |
Not Specified by Manufacturer |
Environmental
| Environmental Protection |
None |
Physical
| Dimensions |
4.76 x 4.25 x 1.5" / 12.09 x 10.79 x 3.8 cm |
| Weight |
0.31 lb / 141 g |
Packaging Info
| Package Weight |
0.955 lb |
| Box Dimensions (LxWxH) |
9.4 x 6.9 x 2" |
