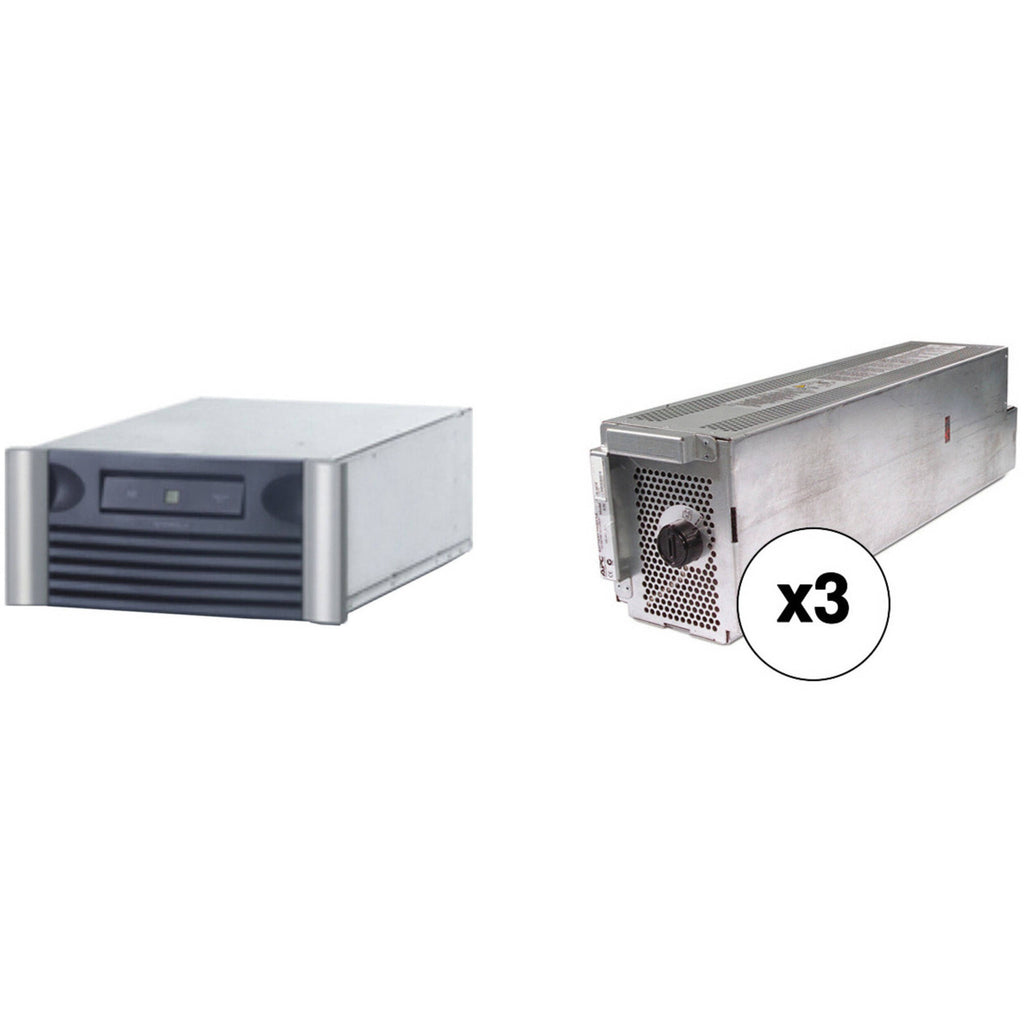

APC SYARMXR3B3 Overview
The APC Symmetra LX Rackmount XR Frame with 3 x SYBT5 Battery Modules is a Kit that's an extended run rackmount solution for your scalable Symmetra LX system. This bundle includes three hot-swappable SYBT5 battery modules.

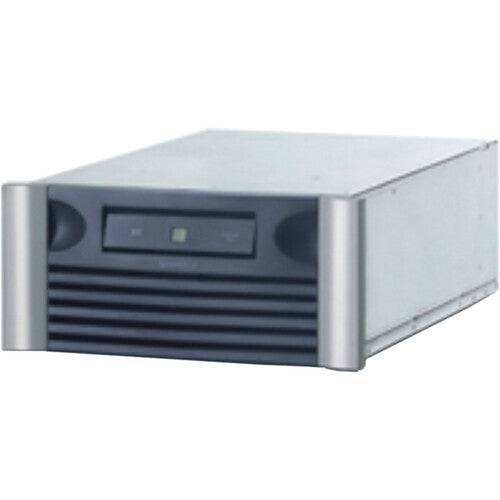

APC Symmetra 3 Battery Rackmount XR Frame
The black Symmetra 3 Battery Rackmount XR Frame from APC is an extended run rackmount for compatible APC systems. It accommodates up to three hot-swappable SYBT5 battery modules that supply uninterrupted power to protected equipment, even when the batteries are being replaced.

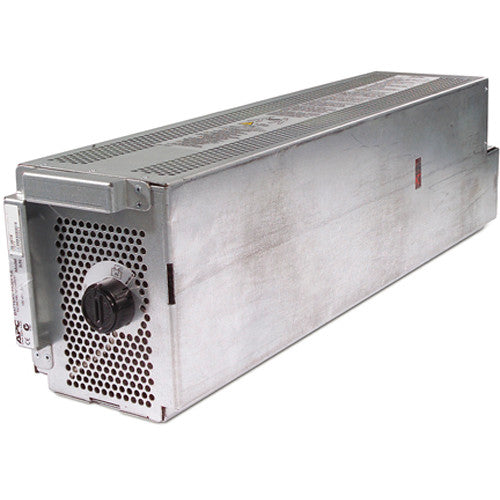

APC Symmetra LX Battery Module
With a battery life expectancy of 3 to 5 years, the Symmetra LX Battery Module from APC is designed to offer consistent performance making it a reliable power source. The maintanence-free sealed lead-acid battery features an enclosed battery cartridge with 10 battery blocks per string and a capacity of 1,080 volt-amp-hours. Hot pluggable operation makes for easy installation in a variety of configurations including 1U rack mount enclosures.
1U rack mountable (hardware included)
In the Box
- APC Symmetra 3 Battery Rackmount XR Frame
- Limited 2-Year Manufacturer Warranty
- 3 x APC Symmetra LX Battery Module
- Limited 2-Year Manufacturer Warranty
APC Symmetra 3 Battery Rackmount XR Frame Specs
General
| Compatibility |
APC Symmetra LX Battery SYBT5 / Symmetra LX UPS |
Power
| Power Source |
Proprietary Interface (Built-In) |
Environmental
| Certifications |
REACH, RoHS, CSA
*as per Manufacturer |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 95% |
| Operating Altitude |
0 to 10,000' / 0.0 to 3048 m |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
| Storage Humidity |
0 to 95% |
| Storage Altitude |
0 to 15,000' / 0.0 to 4572 m |
Physical
| Mounting |
Front: 5 x Rackmount |
| Color |
Black |
| Dimensions |
27.01 x 18.58 x 8.46" / 68.61 x 47.19 x 21.49 cm |
| Weight |
59.13 lb / 26.82 kg |
Packaging Info
| Package Weight |
82 lb |
| Box Dimensions (LxWxH) |
39 x 24 x 15" |
APC Symmetra LX Battery Module Specs
| Cells |
10 |
| Battery Capacity |
1080 VAh |
| Chemistry |
Lead-Acid |
| Output Voltage |
120 VDC |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 95% |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
| Storage Humidity |
0 to 95% |
| Operating Altitude |
10,000' / 3000 m |
| Storage Altitude |
15' / 4500 m |
| Certifications |
CSA, EOLP, PEP, RoHS, UL
*as per Manufacturer |
Physical
| Dimensions |
21.5 x 8.3 x 5.5" / 54.6 x 21 x 14 cm |
| Weight |
64 lb / 29.1 kg |
Packaging Info
| Package Weight |
67.5 lb |
| Box Dimensions (LxWxH) |
30 x 11 x 10" |
