Description
APC 3000VA Overview
- 1Description
- 2Adjustable Voltage Sensitivity
- 3Adjustable Voltage-Transfer Points
- 4APC USB Communications
- 5Audible Alarms
- 6Auto Recognition of External Batteries
- 7Automatic Restart of Loads after UPS Shutdown
- 8Automatic Self-Test
- 9Battery Failure Notification
- 10Boost and Trim Automatic Voltage Regulation (AVR)
- 11Cold-Start Capable
- 12Disconnected Battery Notification
- 13Energy Meter
- 14Green Mode
- 15High-Frequency Design
- 16High Online Efficiency
- 17Hot-Swappable Batteries
- 18Intelligent Battery Management
- 19Intuitive LCD Interface
- 20Load Shedding
- 21Multiple Switched Outlet Groups
- 22Network Manageable
- 23Outlet Group Control
- 24Overload Protection
- 25Predicative Failure Notification
- 26Predictive Replace Battery Date
- 27Pre-Installed Network Management Card
- 28Pure Sine Wave Output on Battery
- 29Rack/Tower Convertible
- 30Safety-Agency Approved
- 31Scalable Runtime
- 32Sequenced Network Shutdown and Reboot
- 33Serial Connectivity
- 34StruxureWare Data Center Expert Compatible
- 35Temperature-Compensated Battery Charging
- 36USB Connectivity
- 37User-Replaceable Batteries
- 38Resettable Circuit Breakers
- 39Power Conditioning
- 40LED Status Indicators

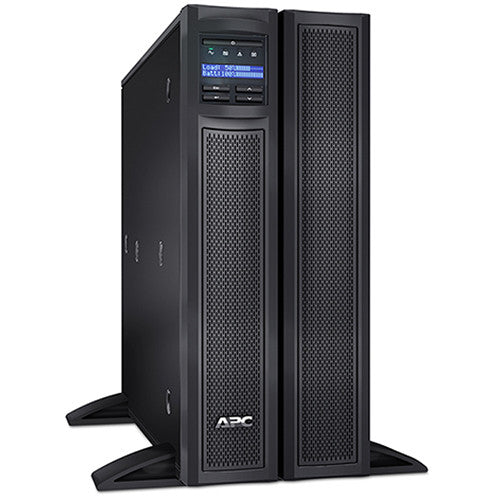

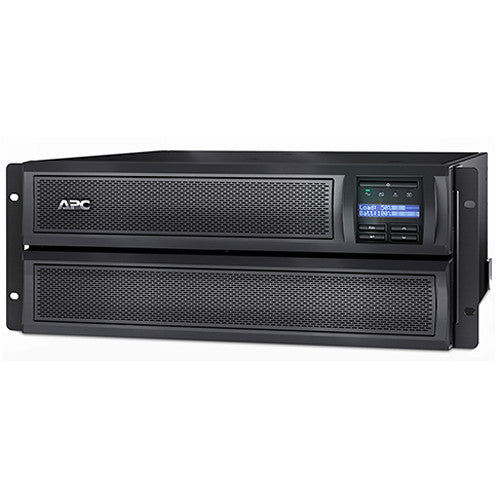

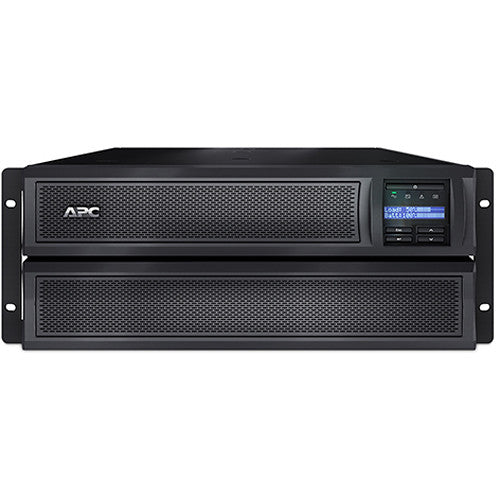

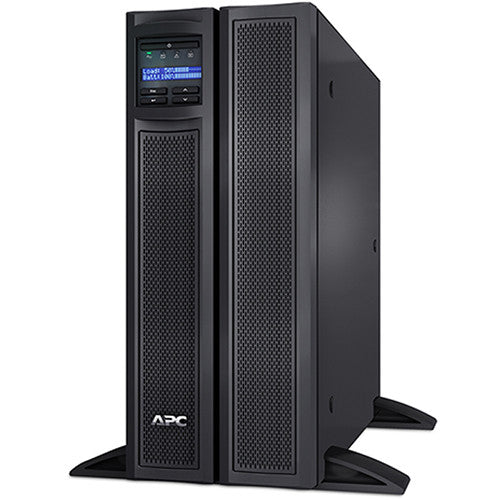

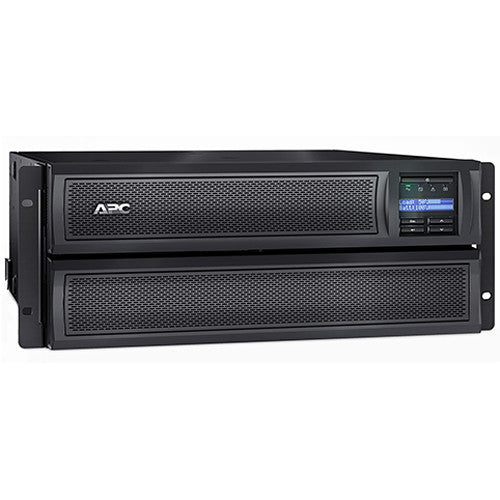

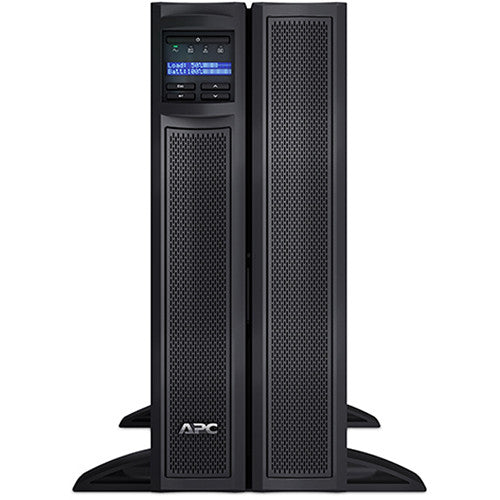

Keep your servers, routers, switches, and other business-critical applications running during a power outage with the SMX3000LVNC Smart-UPS X 3000VA Rack/Tower with Network Card from APC. Capable of up to 2700W of power output, the SMX3000LVNC comes equipped with six NEMA 5-15R outlets, one NEMA L5-20R outlet, and three NEMA 5-20R outlets.
With a three-hour recharge time, the SMX3000LVNC comes with audible alarms to warn you of changing power conditions. The cold start-capable UPS also boasts a pre-installed network card, hot-swappable batteries, and a $150000 lifetime equipment protection policy.
Adjustable Voltage Sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable Voltage-Transfer Points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
APC USB Communications
Enables communications with SMX, SMT, SRT, and SURTD Smart-UPS models using historical APC proprietary USB usages.
Audible Alarms
Provides notification of changing utility power and UPS power conditions.
Auto Recognition of External Batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Automatic Restart of Loads after UPS Shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic Self-Test
Periodic battery self-test helps to ensure early detection of a battery that needs to be replaced.
Battery Failure Notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Boost and Trim Automatic Voltage Regulation (AVR)
Helps to eliminate voltage fluctuations as a source of AV signal degradation and component power-supply stress.
Cold-Start Capable
Provides temporary battery power when the utility power is out.
Disconnected Battery Notification
Warns when a battery is not available to provide backup power.
Energy Meter
Provides actual kilowatt hours of usage for energy conscious users.
Green Mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
High-Frequency Design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
High Online Efficiency
Reduces utility costs, generates less heat.
Hot-Swappable Batteries
Helps to ensure clean, uninterrupted power to protected equipment while batteries are being replaced.
Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Intuitive LCD Interface
Designed to provide clear and accurate information in multiple languages with the ability to configure the UPS locally. Equipped with easy-to-use navigation keys.
Load Shedding
Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime.
Multiple Switched Outlet Groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Network Manageable
Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
Outlet Group Control
Turn on/off, reboot, or shut down select outlet groups to save dispatching technicians to remote locations.
Overload Protection
Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload.
Predicative Failure Notification
Provides early-warning fault analysis ensuring proactive component replacement.
Predictive Replace Battery Date
Dynamically provides the month and year when battery replacement is recommended.
Pre-Installed Network Management Card
Provides for remote management and control of the UPS over a network out of the box.
Pure Sine Wave Output on Battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Rack/Tower Convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Safety-Agency Approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Scalable Runtime
Allows additional run time to be quickly added as needed.
Sequenced Network Shutdown and Reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port.
StruxureWare Data Center Expert Compatible
Enables centralized management via StruxureWare Data Center Expert.
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
USB Connectivity
Provides management of the UPS via a USB port.
User-Replaceable Batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, which helps to reduce Mean Time to Repair (MTTR).
Resettable Circuit Breakers
Enables a quick recovery from overload events.
Power Conditioning
Helps to protect connected loads from surges, spikes, lightning, and other power disturbances.
LED Status Indicators
Quickly understand unit and power status with visual indicators.
UPC: 731304292654
In the Box
- APC SMX3000LVNC Smart-UPS X 3000VA Rack/Tower with Network Card (100-127V)
- Rack-Mounting Brackets
- Rack-Mounting Hardware
- Rack-Mounting Support Rails
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Network Management Card
- Removable Support Feet
- Limited 3-Year Warranty (Excluding Battery)
- Limited 2-Year Warranty (Battery)
- Lifetime $150000 Equipment Protection Policy
Table of Contents
- Description
- Adjustable Voltage Sensitivity
- Adjustable Voltage-Transfer Points
- APC USB Communications
- Audible Alarms
- Auto Recognition of External Batteries
- Automatic Restart of Loads after UPS Shutdown
- Automatic Self-Test
- Battery Failure Notification
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-Start Capable
- Disconnected Battery Notification
- Energy Meter
- Green Mode
- High-Frequency Design
- High Online Efficiency
- Hot-Swappable Batteries
- Intelligent Battery Management
- Intuitive LCD Interface
- Load Shedding
- Multiple Switched Outlet Groups
- Network Manageable
- Outlet Group Control
- Overload Protection
- Predicative Failure Notification
- Predictive Replace Battery Date
- Pre-Installed Network Management Card
- Pure Sine Wave Output on Battery
- Rack/Tower Convertible
- Safety-Agency Approved
- Scalable Runtime
- Sequenced Network Shutdown and Reboot
- Serial Connectivity
- StruxureWare Data Center Expert Compatible
- Temperature-Compensated Battery Charging
- USB Connectivity
- User-Replaceable Batteries
- Resettable Circuit Breakers
- Power Conditioning
- LED Status Indicators
APC 3000VA Specs
General
| Total Outlets | 6 x NEMA 5-15R 1 x NEMA L5-30R 3 x NEMA 5-20R |
| Protected Outlets | 6 x NEMA 5-15R (Battery and Surge) 1 x NEMA L5-30R (Battery and Surge) 3 x NEMA 5-20R (Battery and Surge) |
| Plug Type | NEMA L5-30P |
| SmartSlot Interface | 1 |
| Communications | Serial via RJ45 USB via Type-B |
| Emergency Power Off (EPO) Support | Yes |
| Topology | Line Interactive |
| Transfer Time | 2 to 8 ms |
Power
| Surge Energy Rating | 540 Joules |
| Maximum Current | 15 A |
| Maximum Wattage | 2700 W |
| Nominal Input Voltage |
