Description
APC SMX1000I Overview

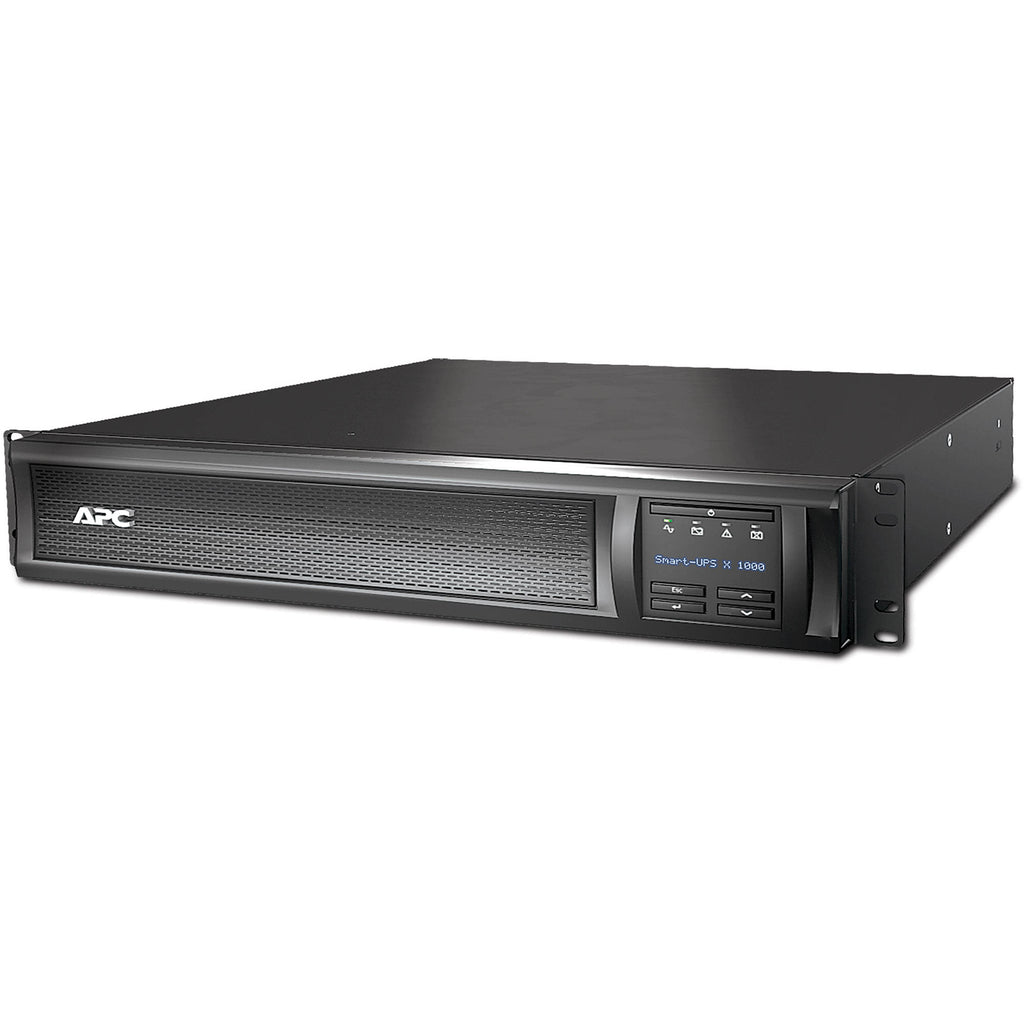

Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS X Rack/Tower Battery Backup & Surge Protector from APC delivers intelligent and efficient line interactive network power protection from entry level to scalable runtime. It can provide 286 minutes of use at 50W, 134 minutes of use at 100W, 59.5 minutes of use at 200W, 35.7 minutes of use at 300W, 24.2 minutes of use at 400W, 17.6 minutes of use at 500W, 13.3 minutes of use at 600W, 10.3 minutes of use at 700W, and 8.1 minutes of use at its full load of 800W.
This Smart-UPS X features an output of 800W / 1000 VA, an input of 230V @ 50/60 Hz ±3 Hz, eight IEC-320 C13 battery backup and surge outlets, two IEC jumper outlets for external battery packs, an IEC-320 C14 input connection, a surge energy rating of 600 joules, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included are rack-mounting brackets, removable support feet, an RS-232 cable, a USB cable, and a power cable. Support is provided by a limited 3-year repair or replace warranty that excludes the battery, as well as a limited 2-year battery warranty.
SMX1000I Features
Automatic Recognition of External Batteries
The UPS recognizes when external battery packs are attached and automatically adjusts its runtime.
Cold-Start Capable
Provides temporary battery power when the utility power is out.
Energy Meter
Provides actual kilowatt hours of usage for energy conscious users.
EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency.
Green Mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing protection.
High-Frequency Design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
High Online Efficiency
Reduces utility costs, generates less heat.
Intuitive LCD interface
The Intuitive LCD interface provides clear information with the ability to configure the UPS locally with user-friendly navigation keys. Over 15 different programmable settings, including switched outlet group control, allow for application specific settings, thresholds, and notifications.

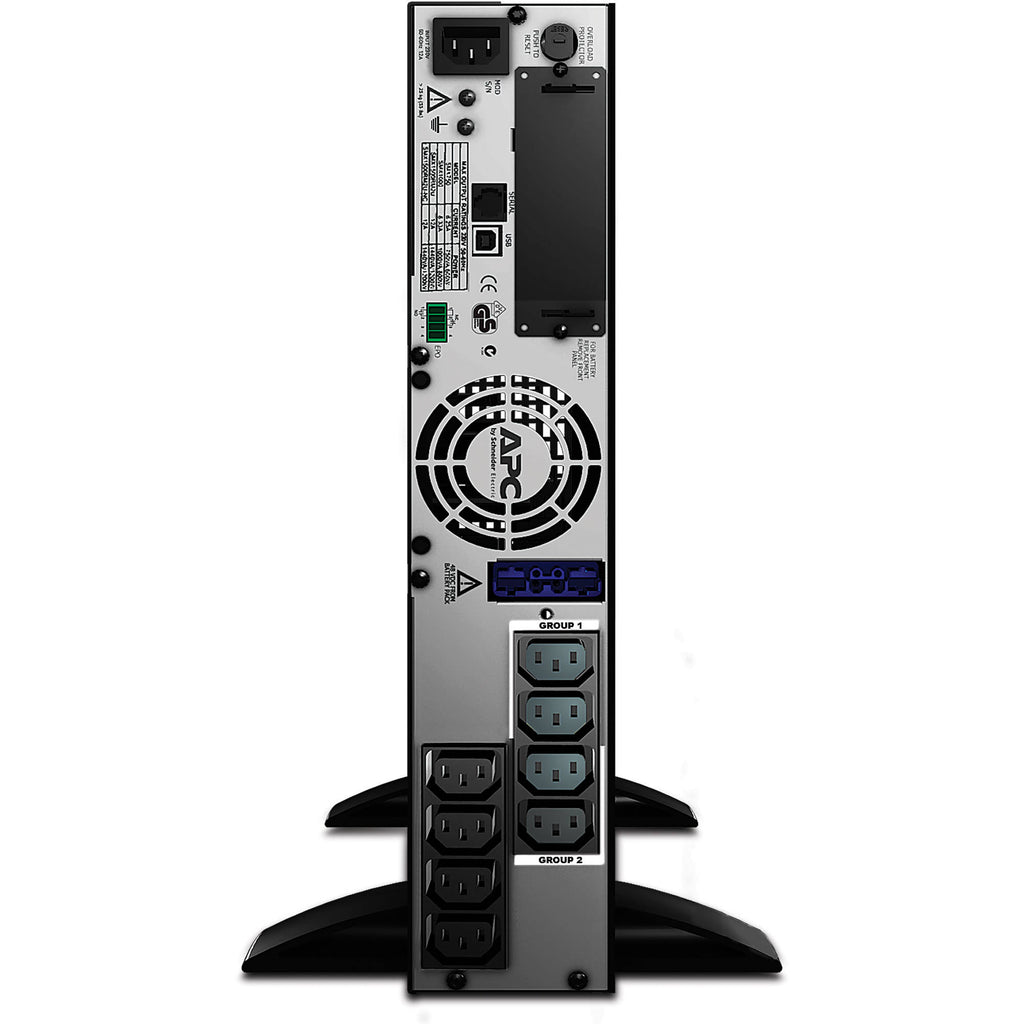

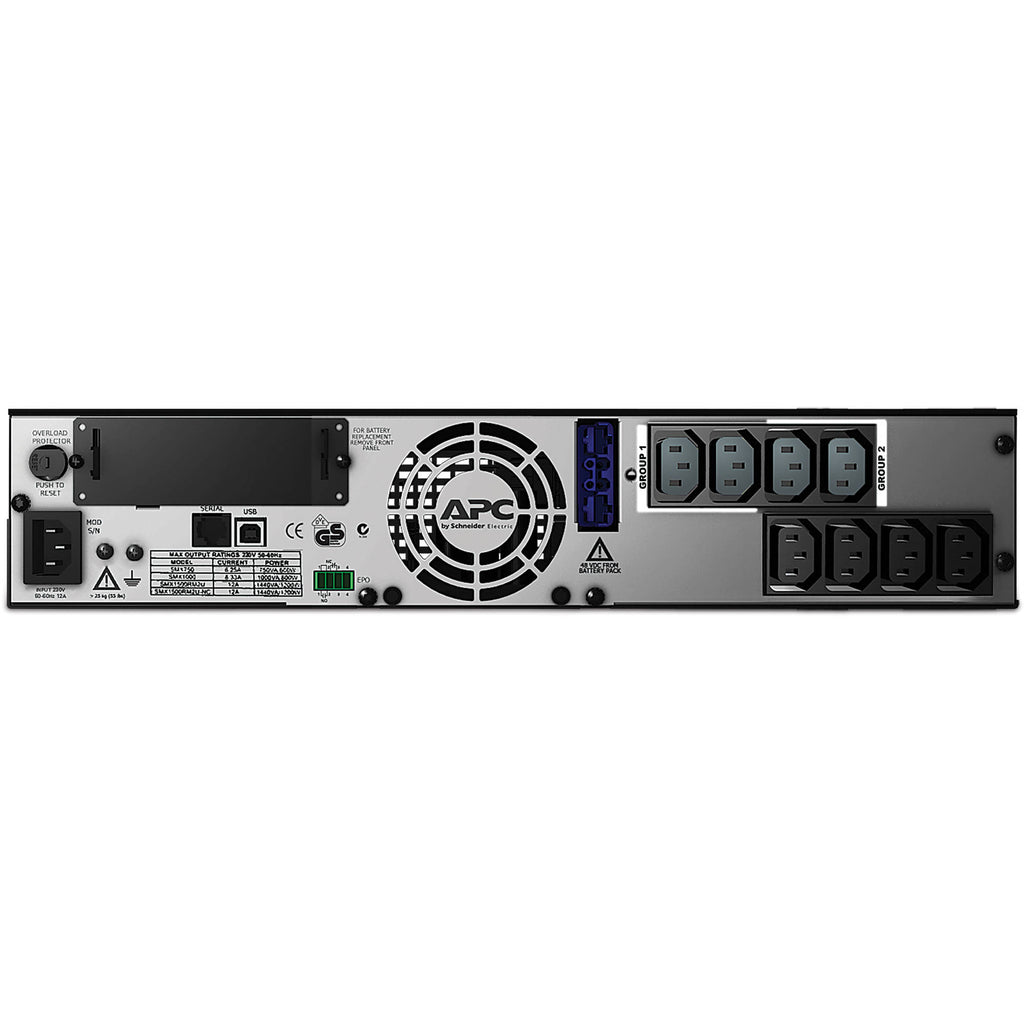

Multiple Switched Outlet Groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.
Plug-and-Play External Batteries
Helps ensure clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Predictive Replace Battery Date
Dynamically provides the month and year when battery replacement is recommended to aide in long-term maintenance planning.
Pure Sine Wave Output
Simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

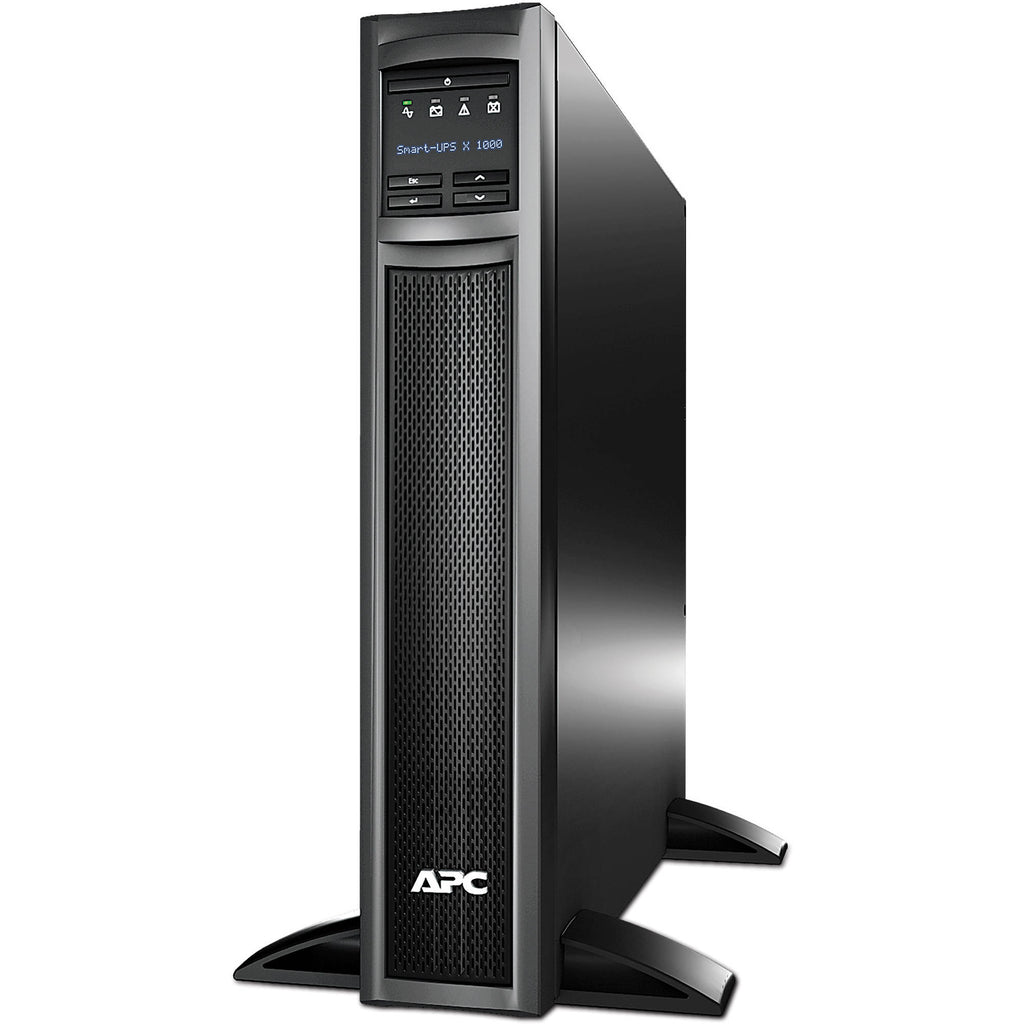

Rack/Tower Convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Scalable Runtime
Allows additional run time to be quickly added as needed.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Adaptability
Adjustable Voltage-Transfer Points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable Voltage Sensitivity
Provides the ability to adapt the UPS for improved performance in specific power environments or generator applications.
Manageability
Serial Connectivity
Provides management of the UPS via a serial port.
USB Connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected Battery Notification
Warns when a battery is not available to provide backup power.
Network Manageable
Provides remote power management of the UPS over the network.
Audible Alarms
Actively lets you know if the unit is on battery, if the battery is low, or if there is an overload condition.
LED Status Indicators
Understand unit and power status with visual indicators.
Remote Accessibility
Network manageable via serial, USB, or Ethernet. Includes Powerchute Business Edition Software for the convenient monitoring and control, safe operating system shutdown, and energy management capabilities.
Serviceability
Battery Failure Notification
Provides early-warning fault analysis on batteries, thus enabling timely preventive maintenance.
Power Conditioning
Network grade power conditioning protects from damaging surges, spikes, lightning, other power disturbances, and disruptive noise. Solid state automatic voltage regulation helps boost low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery backup capacity to power through outages or gracefully shutdown systems.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Automatic Self-Test
Periodic battery self-test helps ensure early detection of a battery that needs to be replaced.
Disconnected Battery Notification
Warns when a battery is not available to provide backup power.
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic Restart of Loads After UPS Shutdown
Automatically starts up the connected equipment upon the return of utility power.
UPC: 731304268635
Items Included
- APC Smart-UPS X Rack/Tower Battery Backup & Surge Protector
- Rack-Mounting Brackets
- Removable Support Feet
- Power Cable
- RS-232 Cable
- USB Cable
- Limited 2-Year Warranty (Battery Only)
- Limited 3-Year Warranty
Additional Resources
APC SMX1000I Specs
Key Specs
| Total Outlets |
8x IEC-320 C13
|
| Plug Type |
IEC-320 C14
|
| Surge Protection |
600 Joules
|
| Maximum Wattage |
800 W
|
| Full-Load Runtime |
8.1 Minutes
|
General
| Total Outlets |
8x IEC-320 C13
|
| Protected Outlets |
8x IEC-320 C13 (Battery and Surge)
|
| Plug Type |
IEC-320 C14
|
| USB Charging Ports |
No
|
| SmartSlot Interface |
1
|
| Coax Protection |
No
|
| Data Line Protection |
RJ45
|
| Communications I/O |
Serial via RJ45
USB via USB-B |
| Emergency Power Off (EPO) Support |
Yes
|
| Noise Filtering |
5%
|
| Topology |
Line Interactive
|
Power
| Surge Protection |
600 Joules
|
| Maximum Wattage |
800 W
|
| Nominal Input Voltage |
230 VAC
|
| Input Voltage Range |
160 to 286 VAC
|
| Input Voltage Adjustable Range |
151 to 302 VAC
|
| Input Frequency |
50/60 Hz ± 3 Hz (Auto Sensing)
|
| Nominal Output Voltage |
230 VAC
|
| Output Frequency |
60 Hz ± 3 Hz
|
| Voltage Distortion |
<5%
|
| Load Capacity |
1000 VA
|
| Thermal Dissipation |
82 BTU/Hour
|
| Waveform |
Sine Wave
|
Battery
| Chemistry |
Lead-Acid
|
| Full-Load Runtime |
8.1 Minutes
|
| Half-Load Runtime |
24.2 Minutes
|
| Recharge Time |
3 Hours
|
| User Replaceable |
Yes
|
| Replacement Battery |
APCRBC116
|
| Hot-Swap Support |
Yes
|
| External Battery Connection |
2x IEC Jumper
|
Environmental
| Operating Temperature |
32 to 77°F / 0 to 45°C
|
| Operating Humidity |
0 to 95%
|
| Storage Temperature |
5 to 113°F / -15 to 45°C
|
| Storage Humidity |
0 to 95%
|
| Storage Altitude |
0.00 to 49,212' / 0 to 15,000 m
|
| Noise Level |
40 dBA
|
Physical
