Description
- 2.7 kW / 2.88 kVA Output Power
- 120 V Nominal Input Voltage
- NEMA L5-30P Input Connections
- 738 Volt-Amp-Hour Capacity
- 3 Hour Typical Recharge Time
- SmartSlot, USB Interface Ports
- LED Control Panel Display
- 540 Joules Energy Rating
- Full Time Multi-Pole Noise Filtering

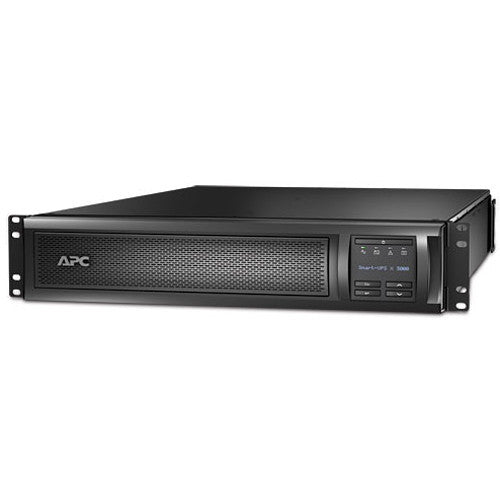

Designed for use with point-of-sale kiosks, routers, switches, hubs and other network devices, the Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card from APC is a reliable, efficient, backup power solution. This UPS features a 2.7 kW/2.88 kVA output power capacity along with a nominal output voltage of 120 V. Additionally, this line interactive UPS outputs a pure sine wave and comes equipped with one NEMA L5-30R, three NEMA 5-15R, and three NEMA 5-20R output connections along with a transfer time between 2 and 4 ms. Once configured, users benefit from a variety of power features including adjustable voltage sensitivity, hot-swappable batteries, cold-start capabilities, battery failure notifications, network management functionality, predictive failure notifications, and much more.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions
- Auto Recognition of External Batteries
- UPS recognizes when external battery packs are attached and automatically adjusts runtime
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- High Frequency Design
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling
- High Online Efficiency
- Reduces utility costs, generates less heat
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
- LED Indicators
- Provide easy-to-read status of the unit and utility power conditions
- Load Shedding
- Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups)
- Multiple Switched Outlet Groups
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- Network Manageable
- Provides remote power management of the UPS over the network
- Outlet Group Control
- Turn on/off, reboot or shut down select outlet groups to avoid dispatching technicians to remote locations
- Overload Protection
- Safeguards unit from damage by automatically turning it off in the event of a short circuit or overload
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Pure Sine Wave Output on Battery
- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics

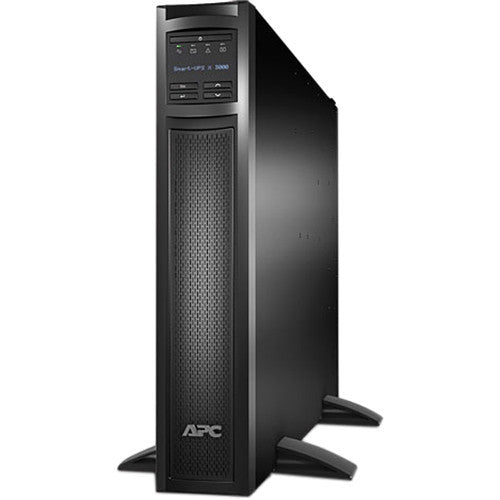

- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Scalable Runtime
- Allows additional run time to be quickly added as needed
- Sequenced Network Shutdown and Reboot
- Customize network shutdown and reboot sequence of connected servers and UPS's
- Serial Connectivity
- Provides management of the UPS via a serial port
- SmartSlot
- Customize UPS capabilities with management cards
- StruxureWare Data Center Expert Compatible
- Enables centralized management via StruxureWare Data Center Expert
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Wide Input Voltage Range
- Designed for harsh electrical environments to save battery life
UPC: 731304268543

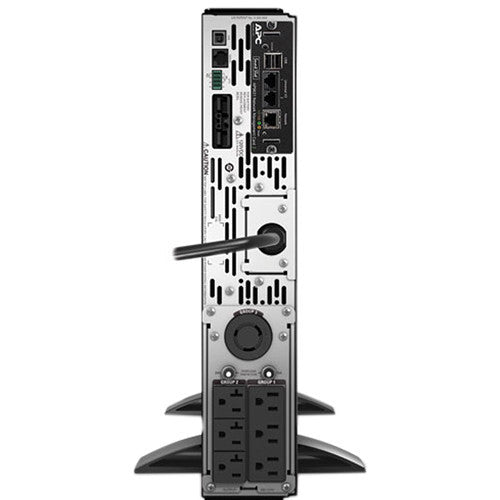

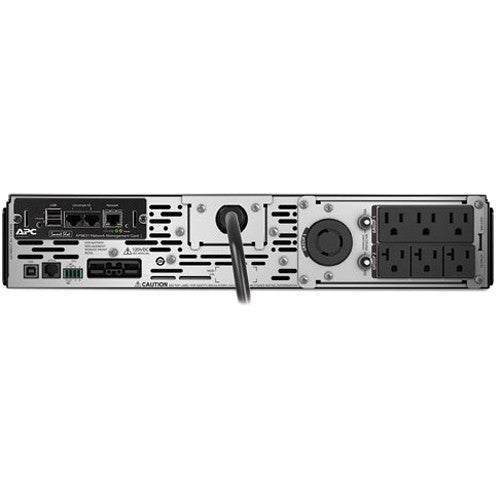

| Output | Output Power Capacity 2.7 kW / 2.88 kVA Max Configurable Power (Watts) 2.7 kW / 2.88 kVA Nominal Output Voltage 120V Output Voltage Distortion Less than 5% Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Topology Line Interactive Waveform Type Sine wave Maximum Output Current 15 amps Output Connections 1 x NEMA L5-30R (Battery Backup) 3 x NEMA 5-15R (Battery Backup) 3 x NEMA 5-20R (Battery Backup) Transfer Time 2-4 ms Transfer Time 4 ms typical, 8 ms maximum |
| Input | Nominal Input Voltage 120V Input Frequency 50/60 Hz +/- 3 Hz (auto sensing) Input Connections NEMA L5-30P Cord Length 8' / 2.44 m Input Voltage Range For main operations: 70 - 153V Number of Power Cords: 1 Transfer Time: 2-4 ms |
| Batteries & Runtime | Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leak-proof Typical Recharge Time 3 hour(s) Replacement Battery CURK117-01-04 Expected Battery Life (years) 3-5 RBC Quantity 1 Extendable Run Time 1 Battery Volt-Amp-Hour Capacity 738 |
| Communications & Management | Interface Port(s) SmartSlot, USB Pre-Installed SmartSlot Cards AP9631 Control Panel LED status display with On Line, On Battery, Replace Battery, Overload indicator, Multi-function LCD status, and control console Audible Alarm Alarm when on battery, distinctive low battery alarm, configurable delays Emergency Power Off (EPO) Yes |
| Surge Protection and Filtering | Surge Energy Rating 540 Joules Filtering Full time multi-pole noise filtering 0.3% IEEE surge let-through Zero clamping response time Meets UL 1449 |
| Environmental | Operating Environment 32 to 104°F / 0 to 40°C Operating Relative Humidity 0 to 95 % Operating Elevation 0 to 10,000' / 0 to 3,000 m Storage Temperature 5 to 113°F / -15 to 45°C Storage Relative Humidity 0 to 95% Storage Elevation 0 to 50,000' / 0 to 15,000 m Audible Noise at 1 meter from Surface of Unit 55.0 dBA Online Thermal Dissipation 276.0 BTU/hr |
| Rack Height | 2U |
| Conformance | Approvals BSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A Equipment Protection Policy Lifetime: $150,000 Standard Warranty 3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available |
| Certifications | RoHS, REACH (contains no SVHCs) |
| Dimensions | 3.36 x 17.00 x 26.26" / 8.5 x 43.2 x 66.7 cm |
| Weight | 84.60 lb / 38.45 kg |
| Packaging Info | |
|---|---|
| Package Weight | 105.1 lb |
| Box Dimensions (LxWxH) | 34.5 x 23.5 x 9.5" |
In the Box
APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Web/SNMP Management Card
- Limited 3-Year Manufacturer Repair or Replace Warranty
- Limited 2-Year Manufacturer Warranty for Batteries
