Description
- 1980W / 2200VA Output
- 208V Input
- SmartSlot, USB Port
- LCD Interface
- 3 Hours Typical Recharge Time
- Hot-Swappable Battery
- Easy Battery Replacement
- Audible Alarms
- Emergency Power Off (EPO)
- 4U Rackmount

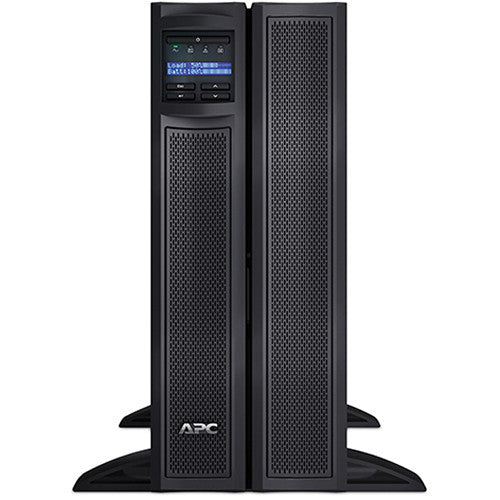

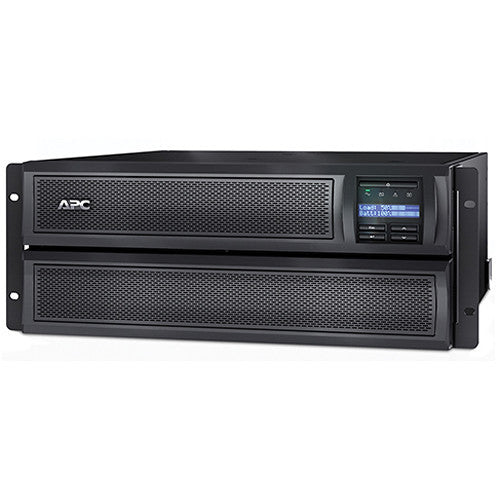

The black Smart-UPS X 2200VA Rack/Tower LCD 200-240V from APC is an extended runtime model Uninterruptible Power Supply (UPS) designed to protect connected loads from surges, spikes, lightning, and other power disturbances. The battery is hot-swappable and easy to replace. An audible alarm lets you know if the battery is low or if there is an overload condition. The UPS can be used in a tower or rackmount configuration. It features a LED status display with On Line, On Battery, Replace Battery and Overload indicators, multi-function LCD status and control console.
Availability
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions, without using the battery (not available on all models)
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Manageability
- Network Manageable
- Provides remote power management of the UPS over the network
- Audible Alarms
- Actively lets you know if the unit is on battery, if the battery is low or if there is an overload condition
- LED Status Indicators
- Quickly understands unit and power status with visual indicators
- Serial Connectivity
- Provides management of the UPS via a serial port
- USB Connectivity
- Provides management of the UPS via a USB port (not available on all models)
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Serviceability
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, reducing Mean Time to Repair (MTTR)
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Resettable Circuit Breakers
- Enables a quick recovery from overload events
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Adaptability
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Safety
- Safety-Agency Approved
- Ensures that the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304292609
| Output | |
|---|---|
| Output Power Capacity | 1980 W / 2200 VA |
| Maximum Configurable Power | 1980 W / 2200 VA |
| Nominal Output Voltage | 230 V |
| Output Voltage Distortion | Less than 5% |
| Output Frequency (Sync to Mains) | 50/60 Hz +/- 3 Hz |
| Other Output Voltages | 208 V, 220 V, 240 V |
| Topology | Line Interactive |
| Waveform Type | Sine wave |
| Output Connections | 8 x IEC 320 C13 2 x IEC 320 C19 2 x IEC jumpers |
| Input | |
|---|---|
| Nominal Input Voltage | 208 V, 230 V |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Connections | IEC-320 C20 Schuko CEE 7/EU1-16P British BS1363A |
| Cord Length | 6.00' (1.83 m) |
| Input Voltage Range | For Main Operations: 140 - 280 V |
| Other Input Voltages | 220 V, 240 V |
| Transfer Time | 2 - 4 ms |
| Batteries and Runtime | |
|---|---|
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof |
| Typical Recharge Time | 3 hours |
| Replacement Battery | APCRBC143 |
| RBC Quantity | 1 |
| Energy Use | |
|---|---|
| Load v/s Efficiency | 25%: 93.2% 50%: 96.4% 75%: 97.5% 100%: 98.1% |
| Communications & Management | |
|---|---|
| Interface Ports | SmartSlot, USB |
| Available SmartSlot Interface | 1 |
| Control Panel | LED status display with On Line, On Battery, Replace Battery, and Overload indicators, multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery, distinctive low battery alarm, configurable delays |
| Emergency Power Off (EPO) | Yes |
| Surge Protection and Filtering | |
|---|---|
| Surge Energy Rating | 645 Joules |
| Filtering | Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449 |
| Environmental | |
|---|---|
| Operating Temperature | 32 - 104°F (0 - 40°C) |
| Storage Temperature | 5 - 113°F (-15 - 45°C) |
| Operating Relative Humidity | 0 - 95% |
| Storage Relative Humidity | 0 - 95% |
| Operating Elevation | 0 - 9842.5' (0 - 3000.0 m) |
| Storage Elevation | 0 - 49212.6' (0 - 15000.0 m) |
| Audible Noise | At 1 m from Surface of Unit: 55 dBA |
| Online Thermal Dissipation | 150 BTU/hour |
| Conformance | |
|---|---|
| Regulatory Approvals | C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE |
| Compliance | RoHS REACH: Contains no SVHCs |
| Physical | |
|---|---|
| Rack Height | 4U |
| Dimensions (W x H x D) | 7.0 x 17.0 x 19.0" (178.0 x 432.0 x 483.0 mm) |
| Weight | 85.19 lb (38.64 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 105.4 lb |
| Box Dimensions (LxWxH) | 25.0 x 24.0 x 13.0" |
In the Box
APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V (Black)
- Software CD
- Rack Mounting Brackets
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Limited 3-Year Repair or Replace Warranty
- Limited 2-Year Warranty for Battery
