- Intuitive LCD Interface
- High Frequency Design
- Auto Recognition of External Batteries
- Green Mode
- Energy Meter
- Load Shedding
- Multiple Switched Outlet Groups
- High Online Efficiency
- 1 x Smart-Slot
- Automatic Voltage Regulation

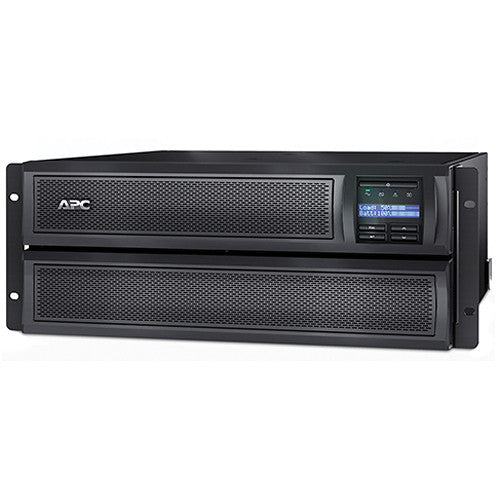

The black Smart-UPS X 2000VA Rack / Tower LCD 100-127V from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if electricity is discontinued from them. The LED status indicator quickly understands the unit and power status with visual indicators. The battery is easy to replace and an audible alarm alerts you of events like power outage and low battery.
- Intuitive LCD Interface
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy-to-use navigation keys
- High Frequency Design
- Reduces or eliminates bulky transformers, resulting in lighter units for ease of handling
- Auto Recognition of External Batteries
- Recognizes when external battery packs are attached and automatically adjusts runtime
- Predictive Replace Battery Date
- Dynamically provides the month and year when battery replacement is recommended to aid in long-term maintenance planning
- Green Mode
- A patent-pending operating mode bypasses unused electrical components in good power conditions to achieve operating efficiency without sacrificing protection
- Energy Meter
- Provides actual kilowatt hours of usage for energy conscious users
- Outlet Group Control
- Turn on / off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups)
- Load Shedding
- Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups)
- Multiple Switched Outlet Groups
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- High Online Efficiency
- Reduces utility costs, generates less heat
- Smart-Slot
- Customize UPS capabilities with management cards
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Scalable Runtime
- Allows additional runtime to be quickly added as needed
- Rack / Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment
- Sequenced Network Shutdown and Reboot
- Customize network shutdown and reboot sequence of connected servers and UPSs
Availability
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using battery
- Intelligent Battery Management
- Maximizes battery performance, life and reliability through intelligent precision charging
- Power Conditioning
- Protects connected loads from surges, spikes, lightning and other power disturbances
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- Automatic Restart of Loads After UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
Manageability
- Network Manageable
- Provides remote power management of the UPS over the network
- Audible Alarms
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
- LED Status Indicators
- Quickly understand unit and power status with visual indicators
- Serial Connectivity
- Provides management of the UPS via a serial port
- USB Connectivity
- Provides management of the UPS via a USB port 1
Please Note:
Not available on all models
close
Serviceability
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thereby reducing Mean Time to Repair (MTTR)
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive Failure Notification
- Provides early-warning fault analysis, ensuring proactive component replacement
- Resettable Circuit Breakers
- Enables a quick recovery from overload events
- Battery Failure Notification
- Provides early-warning fault analysis on batteries, enabling timely preventive maintenance
Adaptability
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
Safety
- Safety Agency Approved
- The product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304292586
| Output |
| Output Power Capacity | 1800 W / 1920 VA |
| Max Configurable Power | 1800 W / 0 VA |
| Nominal Output Voltage | 120 V |
| Output Voltage Distortion | Less than 5% |
| Output Frequency (Sync to Mains) | 50 / 60 Hz + / - 3 Hz |
| Topology | Line interactive |
| Waveform Type | Sine wave |

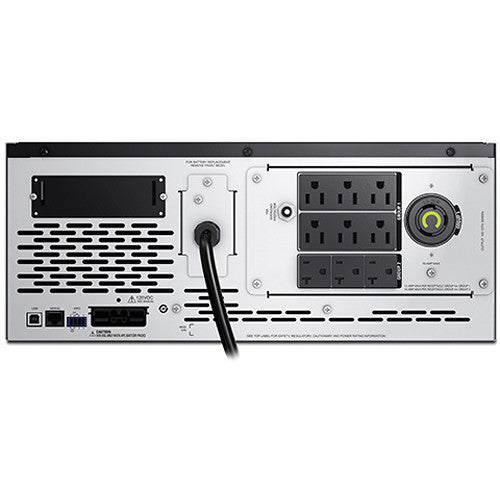

| Output Connections | 6 NEMA 5-15 R
3 NEMA 5-20 R
1 NEMA L5-20 R |
| Input |
| Nominal Input Voltage | 120 V |
| Input Frequency | 50 / 60 Hz + / - 3 Hz (auto sensing) |
| Input Connections | NEMA 5-20 P |
| Cord Length | 2.44 m (8.0') |
| Input Voltage Range | 70-153 V (for main operations) |
| Input Voltage Adjustable Range | 75-154 V (for mains operation) |
| Transfer Time | 2-4 ms |
| Batteries and Runtime |
| Battery Type | Maintenance-Free Sealed Lead-Acid Battery |
| Electrolyte | Leak-proof (suspended) |
| Typical Charging Time | 3 hours |
| RBC Quantity | 1 |
| Extended Run Options | 6 hours 49 minutes |
| Communications & Management |
| Interface Ports | Smart-Slot |
| Available SmartSlot Interface | 1 |
| Control Panel | LED status display with online, on battery, replace battery, and overload indicators
Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery, distinctive low battery alarm, configurable delays |
| Emergency Power Off | Yes |
| Surge Protection and Filtering |
| Surge Energy Rating | 540 J |
| Filtering | Full time multi-pole noise filtering - 0.3% IEEE surge let-through : zero clamping response time - meets UL 1449 |
| Environmental |
| Operating Environment | 32 to 104°F (0 to 40°C) |
| Operating Relative Humidity | 0 to 95% |
| Operating Elevation | 0-3000 m (0 to 9,842.5') |
| Storage Temperature | 59 to 113°F (15 to 45°C) |
| Storage Relative Humidity | 0 - 95% |
| Storage Elevation | 0-15000 m (0 to 49,212.5') |
| Audible Noise | 55.0 dBA (at 1 m (3.287') from surface of unit) |
| Online Thermal Dissipation | 203.00 BTU/hour |
| Regulatory Approvals |
| Regulatory Approvals | BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM,
TUV, UL 1778, VCCI Class A |
| Physical Characteristics |
| Rack Height | 4 U |
| Dimensions (W x H x D) | 7.0 x 17.0 x 19.0" (178.0 x 432.0 x 483.0 mm) |
| Weight | 85.0 lb (38.6 kg) |
| Packaging Info |
| Package Weight | 105.0 lb |
| Box Dimensions (LxWxH) | 25.0 x 23.2 x 12.5" |
In the Box
APC Smart-UPS X 2000VA Rack / Tower LCD 100-127V (Black)
- USB Cable
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Removable Support Feet
- Smart-UPS Signaling RS-232 Cable
- CD with Software
- Documentation CD
- 3-Year Repair or Replacement Warranty (Excluding Battery) and 2-Year Warranty for Battery
