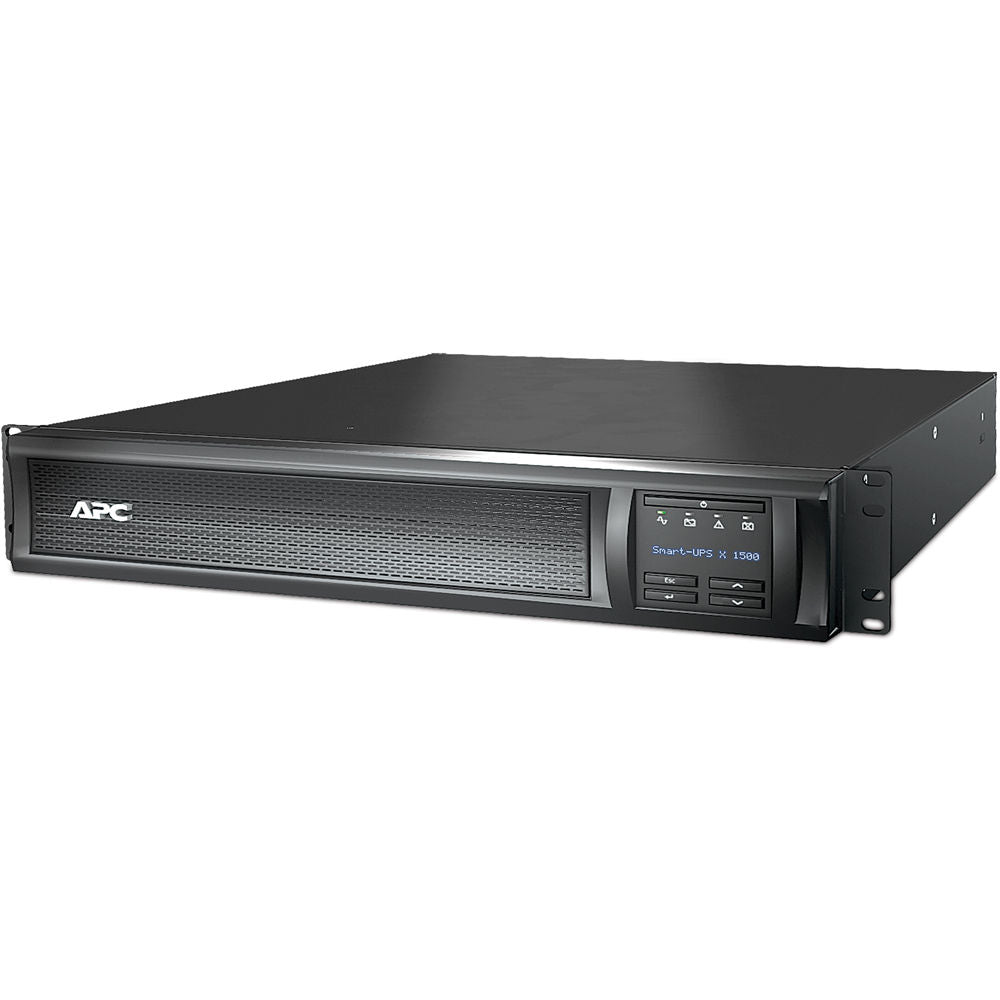

The Smart-UPS X 1500VA Rack/Tower LCD 230V from APC provides a continuous supply of battery power for connected items in the event of an AC power loss. It also safeguards devices from surges, spikes, lightning, and electrical disturbances. An Automatic Voltage Regulator (AVR) ensures clean and uninterrupted AC power by correcting low and high voltage conditions without using the battery. This UPS features a USB connection that enables configuration and control from a PC. It also features a SmartSlot for integrating it into a network for remote accessibility. Maintenance and servicing can be done from the front of the unit for easy installation and better space management.
This UPS features an intelligent battery management that prolongs battery life by using a charging method based on the battery's age, capacity, temperature, and other factors. An automatic self-test function periodically checks the efficiency of the battery and provides notification when the battery is nearing the end of its usefulness. The system will also notify you if the battery is disconnected. An LED indicator lets you see at a glance power and battery status. The UPS also features an automatic restart function which will automatically power up devices after AC is restored.
System Features
Intuitive LCD Interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive Replace Battery Date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
InfraStruXure Central Compatible
Enables centralized management via APC InfraStruXure Central.
Network Management
Provides proactive power and environmental management via web and/or SNMP
SmartSlot
Customize UPS capabilities with management cards.
Cold-Start Capable
Provides temporary battery power when the utility power is out.
Resettable Circuit Breakers
Enables a quick recovery from overload events.
Hot-Swappable Batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Disconnected Battery Notification
Warns when a battery is not available to provide backup power.
Automatic Self-Test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic Restart of Loads After UPS Shutdown
Automatically starts up the connected equipment upon the return of utility power.
Adjustable Voltage-Transfer Points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable Voltage Sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible Alarms
Provides notification of changing utility power and UPS conditions.
User-Replaceable Batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
USB Connectivity
Provides management of the UPS via a USB port (not available on all models).
Serial Connectivity
Provides management of the UPS via a serial port.
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Boost and Trim Automatic Voltage Regulation (AVR
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-Agency Approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Power Conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Adaptability
Adjustable Voltage-Transfer Points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable Voltage Sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety
Safety-Agency Approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
UPC: 731304268598
In the Box
APC Smart-UPS X 1500VA Rack/Tower LCD 230V
CD with Software
Documentation CD
Installation Guide
Rack Mounting Support Rails
Removable Support Feet
Smart-UPS Signaling RS-232 Cable
USB Cable
Limited 3-Year Warranty
APC 1500VASpecs
Key Specs
Total Outlets
8x IEC-320 C13
Plug Type
IEC-320 C14
Surge Energy Rating
645 Joules
Maximum Wattage
1200 W
General
Total Outlets
8x IEC-320 C13
Plug Type
IEC-320 C14
SmartSlot Interface
1
Data Line Protection
RJ45
Communications
USB, Serial via RJ45
Emergency Power Off (EPO) Support
Yes
Power
Surge Energy Rating
645 Joules
Maximum Wattage
1200 W
Nominal Input Voltage
230 VAC
Input Voltage Adjustable Range
151 to 302 VAC
Input Frequency
50/60 Hz ± 3 Hz (Auto Sensing)
Nominal Output Voltage
230 VAC
Output Frequency
50/60 Hz ± 3 Hz
Load Capacity
1500 VA
Circuit Breaker Rating
20 A
Thermal Dissipation
133 BTU/Hour
Waveform
Sine Wave
Battery
Cells
1
Chemistry
Lead-Acid
Recharge Time
3 Hours
Replacement Battery
APCRBC115
Environmental
Operating Temperature
32 to 113°F / 0 to 45°C
Operating Humidity
5 to 95%
Storage Temperature
5 to 113°F / -15 to 45°C
Storage Humidity
0 to 95%
Storage Altitude
50,000' / 15,000 m
Noise Level
40 dBA
Certifications
REACH, RoHS
Physical
Cable Length
6' / 1.8 m
Rackmount Size
2 RU (with Included Hardware)
Dimensions (W x H x D)
3.5 x 17 x 19.3" / 89 x 432 x 490 mm
Weight
54.6 lb / 31.9 kg
Packaging Info
Package Weight
67.95 lb
Box Dimensions (LxWxH)
24.5 x 24 x 10"
