Description
APC 500VA Overview
- 1Description
- 2Cold-Start Capable
- 3Optimized Online Efficiency
- 4Lithium-Ion Battery
- 5Predictive Replace-Battery Date
- 6Preinstalled Network Management Card
- 7Short-Depth Rack Compatibility
- 8Single Switched Outlet Group
- 9Temperature-Compensated Battery Charging
- 10Disconnected Battery Notification
- 11Power Conditioning
- 12Automatic Restart
- 13Intelligent Battery Management
- 14Energy Meter
- 15Automatic Self-Test
- 16Battery Failure Notification
- 17Predictive Failure Notification
- 18Hot-Swappable Batteries
- 19User-Replaceable Batteries
- 20Resettable Circuit Breakers
- 21Adjustable Voltage-Transfer Points
- 22Adjustable Voltage Sensitivity
- 23Safety-Agency Approved
- 24Audible Alarms
- 25USB Connectivity
- 26Serial Connectivity
- 27Network Management
- 28LED Status Indicators
- 29Pure Sine Wave Output

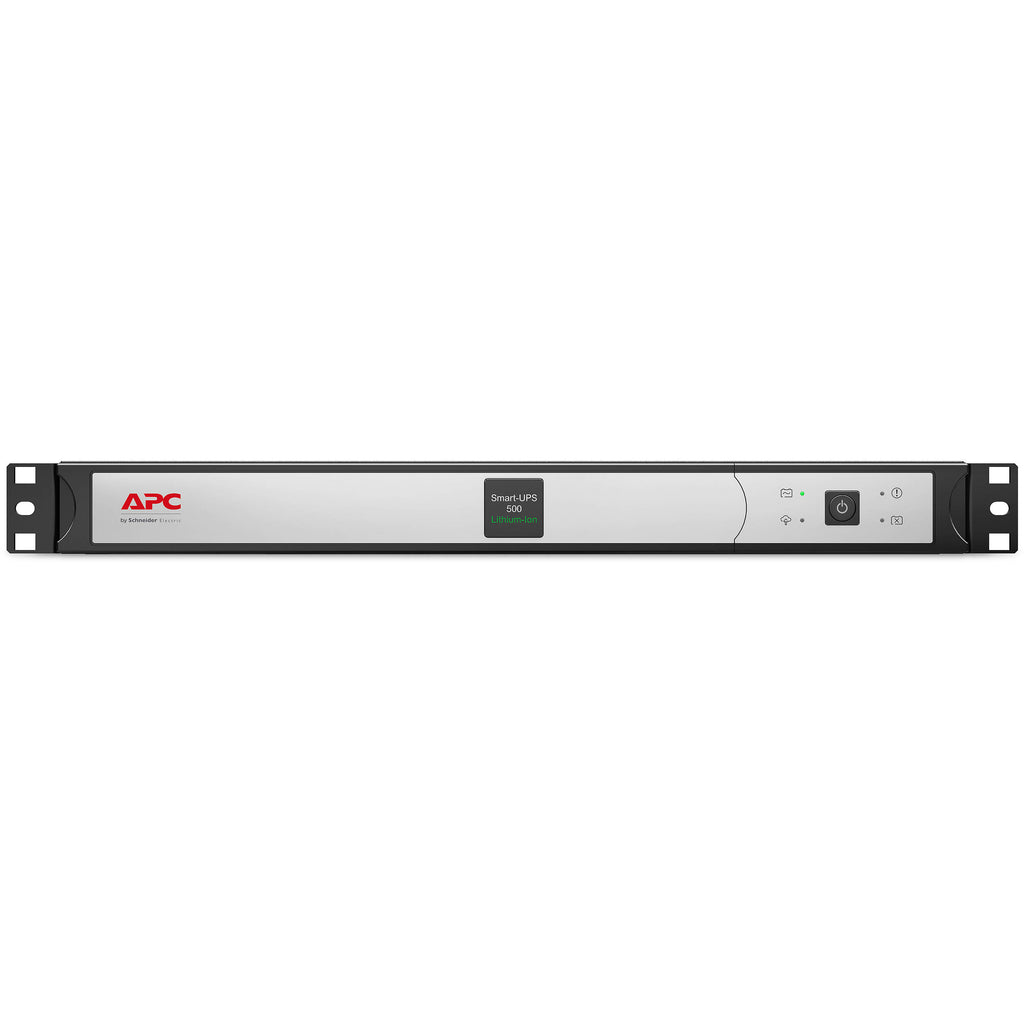

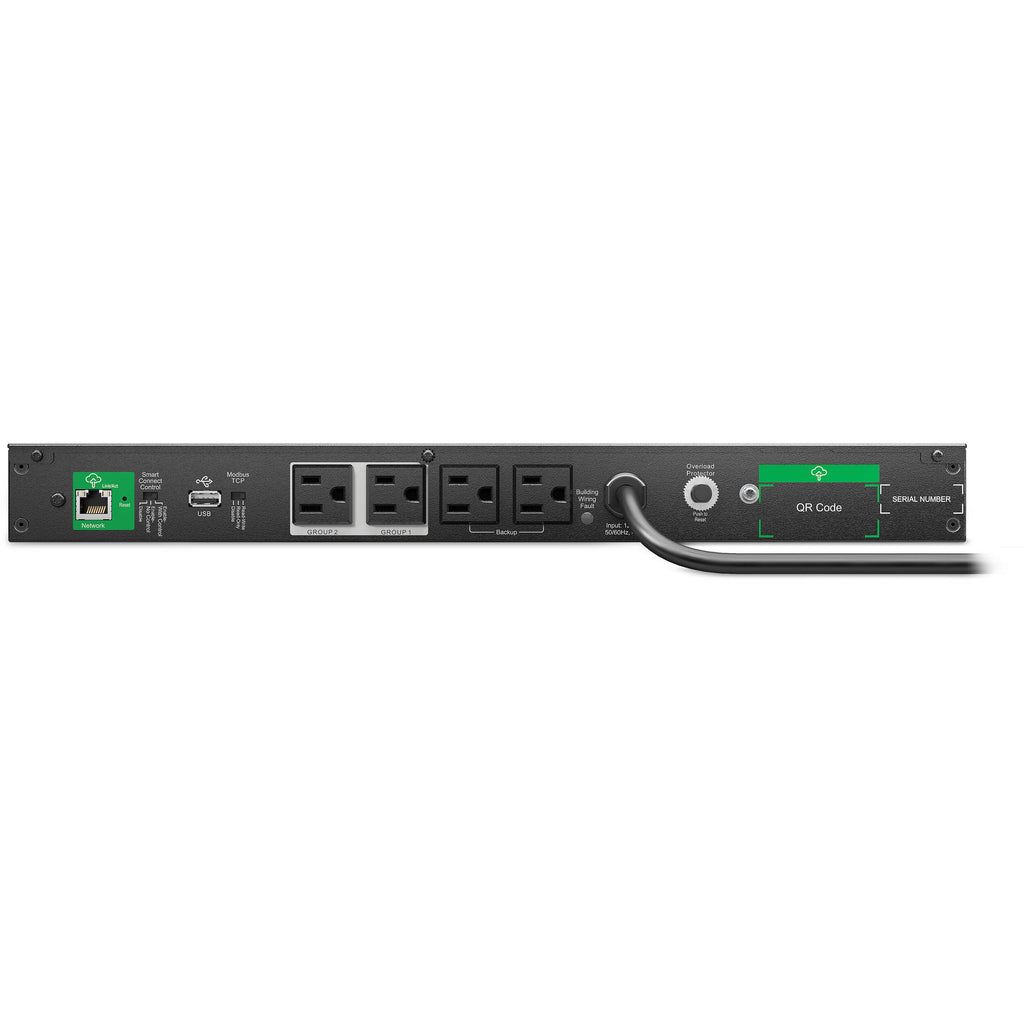

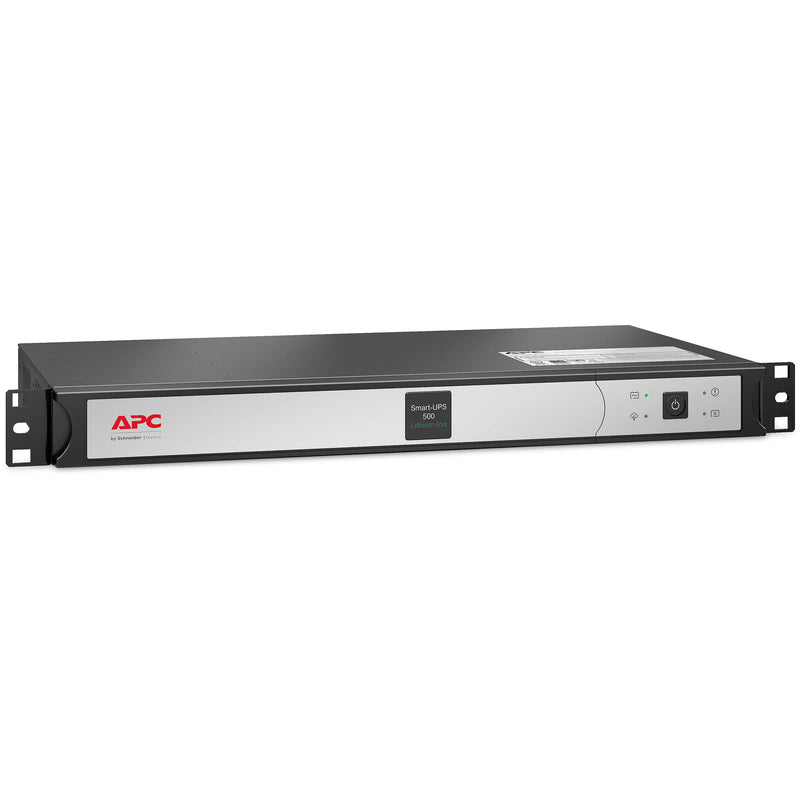

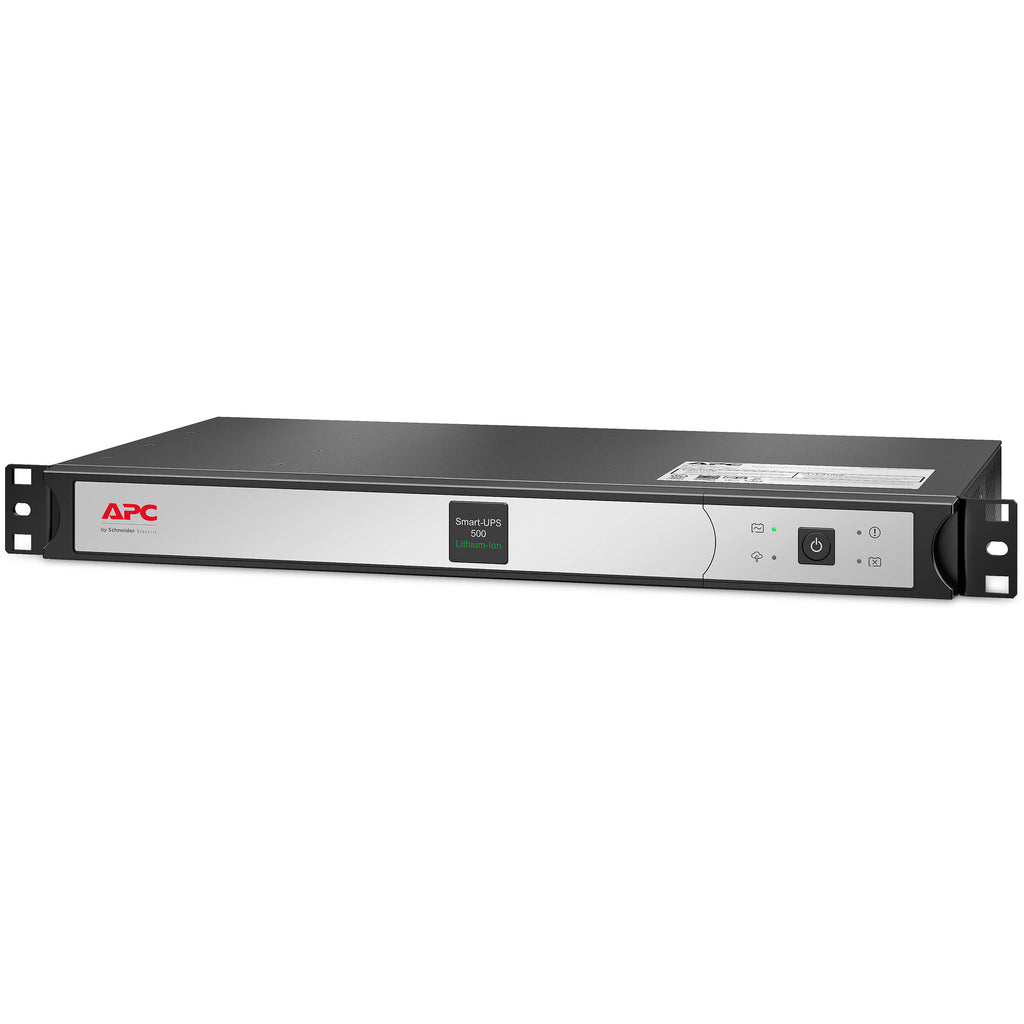

Saving on space doesn't have to mean skimping on backup power or surge protection, thanks to the Smart-UPS Li-Ion Short-Depth 500VA, 120V Uninterruptible Power Supply with Network Management Card. Providing four NEMA 5-15R outlets, this UPS utilizes a 5-15P power connection and features single USB Type-A and serial RJ45 communication ports. Providing 400W or 500VA at 120V, this uninterruptible power supply incorporates integrated LED indicators to visually alert you of status changes. Audible alarms can also be used to monitor the status of the power supply, notifying you of changes to UPS and utility power conditions.
Featuring hot-swappable user-replaceable batteries, this Smart-UPS allows for easy switching when a battery is depleting, ensuring limited downtime. Cold-start capable, it can provide temporary battery power if utility power is lost. Furthermore, half of the receptacles belong to a single switched outlet group, facilitating discrete control over rebooting hung devices, sequenced power cycling, or load shedding. A preinstalled network card allows users to remotely control the UPS. This APC Smart-UPS unit features a short depth and a 1 RU form factor, allowing for easy installation in server racks.
Cold-Start Capable
Provides temporary battery power when the utility power is out.
Optimized Online Efficiency
Reduces utility costs, generates less heat.
Lithium-Ion Battery
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light, and environmentally friendly.
Predictive Replace-Battery Date
Dynamically provides the month and year when battery replacement is recommended to aid in long-term maintenance planning.
Preinstalled Network Management Card
Provides for remote management and control of the UPS over a network out of the box.
Short-Depth Rack Compatibility
Compact design fits comfortably in short-depth rack applications.
Single Switched Outlet Group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off, and non-critical load shedding.
Temperature-Compensated Battery Charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Disconnected Battery Notification
Warns when a battery is not available to provide backup power.
Power Conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Automatic Restart
Automatically starts up the connected equipment upon the return of utility power.
Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent precision charging.
Energy Meter
Provides actual kilowatt hours of usage for energy-conscious users.
Automatic Self-Test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery Failure Notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Predictive Failure Notification
Provides early-warning fault analysis ensuring proactive component replacement.
Hot-Swappable Batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
User-Replaceable Batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair or MTTR.
Resettable Circuit Breakers
Enables a quick recovery from overload events.
Adjustable Voltage-Transfer Points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable Voltage Sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Safety-Agency Approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Audible Alarms
Provides notification of changing utility power and UPS conditions.
USB Connectivity
Provides management of the UPS via a USB port (not available on all models).
Serial Connectivity
Provides management of the UPS via a serial port.
Network Management
Provides remote power management of the UPS over the network.
LED Status Indicators
Quickly understand unit and power status with visual indicators.
Pure Sine Wave Output
Simulates utility power to provide the highest degree of compatibility for active PFC or power factor corrected servers and sensitive electronics.
UPC: 731304344568
In the Box
- APC Smart-UPS Li-Ion Short-Depth 500VA, 120V Uninterruptible Power Supply with Network Management Card
- Rack Mounting Support Rails
- USB Cable
- Limited 5-Year Warranty
Table of Contents
- Description
- Cold-Start Capable
- Optimized Online Efficiency
- Lithium-Ion Battery
- Predictive Replace-Battery Date
- Preinstalled Network Management Card
- Short-Depth Rack Compatibility
- Single Switched Outlet Group
- Temperature-Compensated Battery Charging
- Disconnected Battery Notification
- Power Conditioning
- Automatic Restart
- Intelligent Battery Management
- Energy Meter
- Automatic Self-Test
- Battery Failure Notification
- Predictive Failure Notification
- Hot-Swappable Batteries
- User-Replaceable Batteries
- Resettable Circuit Breakers
- Adjustable Voltage-Transfer Points
- Adjustable Voltage Sensitivity
- Safety-Agency Approved
- Audible Alarms
- USB Connectivity
- Serial Connectivity
- Network Management
- LED Status Indicators
- Pure Sine Wave Output
APC 500VA Specs
General
| Total Outlets | 4 x NEMA 5-15R |
| Protected Outlets | 4 x NEMA 5-15R (Battery and Surge) |
| Plug Type | NEMA 5-15P |
| USB Charging Ports | None |
| Coax Protection | None |
| Data Line Protection | None |
| Communications | Serial via RJ45 USB via Type-A |
| Noise Filtering | 0.3% |
| Topology | Line Interactive |
| Transfer Time | 6 to 10 ms |
Power
| Surge Energy Rating | 680 Joules |
| Maximum Wattage | 400 W at 120 VAC |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Range | 92 to 139 VAC |
| Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) |
| Nominal Output Voltage | 120 VAC |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Load Capacity | 500 VA |
| Waveform | Sine Wave |
Battery
| Battery Capacity | 30 VAh |
| Chemistry | Lithium-Ion |
| User Replaceable | Yes |
| Hot-Swap Support | Yes |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Operating Altitude | 0 to 6561' / 0.0 to 1999 m |
| Storage Altitude | 0 to 49,212' / 0.0 to 14,999 m |
| Noise Level | 45 dBA |
| Certifications | CSA, FCC, NOM, UL, as per Manufacturer |
Physical
| Rackmount Size | 1 RU (with Included Hardware) |
| Dimensions (W x H x D) | 17 x 1.7 x 9.1" / 43.2 x 4.3 x 23.1 cm |
| Weight |
