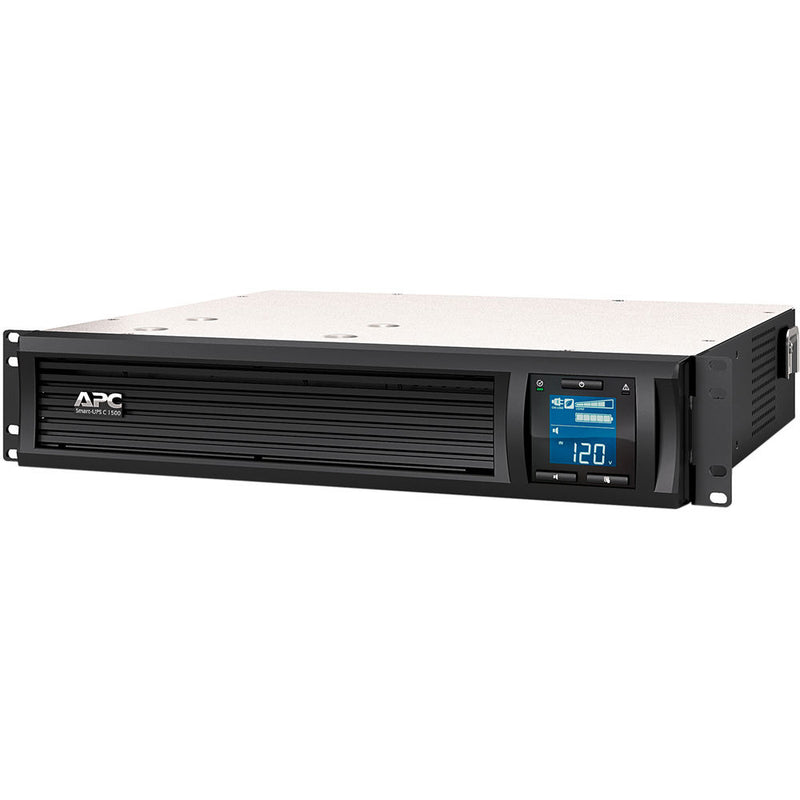

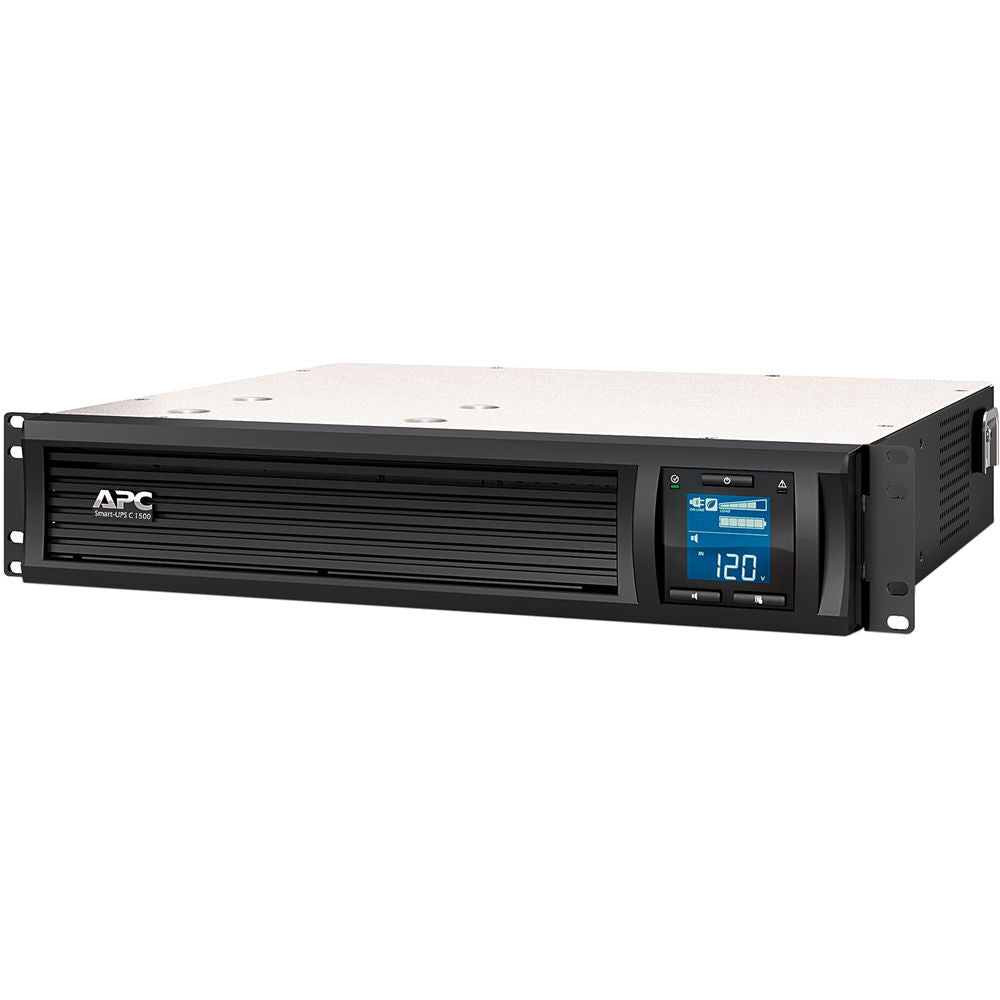

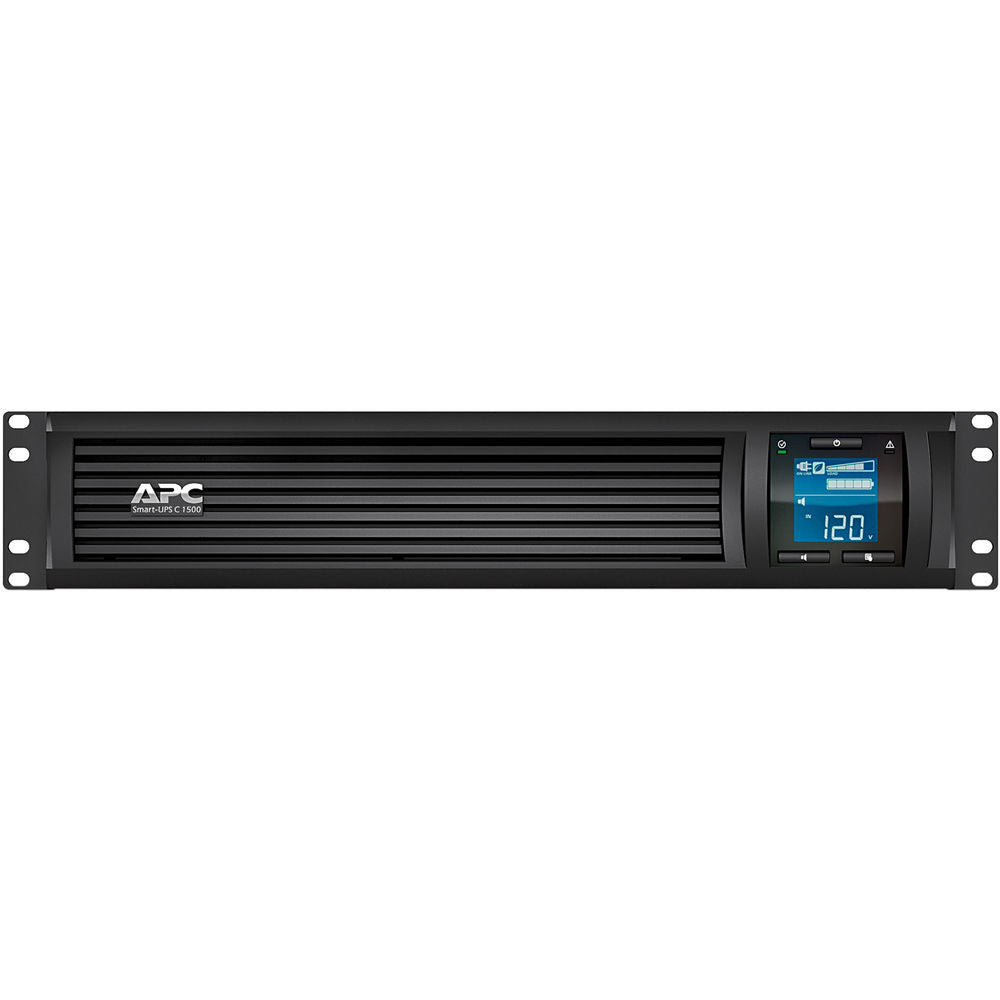

APC Smart-UPS C Battery Backup & Surge Protector with SmartConnect

Designed for servers, point-of-sale, routers, switches, hubs, and other network devices, the Smart-UPS C Battery Backup & Surge Protector with SmartConnect from APC has a 2 RU form factor and delivers intelligent and efficient network power protection from entry level to scalable runtime. It can provide 173 minutes of use at 50W, 107 minutes of use at 100W, 59 minutes of use at 200W, 39.2 minutes of use at 300W, 28.6 minutes of use at 400W, 22.1 minutes of use at 500W, and 17.6 minutes of use at 600W, 14.4 minutes of use at 700W, 12 minutes of use at 800W, and 10.1 minutes of use at 900W.

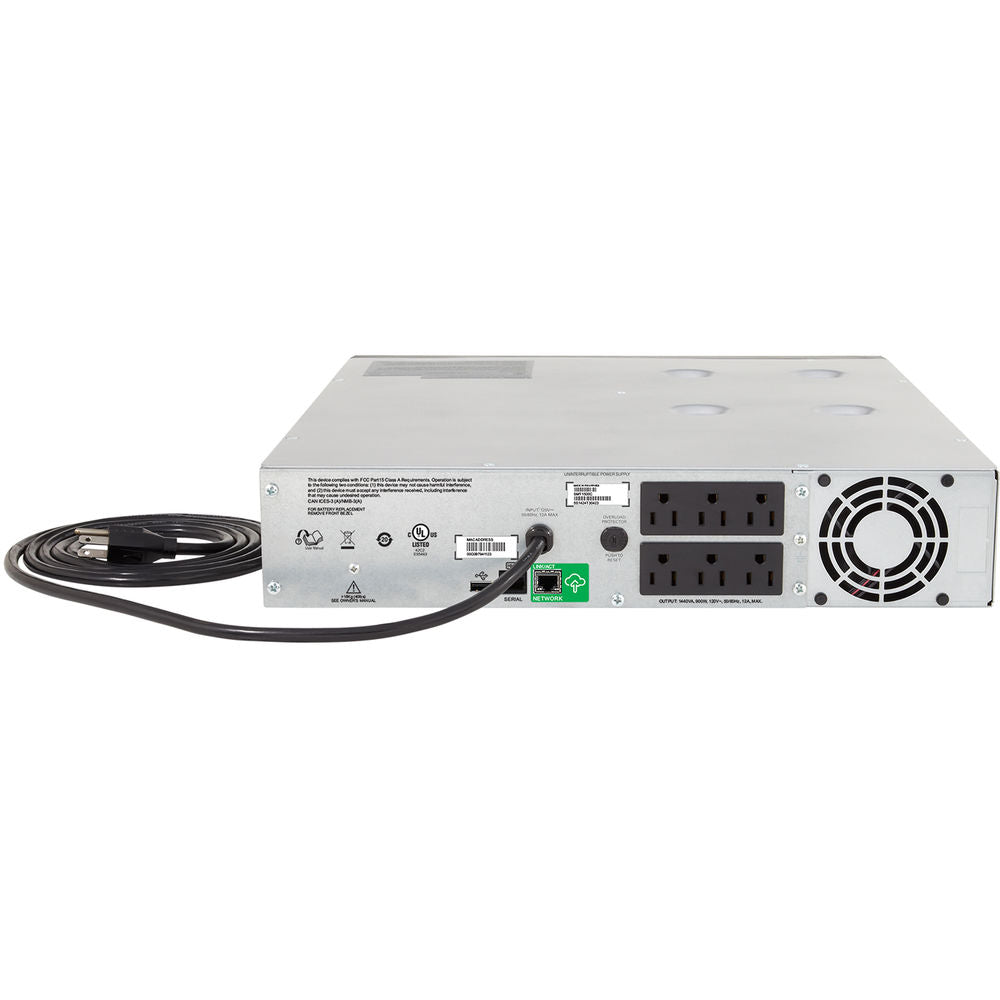

This Smart-UPS C features an output of 900W / 1440 VA, an input of 120V @ 50/60 Hz ±3 Hz, six NEMA 5-15R battery backup outlets, a NEMA 5-15P input connection, a surge energy rating of 680 joules, line interactive topology, and a sine waveform. Included PowerChute Network Shutdown management software helps to provide unattended, yet proper shutdowns of network operating systems, and also included are rack-mounting support rails and a USB cable. Support is provided by a limited 2-year repair or replace warranty and a limited lifetime $150,000 equipment protection policy.

APC SmartConnect makes the Smart-UPS more adaptable and easier to deploy, enabling you to view the status of your UPS through a secure web portal. Through this remote management interface, you'll receive automatic notifications, firmware updates, and advanced support.

SMC1500-2UC Features

Cold-Start Capable

Provides temporary battery power when the utility power is out.

Green Mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High Online Efficiency

Reduces utility costs, generates less heat.

LCD Status Display

Provides key UPS status at a glance. There are multiple status indicators with load and battery bar graphs.

Pure Sine Wave Output

Simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Smart-UPS Features & Benefits

Adaptability

Adjustable Voltage-Transfer Points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable Voltage Sensitivity

Provides the ability to adapt the UPS for improved performance in specific power environments or generator applications.

Safety

Safety-Agency Approved

Helps ensure the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

Serial Connectivity

Provides management of the UPS via a serial port.

USB Connectivity

Provides management of the UPS via a USB port.

Disconnected Battery Notification

Warns when a battery is not available to provide backup power.

Network Manageable

Provides remote power management of the UPS over the network.

Audible Alarms

Actively lets you know if the unit is on battery, if the battery is low, or if there is an overload condition.

LED Status Indicators

Quickly understand the unit and power status with visual indicators.

Serviceability

Battery Failure Notification

Provides early-warning fault analysis on batteries, thus enabling timely preventive maintenance.

User-Replaceable Batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries, thus reducing the Mean Time to Repair (MTTR).

Hot-Swappable Batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Predictive Failure Notification

Provides early-warning fault analysis, helping to ensure proactive component replacement.

Resettable Circuit Breakers

Enables a quick recovery from overload events.

Availability

Intelligent Battery Management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power Conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.

Automatic Self-Test

A periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic Restart of Loads After UPS Shutdown

Automatically starts up the connected equipment upon the return of utility power.
