APC Smart-UPS 3000VA LCD RM 2U 120V TAA Uninterruptible Power Supply

6 x NEMA 15R Battery Backup Outlets

2 x NEMA 5-20R Battery Backup Outlets

SmartSlot & USB Interfacing

3000 VA / 2700W Output

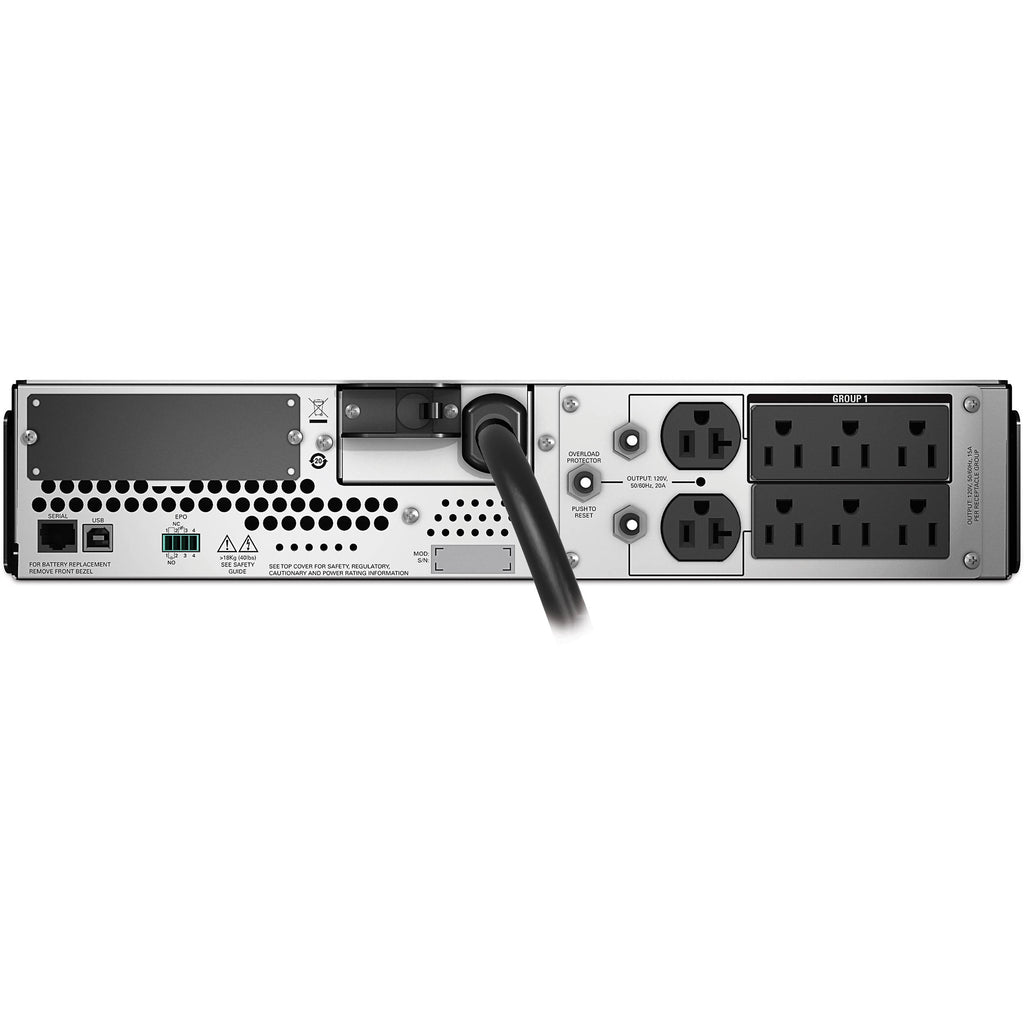

Safeguard your server equipment against power surges and outages with the Smart-UPS 3000VA LCD RM 2U 120V TAA Uninterruptible Power Supply from APC . Featuring six NEMA 5-15R and two 5-20R outlets, this UPS uses a NEMA L5-30P input connection. An RJ45 and USB Type-B port allow users to control this Smart-UPS system via a network or attached host. In addition to a 4 to 8 ms switch time, this UPS protects connected equipment from outages and surges with energy ratings up to 459 joules.

Featuring hot-swappable batteries, the Smart-UPS 3000VA LCD RM 2U 120V TAA uses a sine waveform and line-interactive typology. In addition to power conditioning, temperature-compensated battery charging, and adjustable voltage sensitivity, this power supply also provides intelligent battery management and an automatic restart, among other features. Operational noise is kept to a relatively low 55 dBA and users can expand interfacing options using the built-in SmartSlot. In addition to the multifunctional LCD, LED indicators notify users when batteries are on, need replacing, or are overloaded. These LED indicators are complemented by audible alarms corresponding to the same battery conditions. Featuring a 2 RU form factor, the APC Smart-UPS 3000VA LCD RM 2U 120V TAA is designed to conveniently fit server racks.

Battery Failure Notification Provides early-warning fault analysis on batteries, enabling timely preventive maintenance. Green Mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. LCD Graphics Display Text and mimic diagrams that display modes of operation, system parameters, and alarms. Automatic Self Test Periodic battery self test ensures early detection of a battery that needs to be replaced. Disconnected Battery Notification Warns when a battery is not available to provide backup power. Audible Alarms Provides notification of changing utility power and UPS power conditions Predictive Failure Notification Provides early-warning fault analysis ensuring proactive component replacement. User-Replaceable Batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR). Temperature-Compensated Battery Charging Prolongs battery life by regulating the charge voltage according to battery temperature. Intelligent Battery Management Maximizes battery performance, life, and reliability through intelligent precision charging. Scalable Runtime Allows additional run time to be quickly added as needed. Automatic Restart Automatically starts up connected equipment upon the return of utility power. SmartSlot Customize UPS capabilities with management cards. Serial Connectivity Provides management of the UPS via a serial port. LED Status Indicators Quickly understand unit and power status with visual indicators. Network Manageable Provides remote power management of the UPS over the network. Includes Powerchute Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities. Resettable Circuit Breaker Easy recovery from overloads with no need to replace a fuse. Power Conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances. Frequency and Voltage Regulation Gives higher application availability by correcting poor frequency and voltage conditions without using the battery. Generator Compatible Ensures clean, uninterrupted power to protected equipment when generator power is used. UPC: 731304305637

Total Outlets	6 x NEMA 5-15R 2 x NEMA 5-20R
Protected Outlets	6 x NEMA 5-15R (Battery and Surge) 2 x NEMA 5-20R (Battery and Surge)
Plug Type	NEMA L5-30P
USB Charging Ports	None
SmartSlot Interface	1
Data Line Protection	None
Communications	USB via Type-B Serial via RJ45
Emergency Power Off (EPO) Support	Yes
Topology	Double Conversion
Transfer Time	4 to 8 ms

Surge Energy Rating	459 Joules
Maximum Wattage	2700 W
Nominal Input Voltage	120 VAC
Input Voltage Range	82 to 144 VAC
Input Voltage Adjustable Range	75 to 154 VAC
Input Frequency	50/60 Hz ± 3 Hz (Auto Sensing)
Nominal Output Voltage	120 VAC
Output Frequency	50/60 Hz (Configurable)
Voltage Distortion	<5%
Load Capacity	3000 VA
Thermal Dissipation	348 BTU/Hour
Waveform	Sine Wave

Battery Capacity	566 VAh
Chemistry	Lead-Acid
Charging Time	3 Hours
User Replaceable	Yes
Replacement Battery	RBC43
Hot-Swap Support	Yes

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 95%
Storage Temperature	5 to 113°F / -15 to 45°C
Storage Humidity	0 to 95%
Operating Altitude	0.00 to 9999' / 0 to 3048 m
Storage Altitude	0.00 to 49,999' / 0 to 15,240 m
Noise Level	55 dBA
Certifications	CSA, ENERGY STAR, FCC, REACH, RoHS, as per Manufacturer

Cable Length	8' / 2.44 m
Rackmount Size	2 RU (with Included Hardware)
Dimensions (W x H x D)	17.01 x 3.35 x 24.06" / 432 x 85 x 611 mm
Weight	70.55 lb / 32 kg

Package Weight	120 lb
Box Dimensions (LxWxH)	38.63 x 23.5 x 9.75"
