Description
APC NetShelter SX Overview

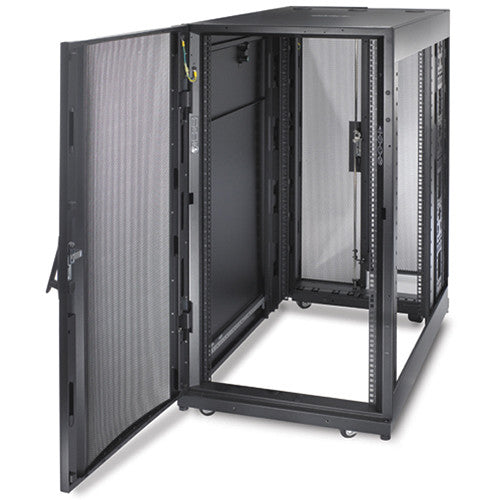

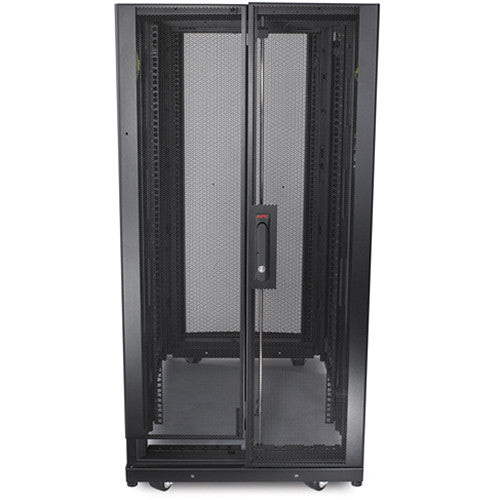

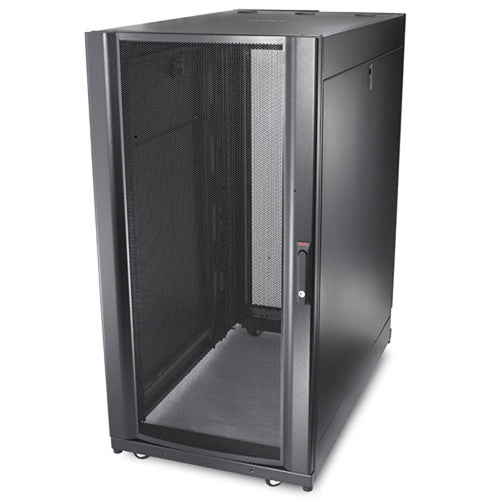

The black NetShelter SX 24U Enclosure from APC is optimized for storage of industry-standard EIA-310, 19" rack-mounted hardware, including cable management systems. This product is also optimized for use with high -capacity cable management systems that attach to equipment mounting rails within enclosures. This helps equipment to align with mounting U-spaces and provides channels for routing and managing cabling. This product works with IT enclosures to help provide an infrastructure support system, and is compatible with Schneider Electric rack accessory products to create a complete rack system.
Large cable-access slots in the roof provide for overhead cable egress. The roof also includes openings with pre-installed brush strips in locations that favor the front of the enclosure, allowing data cables to pass through, as well as provisions for air containment. The bottom allows for cable access through a raised floor. Additionally, this enclosure is equipped with a perforated front door with a curved profile, quick-release doors, half-height side panels with optional brush strips for passthrough, a removable cable access roof, eyebolt support, equipment mounting rails that integrate with a patch cabling system, and more. This enclosure includes a hardware bag that may be used for mounting IT equipment and tools for simple enclosure adjustment.
NetShelter SX Features & Benefits
Compatibility
Integrated with InfraStruxure Products
Schneider Electric cooling, power distribution, and cable management products work with IT enclosures to provide a complete infrastructure support system
Schneider Electric Rack Systems Compatible
Compatible with a variety of Schneider Electric rack accessory products to provide the ability to create a complete rack system. Configure rack solutions using the Schneider Electric Design Portal - Small IT Solution Designer configurator complete with verification of product compatibility and a 3rd party equipment catalog to aid in visualizing your rack solution
Optimized for High Capacity Cable Management Systems
NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling
Optimized for High Capacity Cable Management Systems
Vendor-neutral mounting for compatibility with all EIA-310 compliant 19" equipment. The "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-E compliant rack-mount equipment will physically fit in a NetShelter
Convenience
Cable Access Openings with Pre-Installed Brushes
Large cable-access slots in the roof provide access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. The roof includes openings with brush strips pre-installed in locations towards the front of the enclosure to allow for data-cable passthrough and provisions for air containment
Simple Selection
There is no need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Schneider Electric has made it easy by handling the details and providing complete enclosures with single part numbers
Perforated Front Door with Curved Profile
Perforated front and rear doors provide ample ventilation for servers and networking equipment. The front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and a higher perforation rating
Quick-Release Doors
The front door can be moved to the opposite side or interchanged with the rear doors. Doors are removed with a simple lift-off design
Half-Height Side Panels and Option with Brush Strips for Pass-Through
Half-height quick-release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors. Now available are side panel options integrated with pass-through holes and brush strips for routing cabling to adjacent racks in a row while still maintaining proper airflow
Removable Cable Access Roof
The roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed, the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors
Eyebolt Support Integrated into the Enclosure Frame
Integrated eyebolt holes at the top of the enclosure frame allow the enclosure to be lifted for movement and enclosure placement using eyebolt lifting mechanisms. Refer to enclosure user documentation for detailed specifications on eyebolt requirements and enclosure weight limits
Equipment Mounting Rails Integrate with Patch Cabling Systems
Equipment mounting rails include zero U mounting holes beside the EIA 19" mounting space that allow the installation of Data Distribution Cable (DDC) patch systems without taking up any critical equipment U-space. AV and networking enclosure designs do not include hole locations for integration of DDC cabling. Other 1U, 2U, and rear enclosure zero U options are available for use with these enclosures
Enclosure Adjustment Tools and Hardware Provided
All enclosures are provided standard with a hardware bag that includes hardware for mounting IT equipment and tools for simple enclosure adjustment
Agility
Pre-Installed Full-Enclosure Height Rear Accessory Channels
An integrated and adjustable rear accessory channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers. A 42.13" / 1070mm deep enclosure and networking enclosure includes two channels. Channels are pre-installed at the factory in the rear of the enclosure but can be moved to other locations of the enclosure along the side brace to resituate cable management where it is needed most
Adjustable Mounting Rails with Captive Hardware and Rapid Alignment
The vertical mounting rails can be adjusted in 1/4" / 6.4mm increments covering virtually any mounting requirement for IT equipment. Easy alignment features are integrated into the enclosure mounting rail and side braces for quick alignment verification without the use of tools to verify alignment. U positions are numbered front and back for rapid installation of equipment
Split Rear Doors
Split rear doors improve access and serviceability to rear of rack-mounted equipment. The split rear doors help to maximize floor space. Only 11.0" / 279.4 mm of clearance is required behind the enclosures to allow for door swing
Low-Profile Casters and Adjustable Leveling Feet from Underneath or Above
Enclosures are shipped standard with both leveling feet and casters. Leveling feet can be quickly adjusted with a screwdriver or drill, eliminating the need to reach underneath with a wrench
Integrated Joining Hardware with Multiple Width Enclosure Alignment
Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. The pre-installed joining hardware includes holes for joining to an adjacent enclosure at 600mm centers or 24" centers depending upon the floor layout
Special Packaging Options for Shipping Rack with Equipment Mounted
Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside
Enclosure Assemble-to-Order (ATO) Options Capable
The Enclosure ATO (Assemble-to-Order) options provide a level of customization for enclosure customers beyond the standard enclosure models. For example, the enclosure can be assembled without sides, doors, or neither. This customization is limited to the assembly of the enclosure itself and does not include additional enclosure mounted components.
Safety
Designed for Enhanced Structural Stability
A proven frame design, heavy-gauge mounting rails, and heavy-duty casters provide for 3,006.31 lb / 1363.64 kg static (leveling feet) and 2254.73 lb / 1022.73 kg dynamic (caster) load ratings. Enclosures have been tested and approved to be combined with proper bolt-down accessories to meet various seismic requirements
Integrated Electrical Grounding
The roof, side panels, and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding
UPC: 731304262275
Items Included
- APC NetShelter SX 24U Enclosure (600 x 1070mm, Black)
- 60 x Plastic Cup Washers
- 60 x M6 x 16 Phillips Slot Screws
Additional Resources
APC NetShelter SX Specs
Physical
| Load Capacity |
Static Load: 3006.31 lb / 1363.64 kg
Dynamic Load: 2254.73 lb / 1022.73 kg |
| Mounting Depth |
Minimum: 7.52" / 191.00 mm
Maximum: 36.02" / 915.00 mm |
| Rack Height |
24U
|
| Rack Width |
19.00" / 48.26 cm
|
| Vertical Posts |
16 gauge
|
| Front Door |
16 gauge
|
| Rear Door |
18 gauge
|
| Roof |
18 gauge
|
| EIA Mounting Rails |
14 gauge
|
| Side Panels |
18 gauge
|
| Color |
Black
|
Conformance
| Regulatory Approvals |
UL 2416, UL 60950-1
|
| Standards |
EIA-310-E
|
Sustainable Offer Status
| RoHS |
Compliant
|
| REACH |
REACH: Contains No SVHCs
|
| Other Environmental Compliance |
China RoHS
|
Dimensions & Weight
| Dimensions |
47.17 x 23.62 x 42.13" / 1,198.00 x 600.00 x 1,070.00 mm
|
| Weight |
196.41 lb / 89.09 kg
|
Packaging Info
| Package Weight |
438 lb
|
| Box Dimensions (LxWxH) |
48 x 48 x 30"
|
