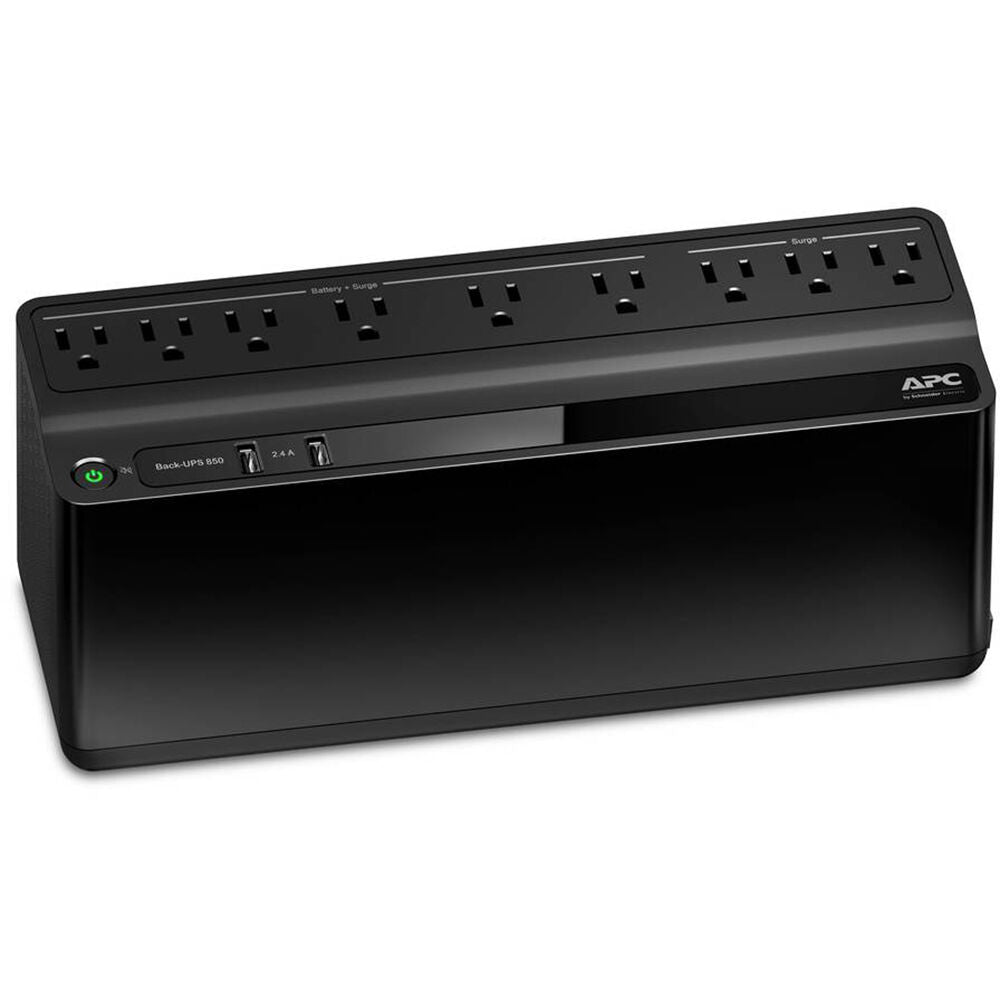

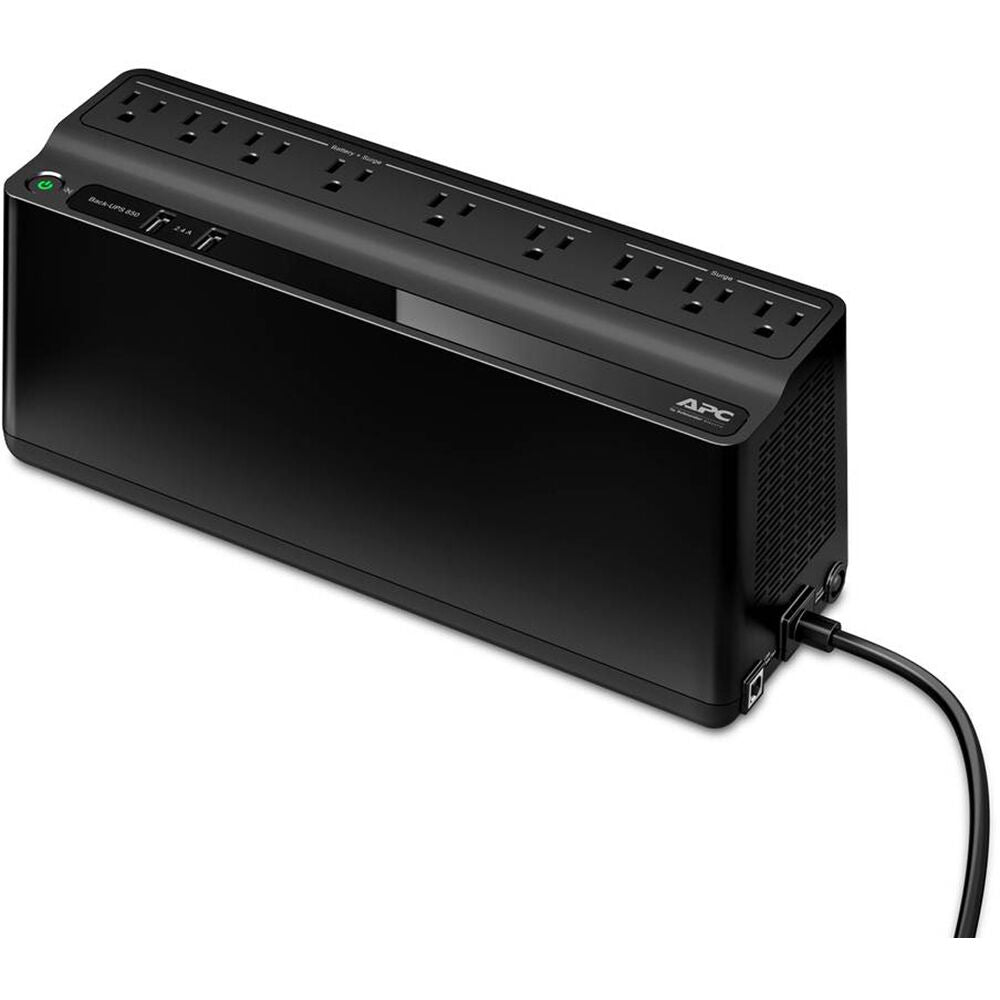

Keep devices backed up and protected with the Back-UPS 850VA with 2 USB Charging Ports (120V) from APC. Featuring a NEMA 5-15P input connection and nine NEMA 5-15R outlets, the Back-UPS incorporates six backup and surge-protected outlets and three outlets with only surge protection. Two USB Type-A charging ports are also present. Delivering a load capacity of 850VA or 450W, this uninterruptible power supply features an input of 120 VAC at 50 to 60 Hz. Surge protection is rated at 354 Joules with a 15A clamp force.
Boasting a transfer time of 6 to 10 ms, the APC Back-UPS ensures quick power backup for up to six connected devices in the event of a power surge, spike, or outage. Self-testing, this system alerts users when batteries need to be replaced or fail to start, or when a wiring fault is found in the mains. Alerts can come in the form of audible or visual alarms. You can also connect this power supply to a host computer via the USB Type-B port and included cable, allowing for easier power management. The RBC17 battery holds a capacity of 104 VAH and has an expected lifespan of two to five years. Employing a hot-swappable design, this battery can be easily replaced, limiting downtime.
Adjustable Voltage Sensitivity
Adapt this UPS for optimal performance in specific power environments or for generator applications.
Audible Alarms
Audible alarms provide notification of changing utility power and UPS power conditions.
Automatic Self-Test
Periodic battery self-testing ensures early detection of a battery that needs to be replaced.
Battery Failure Notification
Get early-warning fault analysis on batteries, enabling timely preventive maintenance.
LED Status Display & Indicators
Quickly understand unit and power status with visual indicators. This UPS will even alert you if a building wiring fault is found in the wall circuit.
Cold-Start Capable
Provides temporary battery power when the utility power is out.
Disconnected Battery Notification
Notifications warn you when a battery is not available to provide backup power.
Hot-Swappable Batteries
Hot-swap support ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Simple Battery Replacement
Increase UPS availability with quick, easy battery replacement.
Transformer Block Spacing
Connect bulky transformer block plugs without covering up other outlets, thanks to three optimally spaced receptacles.
USB Connectivity
Manage your UPS via the USB Type-B port and included USB cable.
Surge-Only Outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and Surge-Protected Outlets
Back up and protect your hardware and data during power outages, surges, and spikes.
Intelligent Battery Management
Maximize battery performance, life, and reliability through intelligent, precise charging.
![]()
UPC: 731304413592
In the Box
- APC Back-UPS 850VA with 2 USB Charging Ports (120V)
- USB Cable
- Limited 3-Year Warranty
Table of Contents
- Description
- Adjustable Voltage Sensitivity
- Audible Alarms
- Automatic Self-Test
- Battery Failure Notification
- LED Status Display & Indicators
- Cold-Start Capable
- Disconnected Battery Notification
- Hot-Swappable Batteries
- Simple Battery Replacement
- Transformer Block Spacing
- USB Connectivity
- Surge-Only Outlets
- Battery and Surge-Protected Outlets
- Intelligent Battery Management
APC 850VA Specs
General
| Total Outlets |
9 x NEMA 5-15R (3 Transformer-Sized) |
| Protected Outlets |
6 x NEMA 5-15R (Battery and Surge)
3 x NEMA 5-15R (Surge Only) |
| Plug Type |
NEMA 5-15P Right-Angle |
| USB Charging Ports |
2 x USB Type-A (2.4 A) |
| SmartSlot Interface |
None |
| Coax Protection |
None |
| Data Line Protection |
None |
| Communications |
USB via Type-B |
| Topology |
Standby |
| Transfer Time |
6 to 10 ms |
Power
| Surge Energy Rating |
354 Joules |
| Maximum Wattage |
450 W |
| Nominal Input Voltage |
120 VAC |
| Input Voltage Range |
92 to 139 VAC |
| Input Voltage Adjustable Range |
88 to 142 VAC |
| Input Frequency |
50/60 Hz ± 3 Hz (Auto Sensing) |
| Nominal Output Voltage |
120 VAC |
| Output Frequency |
50/60 Hz ± 3 Hz |
| Load Capacity |
850 VA |
| Circuit Breaker Rating |
15 A |
| Waveform |
Simulated Sine Wave |
Battery
| Battery Capacity |
104 VAh |
| Chemistry |
Lead-Acid |
| Charging Time |
8 Hours |
| User Replaceable |
Yes |
| Replacement Battery |
RBC17 |
| Hot-Swap Support |
Yes |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
0 to 95% |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
| Storage Humidity |
10 to 90% |
| Operating Altitude |
0.00 to 9842' / 0 to 3000 m |
| Storage Altitude |
0.00 to 49,212' / 0 to 15,000 m |
| Noise Level |
45 dBA |
| Certifications |
CEC, FCC, RoHS, UL, as per Manufacturer |
Physical
| Cable Length |
5' / 1.52 m |
| Rackmount Size |
None |
| Dimensions (W x H x D) |
12.87 x 5.47 x 4.13" / 32.69 x 13.89 x 10.49 cm |
| Weight |
9.04 lb / 4.1 kg |
Packaging Info
| Package Weight |
10.45 lb |
| Box Dimensions (LxWxH) |
16 x 7 x 6" |
