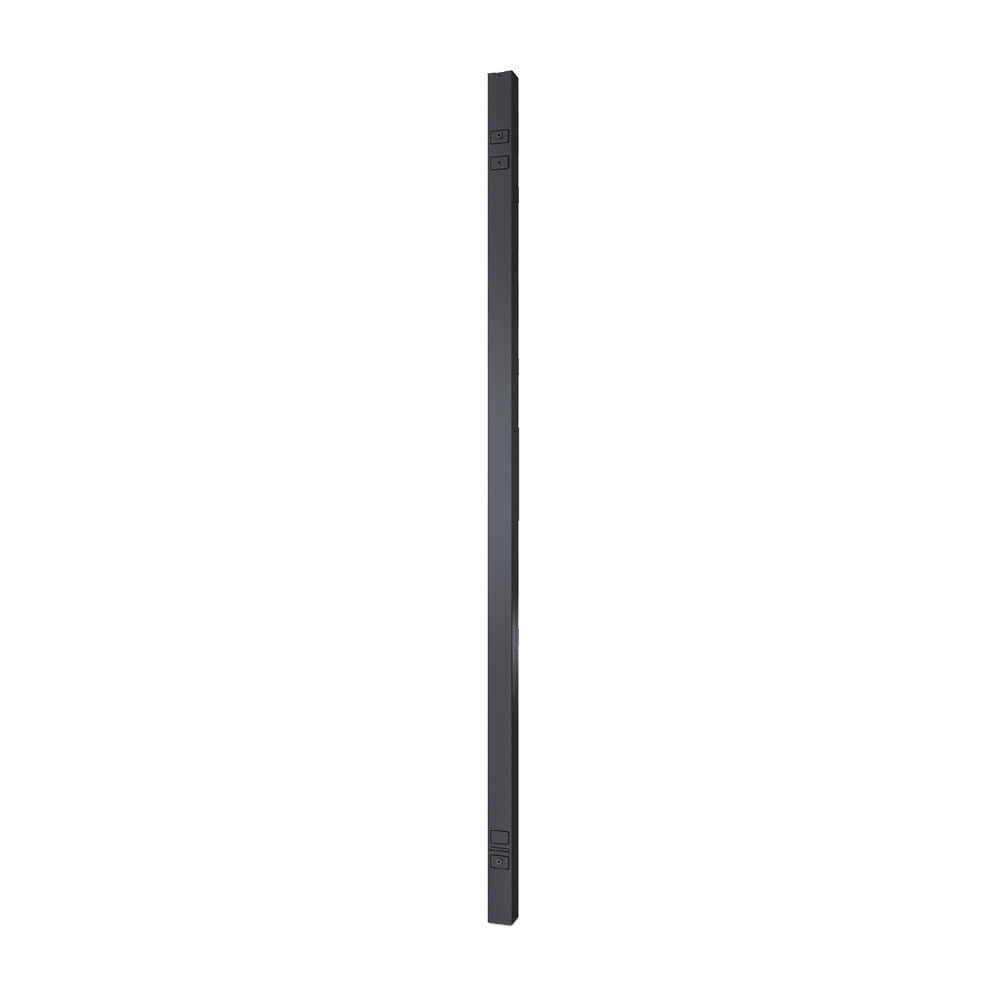

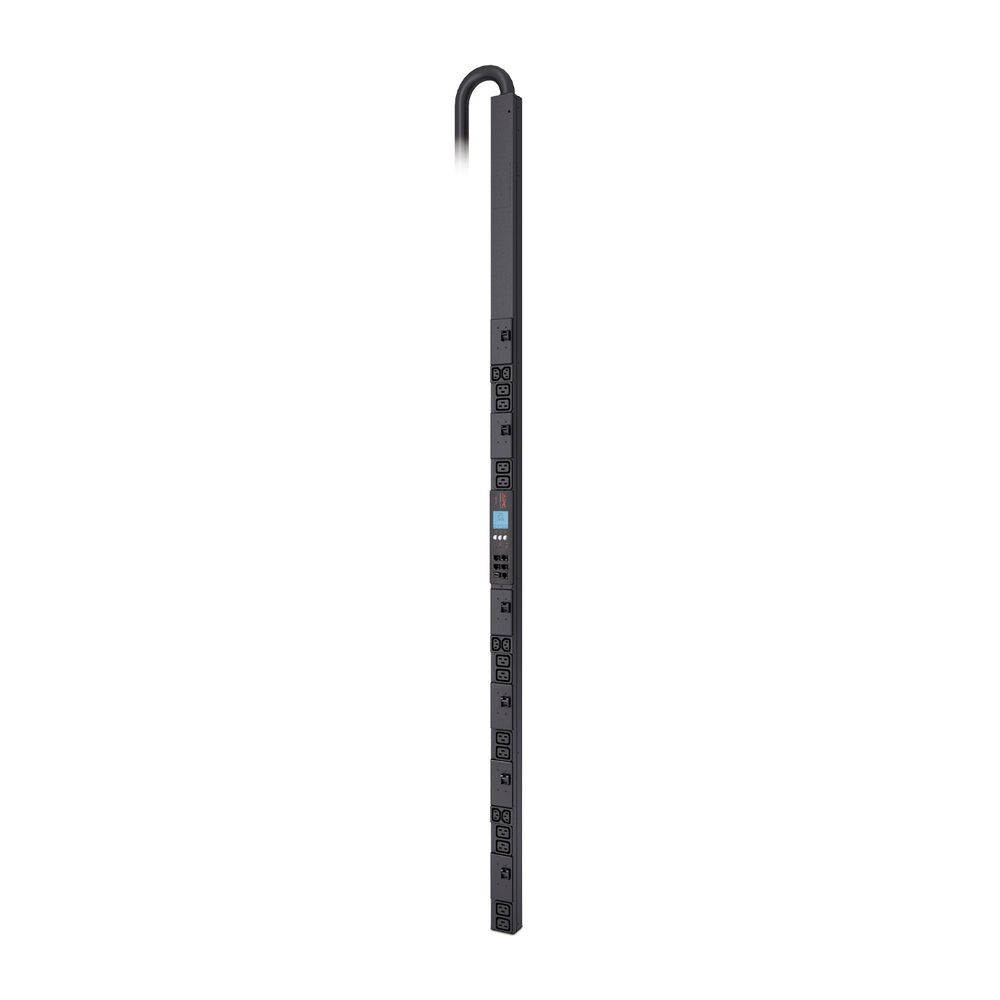

APC AP8866 18-Outlet Metered Zero RU 2G Rack PDU (60A, 208V)

12 x IEC-320 C19 Outlets

6 x IEC-320 C13 Outlets

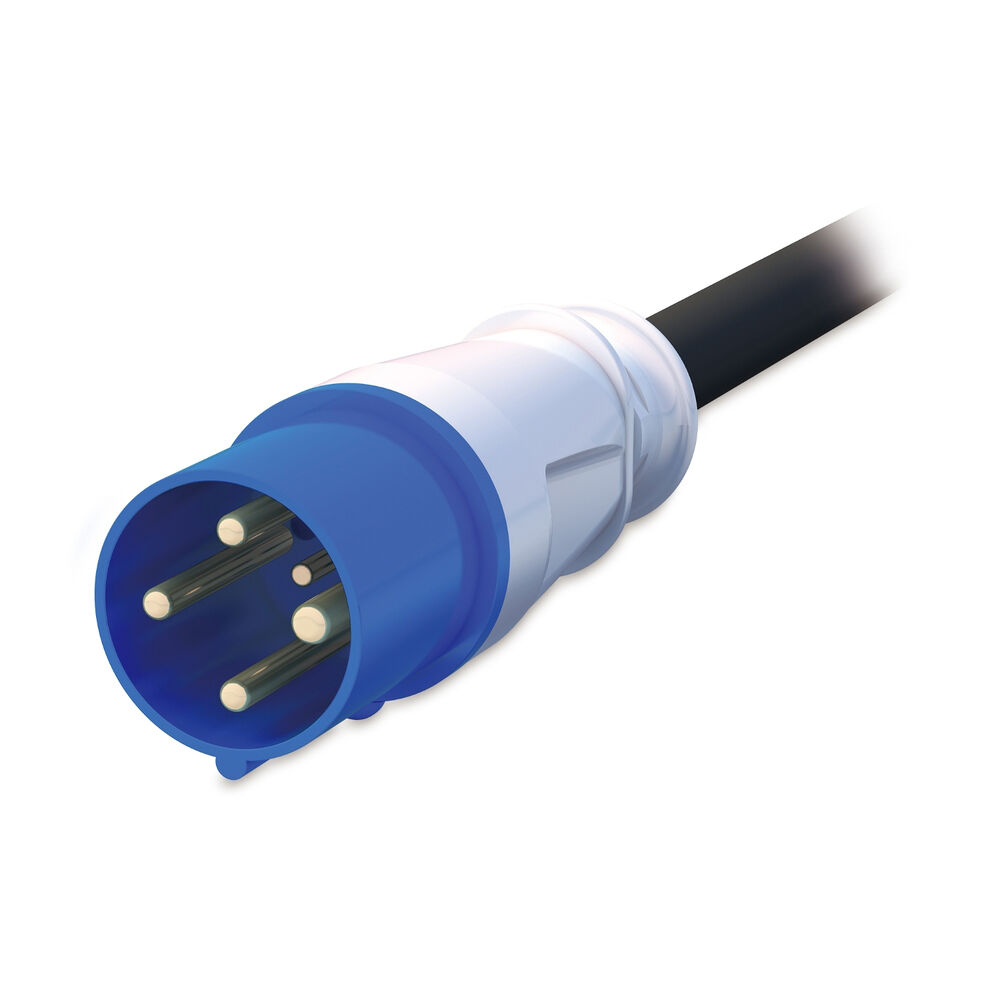

1 x IEC-60309 60A 3P+E Input Connection

Base-T Ethernet & RJ12 Serial Interface

Expand your power options with the AP8866 18-Outlet Metered Zero RU 2G Rack PDU (60A, 208V) from APC . Designed to provide active metering, this power distribution unit uses an IEC-60309 60A 3P+E input connection and sports 12 IEC-320 C19 and 6 IEC-320 C13 outlets. An RJ12 serial and RJ45 Base-T Ethernet port provide interfacing options, while a USB Type-A port can be used to deploy firmware upgrades via a flash drive. Network sharing ports are also present, as is a networking port for use with the optional APC Temp and Humidity Sensor. Alongside simple controls, this PDU's interface panel also includes LEDs for status conditions, including warning and overload indicators.

Users can define the alarms to suit preferred parameters for optimum circuit protection. Featuring a load capacity of 17300VA or 17200W, this PDU delivers 208V at 60A. Designed to be installed vertically on racks or enclosures, the APC AP8866 comes with mounting hardware and a serial configuration cable, and features a 6' power cord.

Remote Management Capabilities Network management interfaces provide standards-based management via web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Local Current Monitoring Display The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Load Indicator LED Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Alarm Thresholds Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. Input and Output Connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. Single Input Power Source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rackmount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal, vertical, and toolless mount varieties. UPC: 731304289906

Wall Plug Type	IEC-60309 60A 3P+E
Outlets	12 x IEC-320 C19 6 x IEC-320 C13
USB Ports	1 x USB Type-A
Ethernet	1
Coaxial	None
RJ11	None

AC Input Power	208 VAC, 50 Hz at 60 A
Load Capacity	17,200 W
Rated Current	60 A
Circuit Breaker	No

Certifications	FCC, PSE, UL, cUL, as per Manufacturer
Operating Temperature	32 to 131°F / 0 to 55°C
Operating Humidity	5 to 95%
Storage Temperature	-13 to 149°F / -25 to 65°C

Cable Length	6' / 1.83 m
Cable Management	None
Dimensions (L x W x H)	2.0 x 2.2 x 72.0" / 50.8 x 55.9 x 1828.8 mm
Weight	20.94 lb / 9.5 kg
