| ₹ 287845.0 includes GST and import duties. | |
| B2B customers can avail ₹ 43896.36 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

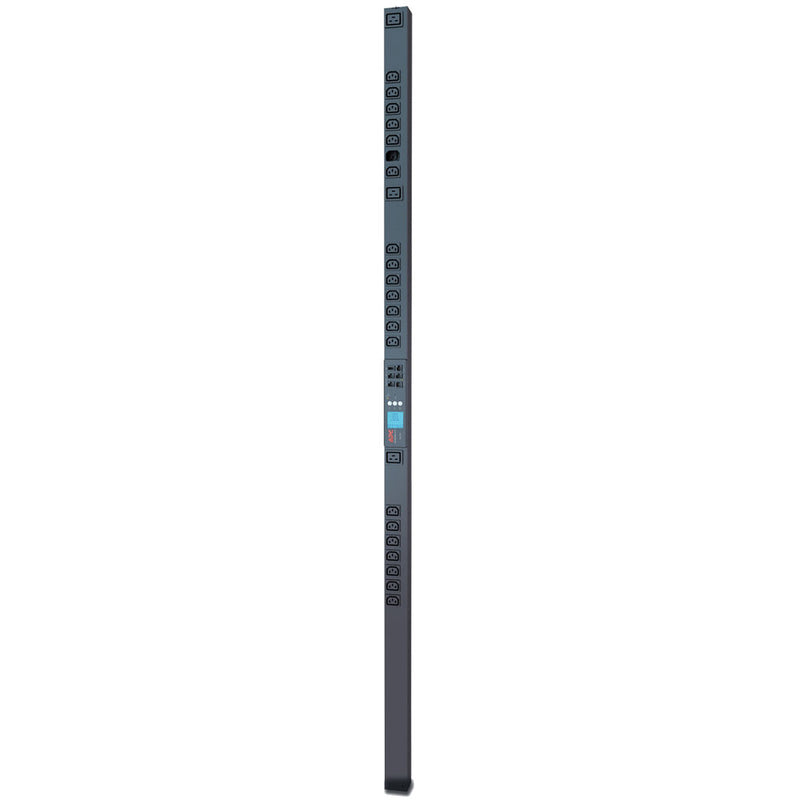

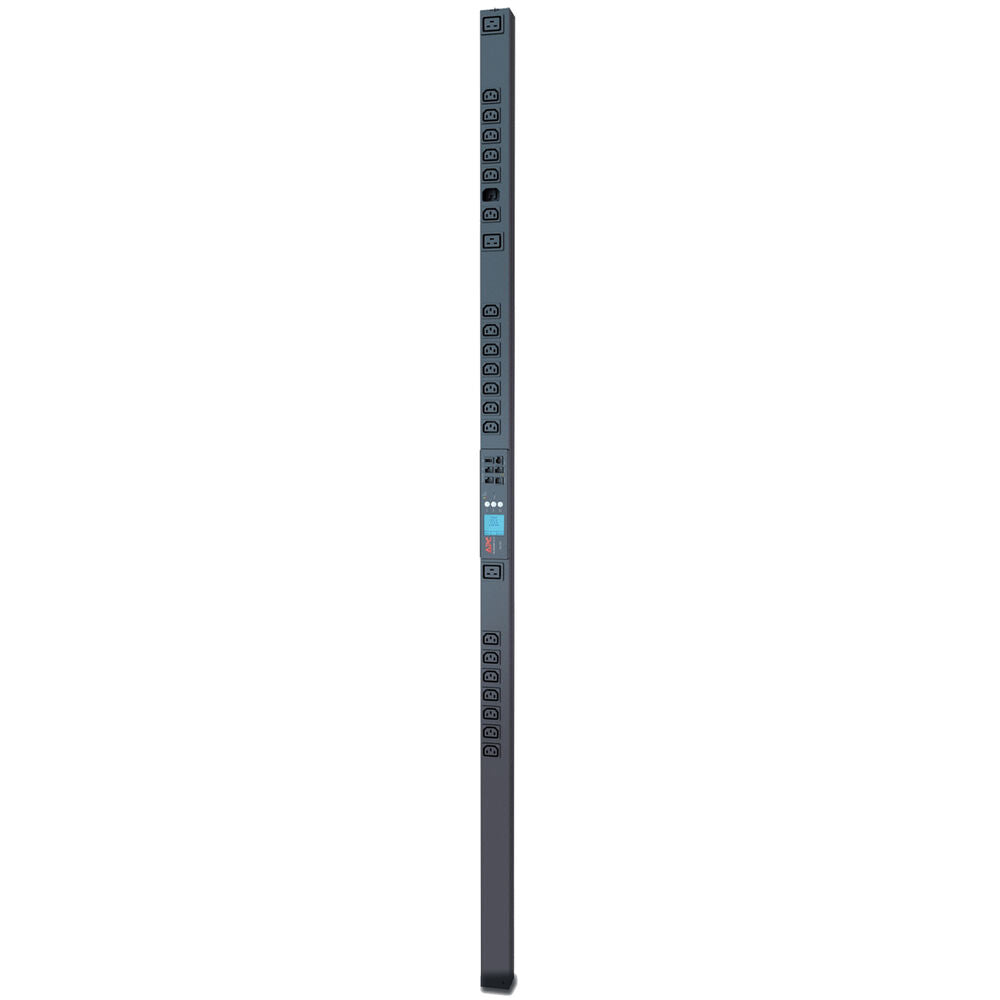

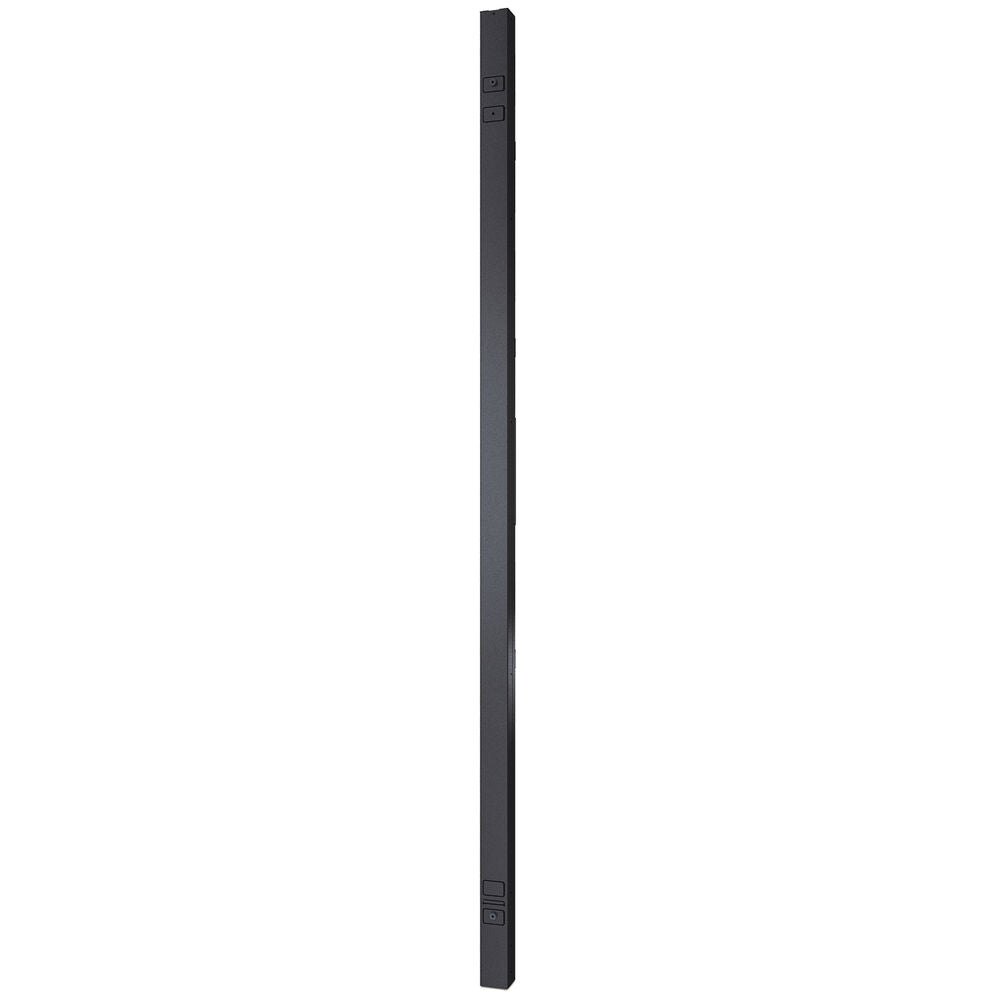

APC AP8459NA3 Overview
Enhance the number of connections in your server rack with the AP8459NA3 24-Outlet Metered Zero RU 2G Rack PDU (20A, 208V) from APC. Designed to provide active metering, this power distribution unit uses a 9.8' NEMA L6-20P wired input connection and sports 21 IEC C13 outlets and 3 IEC C19 outlets. An RJ12 serial and RJ45 Base-T Ethernet port provide interfacing options, while a USB-A port can be used to deploy firmware upgrades via a flash drive. Network sharing ports are also present, as is a networking port for use with the optional APC Temp and Humidity Sensor. Alongside simple controls, this PDU's interface panel also includes LEDs for status conditions, including warning and overload indicators. Along with real power monitoring, this PDU features locking IEC receptacle and ultra low-profile circuit breakers.
Users can define the alarms to suit preferred parameters for optimum circuit protection. Featuring a load capacity of 3300VA, this PDU delivers up to 240V at 20A. Designed to be installed vertically on racks or enclosures, this PDU comes with mounting hardware and a serial configuration cable, and features a 9.8' power cord.
Items Included
- APC AP8459NA3 24-Outlet Metered Zero RU 2G Rack PDU (20A, 208V)
- CAN Port Terminator
- Rack Mounting Brackets
- Serial Configuration Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
APC AP8459NA3 Specs
| Metering |
Yes
|
| Battery Backup |
No
|
| Outlets |
21x IEC-320 C13
3x IEC-320 C19 |
| Additional I/O |
No
|
| Surge Protection |
Yes
|
| Type |
Distributor
|
| Amp Rating |
20 A
|
| Number of Circuits |
Not Specified by Manufacturer
|
| Metering |
Yes
|
| Battery Backup |
No
|
| Integrated Lamps |
None
|
| Outlets |
21x IEC-320 C13
3x IEC-320 C19 |
| Wall Plug Type |
NEMA L6-20P
|
| Lamp I/O |
No
|
| Additional I/O |
No
|
| Wireless |
No
|
| AC Input Power |
200 to 230 VAC, 50 / 60 Hz
|
| Output Voltage |
208 VAC
|
| Output Current |
20 A
|
| Load Capacity |
3300 VA
|
| Sequencing Delay |
No
|
| Protection Types & Modes |
Overvoltage, Undervoltage
|
| Circuit Breaker |
Yes
|
| Surge Protection |
Yes
|
| EMI/RFI Noise Filtration |
No
|
| Rackmount Size |
0 U
|
| Cable Length |
9.84' / 3 m
|
| Certifications |
EN, FCC, ICES, UL, VCCI, VDE
|
| Operating Conditions |
23 to 140°F / -5 to 60°C at 5 to 95% Humidity
|
| Storage Conditions |
-13 to 149°F / -25 to 65°C at 5 to 95% Humidity
|
| Material of Construction |
Aluminum
|
| Cable Management |
No
|
| Dimensions |
72.01 x 2.2 x 2.01" / 182.91 x 5.6 x 5.11 cm
|
| Weight |
14.9 lb / 6.8 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 282088.1 |
| 3-5 | ₹ 279209.65 |
| 5-10 | ₹ 273452.75 |
| 10+ | ₹ 267695.85 |
Bulk discount will be automatically applied during checkout based on quantity.
