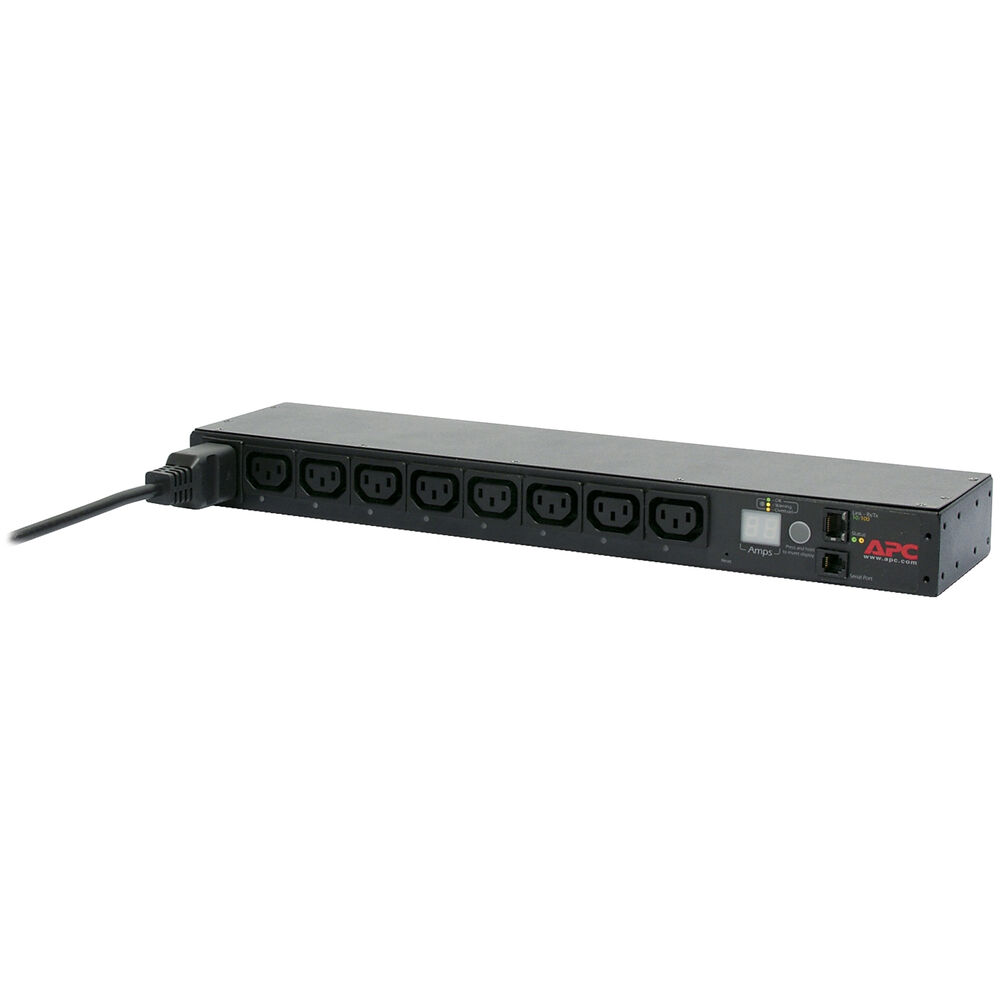

APC AP7920B 8-Outlet Switched 1 RU Rack PDU (16A, 208/230V)

8 x IEC 320 C13 Outlets

1 x IEC 320 C14 Input Connection

Base-T Ethernet & RJ12 Serial Interface

3680VA Load Capacity

Take advantage of outlet-level power control and remote monitoring with the AP7920B 8-Outlet Switched 1 RU Rack PDU (16A, 208/230V) from APC . Sporting eight IEC 320 C13 outlets, this power distribution unit uses an IEC 320 C14 input connection. Improve efficieny with outlet-level on/off switching and remote monitoring thanks to an RJ12 serial and RJ45 Base-T network connection. User-defined alarms notify you when circuits are approaching capacity, preventing overloading. Boasting a 3860VA load capacity, this PDU delivers 208-230V at 16A. In addition to a 1 RU form factor, the APC AP7920B incorporates an 8.2' power cord.

Remote Management Capabilities Network management interfaces provide standards-based management via web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Local Current Monitoring Display The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Alarm Thresholds Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. Input and Output Connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. Single Input Power Source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rackmount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal mounting hardware. UPC: 731304331629

Wall Plug Type	IEC-320 C14
Outlets	8 x IEC-320 C13
USB Ports	None
Ethernet	1
Coaxial	None
RJ11	None

AC Input Power	230 VAC, 50 Hz at 16 A
AC Input Power	208 to 230 VAC, 50 / 60 Hz at 16 A
Load Capacity	3680 W
Rated Current	20 A
Circuit Breaker	No

Certifications	CE, CSA, RoHS, UL, VCCI, VDE, as per Manufacturer
Operating Temperature	32 to 113°F / 0 to 45°C
Operating Humidity	0 to 95%
Storage Temperature	-13 to 149°F / -25 to 65°C

Cable Length	8.2' / 2.5 m
Cable Management	None
Dimensions (L x W x H)	4.3 x 17.5 x 1.7" / 109.2 x 444.5 x 43.2 mm
Weight	5 lb / 2.27 kg
