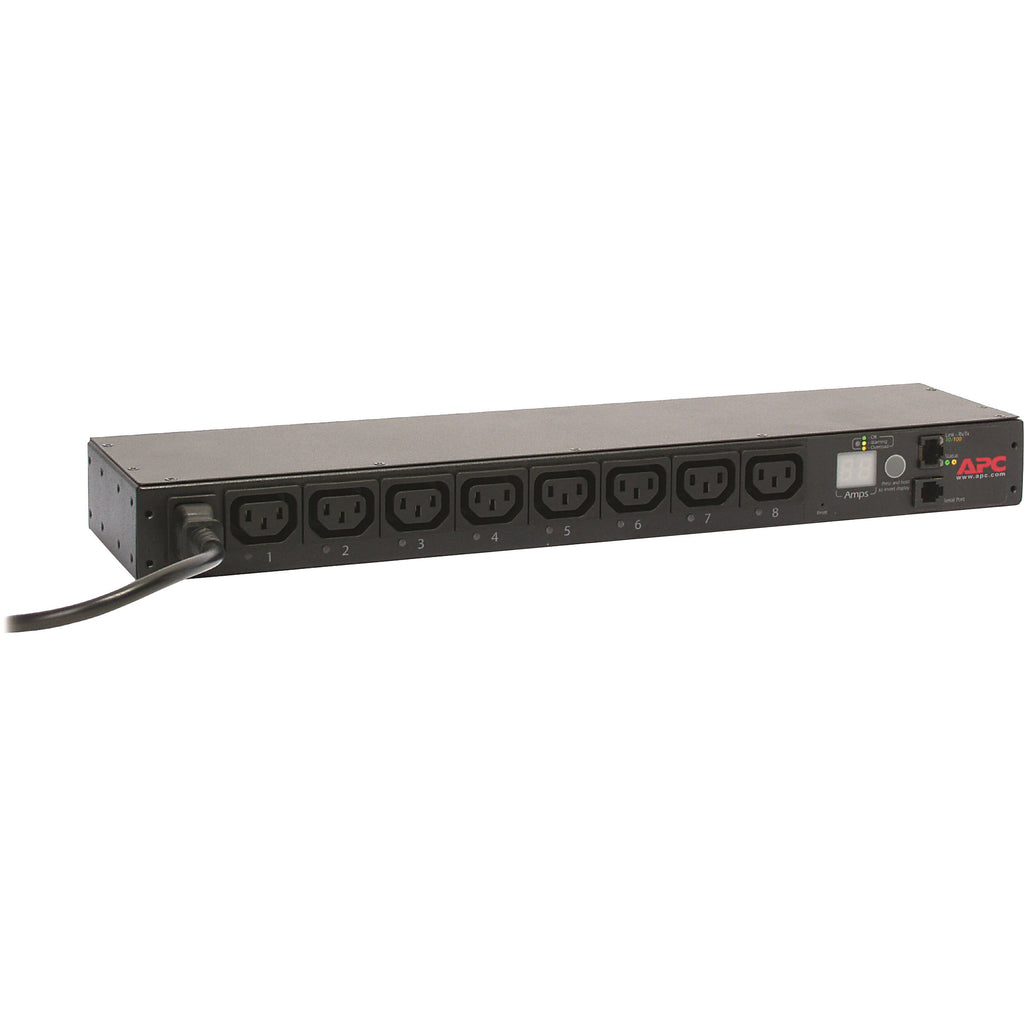

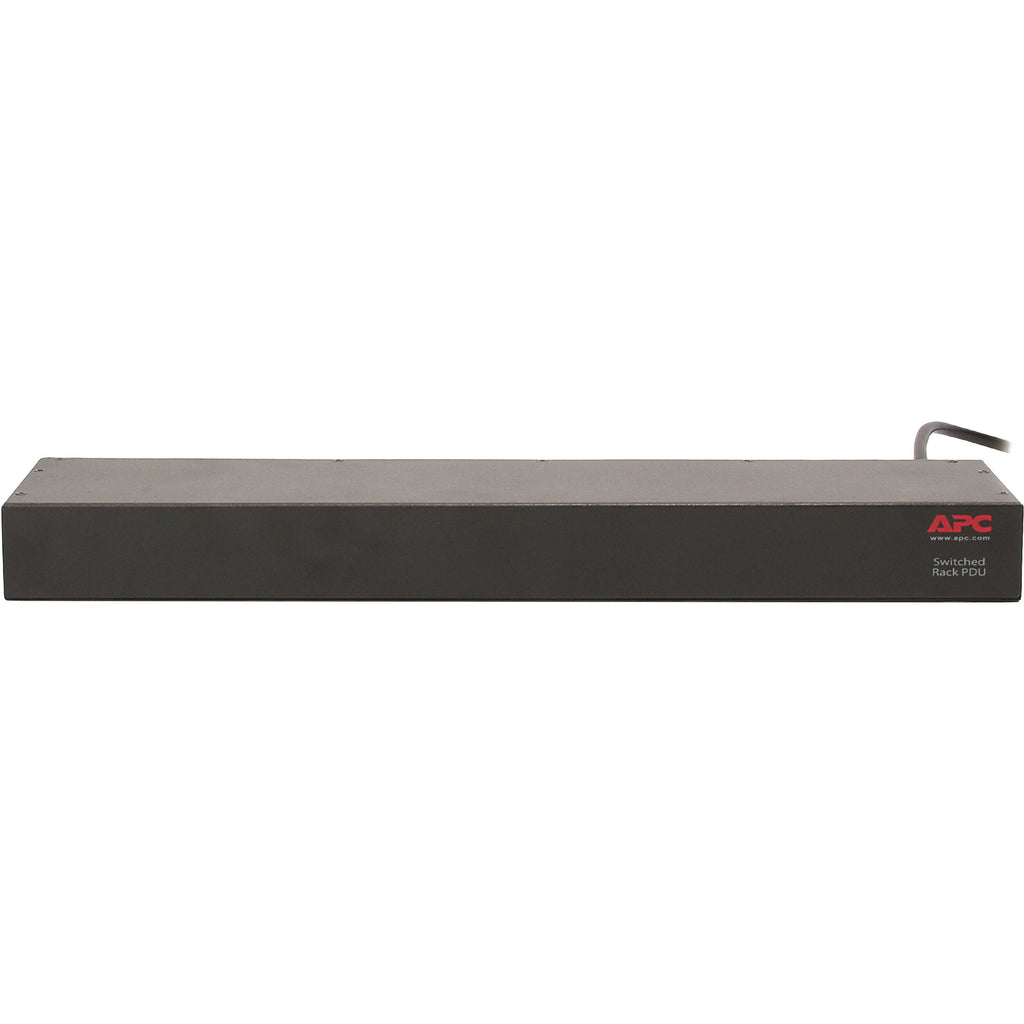

APC AP7920B 8-Outlet Switched 1 RU Rack PDU (12A, 208V / 10A, 230V)

8 x IEC 320 C13 Outlets

1 x IEC 320 C14 Input Connection

Base-T Ethernet & RJ12 Serial Interface

2300VA Load Capacity

Bring outlet-level control and remote monitoring to your server racks with the AP7920B 8-Outlet Switched 1 RU Rack PDU (12A, 208V / 10A, 230V) from APC . Take advantage of up to eight IEC 320 C13 outlets with this power distribution unit, which also features an IEC 320 C14 input connection. With a 2300VA load capacity, the AP7920B can handle inputs of 12A at 208V or 10A at 230V. A Base-T Ethernet and RJ12 serial port enable remote monitoring and allow you to turn individual outlets on or off. User-set alarms notify you when circuits are approaching capacity, ensuring they don't become overloaded. Incorporating a 1 RU form factor, the APC AP7920B conveniently fits server racks and comes with a 6.5' power cord.

Remote Management Capabilities Network management interfaces provide standards-based management via web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Local Current Monitoring Display The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Alarm Thresholds Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. Input and Output Connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. Single Input Power Source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rackmount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal mounting hardware. UPC: 731304331612

Wall Plug Type	IEC-320 C14
Outlets	8 x IEC-320 C13
USB Ports	None
Ethernet	1
Coaxial	None
RJ11	None

AC Input Power	230 VAC, 50 Hz at 10 A
AC Input Power	208 to 230 VAC, 50 / 60 Hz at 12 to 10 A
Load Capacity	2300 W
Rated Current	15 A
Circuit Breaker	No

Certifications	CE, RoHS, VDE, as per Manufacturer
Operating Temperature	32 to 113°F / 0 to 45°C
Operating Humidity	0 to 95%
Storage Temperature	-13 to 149°F / -25 to 65°C

Cable Length	6.5' / 1.98 m
Cable Management	None
Dimensions (L x W x H)	4.3 x 17.5 x 1.7" / 109.2 x 444.5 x 43.2 mm
Weight	5 lb / 2.27 kg
