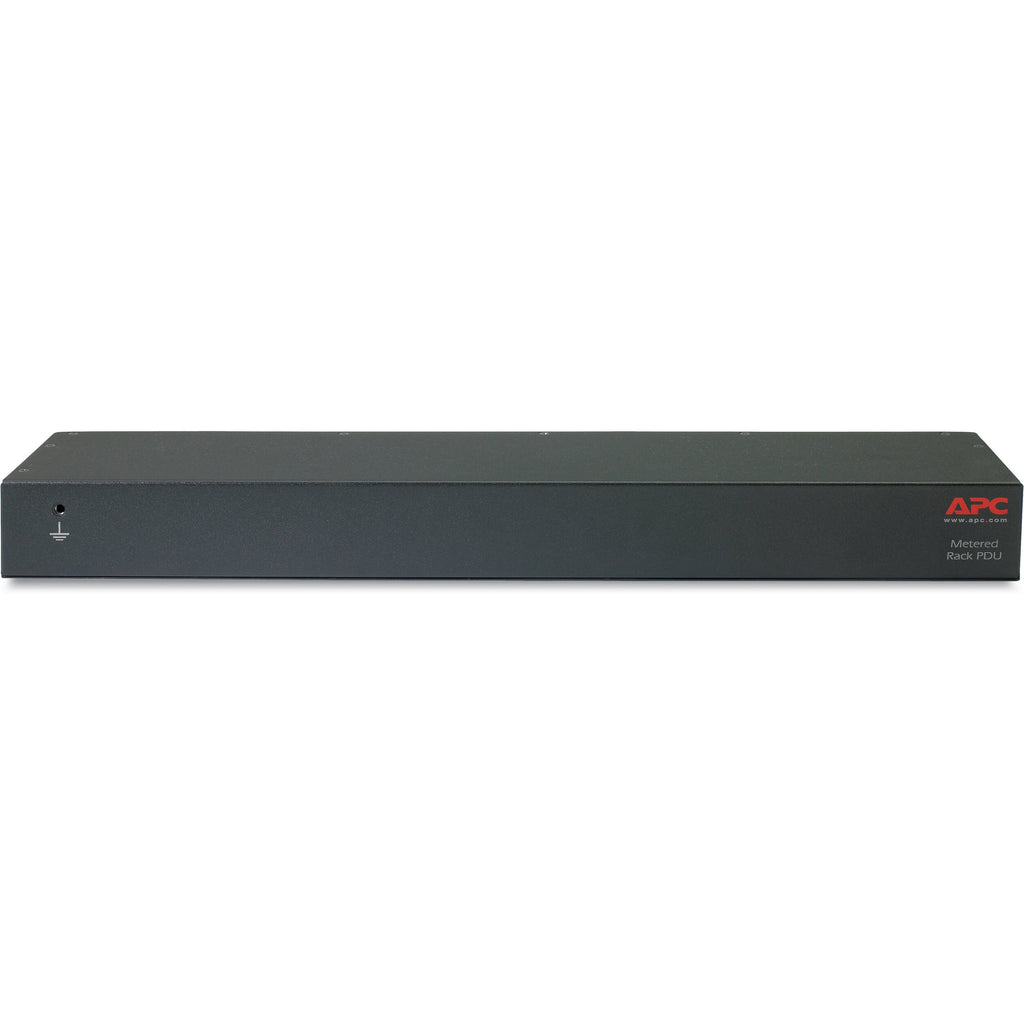

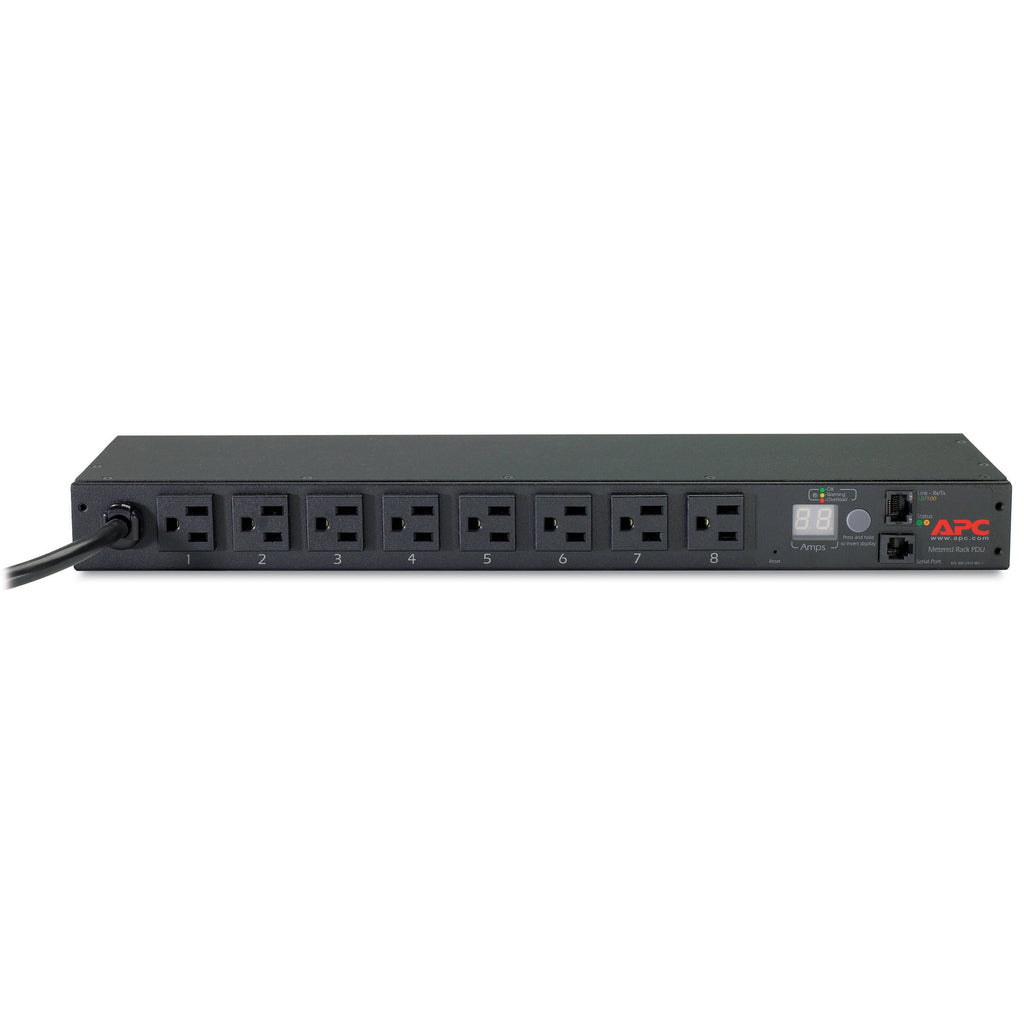

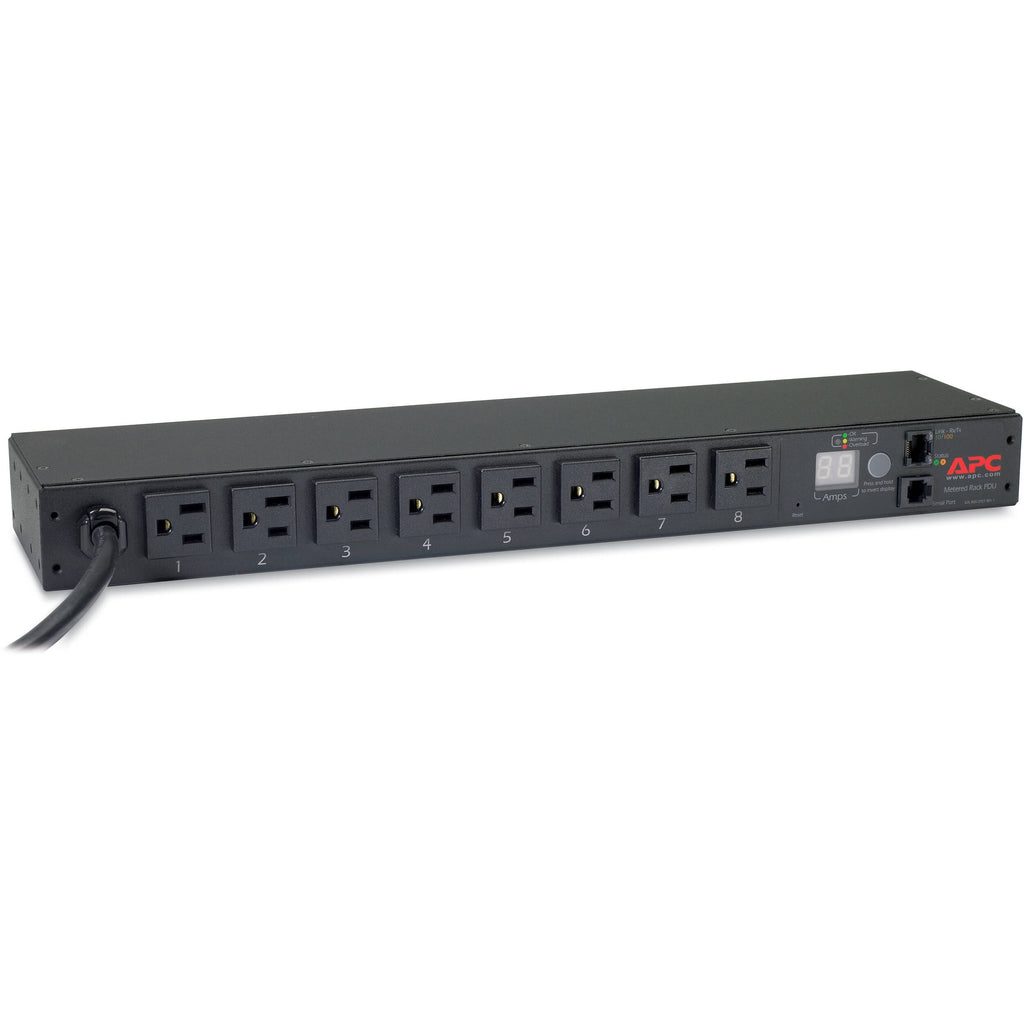

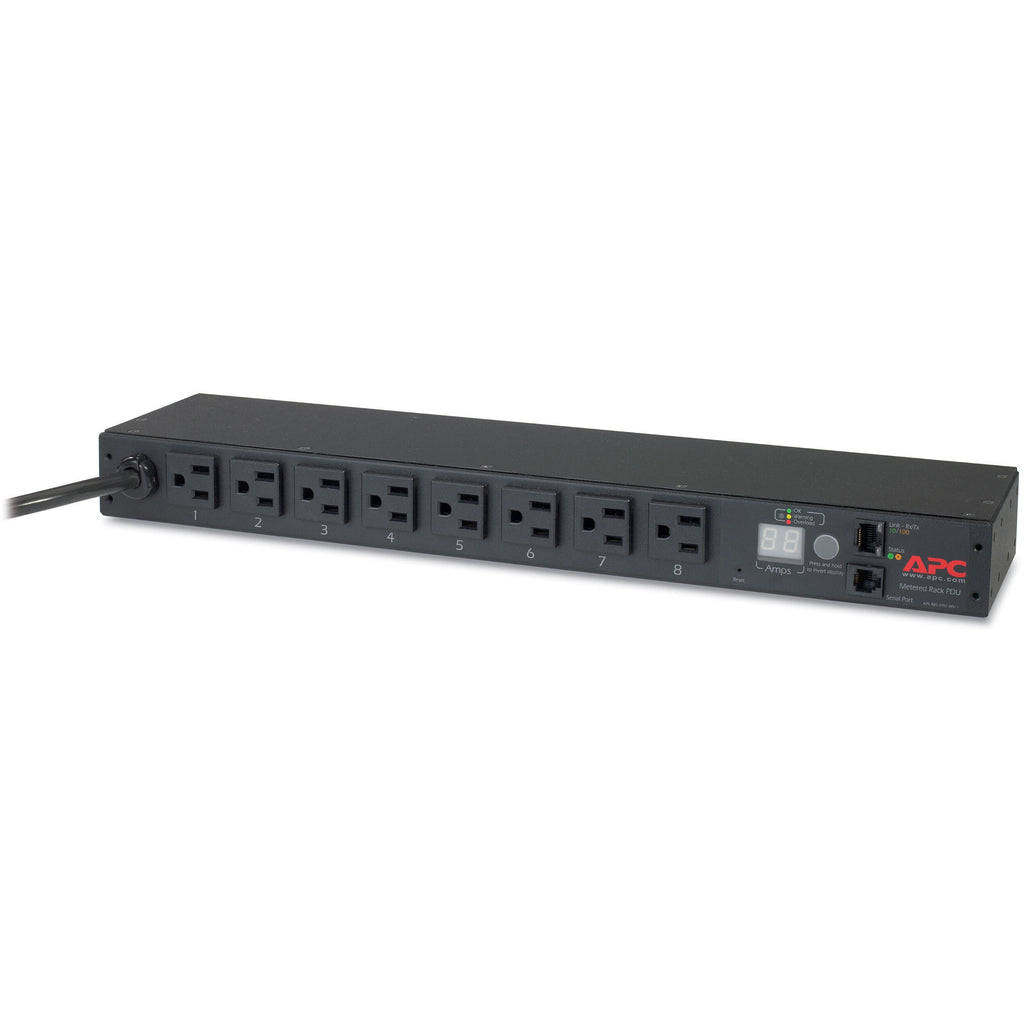

APC AP7800B 8-Outlet Metered 1 RU Rack PDU (15A, 100/120V)

8 x NEMA 5-15R Outlets

1 x NEMA 5-15P Input Connection

1440VA Load Capacity

15A Maximum Input Current

Monitor loads and ensure adequate power for your connected devices with the AP7800B 8-Outlet Metered 1 RU Rack PDU (15A, 100/120V) from APC . Featuring a NEMA 5-15P input connection and eight 5-15R outlets, this 100/120V power distribution unit offers a load capacity of 1440VA. Users can remotely monitor connected loads via an RJ45 port that supports Base-T Ethernet or an RJ12 serial port, and user-defined alarms will alert you if circuits become overloaded. The APC AP7800B has a 1 RU form factor and comes with a 12' power cord.

Remote Management Capabilities Network management interfaces provide standards-based management via web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Integrates with StruxureWare Data Center Expert An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network. Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Local Current Monitoring Display The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Load Indicator LED Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Alarm Thresholds Define alarm thresholds to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. Input and Output Connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allows users to adapt to varying power requirements. Single Input Power Source Supply power from one branch whip to multiple pieces of equipment, conveniently powering rackmount equipment. Saves time and money during installation by using one branch whip and standard connections. Rack-Mountable Includes horizontal, vertical, and toolless mount varieties. UPC: 731304331452

Wall Plug Type	NEMA 5-15P
Outlets	8 x NEMA 5-15R
USB Ports	None
Ethernet	1
Coaxial	None
RJ11	None

AC Input Power	120 VAC, 60 Hz at 15 to 12 A
Load Capacity	1440 W
Rated Current	15 A
Circuit Breaker	No

Certifications	CSA, FCC-A, UL, VCCI, as per Manufacturer
Operating Temperature	23 to 113°F / -5 to 45°C
Operating Humidity	5 to 95%
Storage Temperature	-13 to 149°F / -25 to 65°C

Cable Length	12' / 3.66 m
Cable Management	None
Dimensions (L x W x H)	4.0 x 17.5 x 1.7" / 101.6 x 444.5 x 43.2 mm
Weight	3.81 lb / 1.73 kg
