Description
APC AP9568 Overview
- 1 Description
- 2 Capabilities
- 3 Tool-Less Rackmounting Capabilities
- 4 Vertical Mounting Capabilities
- 5 Agility
- 6 Rackmountable
- 7 Single Input Power Source
- 8 Total Cost of Ownership
- 9 Low Cost Power Distribution

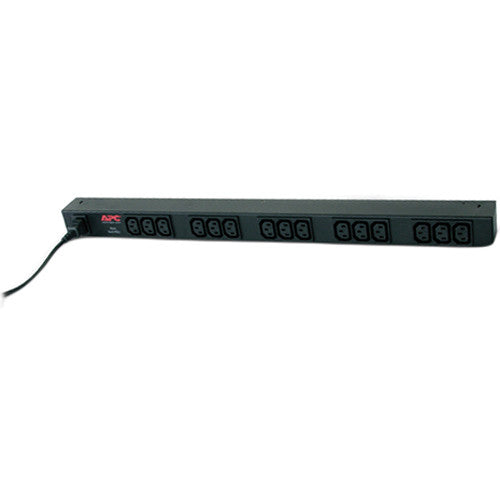

The 230V Basic Rack Power Distribution Unit from APC is designed for use in rackmount environments. It features fifteen IEC 320 C13 output and IEC-320 C14 input. It supplies power from one branch whip to multiple pieces of equipment, and conveniently powers rackmount equipment
Capabilities
Tool-Less Rackmounting Capabilities
Server cases do not require additional tools to mount into NetShelter enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of the rack space, which allows more equipment in the rack. The units that mount vertically are optimized to fit in a NetShelter enclosures.
Agility
Rackmountable
Includes horizontal, vertical, and toolless mounting options. Puts power where it is needed in the rack near the equipment.
Single Input Power Source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Total Cost of Ownership
Low Cost Power Distribution
Provides fifteen IEC 320 C13 output and IEC-320 C14 input to bring power to rack equipment.
UPC: 731304207054
In the Box
- APC 230V Basic Rack Power Distribution Unit
- Rackmounting Brackets
- Tool-Less Mounting Kit
- Limited 2-Year Warranty
Table of Contents
- Description
- Capabilities
- Tool-Less Rackmounting Capabilities
- Vertical Mounting Capabilities
- Agility
- Rackmountable
- Single Input Power Source
- Total Cost of Ownership
- Low Cost Power Distribution
APC AP9568 Specs
Connections
| Outlets | 15 x IEC-320 C13 |
| USB Ports | None |
| Ethernet | None |
| Coaxial | None |
| RJ11 | None |
Electrical
| AC Input Power | 240 VAC, 50 Hz |
| Load Capacity | 2300 W |
| Rated Current | 10 A |
Environmental
| Certifications | RoHS, as per Manufacturer |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 0 to 95% |
| Storage Temperature | -13 to 149°F / -25 to 65°C |
| Storage Humidity | 0 to 95% |
Physical
| Cable Length | 6.5' / 2 m |
| Cable Management | None |
| Dimensions (L x W x H) | 1.8 x 24.0 x 1.8" / 44.5 x 609.6 x 44.5 mm |
| Weight | 4.4 lb / 2 kg |
Packaging Info
| Package Weight | 5 lb |
| Box Dimensions (LxWxH) | 25.5 x 7 x 6" |
