Description
- SDI Extension over Fiber Optic Cable

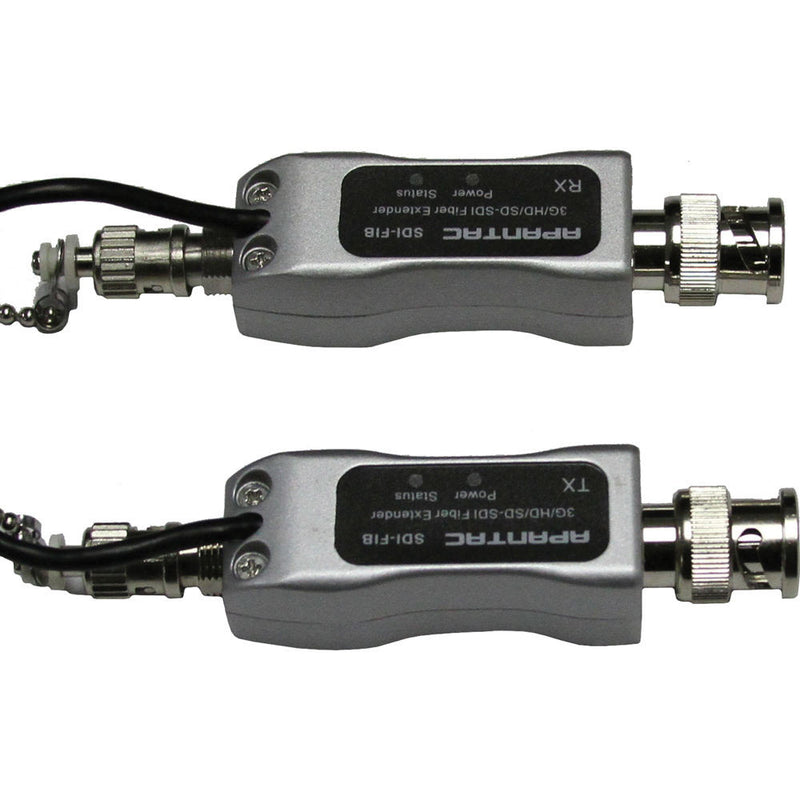

The Apantac SDI-FIB MAZAMA SDI to Fiber Optic Extender comes with ST connectors. It includes a transmitter and a receiver but not the fiber optic cable. It extends SD-SDI and HD-SDI signals up to 18.64mi (30km) and 3G SDI signals up to 12.42mi (20km) over a single fiber.
It is a miniature-style extension solution that supports all SDI formats up to 3G, including SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols. To prevent signal loss, input signals are equalized and outputs reclocked to 393.7� (120 m) for 3G-SDI and 459.32� (140 m) for HD-SDI.
- Includes transmitter / extender and receiver
- Supports SDI up to 3G
- Extends multi-rate HD-SDI up to 18 mi (30km) over a single fiber
- Extends multi-rate 3G-SDI up to 12.5 mi (20km) over a single fiber
- Equalized inputs and reclocked outputs up to 393.7' (120m) for 3G-SDI and up to 459.32' (140 m) for HD-SDI
- Uses single-mode or multi-mode fiber optic cable with ST connectors
- Robust miniature-style metal die-casting enclosure for harsh environments
In the Box
Apantac SDI-FIB MAZAMA SDI to Fiber Optic Extender
- Limited 3-Year Warranty
| Input | SDI-FIB-Tx Transmitter: 1 x 3G / HD / SD-SDI via 75 ? BNC SDI-FIB-Rx Receiver: 1 x ST via fiber |
| Output | SDI-FIB-Tx Transmitter: 1 x ST via fiber SDI-FIB-Rx Receiver: 1 x 3G / HD / SD-SDI via 75 ? BNC |
| Component | SDI-FIB-Tx Transmitter: 1310 FP laser diode SDI-FIB-Rx Receiver: InGaAs / InP PIN photo diode |
| Power Supply | 5 VDC 1.5 A (4.5 V minimum, 5.5 V maximum) |
| Compatible With | Single-mode or multi-mode fiber |
| Extension | Limit: 18 mi (30 km) for 1.485 Mb/s (single mode fiber) and 0.62 mi (1 km) for multi-mode fiber, 12.5 mi (20 km) for 3G (1080P) |
| Fiber | Recommended Fiber Optic Cable: Glass single-mode fiber with 1310, 1550 nm with ST terminated connectors |
| Power Budget | Link: Minimum 11 dB |
| Power Budget | 16 dB |
| Input Impedance | 75 ? |
| Data Rate | Up to 3 Gb/s |
| Signal Level | 800 mVpp � 50 mV |
| Type | Optical Fiber: ST (multi-mode and single-mode) |
| Number of Fibers | 1 |
| Connector | 75 ?, male BNC |
| Propagation Delay | Sender: 1.5 ns Receiver: 40 ns |
| Wavelength | Sender Unit: 1290 nm (minimum), 1310 nm (typical), 1330 nm (maximum) Receiver Unit: 1100 nm (minimum), 1310 nm (typical), 1650 nm (maximum) |
| Operating Temperature | SDI-FIB-Tx Transmitter / SDI-FIB-Rx Receiver: -4 to 158�F (-20 to 70�C) |
| Storage Temperature | SDI-FIB-Tx Transmitter / SDI-FIB-Rx Receiver: -22 to 185�F (-30 to 85�C) |
| Humidity | SDI-FIB-Tx Transmitter / SDI-FIB-Rx Receiver: 0 to 95% RH, non-condensing |
| Dimensions (W x H x D) | SDI-FIB-Tx Transmitter / SDI-FIB-Rx Receiver: 0.77 x 0.77 x 3.25" (19.50 x 19.50 x 82.70 mm) overall length |
| Packaging Info | |
|---|---|
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 10.1 x 7.9 x 2.6" |
