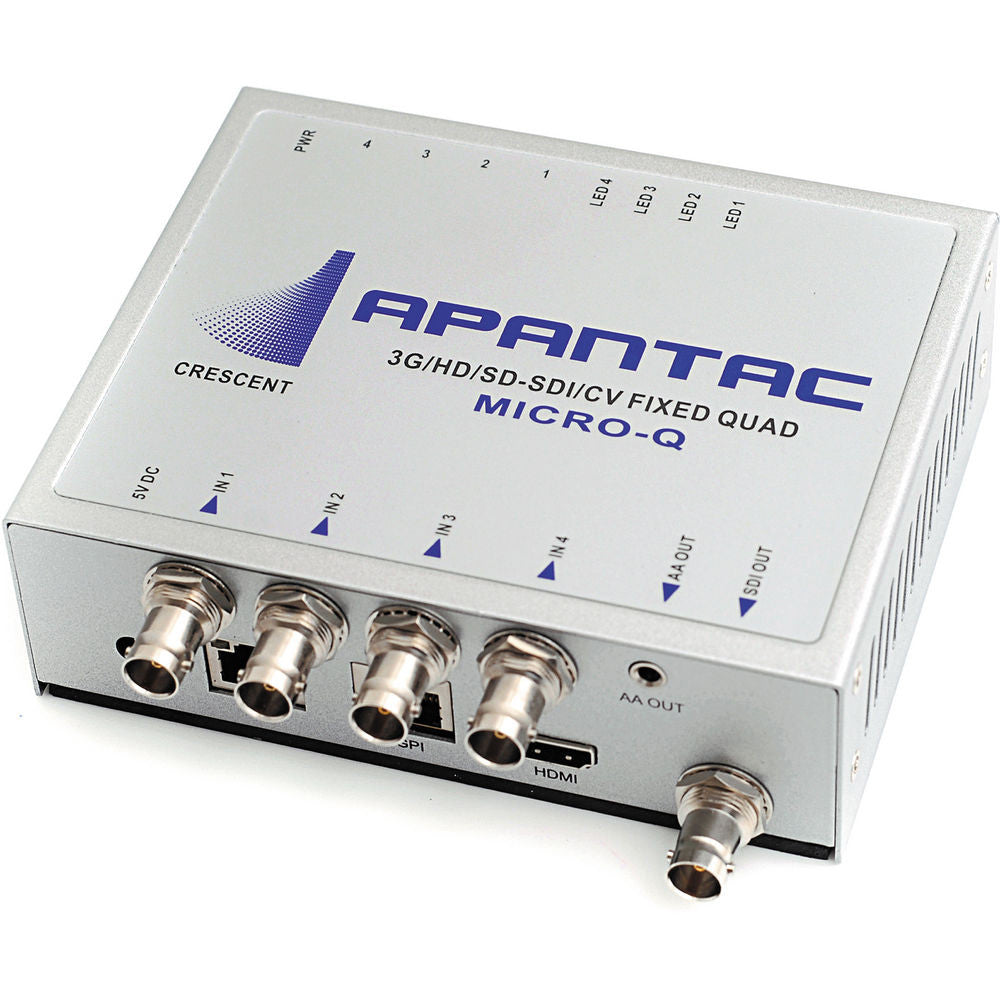

Apantac MicroQ-S Simple Quad-Split

₹ 89,099.99 ₹ 111,374.99

Price includes International Import, Custom and Duty charges.

Buy on EMI starting at 4320/month

Buy Now, Pay Later. 0% interest, choose LazyPay during checkout(for selected customers only).

SKU: 8131990864

Brand: Apantac


Estimated Delivery Date

100% Original Products

Tanotis imports genuine branded products from worldwide

100% Secure Payment

Tanotis partners with Payumoney for secure payments

Priority Shipping

Priority Delivery within India across 80000+ pincodes

GST Invoice on all purchases

All products are shipped with GST bills, you will be eligible to take input credit.

Bulk Discounts

Quantity Price
2 Rs.87317.99
3-5 Rs.86426.99
5-10 Rs.84644.99
10+ Rs.82862.99

Bulk discount will be automatically applied during checkout based on quantity.

  • 3G/HD-SDI and Composite Input
  • 50/60 Hz
  • HDMI and SDI Output with Embedded Audio
  • Stereo Analog Audio Output
  • Any Window Can be Made Full Screen

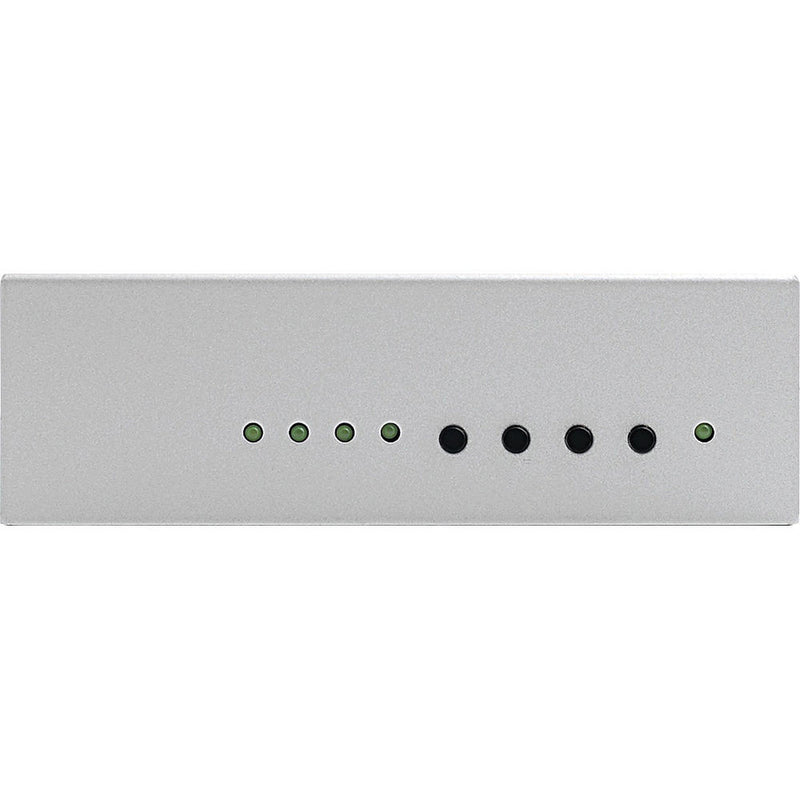

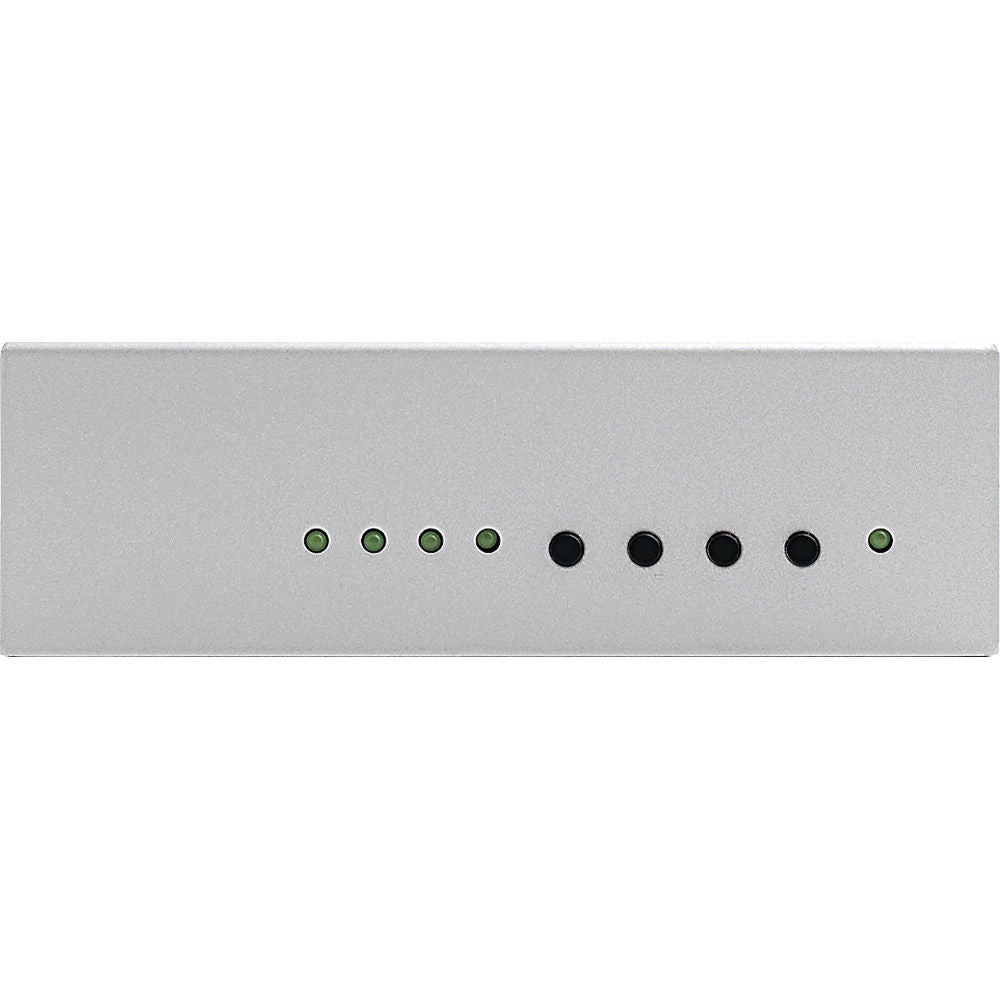

  • Front Panel Preset Buttons
  • IP Control

The Apantac MicroQ-S Simple Quad-Split supports 3G/HD-SDI and composite input in 50/60 Hz, and HDMI and SDI output with embedded audio for monitoring. Any window can be made full screen.

Key Features
  • Supports 3G/HD-SDI and composite input in 50/60Hz
  • HDMI and SDI output with embedded audio for monitoring
  • Stereo analog audio output
  • Any Window can be made full screen
  • Front panel preset buttons
  • IP control
Video Inputs 3G/HD/SD-SDI, composite
Windows 4
Serial Digital SMPTE 424M, 292M, 259M

Equalization: 393 ft (120 m) at 2.97 Gbps, 460 ft (140 m) at 1.48 Gbps, 1312 ft (400 m) at 270 Mbps, with Belden 1694A

Return Loss: > 15 db up to 1.485 Gbps < > 10 db up to 3G

Embedded Audio: SMPTE-272M-A
Composite NTSC (SMPTE-170M), PAL (ITU624-2)

Signal Level: 1 V nominal

DC Offset: 0 V, +/- 0.1 V

Impedance: 75 ohm

Return Loss: 40 db up to 5 MHz

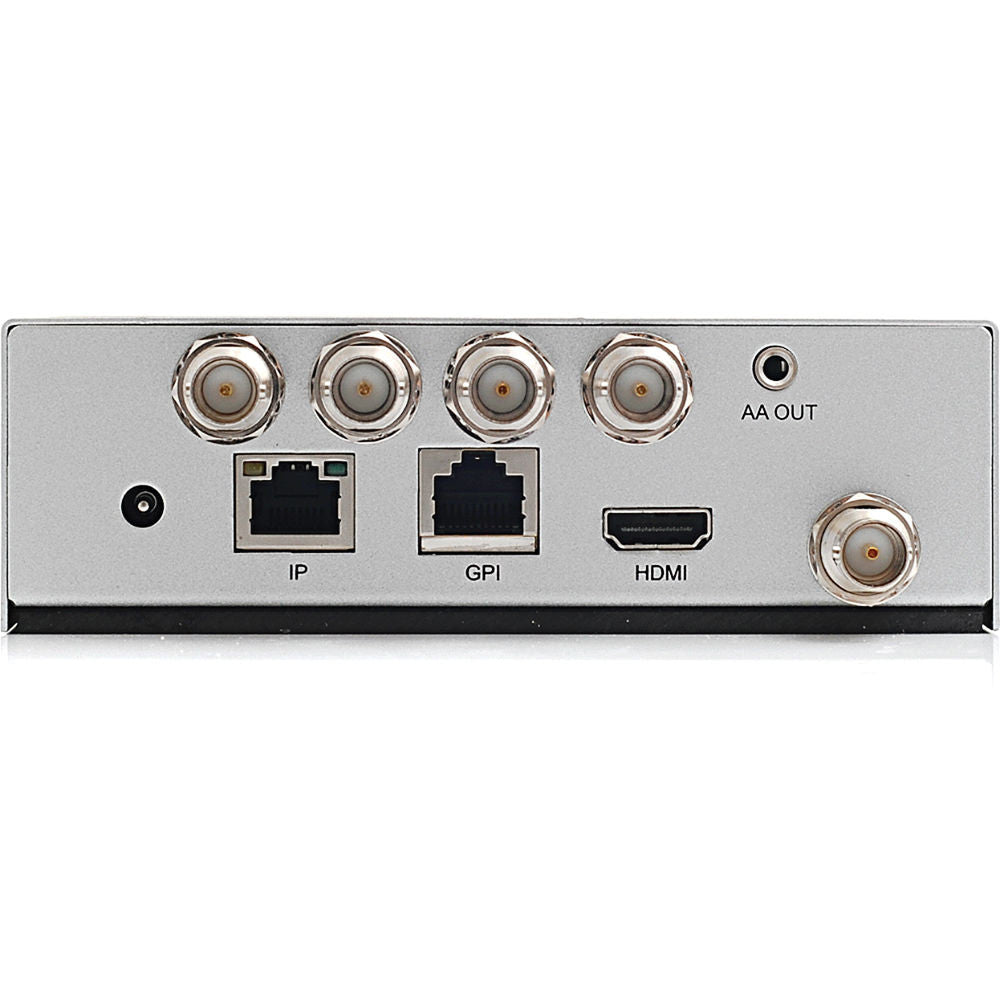

Outputs 1x HDMI, 1x SDI
HDMI 800 x 480 to 1920 x 1200 (1080p) 50/60 Hz
SDI Matching HDMI output resolution up to 3G
On Screen Display Border, Label, Alarms, and Audio Meters
GPI 8 for preset recall or ASCII
IP 100 Base-Tx, TSL, AXP
Electrical 12 W, 90-250 V, 50/60 Hz
EMI/RFI Complies with FCC Part 15, Class A, CE, EU, EMC, C-Tick
Mount Magnetic
Power 5 DC 3A
Dimensions 6.7 x 3.5 x 11.2" (17.1 x 12 x 4.4 cm)
Packaging Info
Package Weight 3.5 lb
Box Dimensions (LxWxH) 9.4 x 7.1 x 3.7"
In the Box
Apantac MicroQ-S Simple Quad-Split
  • 3-Year Limited Warranty
