| ₹ 207140.0 includes GST and import duties. | |
| B2B customers can avail ₹ 31588.85 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

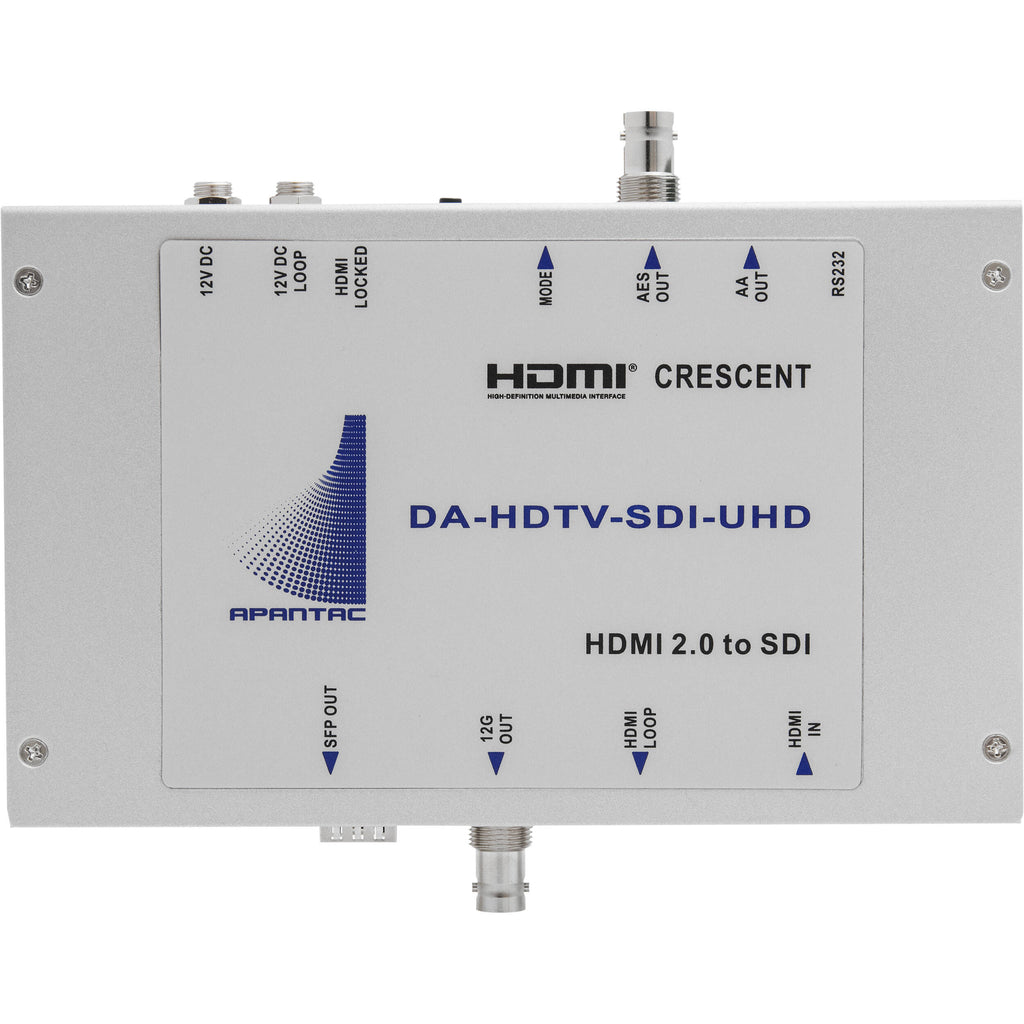

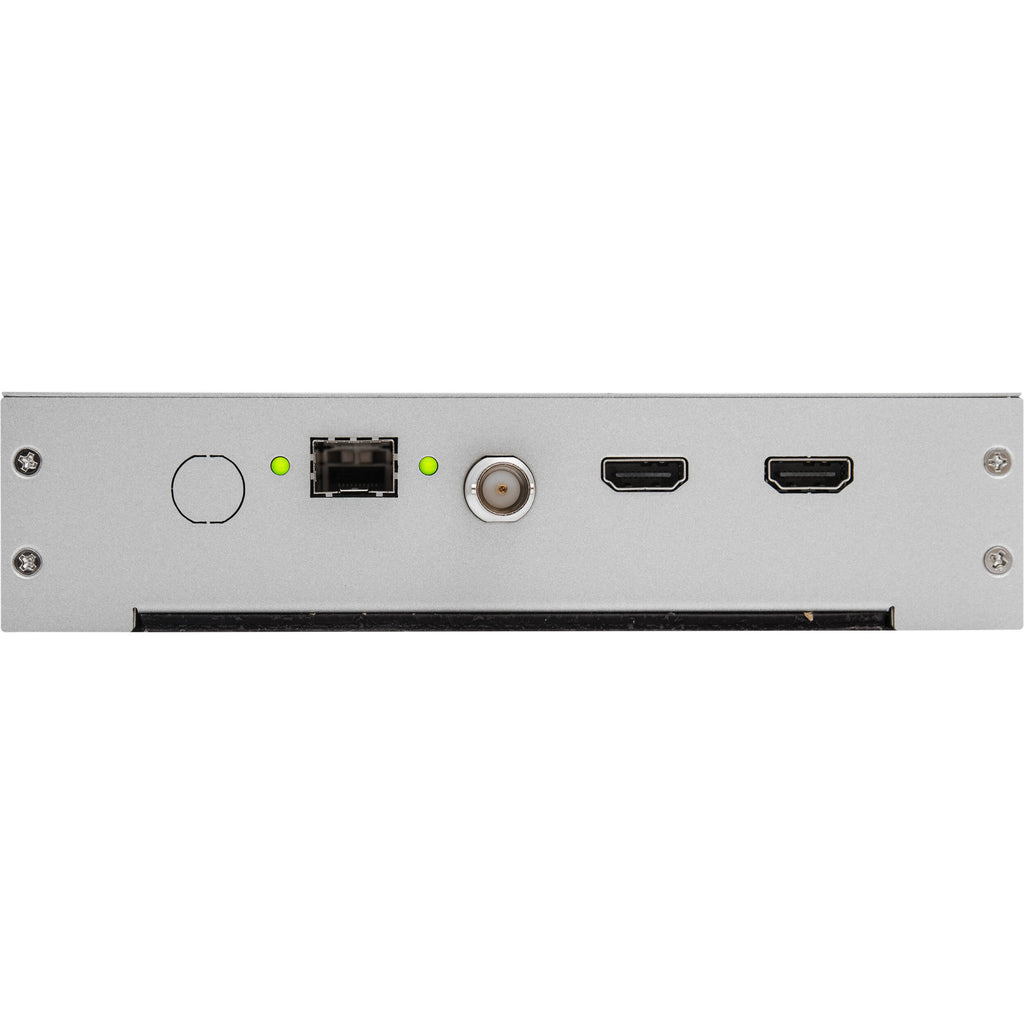

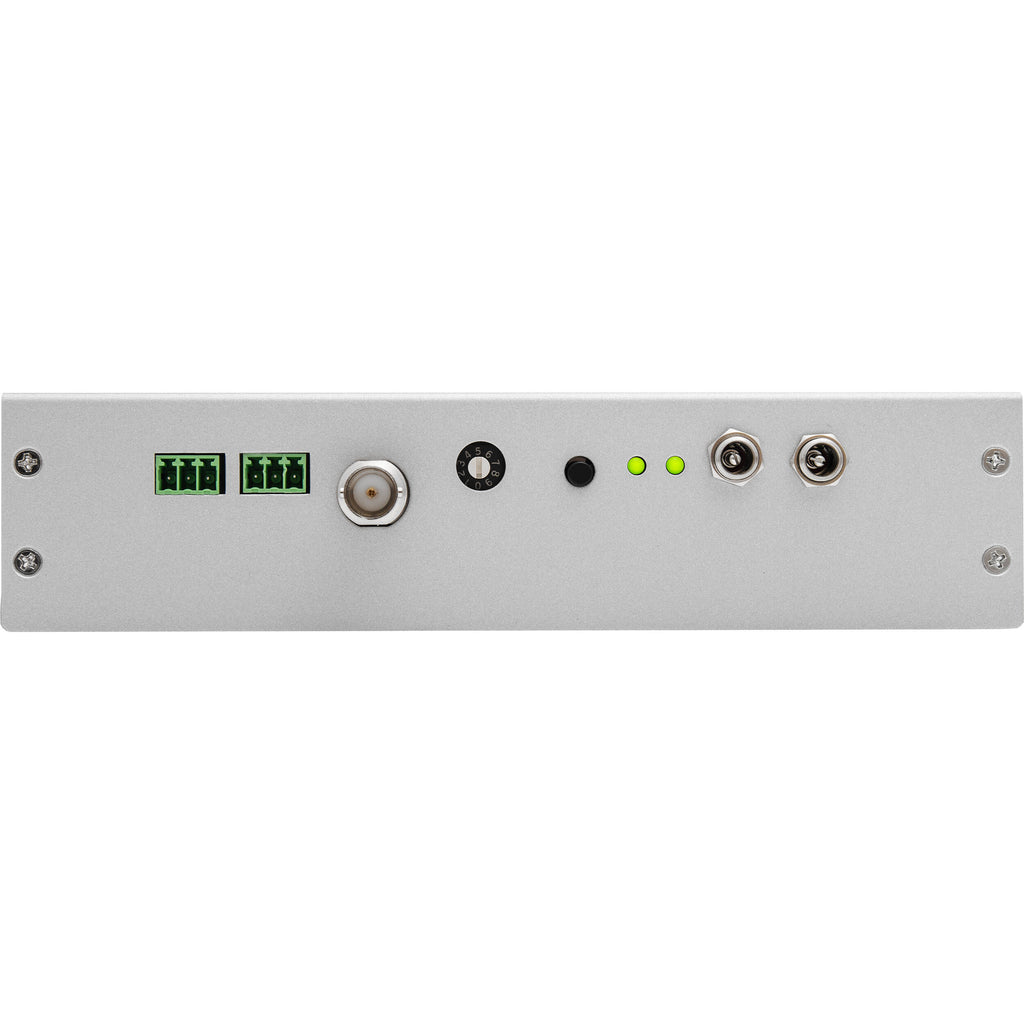

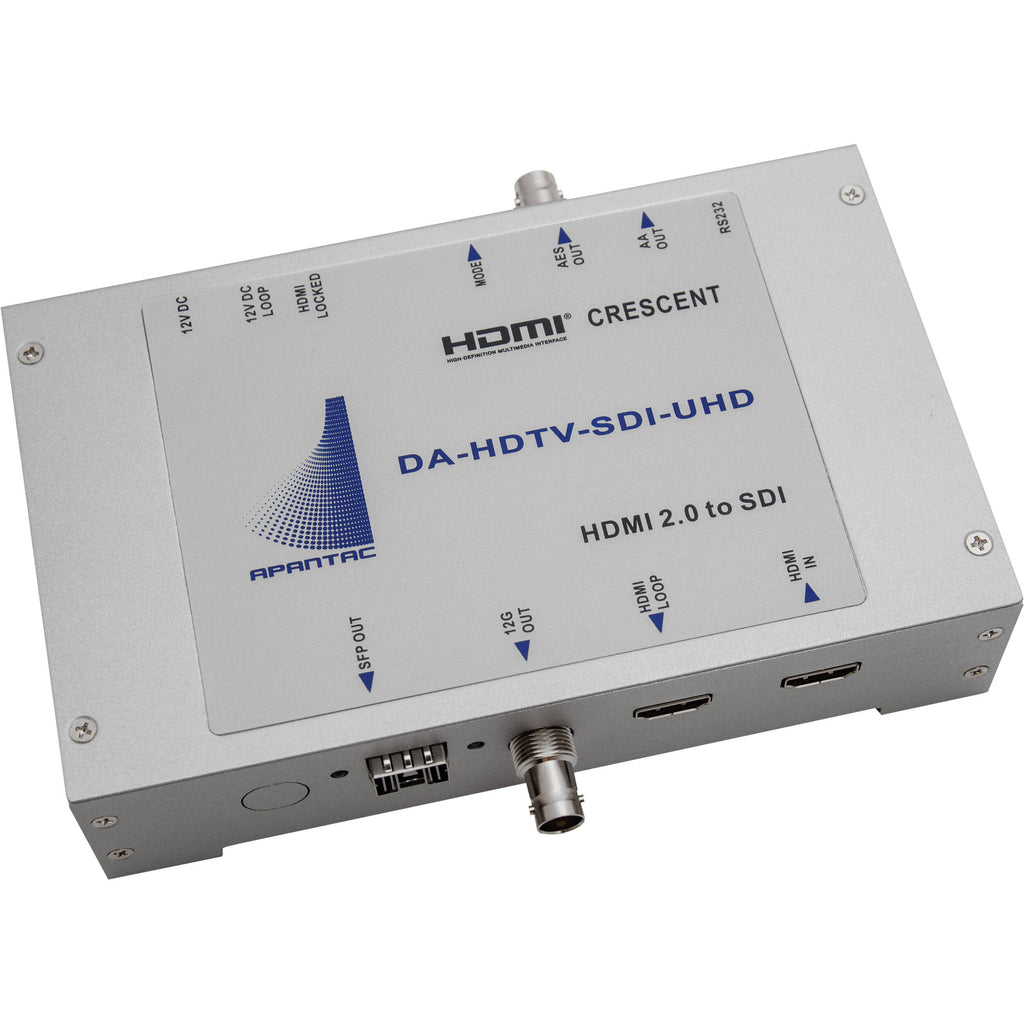

Apantac HDTV-SDI Overview
Convert video up to UHD 4K from an HDMI source to an SDI destination using this HDMI 2.0 to 12G-SDI Converter with Optional SFP Fiber Output from Apantac. The converter features one HDMI 2.0 input, a 12G-SDI output, and an HDMI 2.0 loop output. There is also a slot for an optional SFP fiber module as an alternative to the 12G-SDI video output.
The HDCP-compliant converter can input resolutions up to 3840 x 2160p60 4:2:0, and it converts embedded audio along with the video. You can also de-embed up to eight channels of AES or AA audio for monitoring, mixing, or other audio options using the 3-pin terminal block or BNC outputs on the back of the unit. A manual selector allows you to select which audio pair you would like to de-embed. There is also a manual selector to switch between the BNC and optional SFP slot for up to 12G-SDI video signal output. Each output has its own LED to indicate the connection status.
You can upgrade the unit's firmware using the 3-pin terminal block input using RS-232 communication. A 12 VDC power adapter is included to power the unit using its locking barrel connector, and there is a locking 12 VDC barrel output to pass power through to another converter or piece of gear.
Key Features
In the Box
- Apantac HDMI 2.0 to 12G-SDI Converter with Optional SFP Fiber Output
- Power Adapter
- Limited 3-Year Warranty
Apantac HDTV-SDI Specs
| Video Input Connectors | 1 x HDMI (HDMI 2.0) Female |
| Input Video Format |
HDMI (4:2:0) UHD 4K: 30/60 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | HDMI: 8-Channel (per Input) |
| Video Output Connectors |
1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Female 1 x HDMI (HDMI 1.4 / HDMI 2.0) Female (Loop Output) |
| Output Video Format |
HDMI / SDI (4:2:0) UHD 4K: 30/60 fps |
| Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x BNC 8-Channel Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | SDI: 8-Channel (per Output) |
| HDR Compatibility | Not Specified by Manufacturer |
| Other I/O | 1 x 3-Pin Euroblock RS-232, Firmware Input |
| Expansion Slots | None |
| Power Connector | 1 x Barrel (12 VDC at 3.3 A) Input 1 x Barrel (12 VDC at 3.3 A) Output |
| Warranty Length | Limited 3-Year Warranty |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 202997.2 |
| 3-5 | ₹ 200925.8 |
| 5-10 | ₹ 196783.0 |
| 10+ | ₹ 192640.2 |
Bulk discount will be automatically applied during checkout based on quantity.
