Description
- Supports Resolution of up to 1600 x 1200
- Transmission - up to 1640' (500m)
- 1.65Gpbs Transmission per Channel
- Supports DDC2B Protocol
- Self Detecting EDID
- Compatible with DDWG DVI Standard
- HDCP Compliant

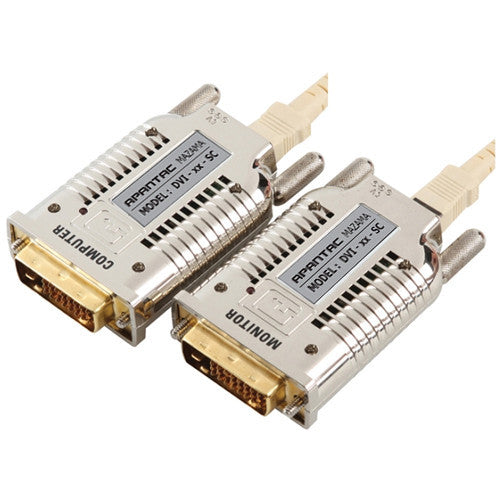

The Apantac DVI-XX-SC - Single Link DVI-D Extender (Tx and Rx Without Fiber) extends single link DVI-D signals up to 1640� (500m) distance. Using an SC-type multimode fiber optic cable (not included) and with a high transmission bandwidth of 1.65Gpbs, the extender supports video resolutions up to 1600 x 1200.
Supporting the DDC2B protocol, the Single Link DVI-D Extender features a self detecting EDID information capability, which avoids compatibility issues with your connected monitors. Compatible with the DDWG DVI standard, it is HDCP compliant and offers security while transferring information across the link.
- Extends single link DVI-D signals up to 1640' (500m) distance
- Uses an SC-type multimode fiber optic cable (not included)
- High transmission bandwidth of 1.65Gpbs
- Supports video resolutions up to 1600 x 1200
- Supports DDC2B protocol
- Features a self detecting EDID information function
- Avoids compatibility issues with your connected monitors
- Compatible with DDWG DVI standard
- HDCP compliant
- Secure transmission of information across the link
In the Box
Apantac DVI-XX-SC - Single Link DVI-D Extender (Tx and Rx Without Fiber)
- Transmitter
- Receiver
- 1-year Warranty
| Optical Converter | Transmitter: 850nm, 4ch Transmit OSA Receiver: 850nm, 4ch Receive OSA |
| Input & Output Signal | TMDS Signal (DVI 1.0 standard) |
| Video Bandwidth | 1.65 Gpbs/Channel |
| Electrical Connector | Transmitter: 24 PIN DVI-D (INPUT) Receiver: 24 PIN DVI-D (OUTPUT) |
| Optical Connector | 1 SC connector |
| Optical | Source: 850nm VCSEL O/E Converter: PIN Photo Diode |
| Storage Temperature | -4 to 158� F (-20 to 70� C) |
| Operating Temperature | 32 to 122� F (0 to 50� C) |
| Relative Humidity | 10 to 80% |
| Power Supply | -0.3 to 5.5V |

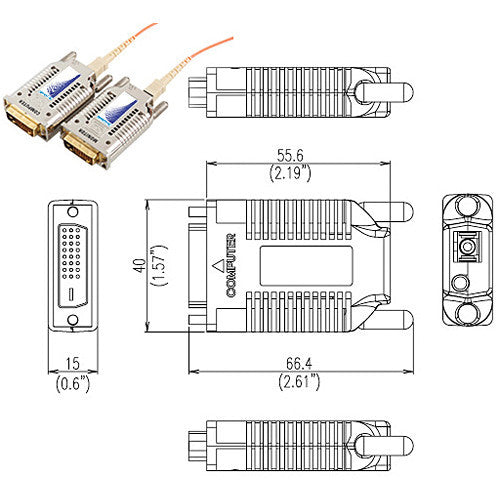

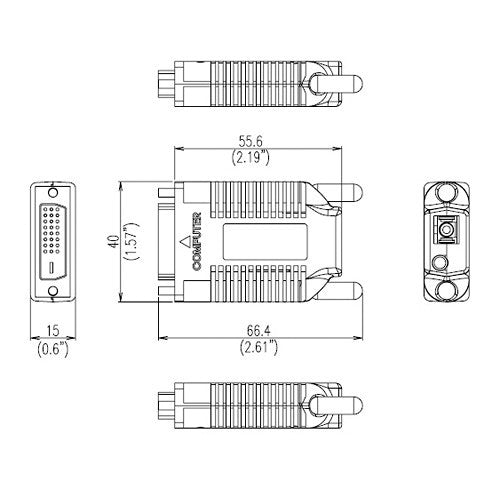

| Dimensions (WxHxD) | 1.5 x 0.59 x 2.6" (40.0 x 15.0 x 66.4 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 6.4 x 5.8 x 2.7" |
