- Key Features
-
- OpenGear 3.0 card-based form factor
- Dashboard control enabled - for simple configuration
- Low power consumption
- Up to 10 modules can be cascaded together
- Up to 40 inputs (Windows) on a single openGear frame
- Single frame processing delay
- Decode up to 16 embedded audio per SDI input
- Ethernet for configuration
- Dynamic UMD/labels & tallies (TSL)
- Simultaneous HDMI/DVI and SDI outputs
- 2 GPI tallies per window
- 8 GPI contacts, can be configured for tally or ASCII protocol
- Built-in digital clocks can sync with LTC or NTP
- Borders can be turned on or off
- Text and background colors have adjustable transparency
- Safe area markers
- Visual alarm tags for video/audio alarm detection
- Stereo analog audio monitoring output
| General |
| Type | Video quad splitter plug-in card |
| Power |
| Max Power Consumption | 15 W |

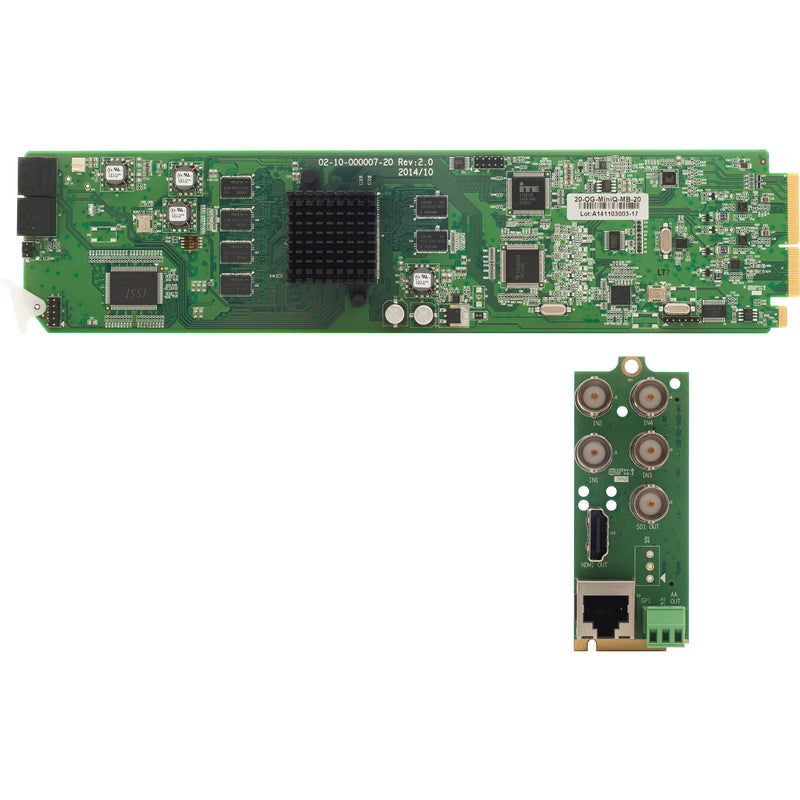

| Kit Content |
| Kit Content | (1) x input/output module - Apantac OG-MiniQ-RM
(1) x quad splitter module - Apantac OG-MiniQ-MB |
| Terminals |
| Terminals | (1) x 3G HD-SDI input - BNC
(4) x SDI output - BNC
(1) x HDMI output - 19 pin HDMI Type A
(1) x GPI output - RJ-50
(1) x audio line-out |
