Description

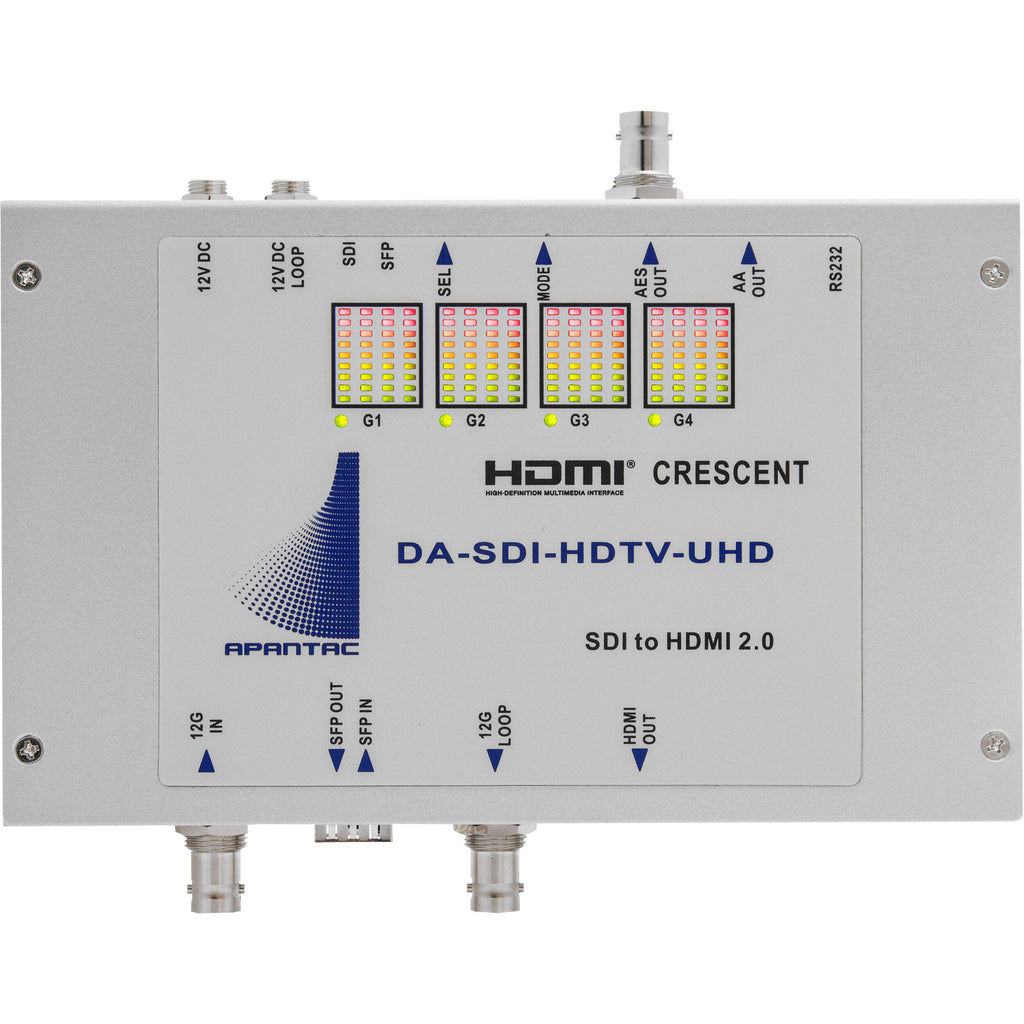

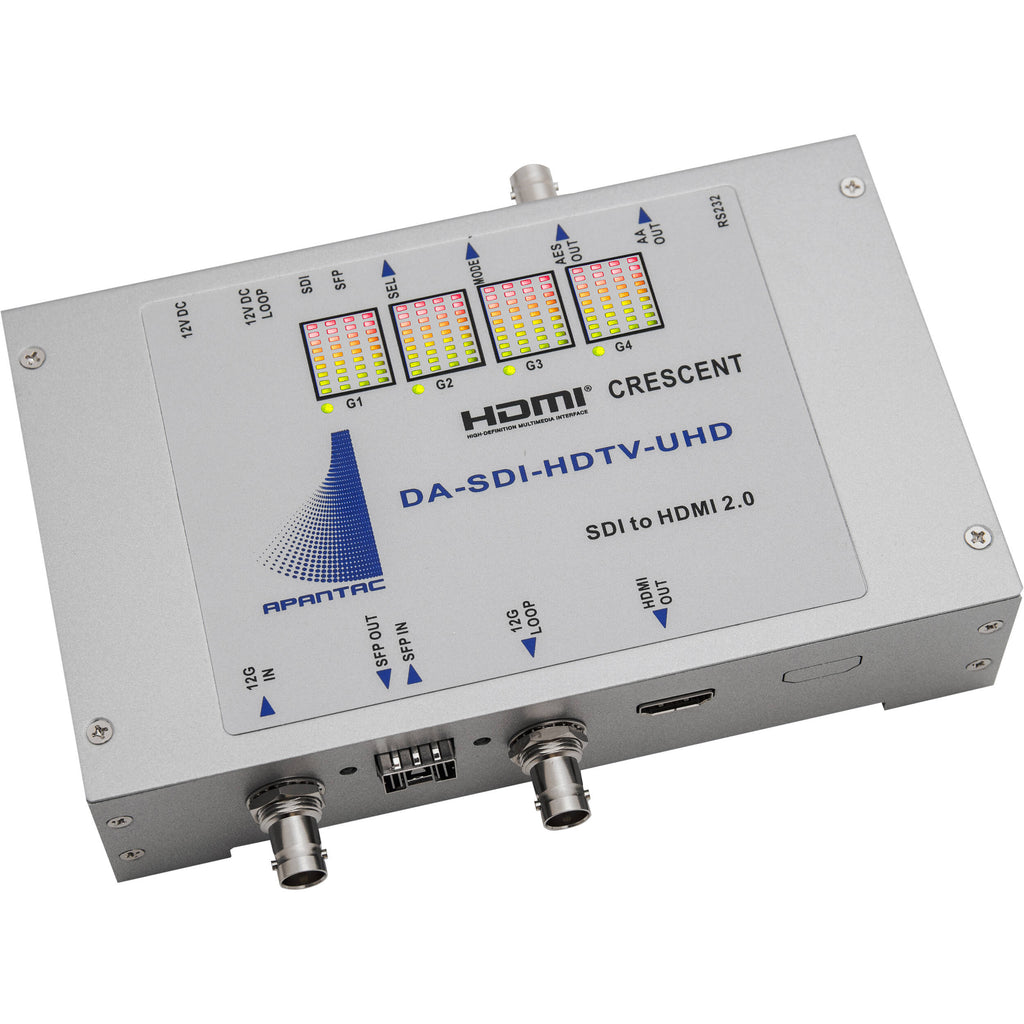

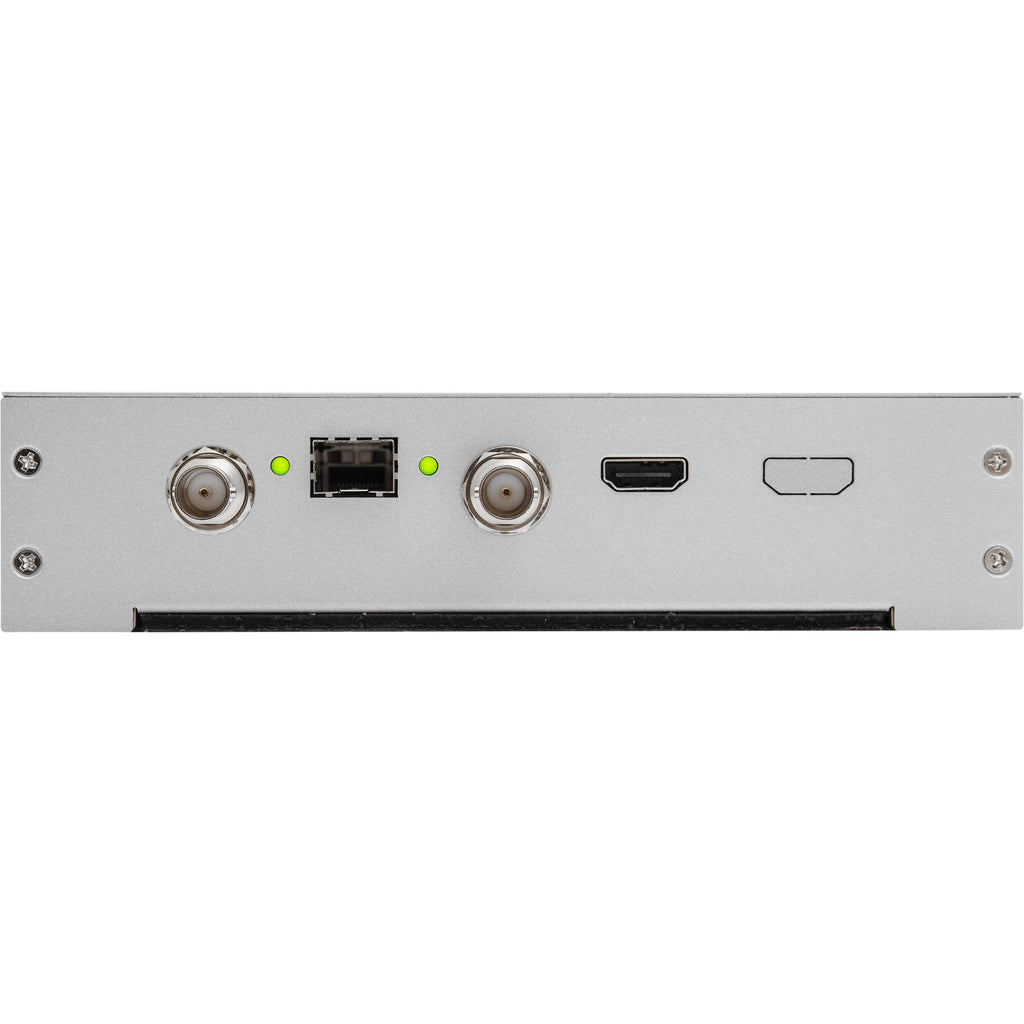

Apantac SDI-HDTV Overview
Convert video up to UHD 4K from an SDI source to an HDMI destination using this 12G-SDI to HDMI 2.0 Converter with Optional SFP Fiber Input from Apantac. The converter features one 12G-SDI input, an HDMI 2.0 output, and a 12G-SDI loop output. There is also a slot for an optional SFP fiber module as an alternative to the 12G-SDI video input.
The HDCP-compliant converter can input resolutions up to 3840 x 2160p60 4:2:0, and it converts embedded audio along with the video. There is a manual selector to switch between the BNC and optional SFP slot for up to 12G-SDI video signal input. You can also de-embed up to eight channels of AES or AA audio for monitoring, mixing, or other audio options using the 3-pin terminal block or BNC outputs on the back of the unit. A manual selector allows you to select which audio pair you would like to de-embed. Each video output has its own LED to indicate the connection status.
You can upgrade the unit's firmware using the 3-pin terminal block input using RS-232 communication. A 12 VDC power adapter is included to power the unit using its locking barrel connector, and there is a locking 12 VDC barrel output to pass power through to another converter or piece of gear.
Key Features
In the Box
- Apantac 12G-SDI to HDMI 2.0 Converter with Optional SFP Fiber Input
- Power Adapter
- Limited 3-Year Warranty
Apantac SDI-HDTV Specs
| Video Input Connectors | 1 x BNC (12G-SDI) Female |
| Input Video Format |
SDI (4:2:0) UHD 4K: 30/60 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | SDI: 8-Channel (per Input) |
| Video Output Connectors | 1 x HDMI (HDMI 2.0) Female 1 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Female (Loop Output) |
| Output Video Format |
HDMI / SDI (4:2:0) UHD 4K: 30/60 fps |
| Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female 1 x BNC 8-Channel Analog Female |
| Output Audio Format | Analog |
| Embedded Audio Output | HDMI: 8-Channel (per Output) SDI: 8-Channel |
| HDR Compatibility | Not Specified by Manufacturer |
| Other I/O | 1 x 3-Pin Euroblock RS-232, Firmware Input |
| Expansion Slots | None |
| Power Connector | 1 x Barrel (12 VDC at 3.3 A) Input 1 x Barrel (12 VDC at 3.3 A) Output |
| Warranty Length | Limited 3-Year Warranty |
