Anton Bauer Quad Charger Overview

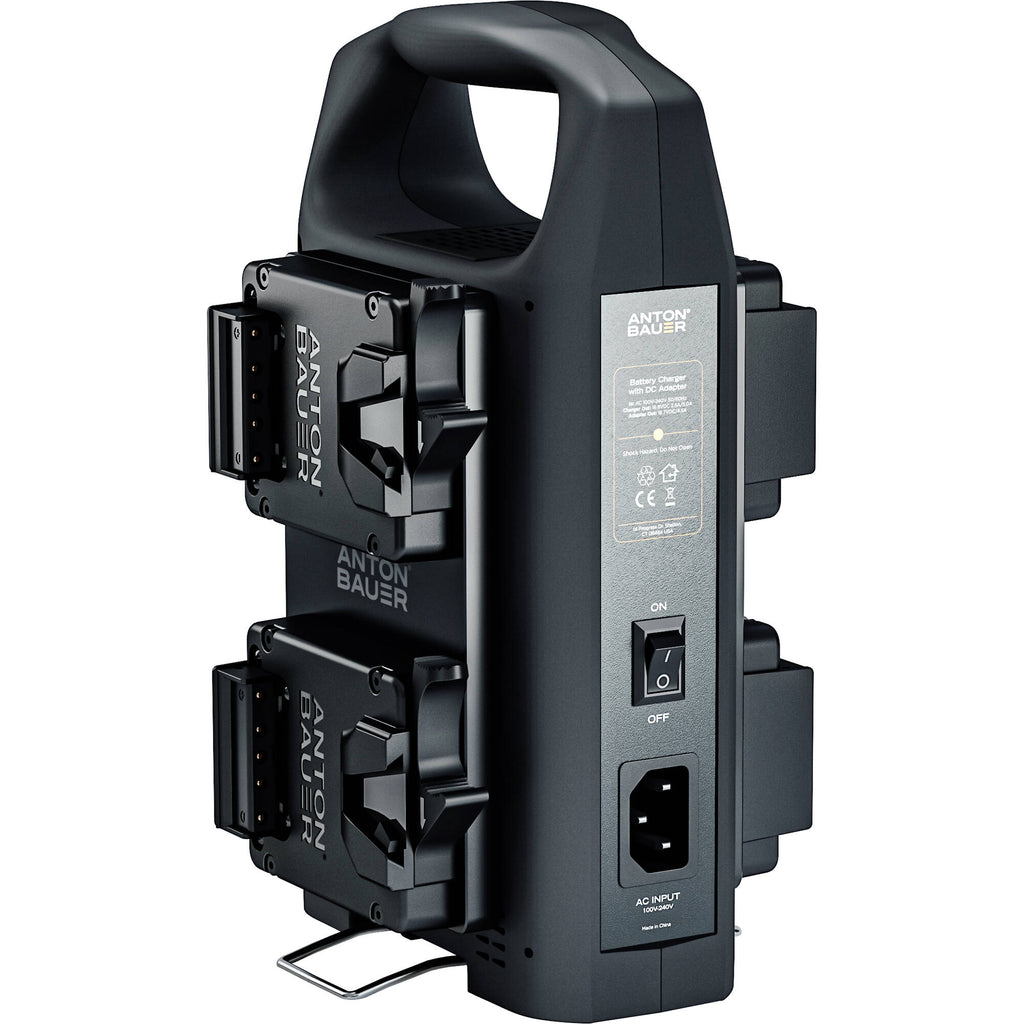

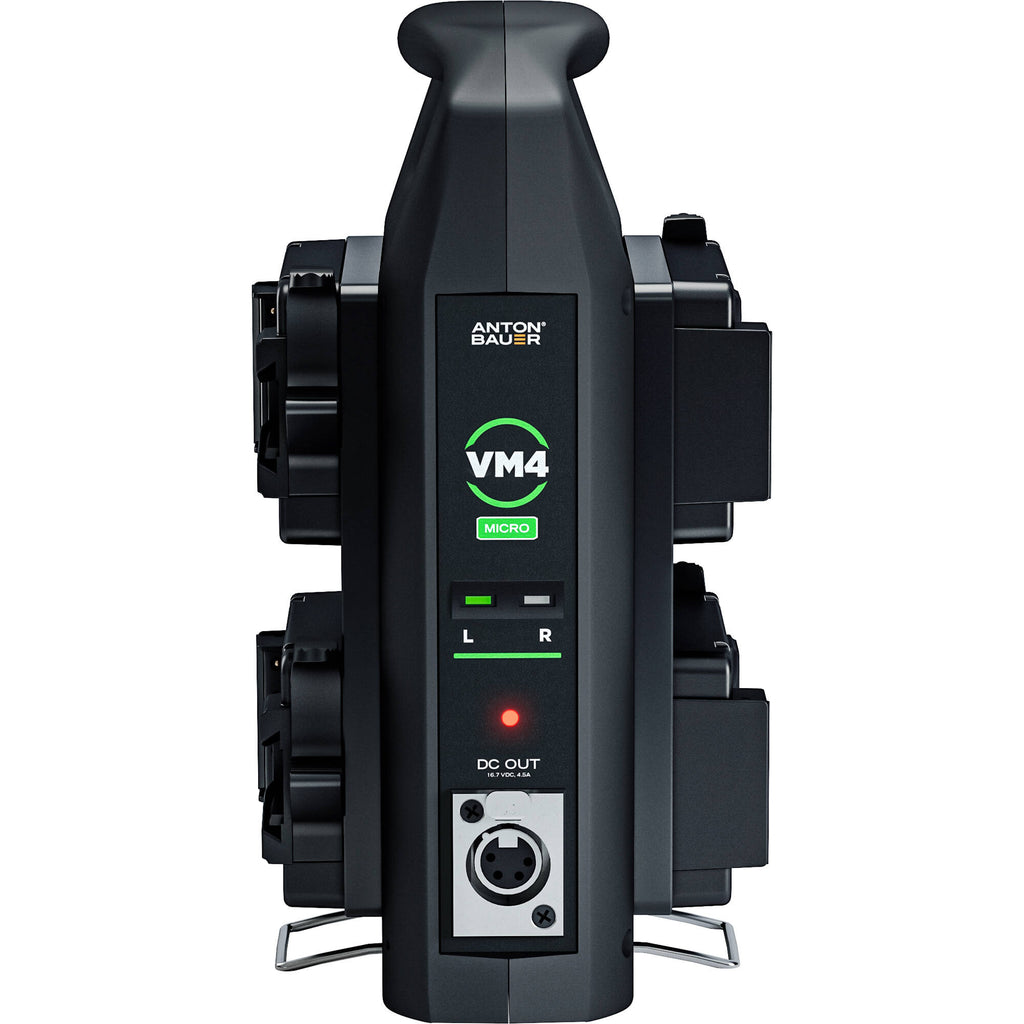

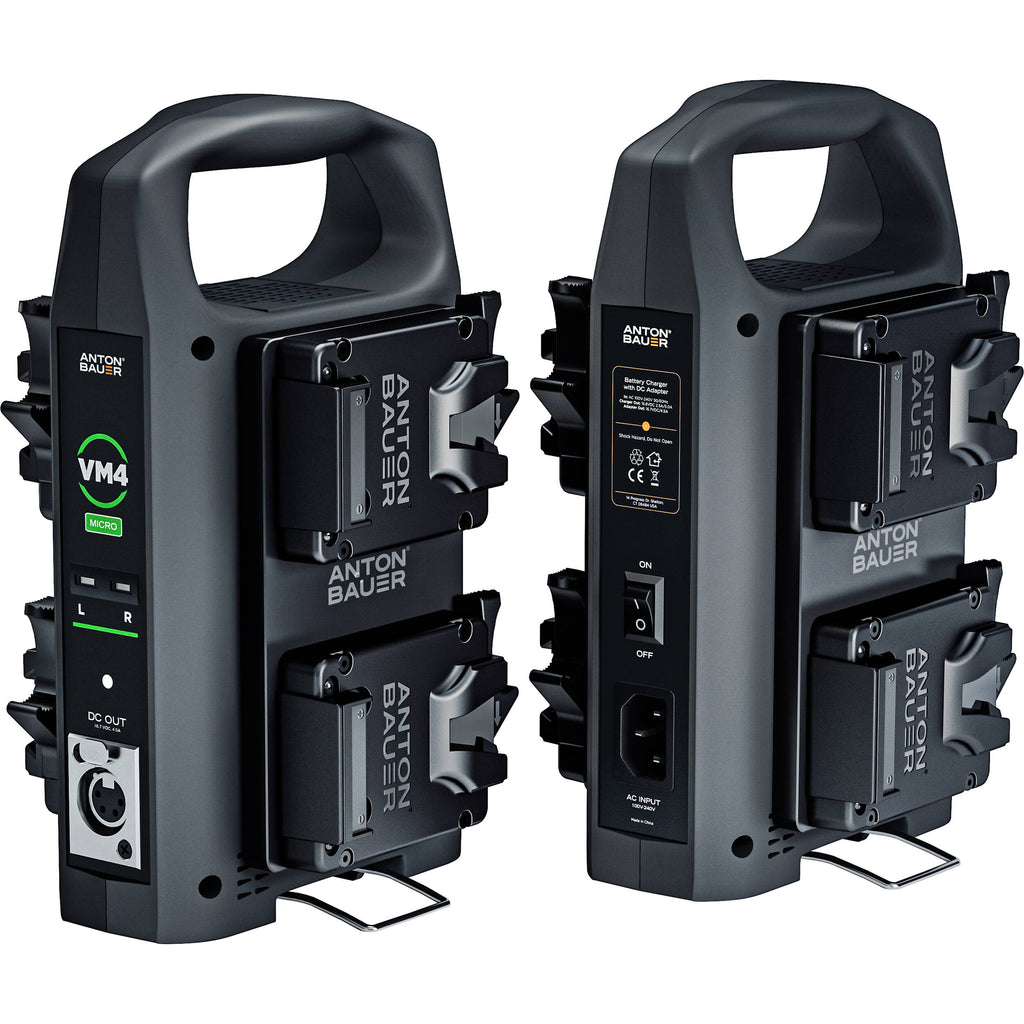

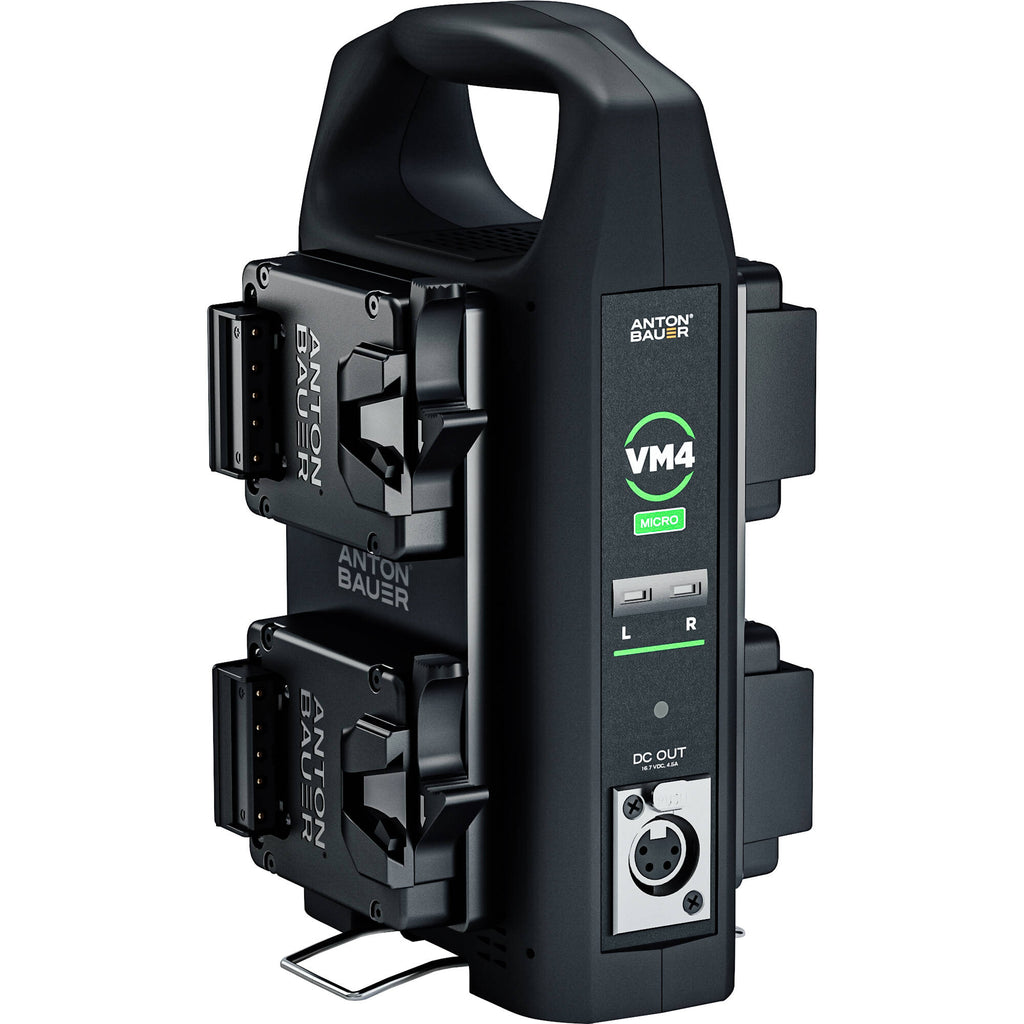

Simultaneously charge four high-capacity Micro batteries quickly while powering another device using this V-mount VM4 Quad Micro Battery Charger from Anton Bauer. This four-bay, simultaneous V-mount battery charger is aimed at location shoots, rental facilities, ENG/EFP/OB vehicles, broadcast equipment depots, or productions that require many batteries to be on charge and ready to go.
The VM4 can simultaneously charge up to four Micro V-mount batteries, such as a Titon Micro 90, or up to two regular-size V-mount batteries such as a Titon 240. A 94Wh Micro battery charges to full in approximately three hours. It features a slim design, and it has a carry handle, making it easy to transport. The 4-pin XLR output allows you to power a camera or accessory while you are charging batteries, and it provides 16.7 VDC, 4.5A of power. Its built-in fan keeps it cool in warm environments, and it features safety technology to protect your batteries and gear in case of a fault or overvoltage condition.
Key Features

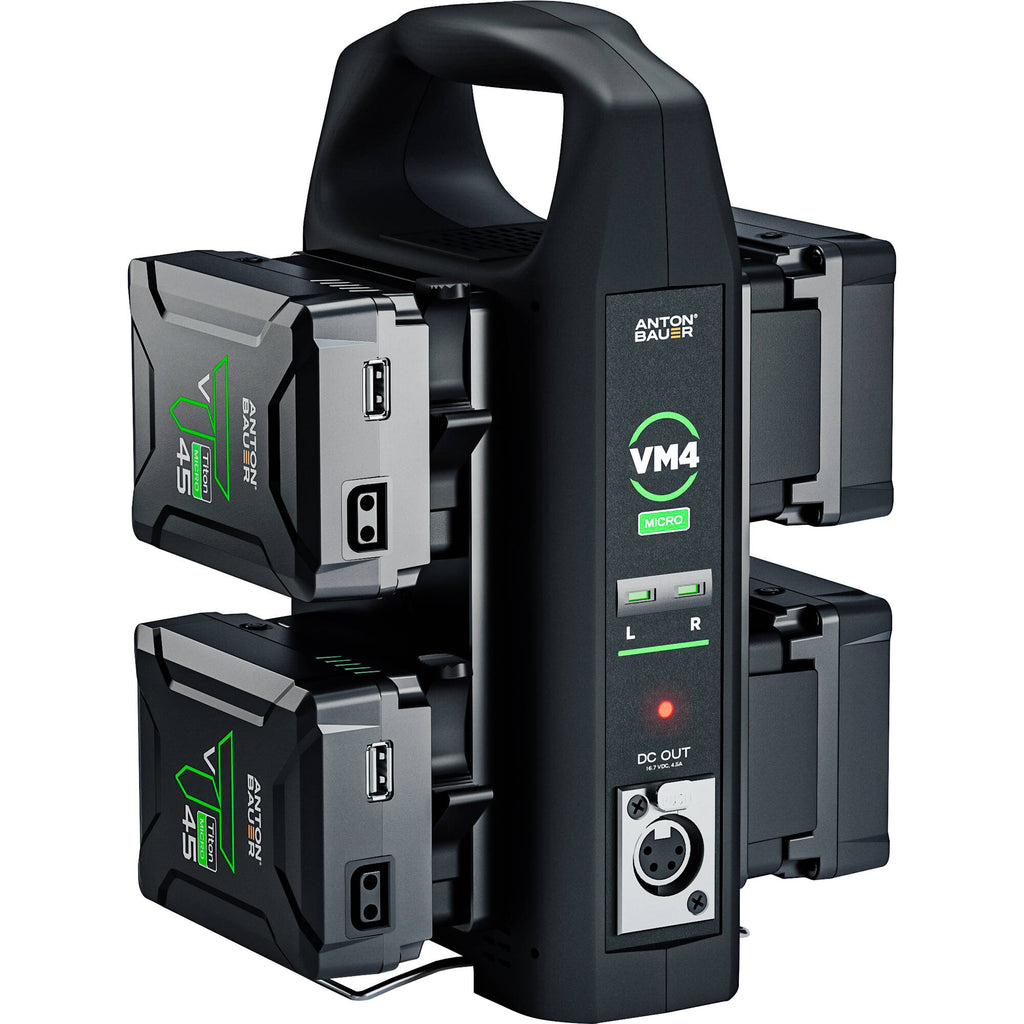

Simultaneously charge four V-mount Micro batteries or two regular-size V-mount batteries
Charges a Titon Micro 90 94Wh battery in approximately three hours
Slim, portable design with carry handle

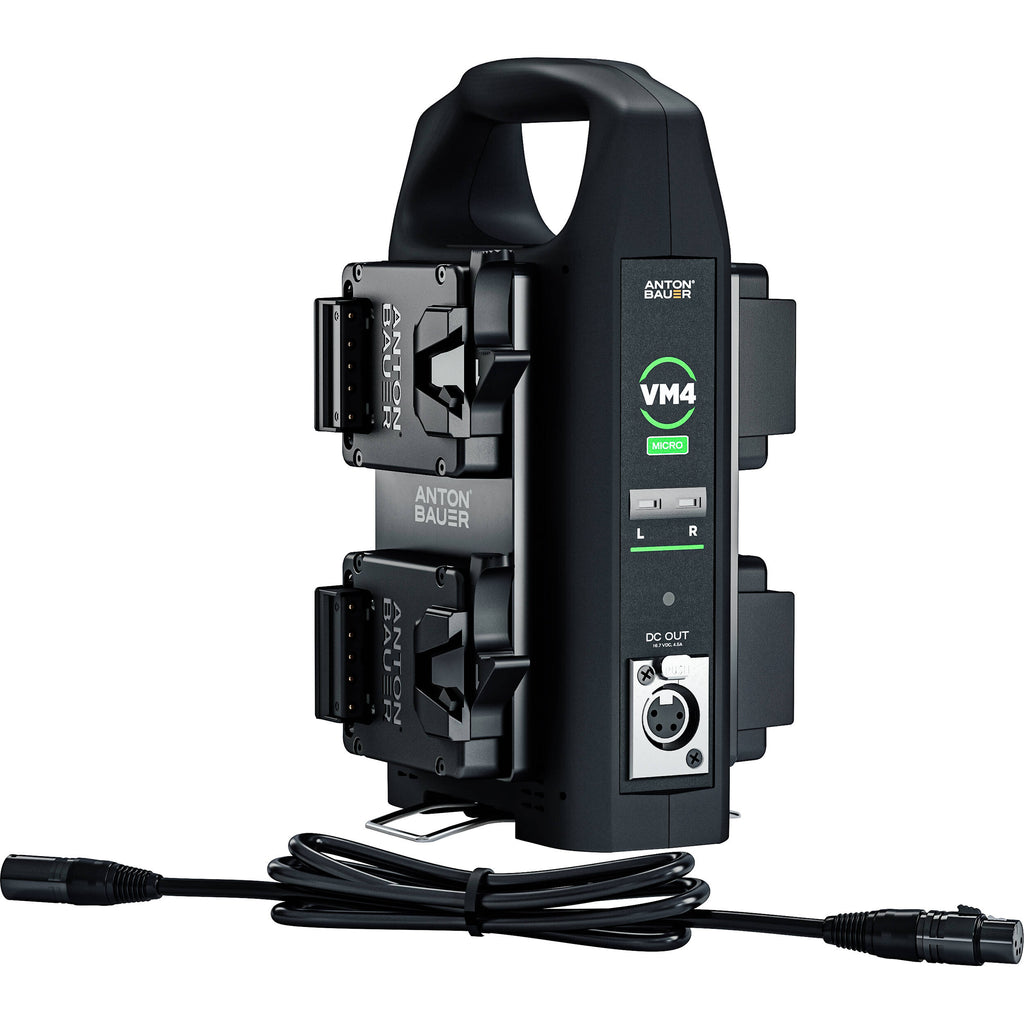

Simultaneously charge and output via 4-pin XLR with 16.7 VDC, 4.5A power output
LED charge status indicator
Advanced safety monitoring
In the Box
- Anton Bauer VM4 Quad Micro Battery Charger (V-Mount)
- Power Supply
- Limited 1-Year Warranty
Anton Bauer Quad Charger Specs
| Mount / Series Type |
V-Mount |
| Number of Battery Bays |
4 |
| Output Connector |
XLR 4-Pin Female |
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Output |
4-Pin XLR Female: 16.7 VDC at 4.5 A |
| Multi-Bay Charging Modes |
Simultaneous |
| Recharge Time |
3 Hours (94 Wh Batteries) |
| Chemistry |
Lithium-Ion |
General
| Indicator |
LED |
| Dimensions |
9.3 x 5.5 x 2.2" / 235 x 140 x 57 mm |
| Weight |
2.2 lb / 1 kg |
Packaging Info
| Package Weight |
5.105 lb |
| Box Dimensions (LxWxH) |
9.9 x 9.2 x 6.3" |
