Anton Bauer VM2 Dual-Bay Charger with 4-Pin XLR Output (V-Mount)

For V-Mount Batteries

Simultaneously Charge 2 Batteries

Simultaneously Charge and Output via XLR

Portable Design with Carry Handle

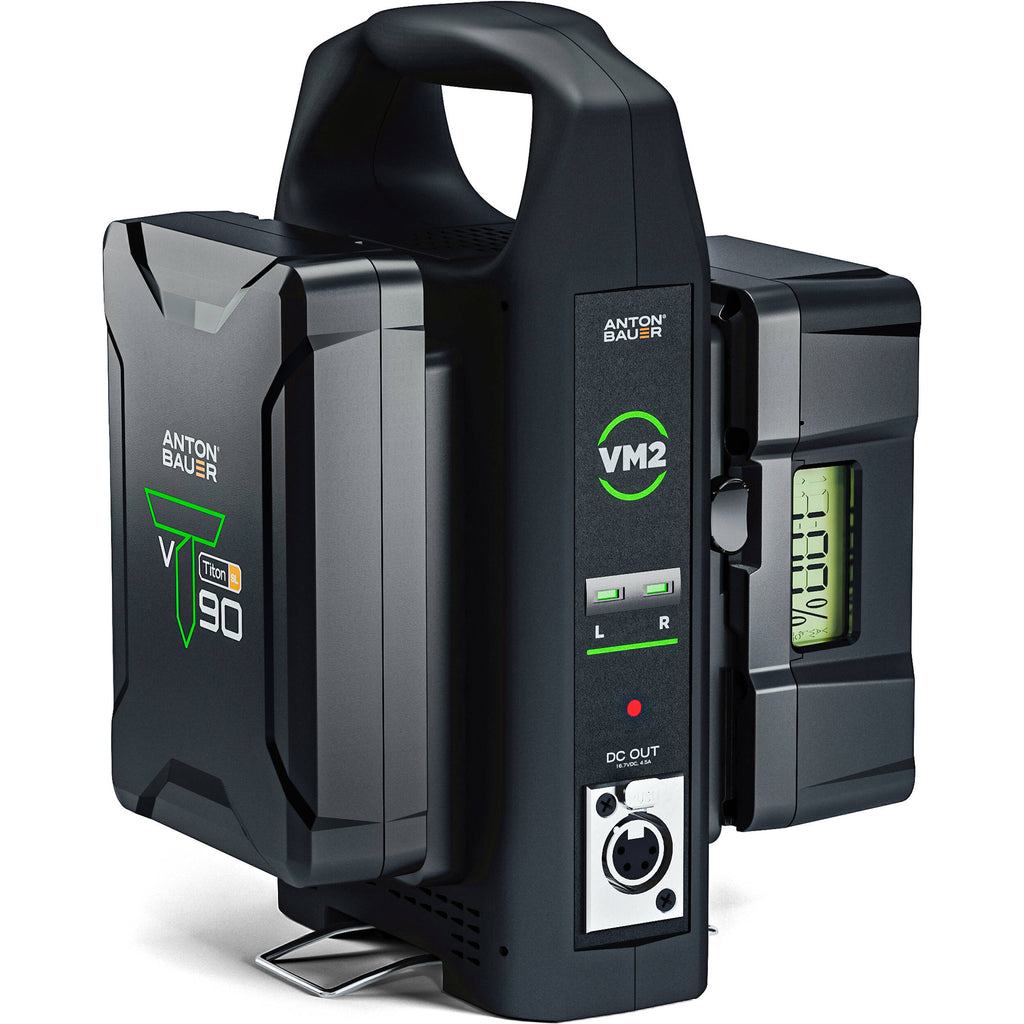

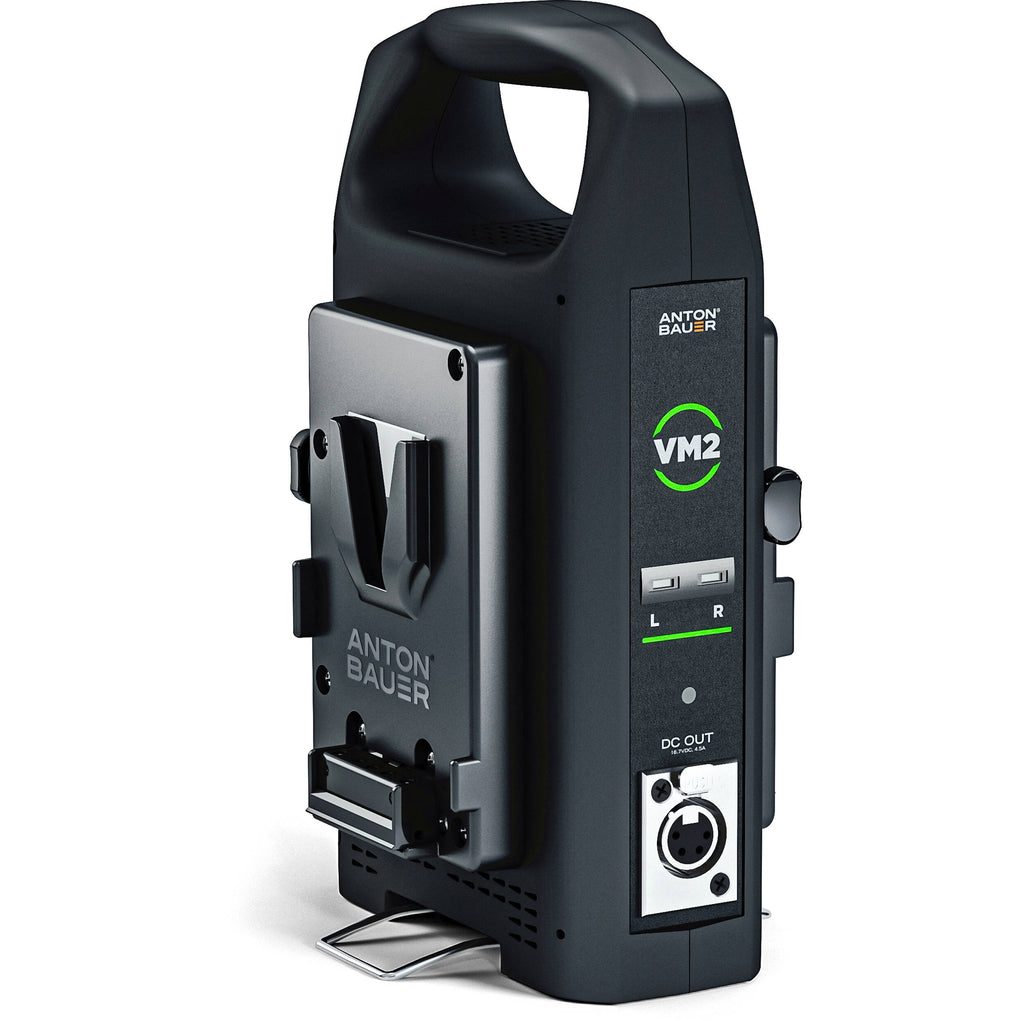

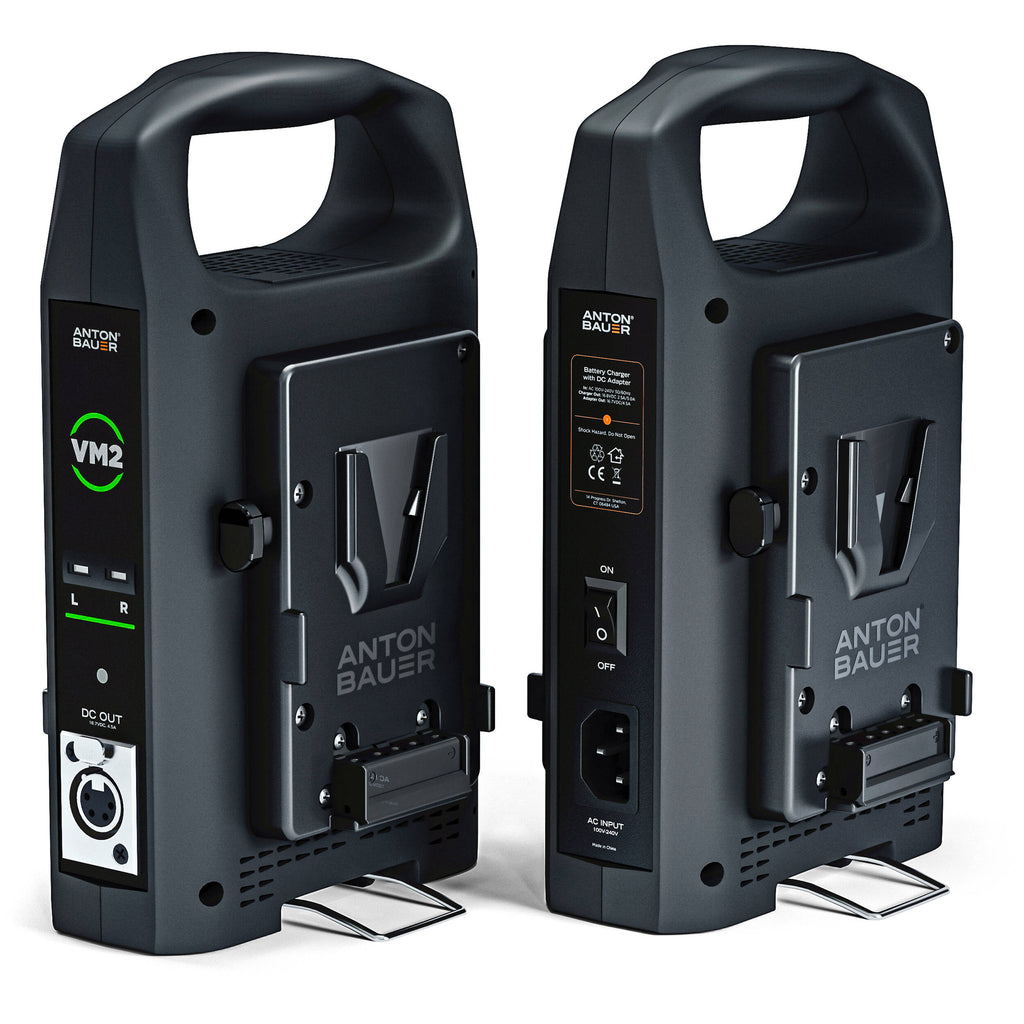

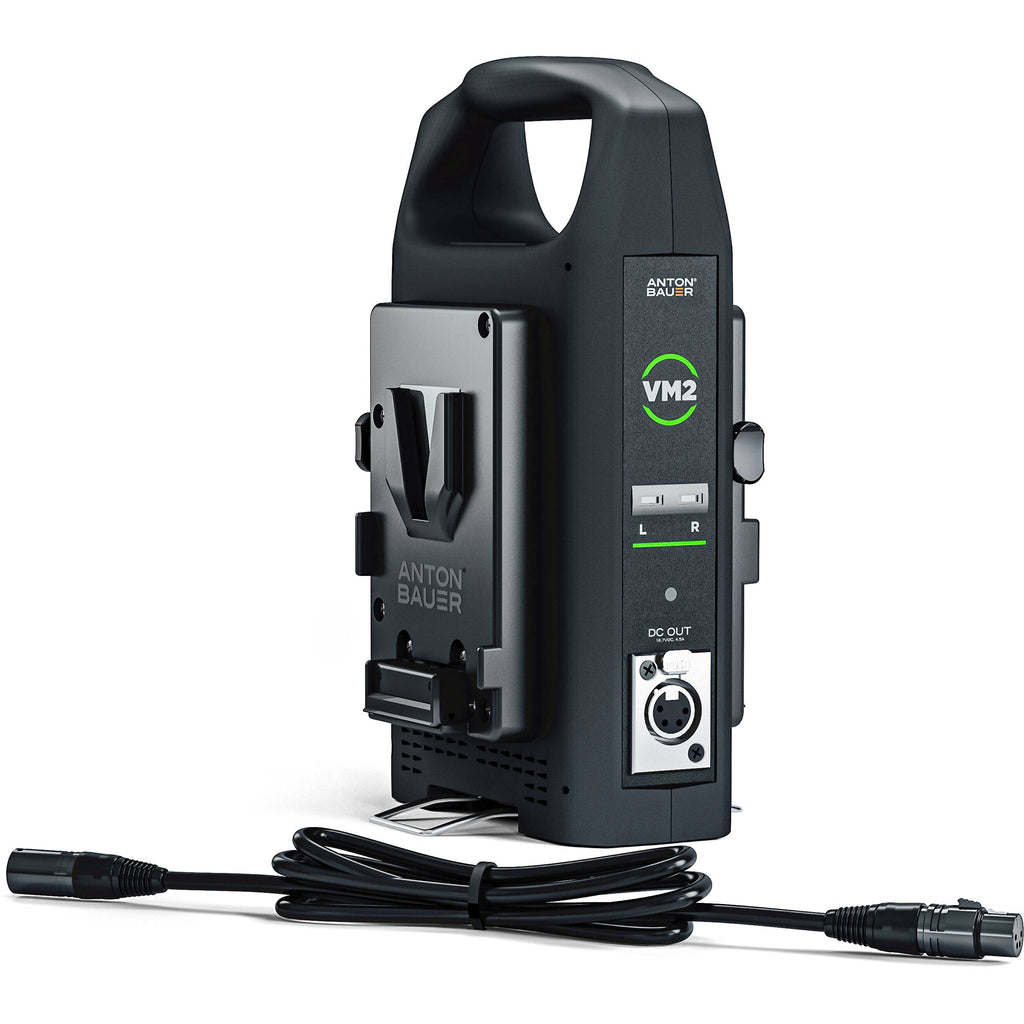

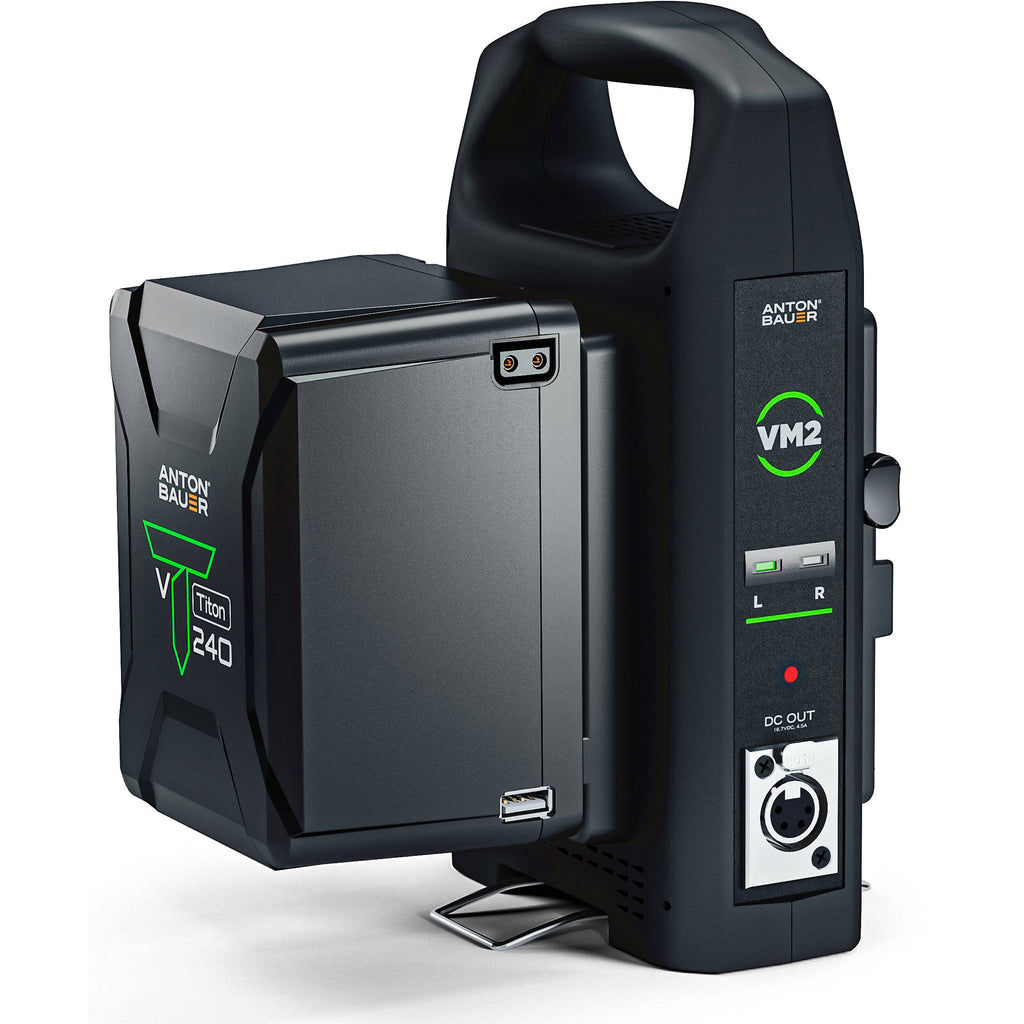

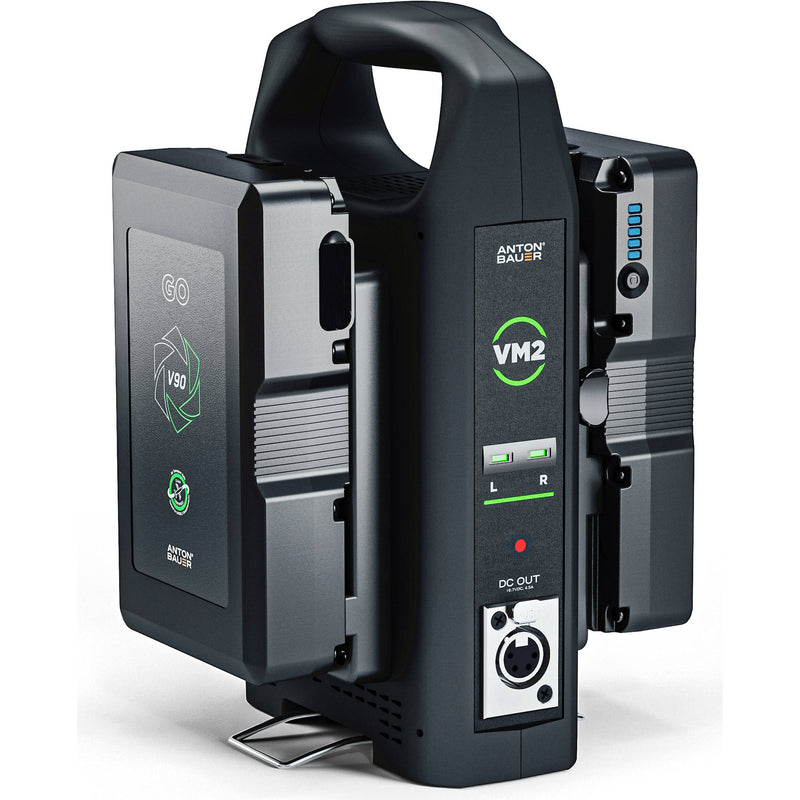

This slim V-mount Anton Bauer VM2 Dual-Bay Charger with 4-Pin XLR Output allows you to simultaneously charge two V-mount batteries (or a single battery) from 100 to 240 VAC sources, and it supports worldwide power of 50/60 Hz. The charger can also output 16.7 VDC through the 4-pin XLR while charging batteries, allowing you to power your camera and charge your batteries at the same time.

It features a top handle for easy transport and a built-in power management system that protects your batteries and powered devices from damage. The built-in intelligent safety technology continually monitors all attached devices, batteries as well as devices connected to the XLR port, and will shut down if a fault or overvoltage condition is detected, protecting your gear. A built-in fan helps to keep the unit cool and functioning. In addition, when AC power isn't available, you can connect one or two batteries to the charger, and it will output 15 VDC via the 4-pin XLR port.

Compatibility

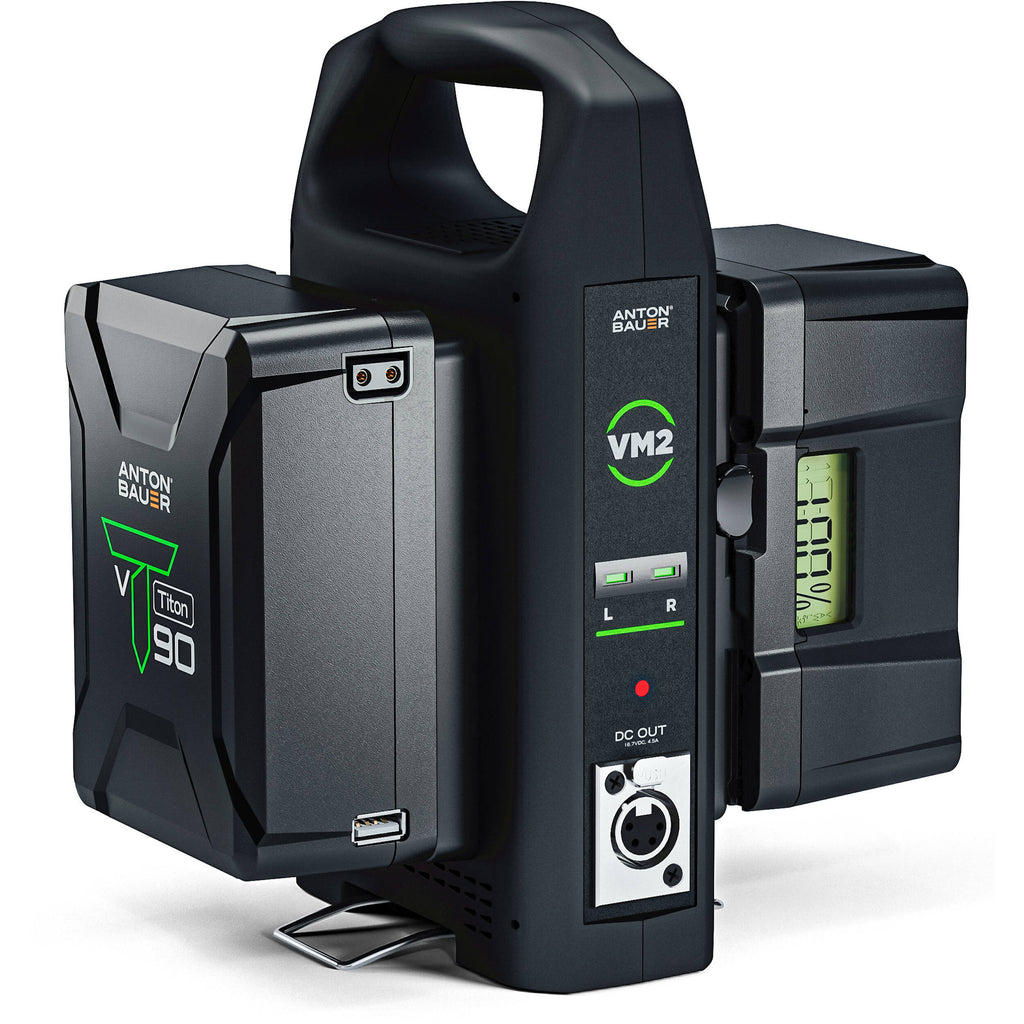

Titon 90

Titon 150

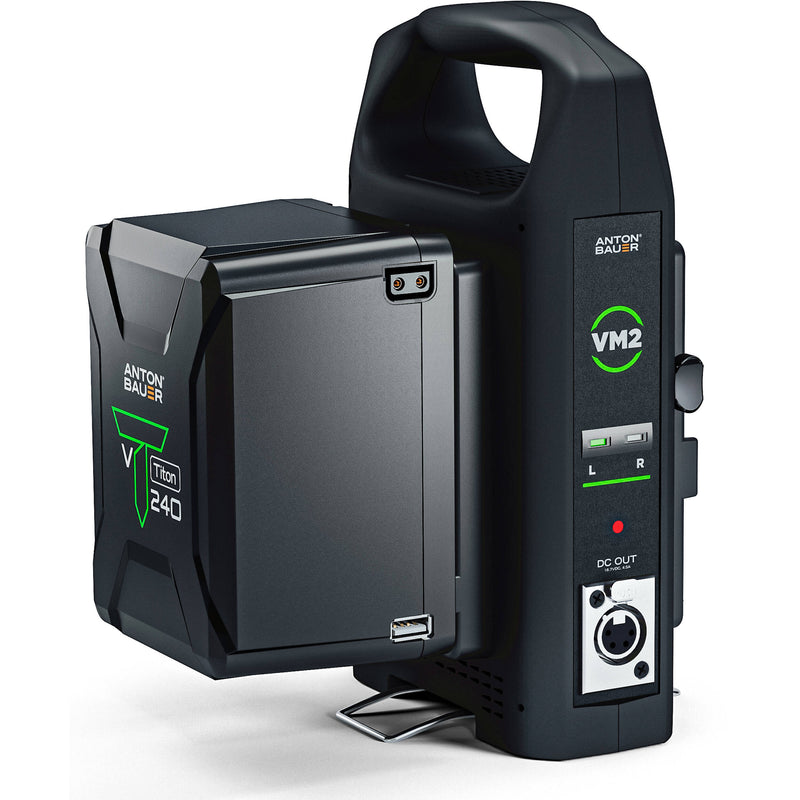

Titon 240

Titon SL 90

Titon SL 150

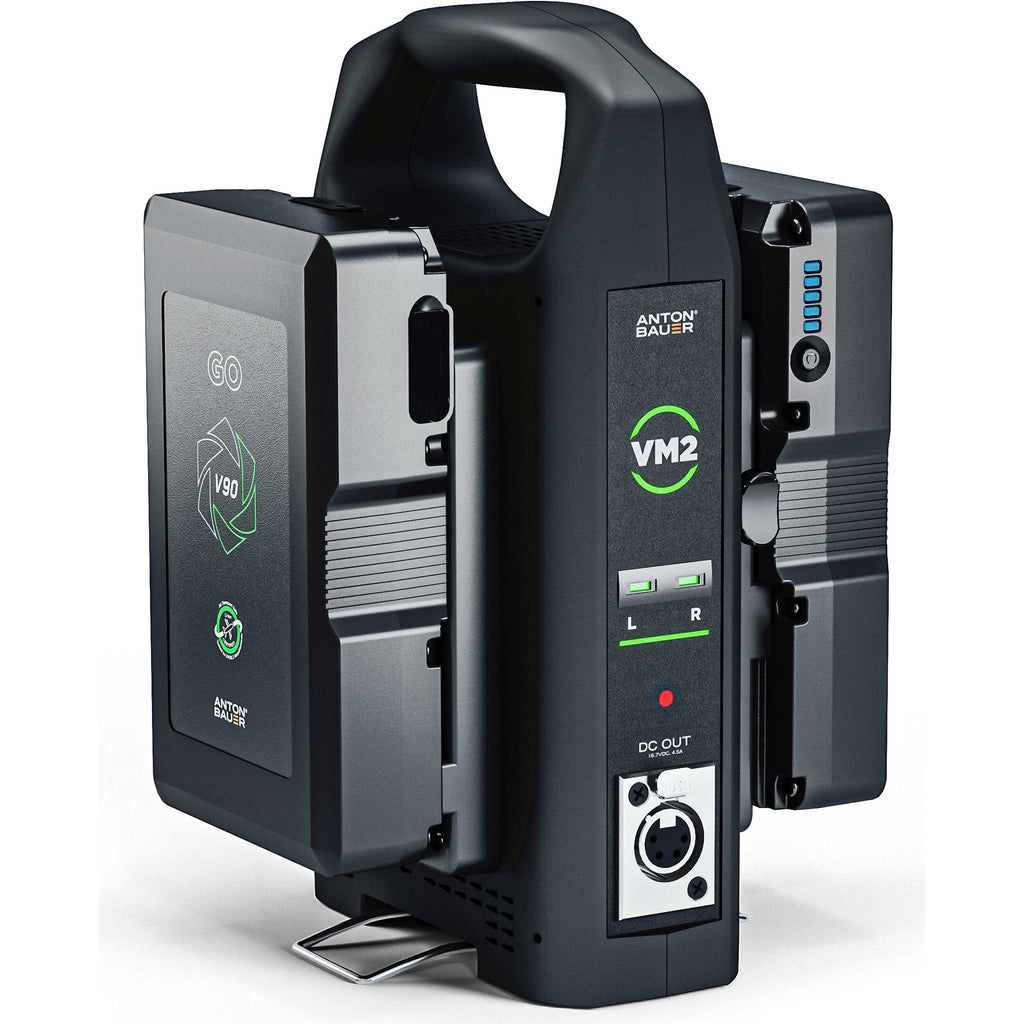

Anton Bauer GO 90

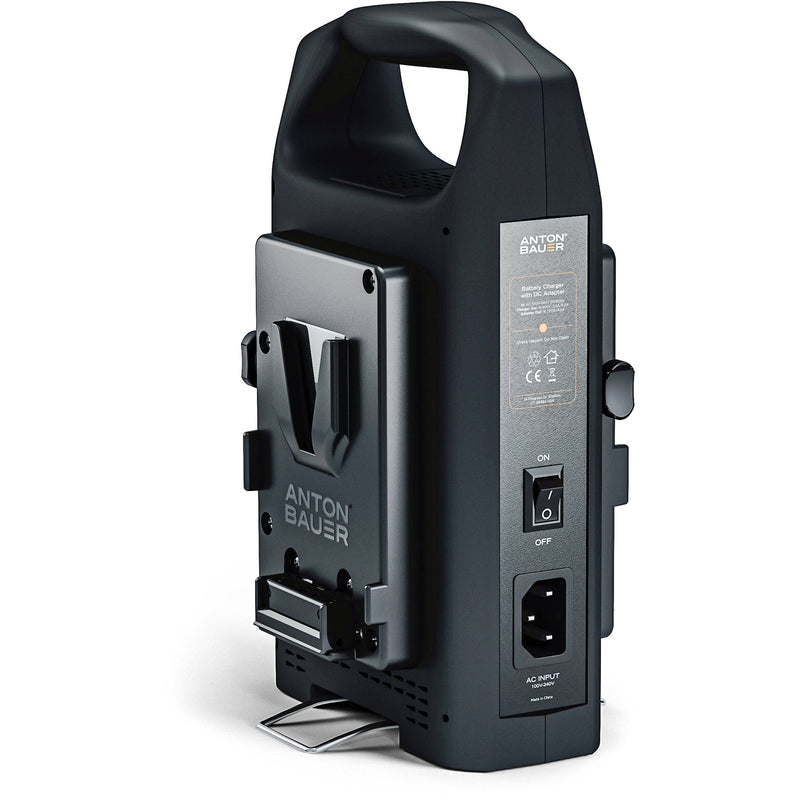

LED charge status indicators Supports worldwide power IEC AC power input Dedicated on/off switch UPC: 872496009597

Mount / Series Type	V-Mount
Number of Battery Bays	2
Output Connector	4-Pin XLR Female

AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.5 A
Power Output	4-Pin XLR: 15 VDC at 4 A 4-Pin XLR: 16.7 VDC at 4.5 A
Multi-Bay Charging Modes	Simultaneous
Chemistry	Lithium-Ion
Maximum Wattage	75 W

Operating Temperature

14 to 95°F / -10 to 35°C

Indicator	LED
Cable Length	10' / 3 m
Dimensions	9.25 x 5.5 x 2.25" / 23.5 x 13.97 x 5.71 cm
Weight	2.2 lb / 1 kg
Warranty Length	Limited 2-Year Warranty

Package Weight	4.04 lb
Box Dimensions (LxWxH)	9.9 x 9.4 x 4.6"
