Anton Bauer Dual Charger Overview

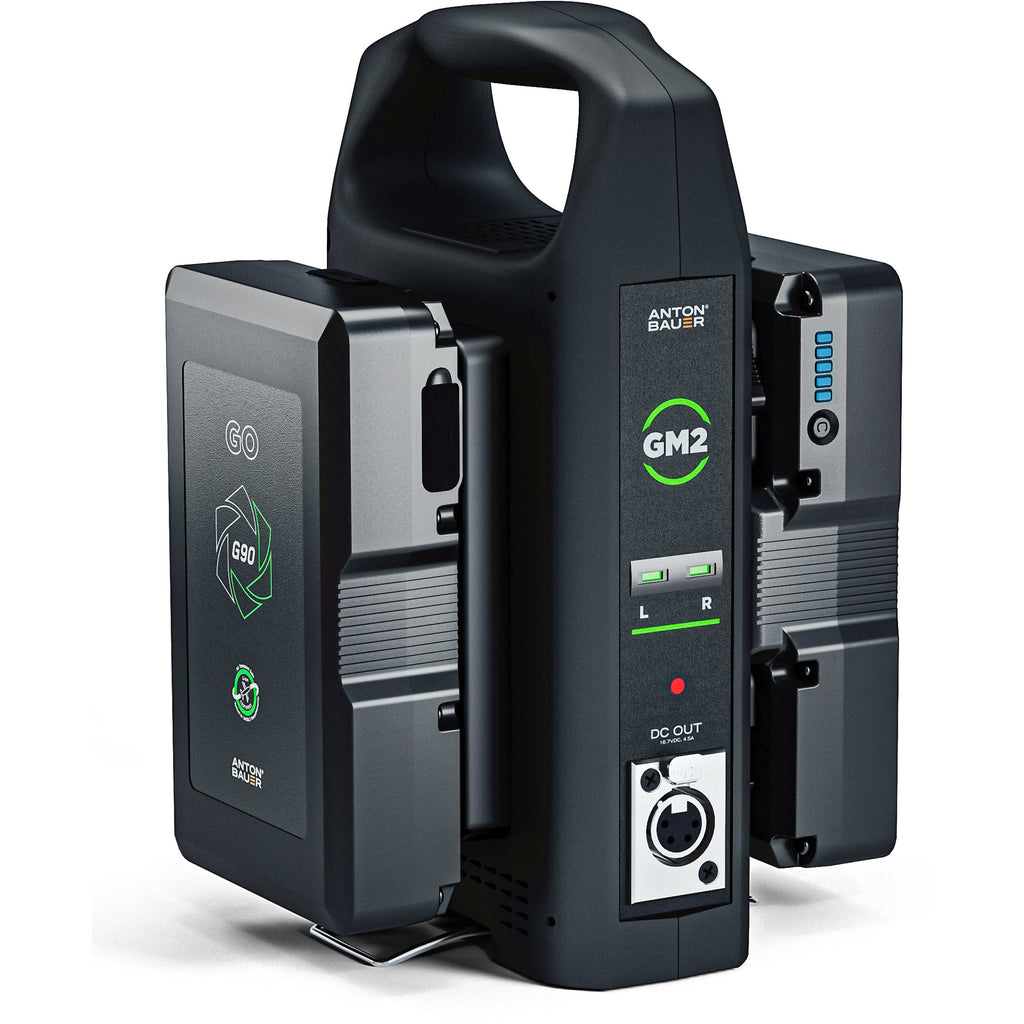

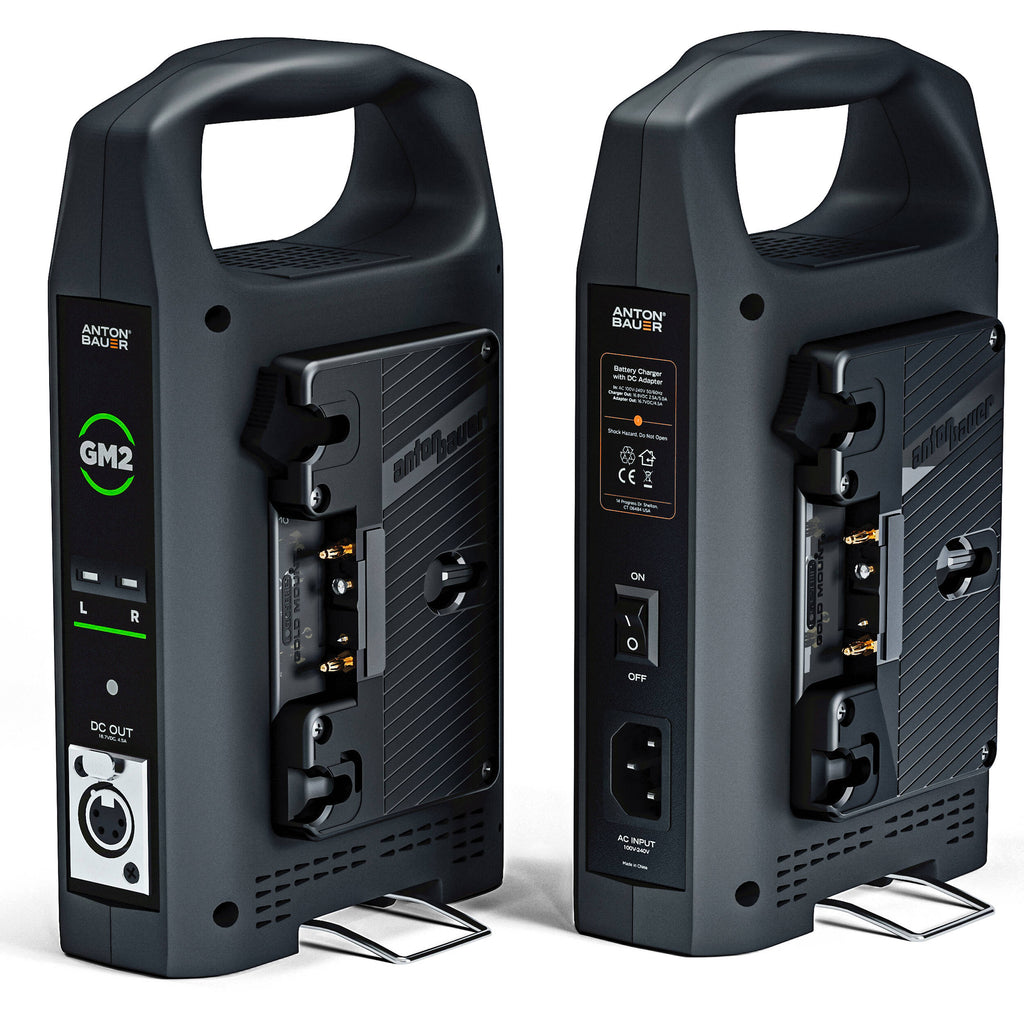

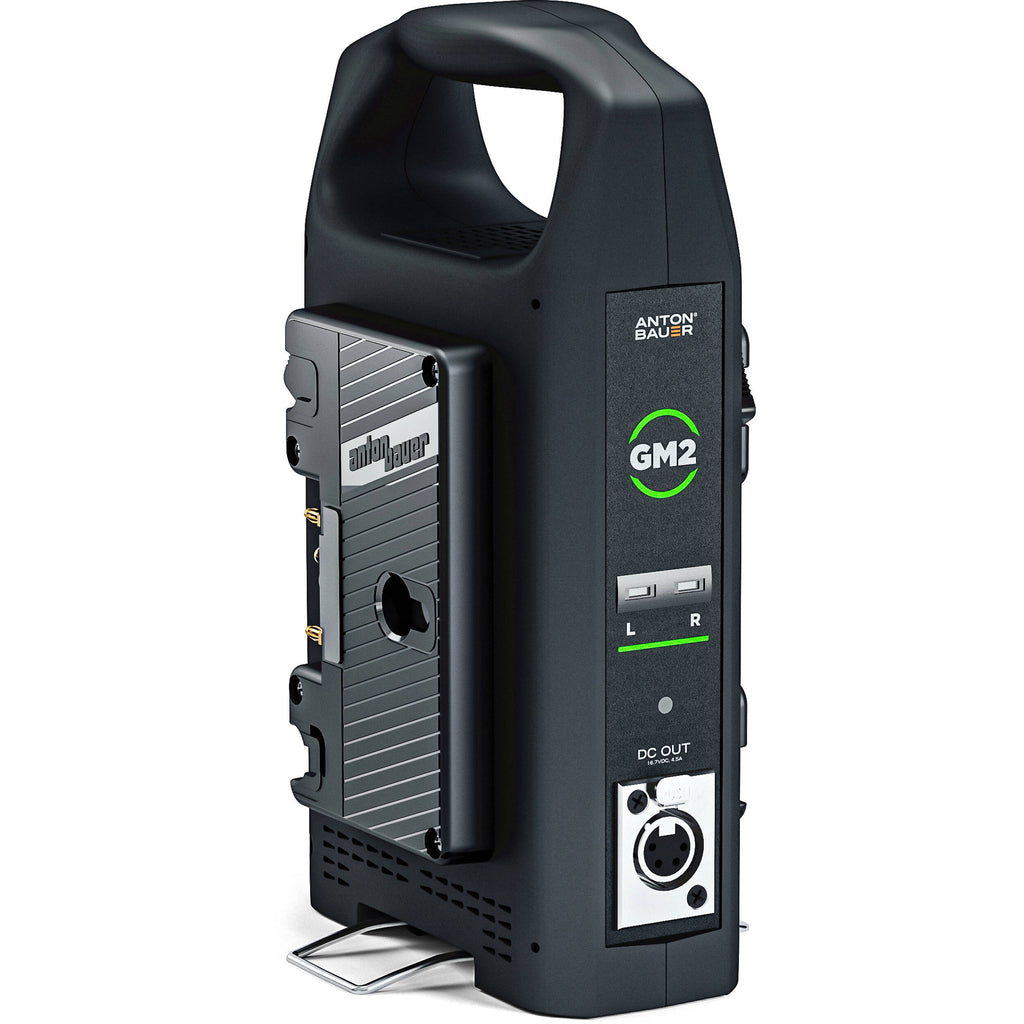

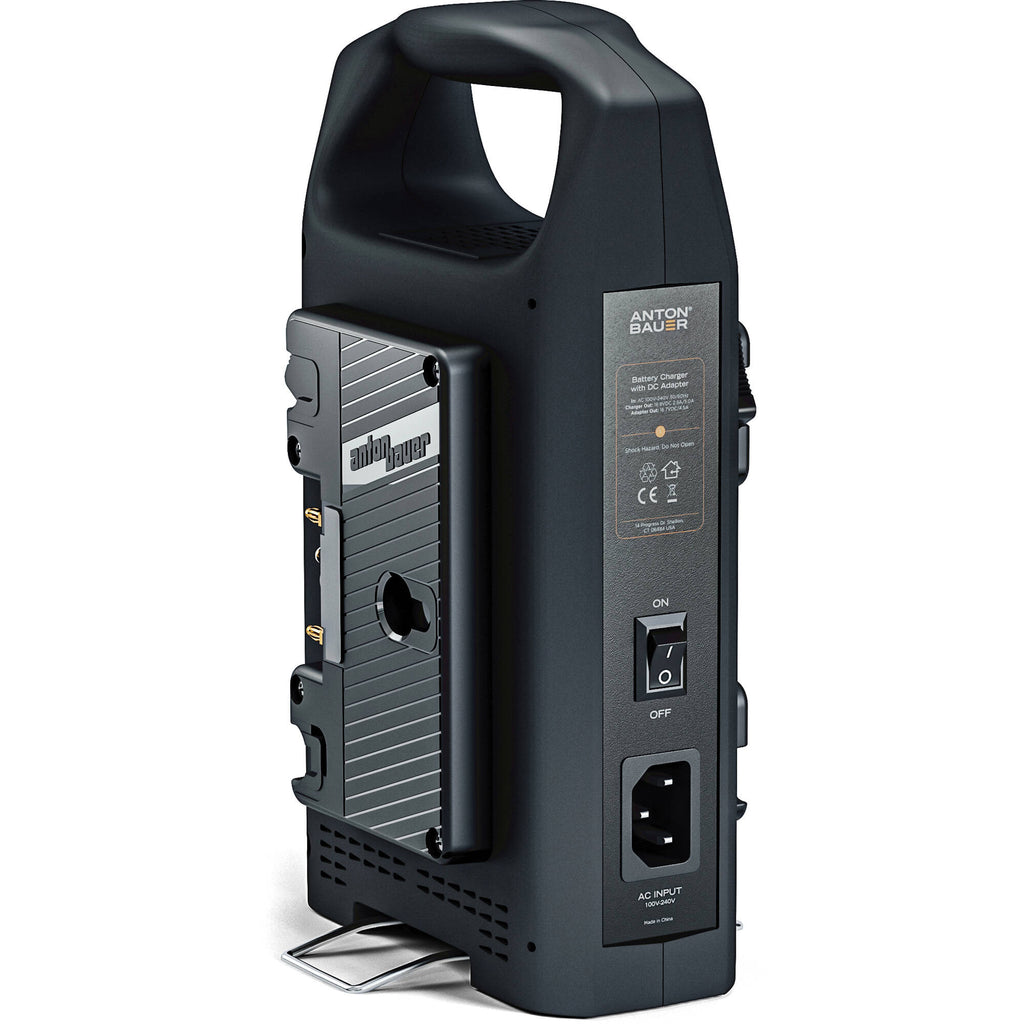

This slim Gold mount Anton Bauer GM2 Dual-Bay Charger with 4-Pin XLR Output allows you to simultaneously charge two Gold mount batteries (or a single battery) from 100 to 240 VAC sources, and it supports worldwide power of 50/60 Hz. The charger can also output 16.7 VDC through the 4-pin XLR while charging batteries, allowing you to power your camera and charge your batteries at the same time.
It features a top handle for easy transport and a built-in power management system that protects your batteries and powered devices from damage. The built-in intelligent safety technology continually monitors all attached devices, batteries as well as devices connected to the XLR port, and will shut down if a fault or overvoltage condition is detected, protecting your gear. A built-in fan helps to keep the unit cool and functioning. In addition, when AC power isn't available, you can connect one or two batteries to the charger, and it will output 15 VDC via the 4-pin XLR port.
Compatibility

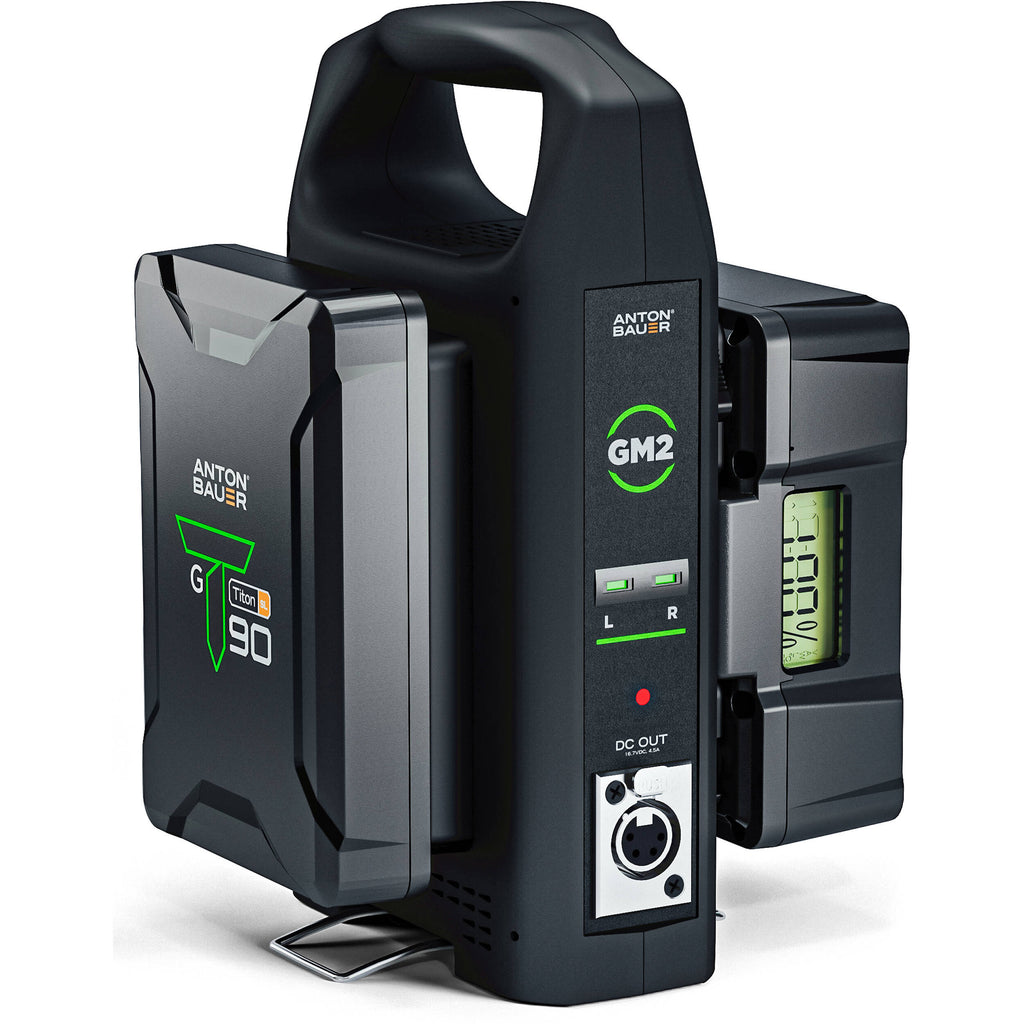

Titon 90
Titon 150
Titon 240
Titon SL 90
Titon SL 150
Anton Bauer GO 90
LED charge status indicators
![]()
UPC: 872496009573
In the Box

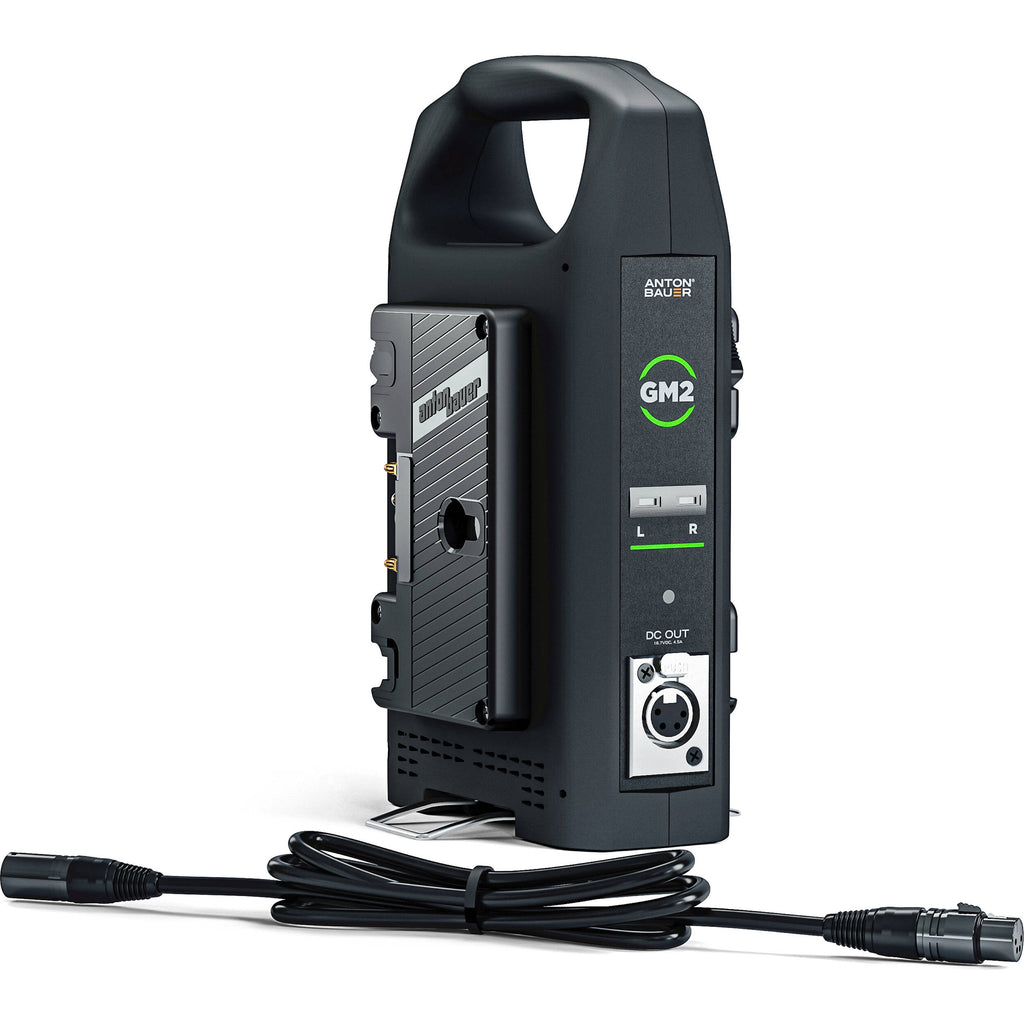

- Anton Bauer GM2 Dual-Bay Charger with 4-Pin XLR Output (Gold Mount)
- 4-Pin XLR Cable (10')
- Limited 2-Year Warranty
Anton Bauer Dual Charger Specs
| Mount / Series Type |
Gold Mount |
| Number of Battery Bays |
2 |
| Output Connector |
XLR 4-Pin Female |
Electrical
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 1.5 A |
| Power Output |
4-Pin XLR: 15 VDC at 4 A
4-Pin XLR: 16.7 VDC at 4.5 A |
| Multi-Bay Charging Modes |
Simultaneous |
| Chemistry |
Lithium-Ion |
| Maximum Wattage |
75 W |
Environmental
| Operating Temperature |
14 to 95°F / -10 to 35°C |
General
| Indicator |
LED |
| Cable Length |
10' / 3 m |
| Dimensions |
9.25 x 5.5 x 2.25" / 23.5 x 13.97 x 5.71 cm |
| Weight |
2.2 lb / 1 kg |
Packaging Info
| Package Weight |
3.945 lb |
| Box Dimensions (LxWxH) |
10 x 9.5 x 4.4" |
