Description

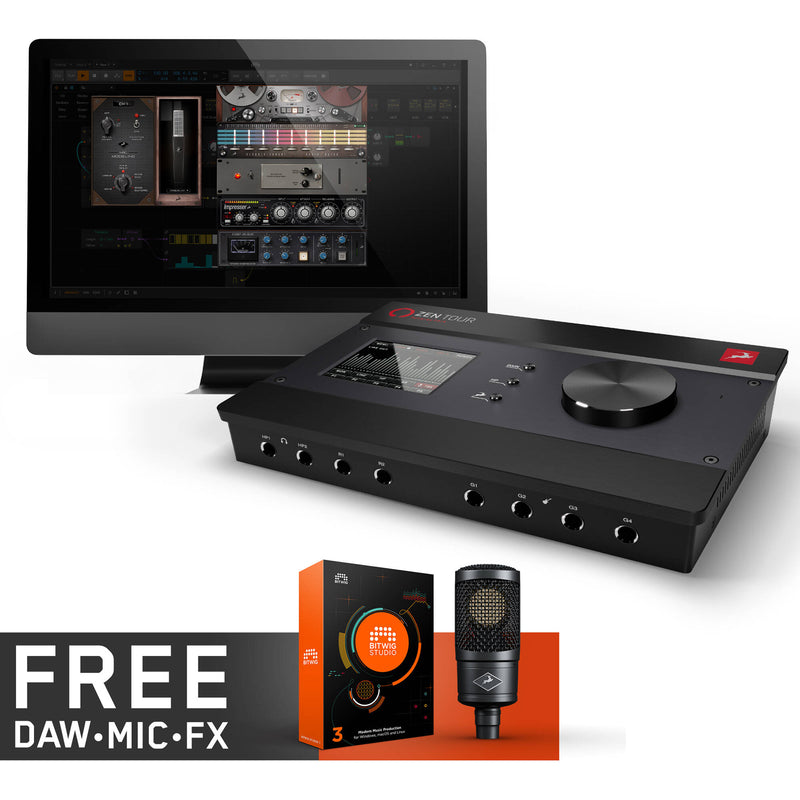

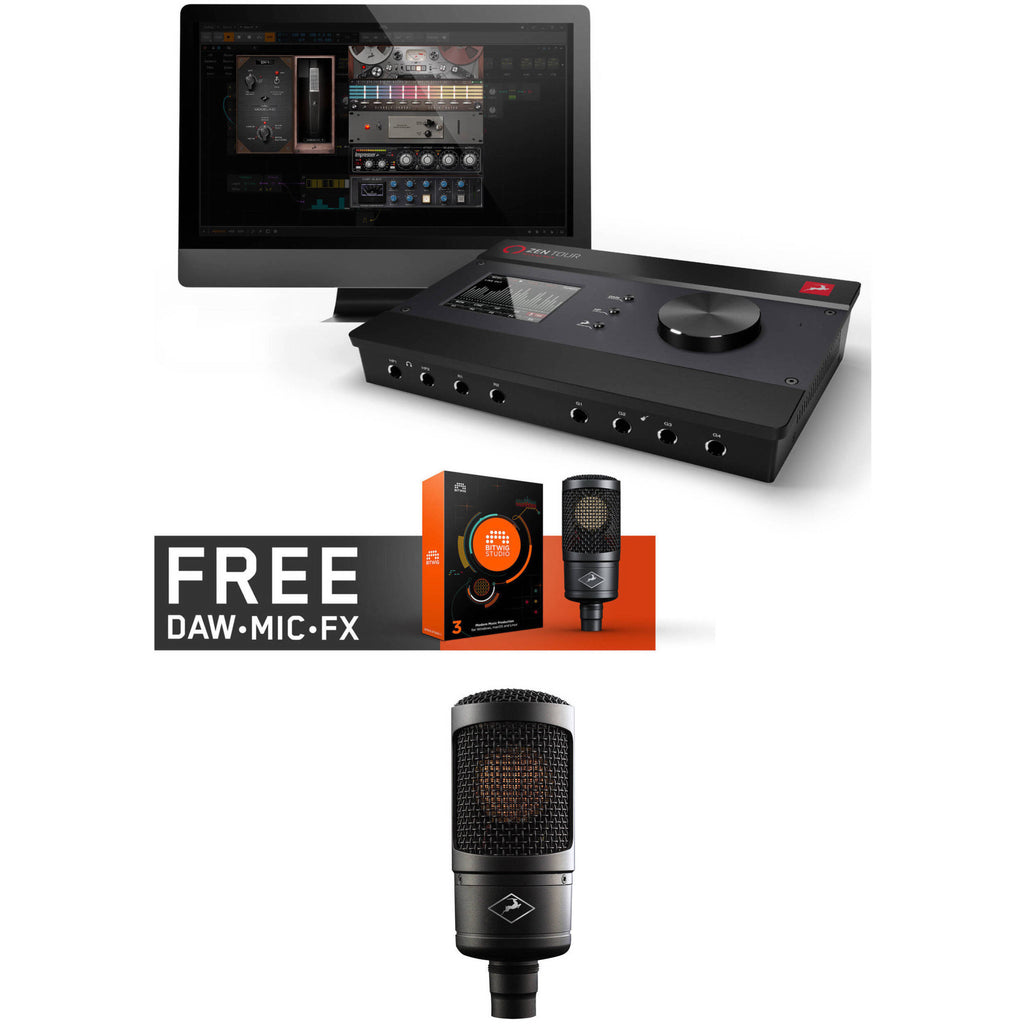

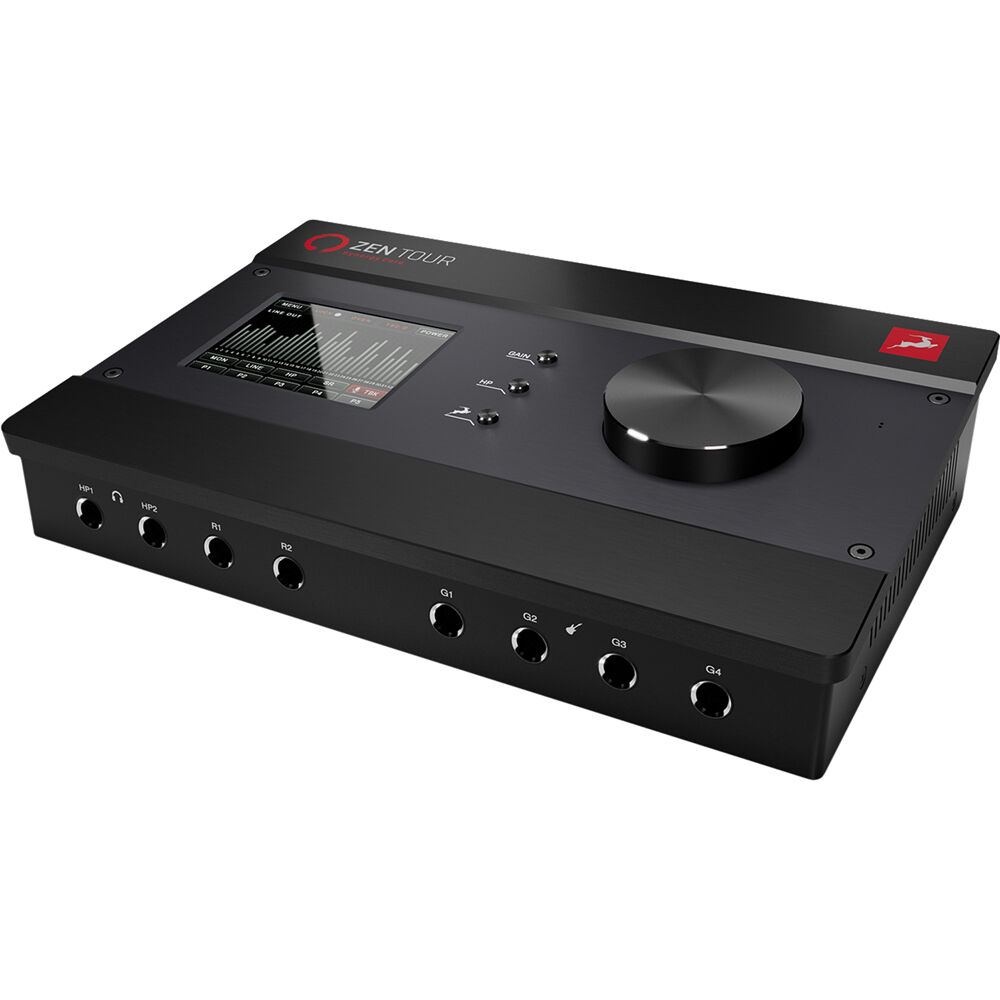

The Zen Tour Synergy from Antelope is a desktop interface designed to bring studio-quality sound to your home, studio, or on-the-road productions. Use it to record vocals and instruments or reamp clean recorded guitars back out through amplifiers for a more realistic tone. With USB 2 and Thunderbolt over USB Type-C, the interface facilitates connection to both Mac and Windows operating systems. ADAT and S/PDIF I/O ports facilitate digital expansion, letting you add up to ten more channels of audio.

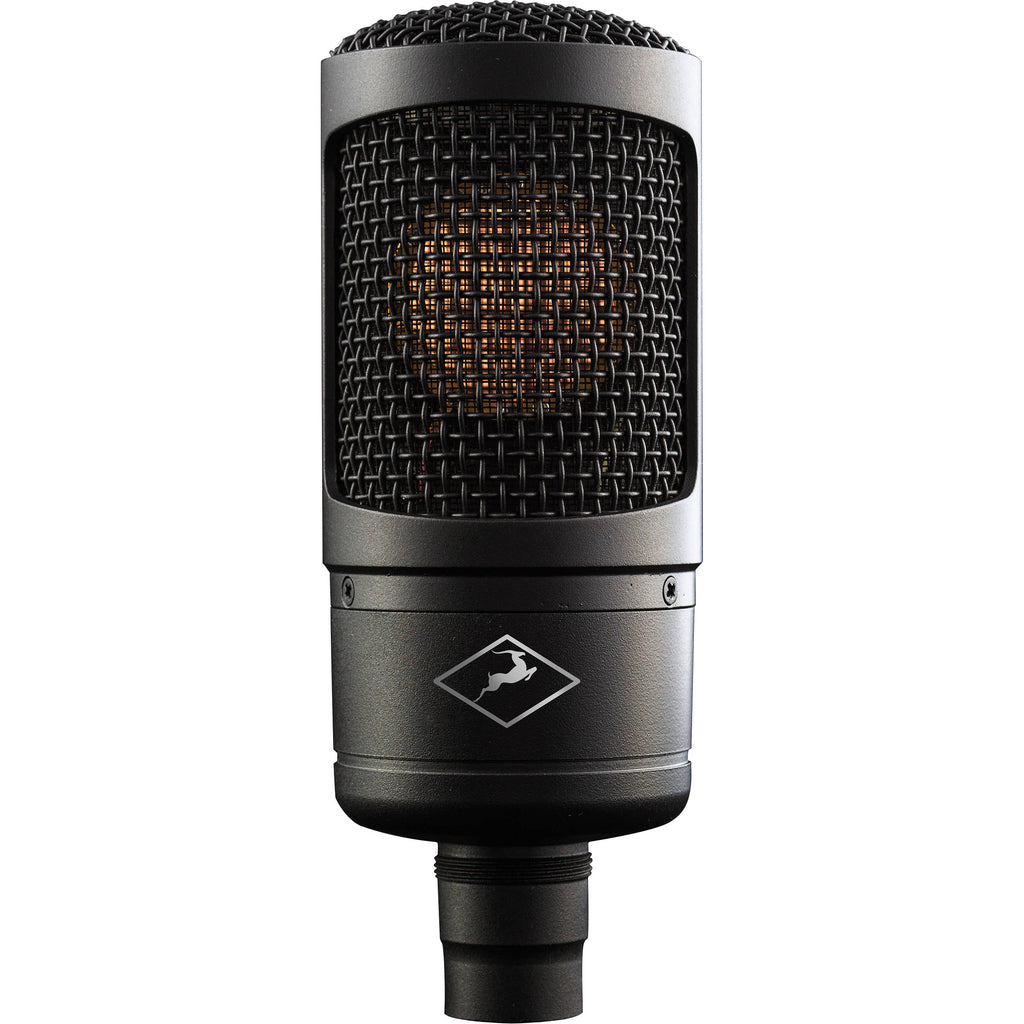

The mic preamps provided in this interface are ultralinear, fully discrete designs that work seamlessly with Antelope's mic modeling technology. Should you have a separately available Antelope modeling microphone and software, you'll be able to get the sound of a vintage, prized mic chain, from capsule to preamp. Additionally, the interface offers FPGA Synergy Core FX Processing, so you can run Antelope's FPGA effects.

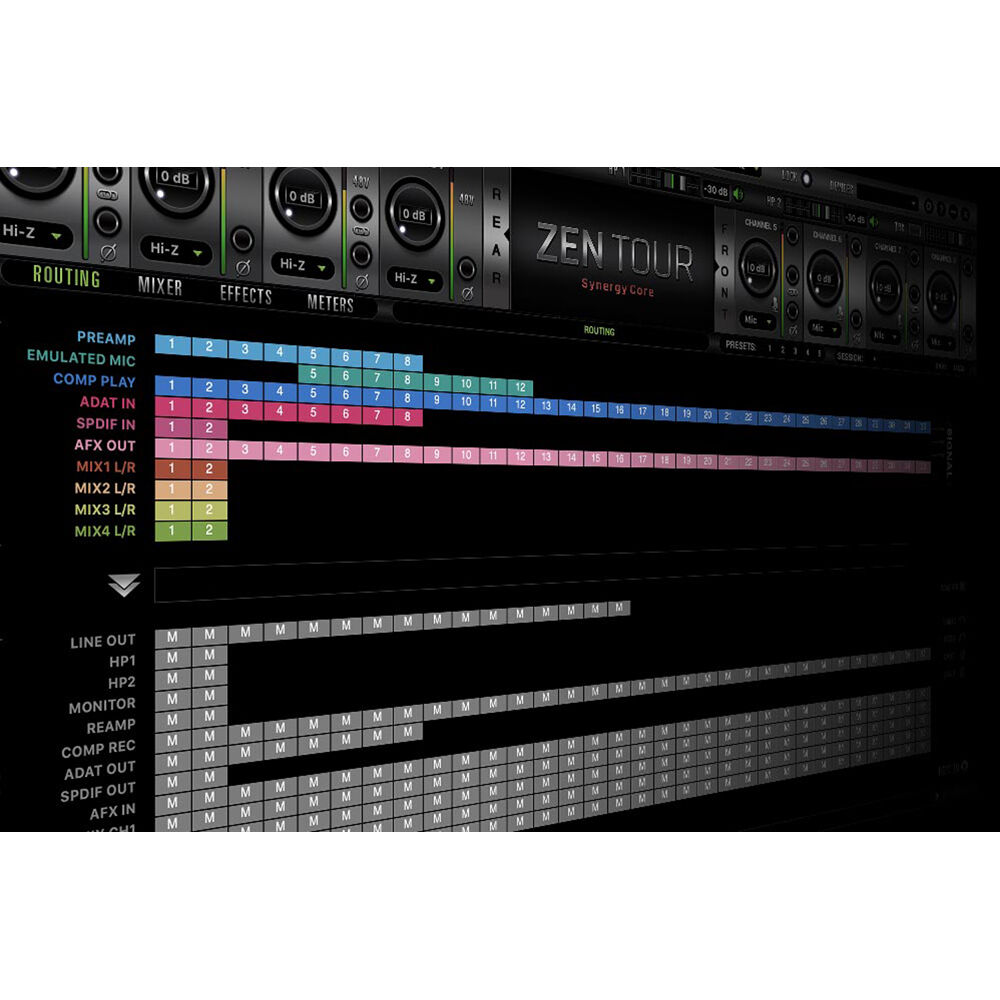

The Zen Tour Synergy offers a bevy of analog connection points. You'll find four mic/line inputs, four instrument inputs, eight line outputs over DB25 connections, two reamp outputs, two monitor outputs, and two independent headphone outputs. The 64-bit clocking ensures you'll have clean, delineated signal in your recording chain and when you're mixing with monitors or through headphones. An intuitive touchscreen on the interface lets you control the Zen Tour Synergy with ease, while a software mixer offers flexible routing. A power adapter is included along with a USB cable.

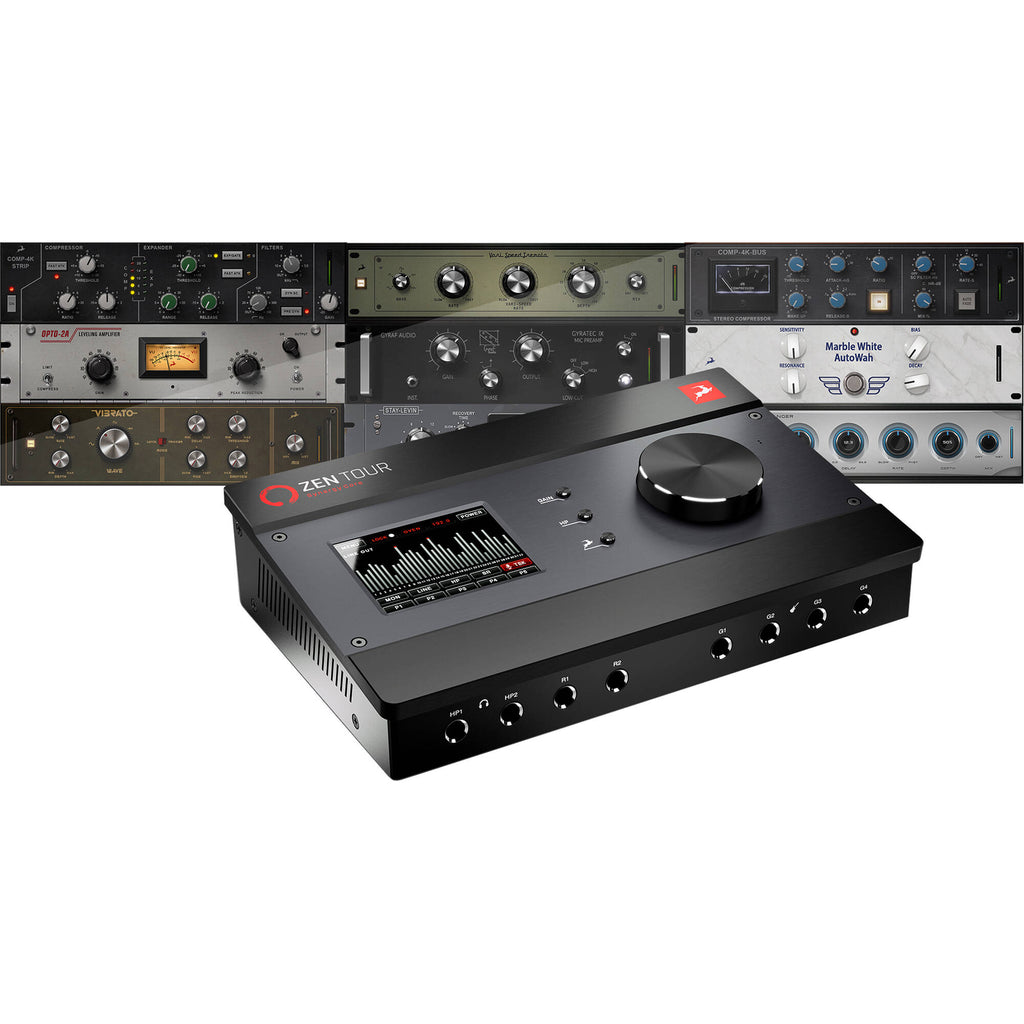

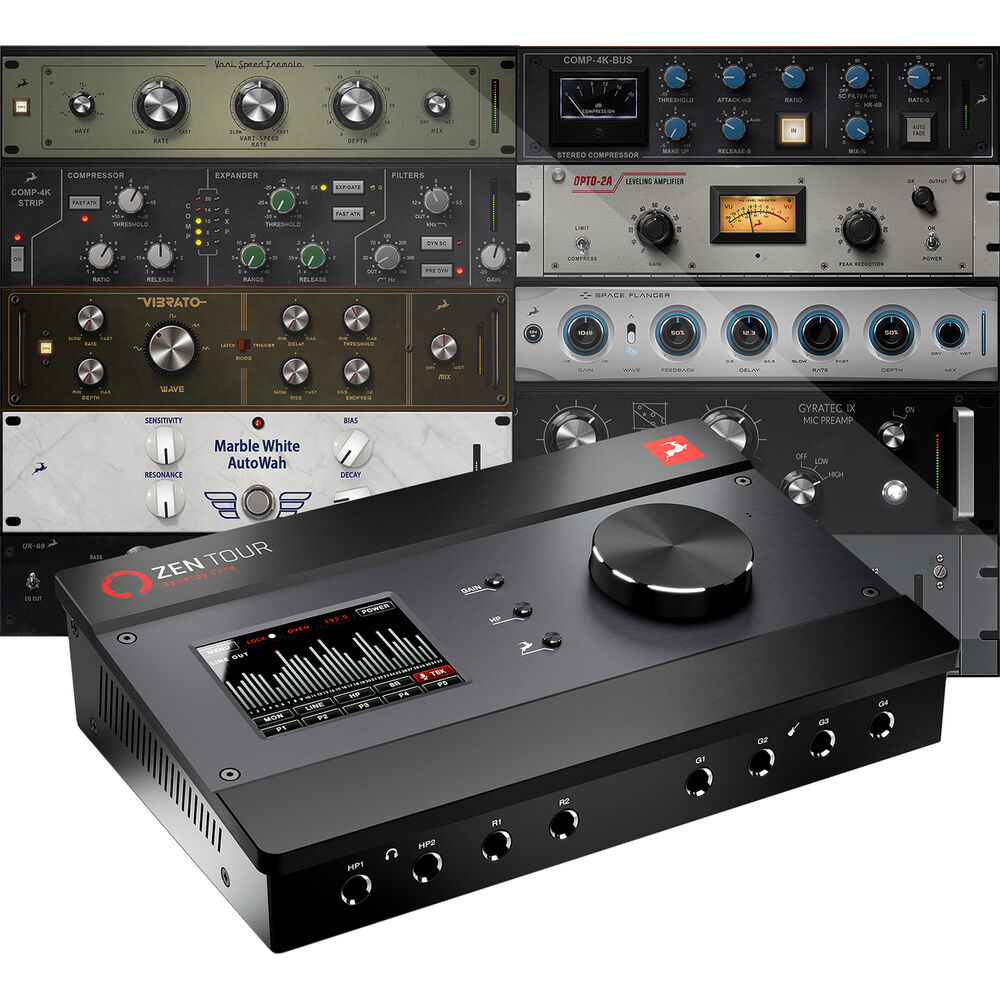

Included FX Zen Tour Synergy Core includes a compelling library of 36 real-time studio effects:- Gyraf Gyratec IX (Dual Tube Mic Preamp with HPF)
- VCA160 (VCA Compressor/Limiter)
- Stay-Levin (Vari-Mu Tube Compressor)
- FET-A76 (FET Compressor / Limiting Amplifier)
- VEQ-1A (2-Band Tube EQ)
- VMEQ-5 (3-Band Tube Mid-Range EQ)
- X903 (VCA Compressor/Limiter)
- PowerFFC (Feed-Forward Compressor)
- Clear Q (Parametric EQ)
- Power EX (Expander) VEQ-HLF (Tube 2-Band HPF/LPF)
- Auraverb (Reverb)
- BA-31 (Germanium Mic Preamp)
- Power Gate (Noise Gate)
- Plexi 59 (UK) (Tube Guitar Amp)
- Bass SuperTube VR (Tube Guitar Amp)
- Darkface 65 (US) (Tube Guitar Amp)
- Top30 (UK) Bright (Tube Guitar Amp)
- Tweed Deluxe (US) (Tube Guitar Amp)
- Overange 120 (UK) (Tube Guitar Amp)
- BurnSphere (DE) Lead (Tube Guitar Amp)
- Marcus II (US) Lead (Tube Guitar Amp)
- Modern (US) CH3 (Tube Guitar Amp)
- Rock 75 (UK) (Tube Guitar Amp)
- Rock 22.10 (UK) (Tube Guitar Amp)
- Darkface 65 2x12 (Guitar Cabinet)
- Top30 2x12 (2x12 Guitar Cabinet)
- Modern 4x12 (4x12 Guitar Cabinet)
- Green 2x12 (2x12 Guitar Cabinet)
- Vintage 4x12 (4x12 Guitar Cabinet)
- Green 4x12 (4x12 Guitar Cabinet)
- 32. Caliper 50 1x10 (1x10 Guitar Cabinet)
- 33. Bluelux 1x12 (1x12 Guitar Cabinet)
- 34. Clst 1x12 (1x12 Guitar Cabinet)
- 35. England 4x12 (4x12 Guitar Cabinet)
- 36. Bass Tube 1x15 (1x15 Guitar Cabinet)

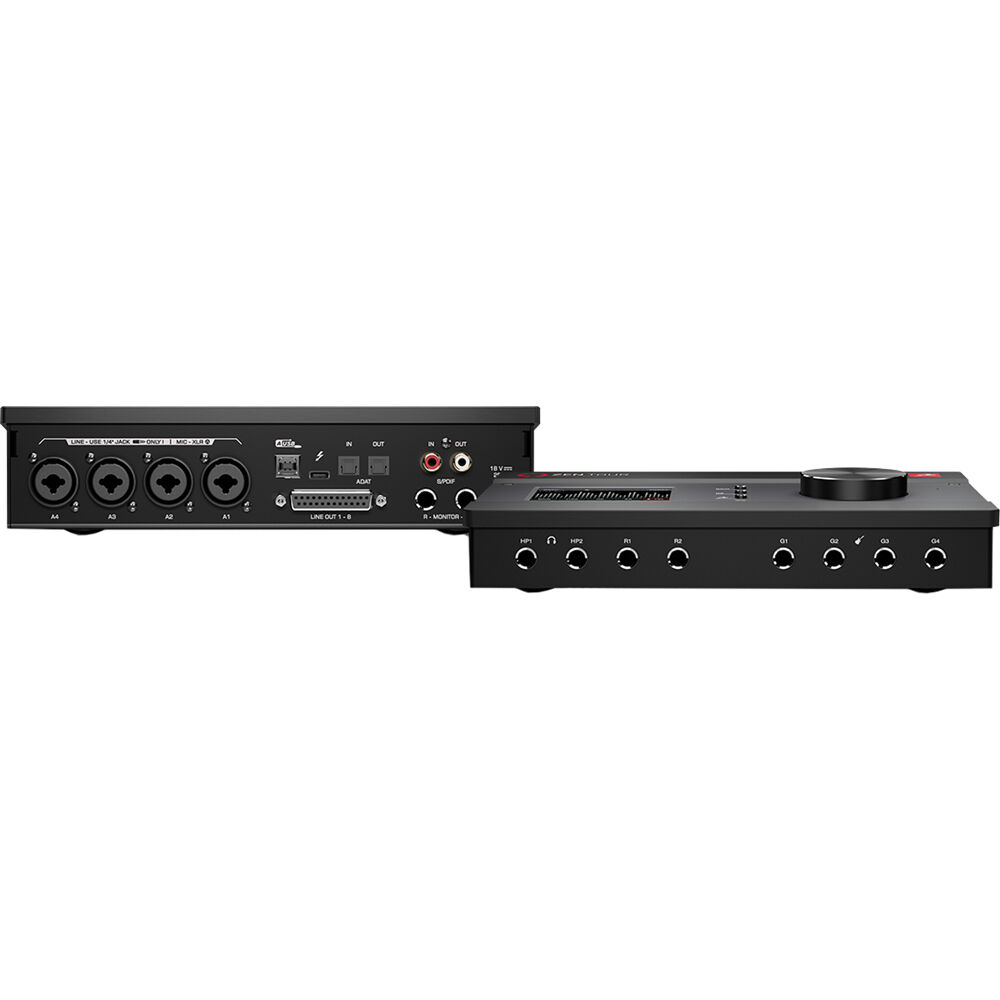

Multitude of Connections The Zen Tour Synergy Core offers a choice of four instrument/line inputs, four mic/line inputs, eight line outputs, two monitor outputs, two headphone outputs and two reamp outputs. The unit is digitally expandable over ADAT and S/PDIF for an additional 10 digital input and 10 output channels. Additionally, all line outputs are DC coupled and ready for control voltage (CV) applications such as controlling modular synthesizers. As a final touch, an integrated talkback microphone lets you demo vocals and propel your voice to the live room. 4 Discrete Microphone Preamps Fully discrete ultralinear microphone preamps offer stellar studio-quality sound. Musical and transparent, these pres are designed to complement the Antelope Audio Edge and Verge modeling microphones' sonic characteristics and deliver the power of Antelope's Accusonic 3D mic modeling technology right on your desktop. Atomic Clocking Antelope's proprietary 64-bit Acoustically Focused Clocking technology and Jitter Management algorithm helps deliver artifact-free audio with impeccable stereo separation and instrument delineation. Latency-Free Direct Monitoring Record and monitor with maxed-out effects chains at high sample rates and low buffer sizes without taxing your CPU. You can enjoy latency-free direct monitoring over four independent internal mixers with 32 assignable inputs and stereo outputs. Touchscreen Controls The Zen Tour Synergy Core has touchscreen controls giving immediate access to metering, level controls, presets, and settings. The intuitive interface and precise tactile control facilitate fast, efficient work at all times, without staring at a monitor. Portable Zen Tour Synergy Core is a desktop-sized solution. With it, all you need to make great recordings in your project studio, rehearsal space, or on the road is power, a decent laptop, and reliable headphones. The Synergy Core architecture lets you run processing-heavy projects without carrying external equipment like DSP accelerators, FX processors, and authorization dongles. Easy to Route Built inside the software Control Panel, a comprehensive Routing Matrix houses a full-fledged digital patch bay to freely route audio between the interface's analog and digital inputs and outputs. Run DAW playback through Synergy Core FX, reamp guitar DIs through the Shred Guitar Amps and Cabs, and integrate external equipment. Cross-Platform Connectivity The Zen Tour Synergy Core carries both Thunderbolt 3 (USB Type-C) and USB 2.0 (USB Type-B) ports for cross-platform compatibility with Mac and Windows machines. Other Features at a Glance
- 4 DSP and 2 x FPGA Synergy Core FX Processing
- 64-bit acoustically focused clocking and jitter management algorithms
- Mastering-grade stereo monitor outputs
- 2 individual stereo headphone outputs
- 2 transformer-based reamp Outputs
- ADAT and SPDIF digital I/O
- 8 line outputs on DB25 connector (DC-coupled)
- Integrated talkback microphone
UPC: 853744004854
Dynamic Range | Mic Inputs: 121 dB A/D Converters: 124 dB D/A Converters: 127 dB, 130 dB |
Host Connection | 1 x USB Type-B (USB 2.0) 1 x USB Type-C (Thunderbolt 3) |
Microphone Max Input Level | +20 dBu |
Gain Range | Mic Inputs: Up to +65 dB |
THD | Mic Inputs: -106 dB |
EIN | Mic Inputs: -128 dBu |
AC Input Power | 110 VAC, 50 Hz 220 VAC, 60 Hz |
THD+N | A/D Converters: -110 dB D/A Converters: -106 dB Monitor: -115 dB |
Form Factor | Tabletop |
Sample Rate and Resolution | Up to 192 kHz / 24-Bit |
Channels of I/O | Analog: 4 Inputs / 8 Outputs ADAT: 8 Inputs / 8 Outputs at 44.1 kHz 8 Inputs / 8 Outputs at 48 kHz, 4 Inputs / 8 Outputs at 88.2 kHz 4 Inputs / 4 Outputs at 96 kHz 2 Inputs / 2 Outputs at 176.4 kHz 2 Inputs / 2 Outputs at 192 kHz USB: 24 Inputs Thunderbolt: 32 Inputs |

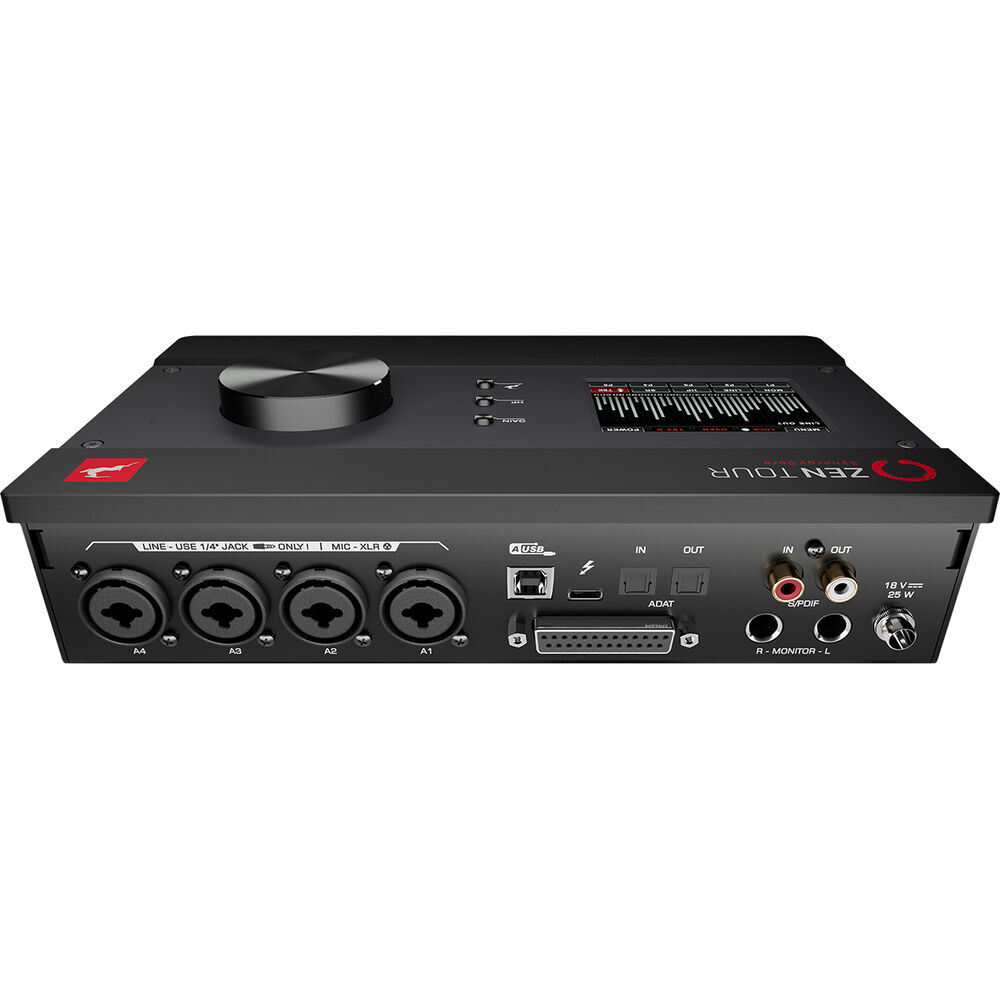

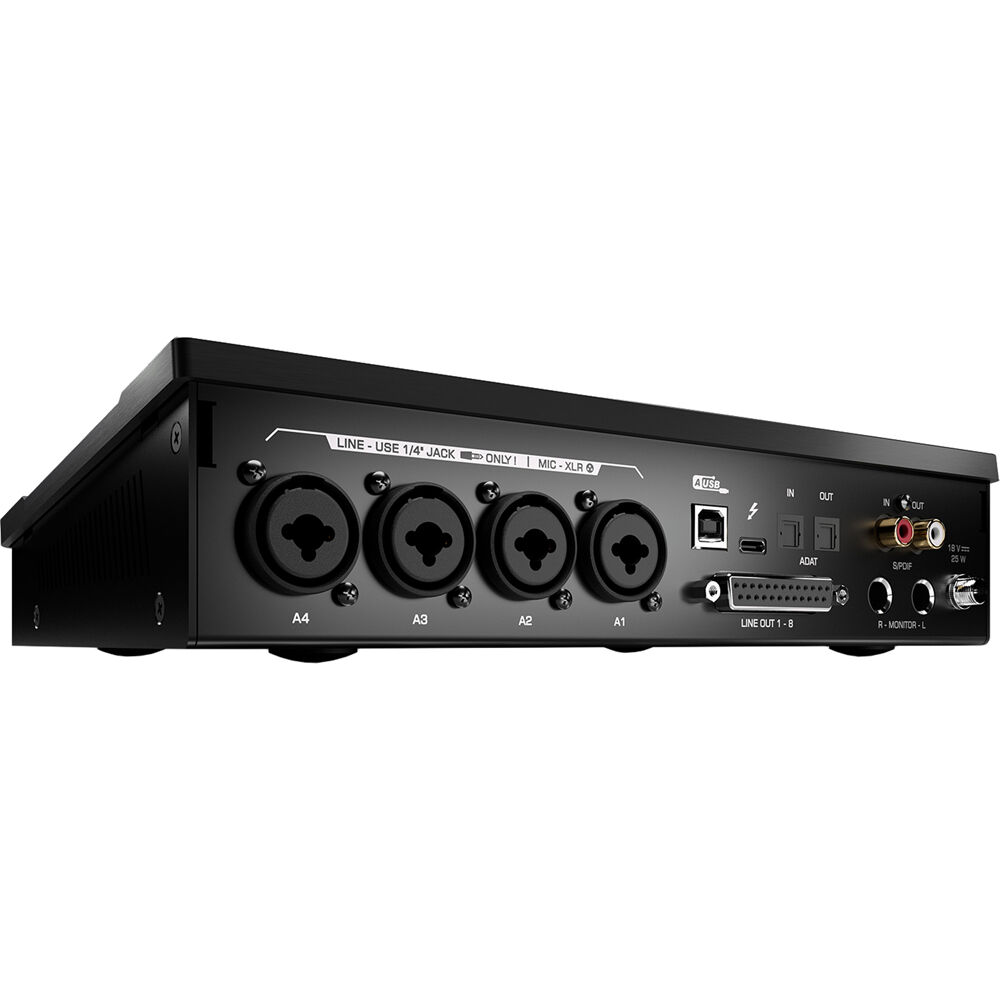

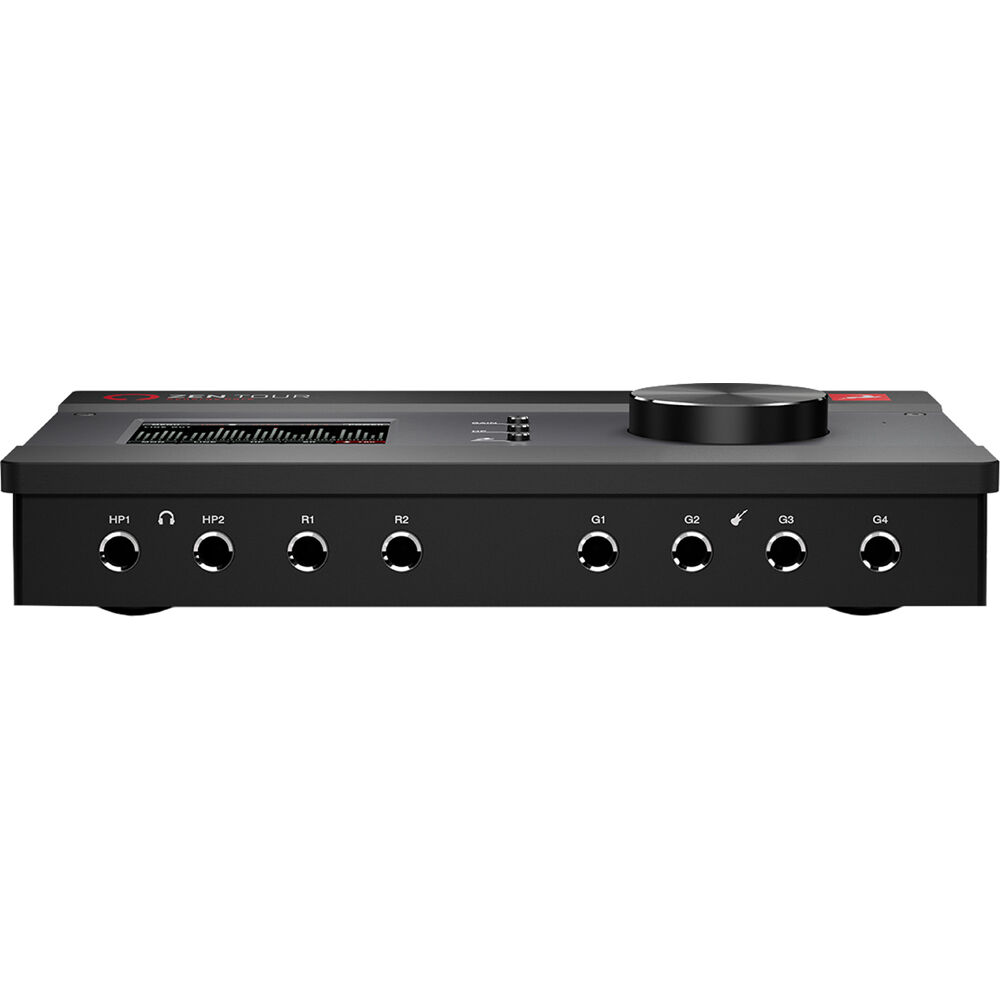

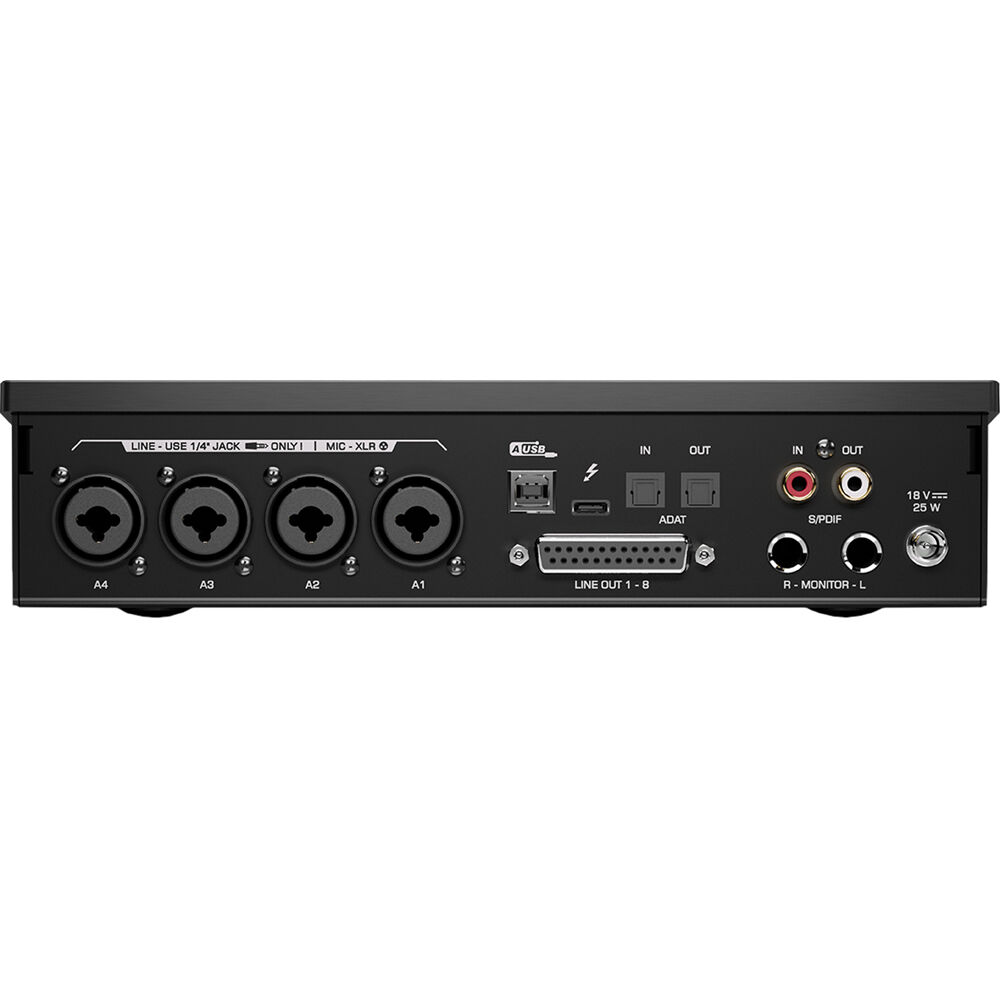

Analog I/O | 4 x 1/4" TRS Balanced/Unbalanced Line / Hi-Z Input 4 x Combo XLR-1/4" TRS Balanced Mic/Line Input 2 x 1/4" TRS Unbalanced Headphone Output 2 x 1/4" TRS Balanced Monitor Output 2 x 1/4" TRS Balanced Reamp Output |
Digital I/O | 1 x TOSLINK ADAT Input 1 x TOSLINK ADAT Output 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
Phantom Power | +48 V, Selectable On/Off (Selectable on Individual Inputs) |
OS Compatibility | macOS 10.12 or Later Windows 10 |
Processor | Mac: Intel Core i3 PC: Intel Core i3 or AMD |
RAM | 4 GB, 8 GB Recommended |
Storage Requirements | 4 GB |
Internet Connection | Required for Registration, Software/Driver Download |
Power | AC/DC Power Adapter (18 V Adapter Included) |
Power Consumption | 25 V |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Dimensions | 10 x 6.6 x 2.4" / 25.4 x 16.8 x 6.1 cm |
Weight | 3.5 lb / 1.6 kg |
Package Weight | 7.535 lb |
Box Dimensions (LxWxH) | 11.7 x 8.9 x 6.7" |
In the Box
- Antelope Zen Tour Synergy Core Desktop Audio Interface
- USB Cable
- Inline External Power Supply Unit
- Limited 1-Year Warranty
