Description
Antelope Orion 32+ Gen 4 Overview
- 1Description
- 2At a Glance
- 3Standard-Setting Conversion and Clocking
- 4128-Channels of Audio via Thunderbolt 3 and MADI
- 5Embrace the Future of Audio Production
- 6Redesigned Workflow for Improved Productivity
- 7Easy Integration in Any Setup
By Photo's
Andrew Eisele

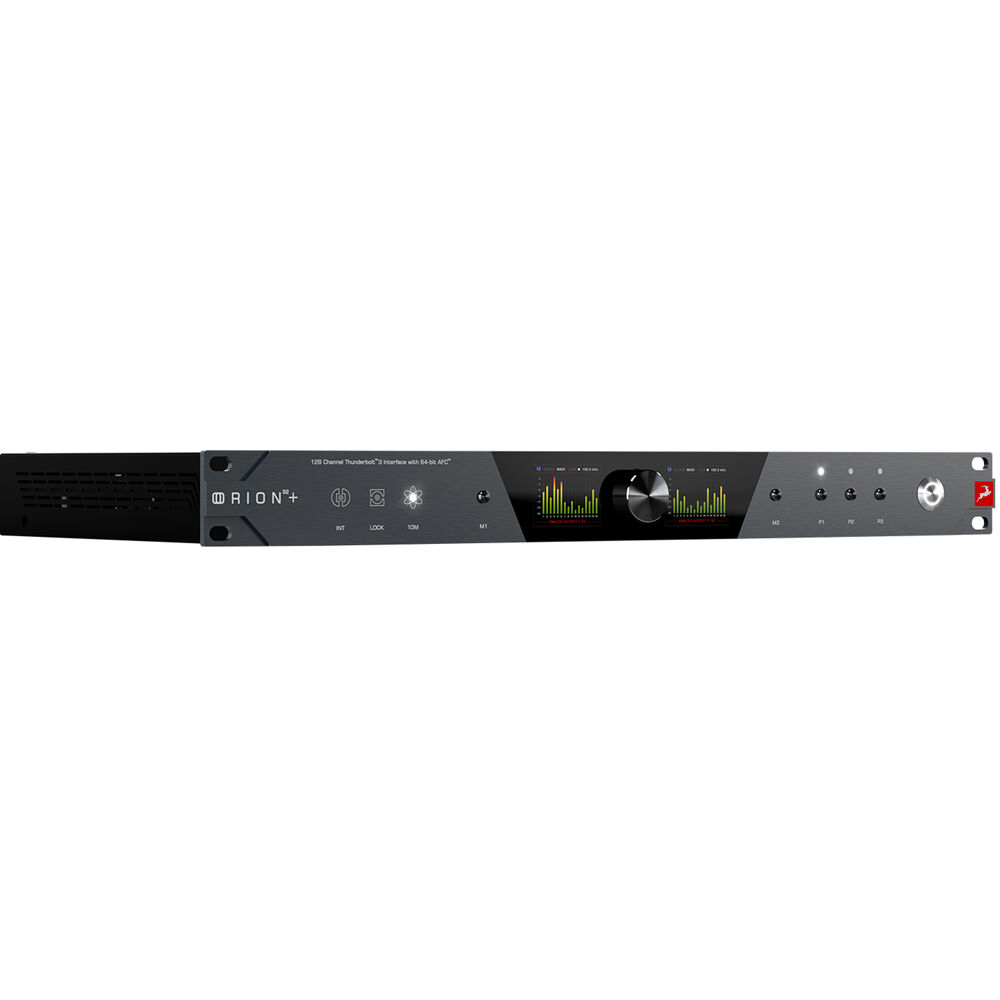

The Antelope Orion32+ | Gen 4 is a Thunderbolt/USB audio interface offering 32 channels of AD/DA conversion and upgraded performance for audio engineers in recording studios and live stage applications. With a redesigned look, expanded dynamic range, and lower THD+N values, the Orion32+ | Gen 4 is designed to visually and aurally enhance your setup. It supports 128 channels of 24-bit / 192 kHz high-resolution audio via Thunderbolt 3, or 32 channels over USB. In addition to 32 channels of analog I/O via DB25 connectors, this interface features powerful digital I/O including fiber-optic MADI, ADAT, and S/PDIF. The dedicated 1/4" monitor outputs are ideal for hooking up a pair of active monitors or a monitor controller.
The Orion32+ | Gen 4 also functions as a master clock, providing the same clarity and precision synonymous with Antelope, along with 64-bit AFC (Acoustically Focused Clocking) technology to handle jitter. Two wordclock outputs, a wordclock input, and a 10 MHz atomic clock input allow proper synchronization with a variety of digital equipment.

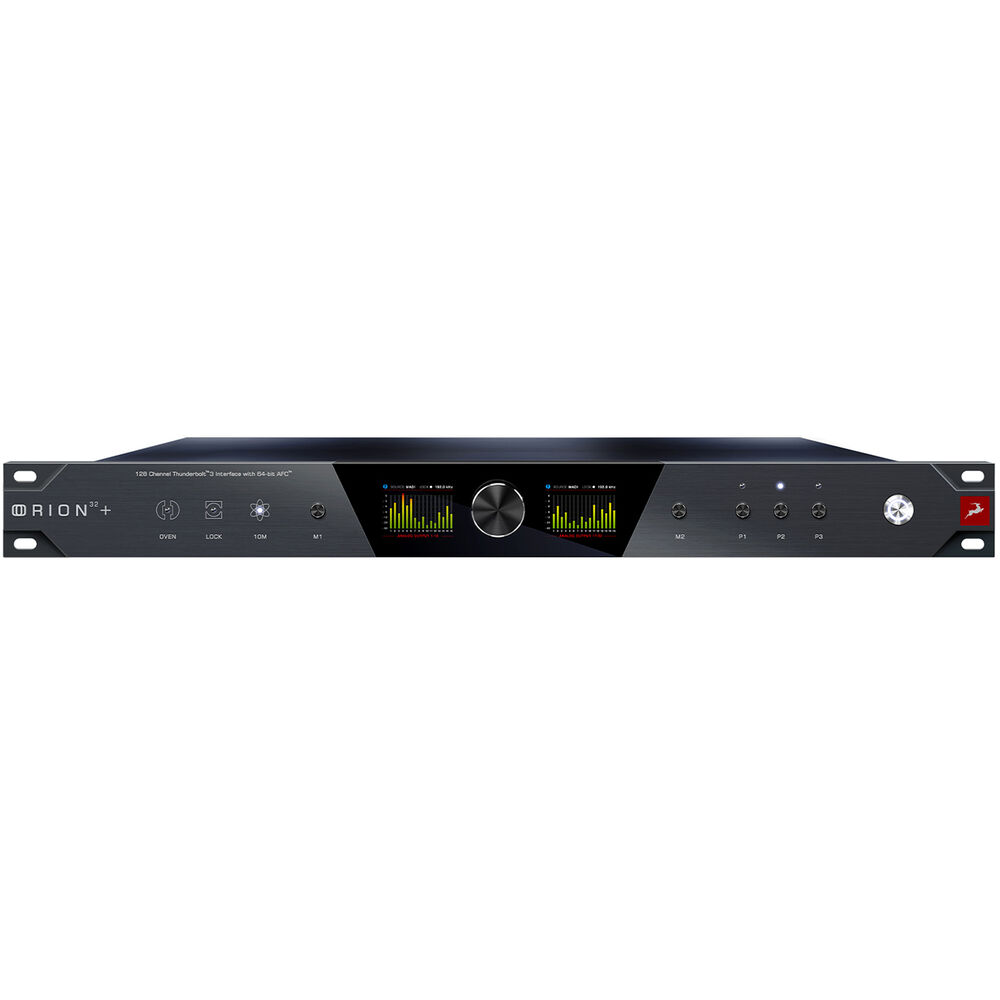

Configure the interface via the front-panel display and buttons; a powerful preset system provides easy store/recall operations. Alternatively, use the macOS- and Windows-compatible desktop app for access to comprehensive routing, mixing, effects chaining, and more. The I/Os are DC-coupled, allowing them to be used with modular synthesizers.
At a Glance
- 32 x 32 channels of DC-coupled analog I/O plus dedicated stereo monitor output
- 128 I/O channels over Thunderbolt 3 or 32 channels via USB, at up to 192 kHz
- 128 I/O channels over optical MADI at up to 48 kHz
- High-performing conversion with up to 130 dB dynamic range
- Acclaimed 4th Generation AFC 64-bit clocking and jitter management
- Optional multichannel Atmos-ready monitoring calibration system built-in
- Software control panel with powerful preset system, monitoring pop-out widget, and customizable signal-routing matrix
- Additional ADAT and S/PDIF connectivity
- macOS and Windows compatible over both Thunderbolt and USB
Standard-Setting Conversion and Clocking
Antelope Audio interfaces are globally renowned for their industry-leading conversion and clocking and Orion 32+ Gen4 gives you the latest Antelope technology. Its AD/DA converters are capable of achieving up to 130 dB dynamic range, ensuring Gen4 its leading position among 1U studio centerpieces. Antelope Audio's signature 64-bit Acoustically Focused Clocking technology powers the high-performing conversion and the unit's two Word Clock outputs are there to keep your whole studio in line. Additionally, the available 10 MHz input is compatible with the cream of the crop of clocking, the unrivaled 10M and 10MX Atomic Clocks by Antelope Audio.
128-Channels of Audio via Thunderbolt 3 and MADI
Orion 32+ Gen4 can stream twice as many channels over Thunderbolt as its predecessor and has twice as much MADI connectivity, now at 128 channels for both. These significant upgrades allow for up to four units to be daisy-chained, for 128 channels of AD/DA via a single computer connection. This makes the unit a top choice for large recordings, live sound applications, complex postproduction setups and broadcast facilities. It's a preferred companion to large mixing consoles, hardware effects processing chains, analog summing boxes, reel-to-reel setups, hardware synthesizers, and pretty much anything else you can throw at it.
Embrace the Future of Audio Production
Orion 32+ Gen4 is compatible with the latest Antelope Audio Atmos-ready surround and immersive audio monitoring system. The integrated platform supports over 23 audio formats from stereo to Dolby Atmos 9.1.6 and offers precise speaker and room calibration tools. The system's intuitive monitoring controls and fast preset recall functionality are designed to increase productivity. It is available as an optional upgrade for the Orion 32+ Gen4. As a physical extension of the system, the compatible Antelope MRC hardware controller provides streamlined and tactile controls that are key for effortless yet advanced monitoring.
Redesigned Workflow for Improved Productivity
Orion 32+ Gen4 comes not only with an updated look and drastically boosted hardware but also with a redesigned Software Control Panel for an even smoother workflow. It now features a powerful preset recall system complete with signal routing, level adjustments, mixer settings, monitoring controls, and more. A handy monitoring pop-out widget has been introduced for hands-on output-level control and preset recall, featuring an always-on-top function. The unit's signal routing matrix is now fully customizable with convenient patching and less complexity in mind.
Easy Integration in Any Setup
Orion 32+ Gen4 is more than generous when it comes down to its available connectivity options. The unit is designed for quick and effortless integration in a variety of studio configurations, whether Thunderbolt or USB based. The interface is compatible with both Windows and macOS systems, and with extra options such as the ADAT port, it is guaranteed to fit all possible applications, from recording, mixing, interfacing, and conversion, to being used as an advanced patch bay or monitor controller. Orion 32+ Gen4 is also ready to become your modular synth's best friend as it features DC Coupled I/O allowing you to send CV signals from your DAW of choice straight to your hardware instruments or modular gear.
UPC: 850041548067
In the Box
- Antelope Orion 32+ Gen 4 32-Channel AD/DA Thunderbolt/USB Audio Interface
- Power Adapter
- USB Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- At a Glance
- Standard-Setting Conversion and Clocking
- 128-Channels of Audio via Thunderbolt 3 and MADI
- Embrace the Future of Audio Production
- Redesigned Workflow for Improved Productivity
- Easy Integration in Any Setup
Antelope Orion 32+ Gen 4 Specs
Key Specs
| Channels of I/O |
Thunderbolt:
128 Inputs / 128 Outputs MADI: 128 Inputs / 128 Outputs USB: 32 Inputs / 32 Outputs Analog: 32 Inputs / 32 Outputs ADAT: 8 Inputs / 8 Outputs S/PDIF: 2 Inputs / 2 Outputs |
| Maximum Sampling Rate |
192 kHz / 24-Bit
|

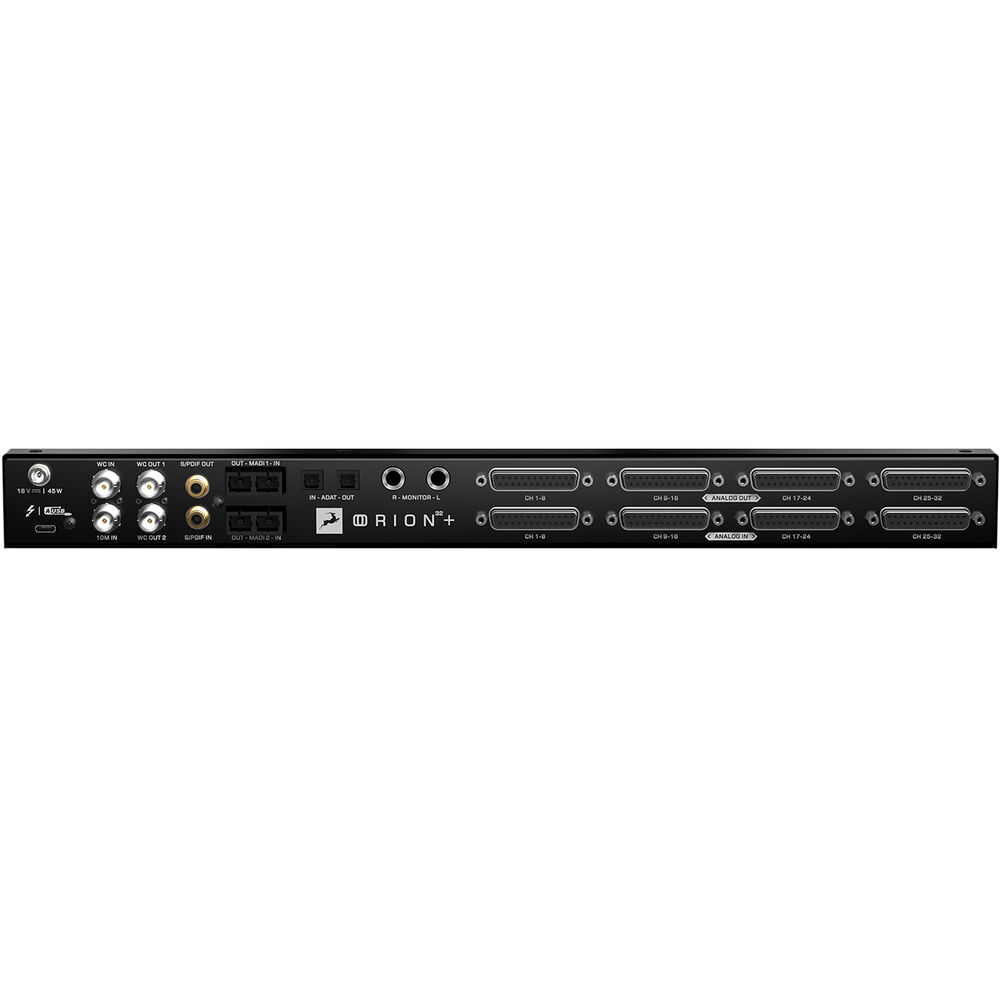

| Analog Audio I/O |
4x DB-25 25-Pin Balanced 8-Channel Input
4x DB-25 25-Pin Balanced 8-Channel Output 2x 1/4" TRS Balanced Monitor Output |
| Digital Audio I/O |
1x TOSLINK Optical ADAT Input
1x TOSLINK Optical ADAT Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output 2x SC-Plug Optical MADI Input 2x SC-Plug Optical MADI Output |
| Host Connection |
1x Thunderbolt/Mini DisplayPort
1x USB-B |
| OS Compatibility |
macOS 10.11 or Later
Windows 10 |
| Power Requirements |
AC Input
|
| Channels of I/O |
Thunderbolt:
128 Inputs / 128 Outputs MADI: 128 Inputs / 128 Outputs USB: 32 Inputs / 32 Outputs Analog: 32 Inputs / 32 Outputs ADAT: 8 Inputs / 8 Outputs S/PDIF: 2 Inputs / 2 Outputs |
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
192 kHz / 24-Bit
|
| Number of Microphone Preamps |
No
|
| Built-In Microphone |
No
|
| Expansion Slots |
No
|
Signal Processing
| Pad |
No
|
Connectivity
| Analog Audio I/O |
4x DB-25 25-Pin Balanced 8-Channel Input
4x DB-25 25-Pin Balanced 8-Channel Output 2x 1/4" TRS Balanced Monitor Output |
| Phantom Power |
No
|
| Digital Audio I/O |
1x TOSLINK Optical ADAT Input
1x TOSLINK Optical ADAT Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output 2x SC-Plug Optical MADI Input 2x SC-Plug Optical MADI Output |
| Host Connection |
1x Thunderbolt/Mini DisplayPort
1x USB-B |
| Host Connection Protocol |
Thunderbolt 3
USB 2.0 |
| USB (Non-Host) |
No
|
| Sync I/O |
1x BNC Atomic Clock Input
1x BNC Word Clock Input 2x BNC Word Clock Output |
| Network I/O |
No
|
| MIDI I/O |
No
|
| Wireless |
No
|
Performance
| Maximum Input Level |
Line Inputs:
+24 dBu |
| Maximum Output Level |
Line Outputs:
+24 dBu |
| Dynamic Range |
A/D Converters:
122 dB D/A Converters: 130 dB Monitor Outputs: 130 dB |
| THD+N |
A/D Converters:
-116 dB D/A Converters: -115 dB Monitor Outputs: -115 dB |
Digital Audio
| Sample Rates |
Up to 192 kHz
|
| Bit Depths |
Up to 24-Bit
|
| Sync Sources |
ADAT, Atomic Clock, Internal, S/PDIF, Word Clock
|
| Clocking |
Word Clock:
Input Termination: 75 Ohms |
Audio Storage & Playback
| Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
macOS 10.11 or Later
Windows 10 |
| Included Software |
No
|
| Processor Requirement |
Mac:
Intel Core 2 Duo PC: 2 GHz Intel 2 GHz AMD |
| RAM Requirements |
4 GB, 8 GB Recommended
|
| Storage Requirements |
512 MB
|
| Mobile App Compatible |
No
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility |
No
|
| Required Hardware |
Available Thunderbolt Port or USB-A Port
USB Cable (Included) Thunderbolt Cable (Not Included) |
| Internet Connection |
Required for Registration
|
Power
| Power Requirements |
AC Input
|
Physical
| Rackmount Size |
1 RU (with Included Hardware)
|
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Dimensions |
19 x 11 x 1.73" / 48.3 x 27.9 x 4.39 cm
|
| Weight |
7.4 lb / 3.4 kg
|
Packaging Info
| Package Weight |
11.97 lb
|
| Box Dimensions (LxWxH) |
25.5 x 13.5 x 6.3"
|
