Description
- For a High-Quality Listening Experience
- 8 DAC Chips with 138 dB Dynamic Range
- Dual Headphone Amp Design
- 1/4" & XLR Connections for Headphones
- XLR-1/4" I/O, XLR & 1/4 Outputs
- USB 3.1, AES/EBU, S/PDIF & TOSLINK I/O
- BNC Wordclock & 10M Clock Inputs
- PCM up to 384 kHz / 24-Bit
- DSD256 (via DoP)

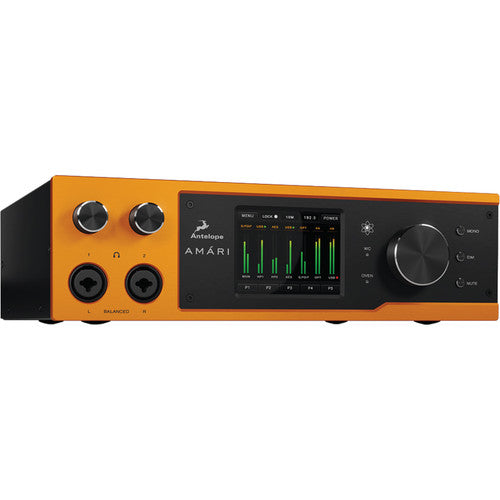

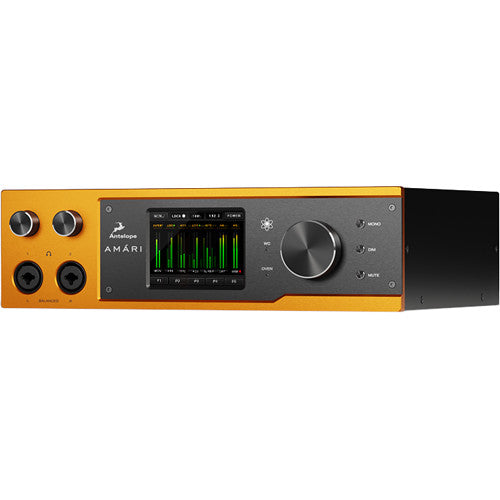

Designed for audiophiles looking for a superlative home-listening experience, the Antelope A M Á RI is a reference grade AD/DA converter. The unit provides everything you'd expect from Antelope, such as high-quality conversion and Antelope's renowned clocking technology. Sporting both balanced and unbalanced connections, the unit works equally well in pro audio and audiophile environments.
Whether you make use of the combination XLR-1/4" inputs or the unbalanced RCA connections, you can achieve PCM conversion at sample rates and resolutions of up to 384 kHz / 24-bits. The AMÁRI utilizes 4 CS43198 chips per channel (eight in total) to capture every nuance of the stereo image, maintaining the integrity of the music's depth (front-to-back imaging) at the same time. The unit offers 138 dB of dynamic range to boot.
Digital connections can be secured over AES, coaxial S/PDIF, TOSLINK, and USB 3.1 (Gen 1, Type-B connections). Though the unit provides its own powerful clock, you can sync it to other sources thanks to two BNC inputs�one for all sorts of external clocks, and the other for Antelope's Atomic 10M clock. The AMÁRI's 64-bit clocking supports PCM rates up to 384 kHz and DSD up to 256. DSD playback occurs over PCM conversion (DoP), and only applies to the D/A side.
Two headphone outputs offer their own DAC architecture to yield an optimal performance. These headphone outputs can be used with balanced 1/4" or XLR connectors. This is a dual-amp design, one that mitigates any possible temperature drifts. With all these benefits, the AMÁRI is a device truly geared for the discerning audiophile.
- Stepped Headphone Impedance Controller
- AMÁRAI's 2 high-power stereo headphone outputs (on 1/4"-XLR combo connectors) feature individual volume controls (capped at 20 dBu max), with digital trim and selectable output impedance from -4.6 to 85.3 Ohms. The impedance controls are offered in 17 steps. These options let you configure AMÁRI for ideal compatibility with your favorite headphones, matching their impedance for best performance. AMÁRI's high-fidelity headphone driver chip offers fully differential input per amplifier. It is a dual-amp design, optimized to eliminate possible temperature drifts and deliver differential signal quality. The headphone outs also feature dual DAC architecture for maximum performance.
- 8 DAC Chips
- The AMÁRI implements an eight-DAC architecture (four CS43198 chips per channel). This enhances the stereo image, expands depth perception, and unveils all the musical details with its 138 dB dynamic range. Apart from the main DAC, the headphone outs feature a dual DAC architecture for maximum performance, just like the main A/D converter. It uses one AK5578 chip per channel, boosting the dynamic range up to 128 dB.
Antelope AMARI Specs

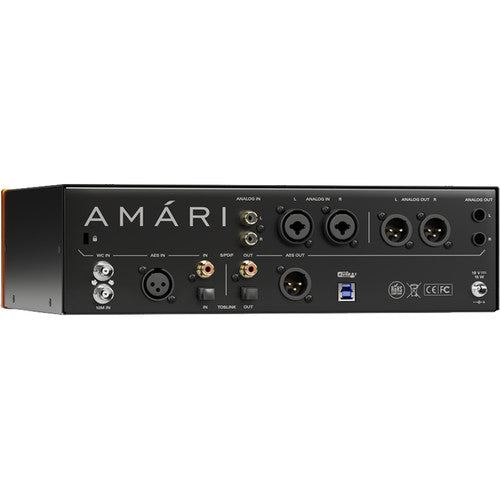

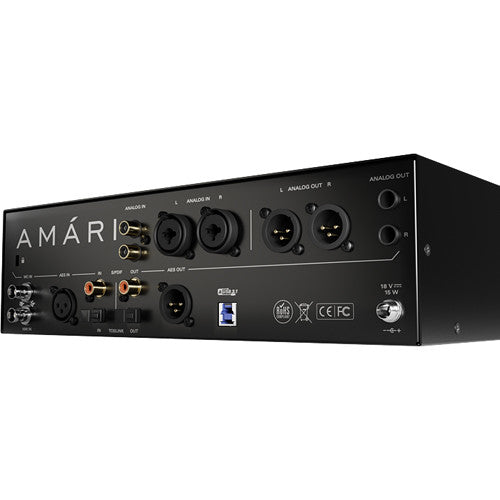

| Analog I/O | 2 x XLR-1/4" Combo Inputs 2 x RCA Inputs (Unbalanced) 2 x XLR Outputs (Balanced) 2 x TRS Outputs (Balanced) 2 x Stereo 1/4"-XLR Combo Headphone Outputs |
| Input Level | 1/4"-XLR Combo Inputs: 24 dBu Maximum RCA Inputs: 8.2 dBu / 6 dBv Maximum |
| Output Level | XLR Outputs: 24 dBu Maximum TRS Outputs: 18 dBu Maximum |
| Headphone Output Power | 1.4 W Maximum |
| Headphone Impedance Range | -4.6 to 85.3 Ohms in 17 Steps |
| Digital I/O | 1 x AES/EBU Input (up to 192 kHz) 1 x S/PDIF Input (up to 192 kHz) 1 x TOSLINK Input (up to 192 kHz) 1 x AES/EBU Output (up to 192 kHz) 1 x S/PDIF Output (up to 192 kHz) 1 x TOSLINK Output (up to 192 kHz) |
| Sync I/O | 1 x Word Clock Input 1 x Atomic 10M Input 1 x USB 3.1 (Gen 1) Bidirectional Connection on Type-V Connector (up to 384 kHz) |
| AD Conversion | 2 x AK5778 A/D Converter Chips 24-bit / 384 kHz Full Differential Inputs S/(N+D): 112 dB S/N: 124 dB Dynamic Range: 128 dB |
| DA Conversion | 8 x CS43198 D/A Converter Chip 24-bit / 384 kHz PCM (up to DSD2562 over PCM) Dynamic Range: 138 dB |
| Clocking | 4th Generation 64-bit Acoustically Focused |
| Supported Sample Rate | AD and DA (PCM): 32, 44.1, 48, 88.2, 96, 176.4, 352.8, 192, and 384 kHz DA (DSD): 64, 128, 256 |
| Power | DC Power Inlet with Lock Nut |
| System Requirements (Windows) | Intel or AMD Equivalent CPU with 2 GHz Operating Frequency or Greater Windows 10 512 MB Available Disk Space 4 GB RAM Minimum (8 GB or More Recommended) 1 x USB 2.0 or 3.0 Port |
| System Requirements (Mac) | 10.11 and Later (High Sierra Recommended) 512 MB Available Disk Space 1 x USB 2.0 or 3.0 Port |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
