Description
ANDYCINE X7S Overview

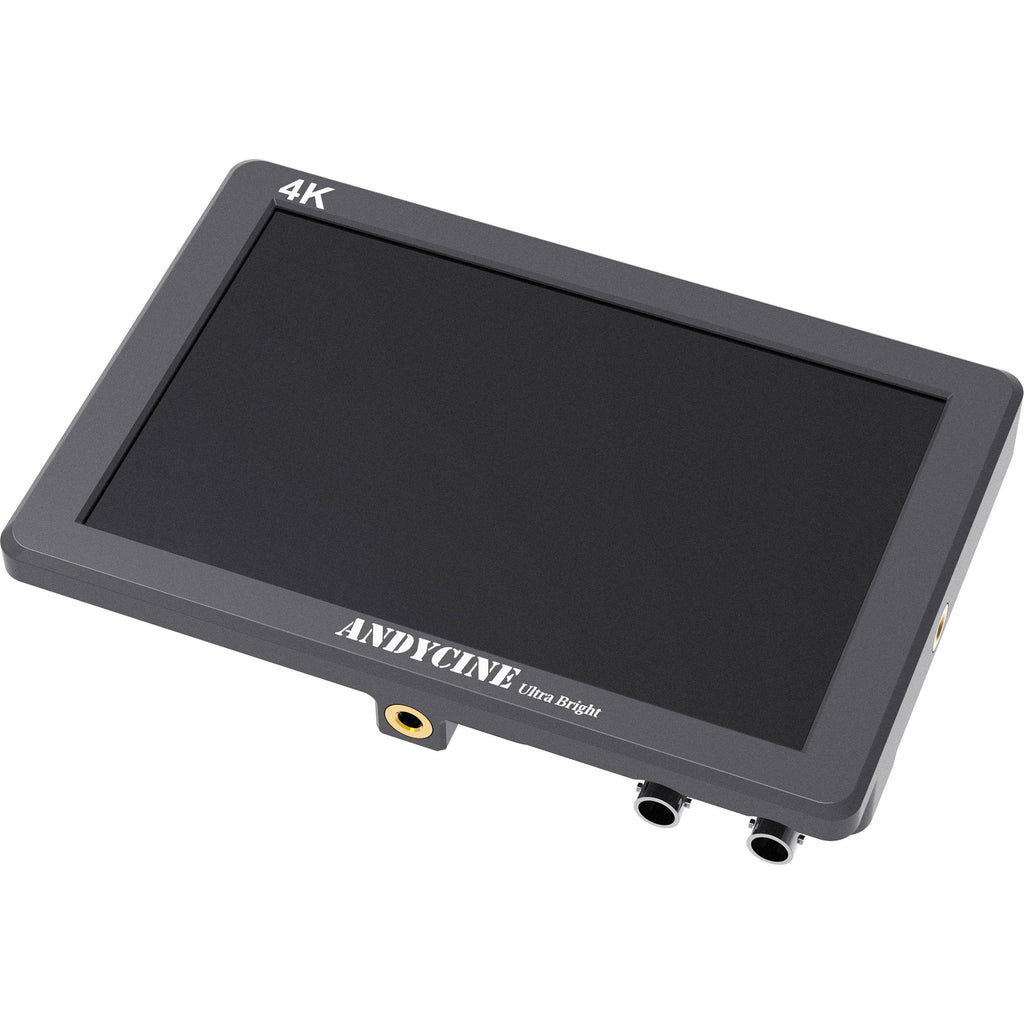

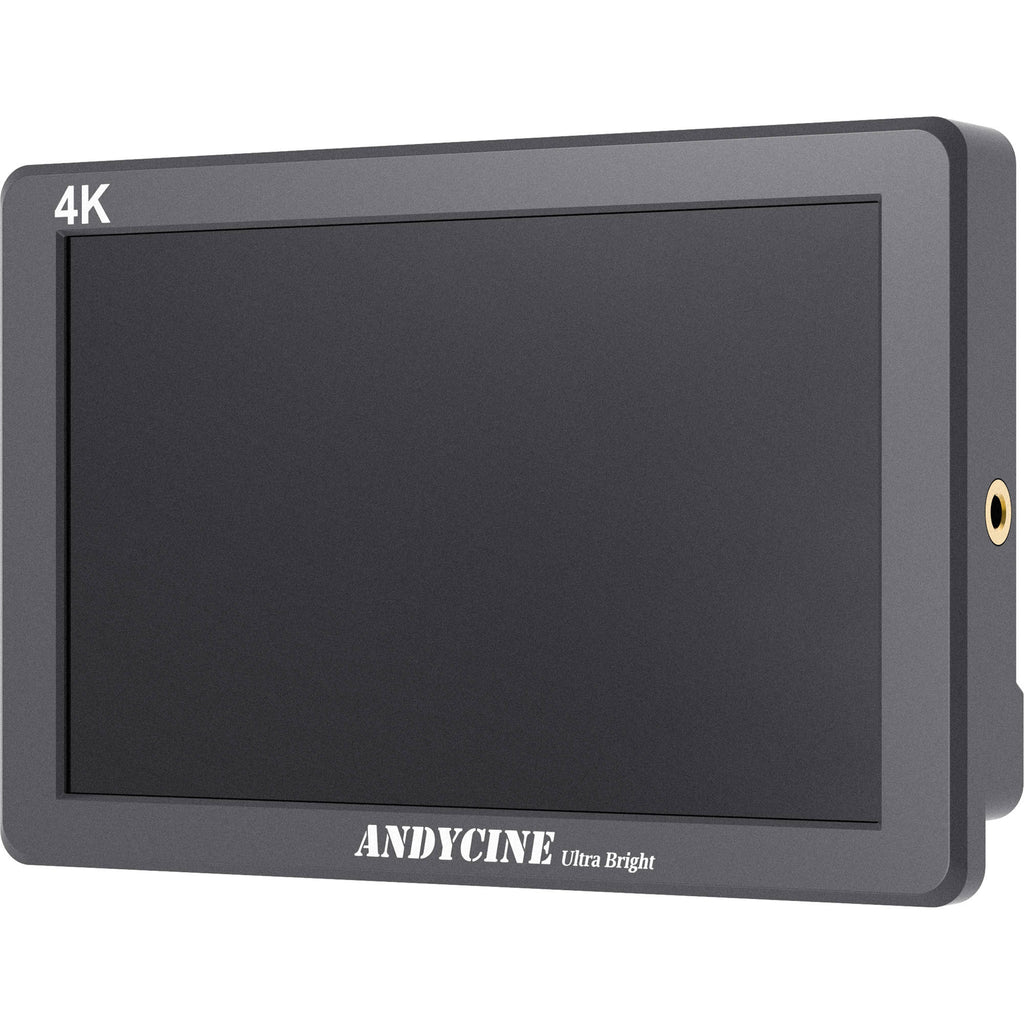

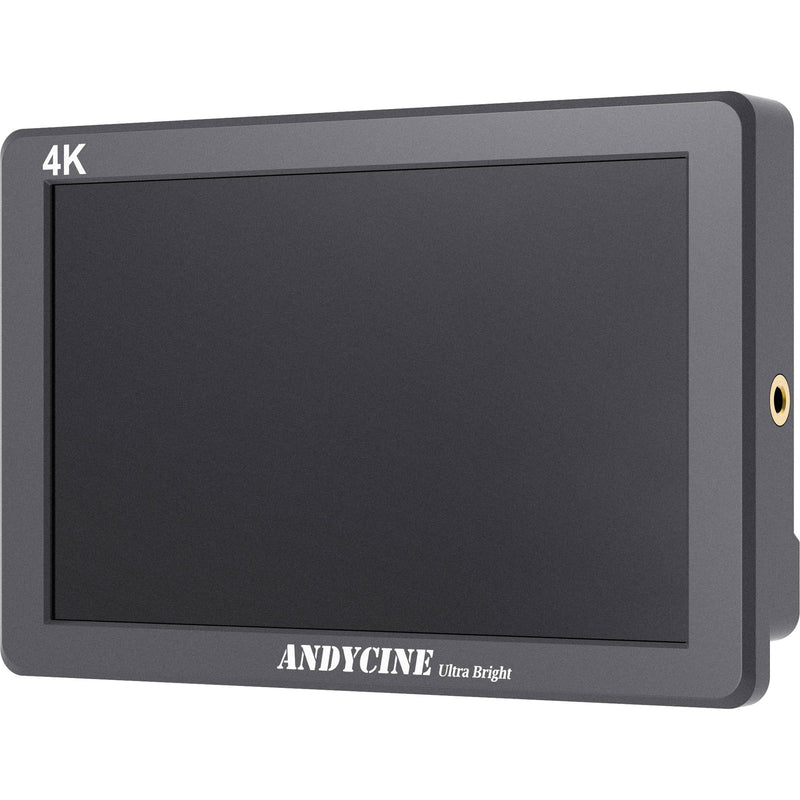

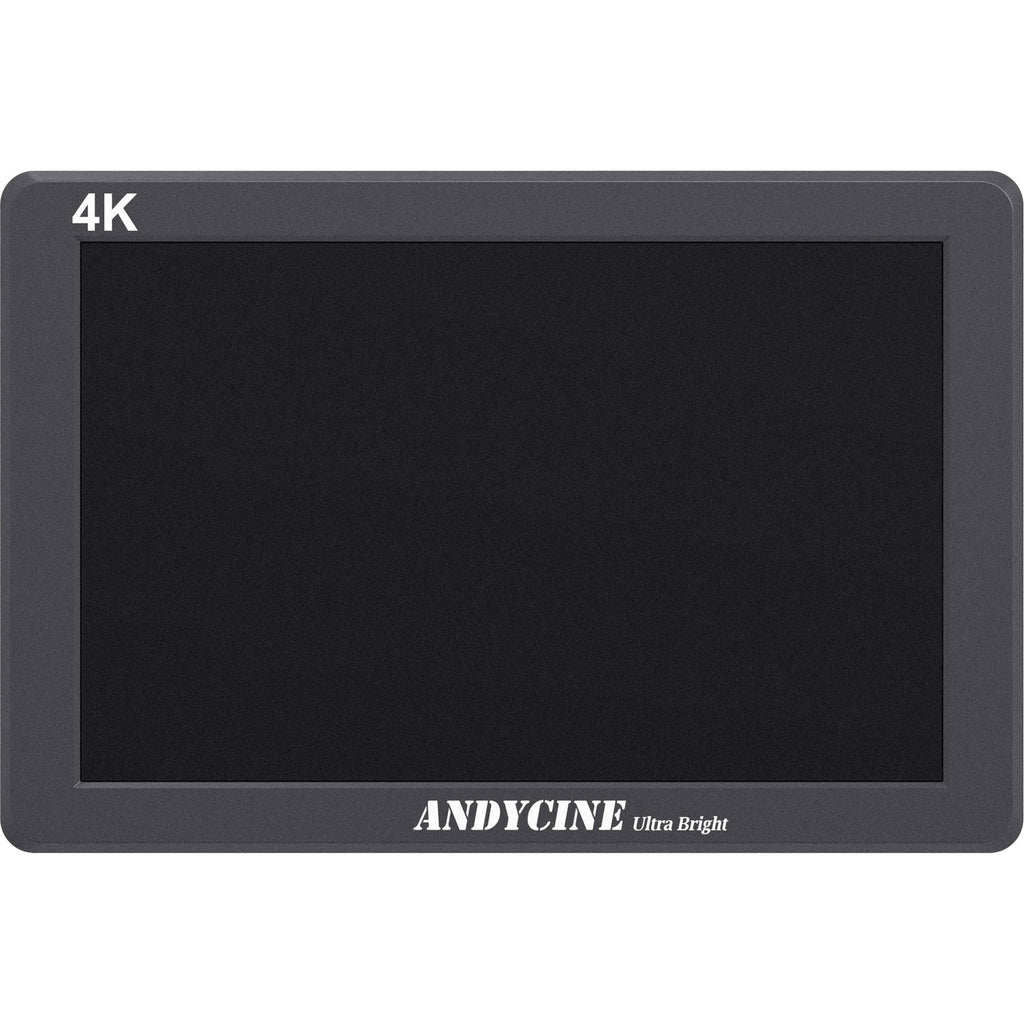

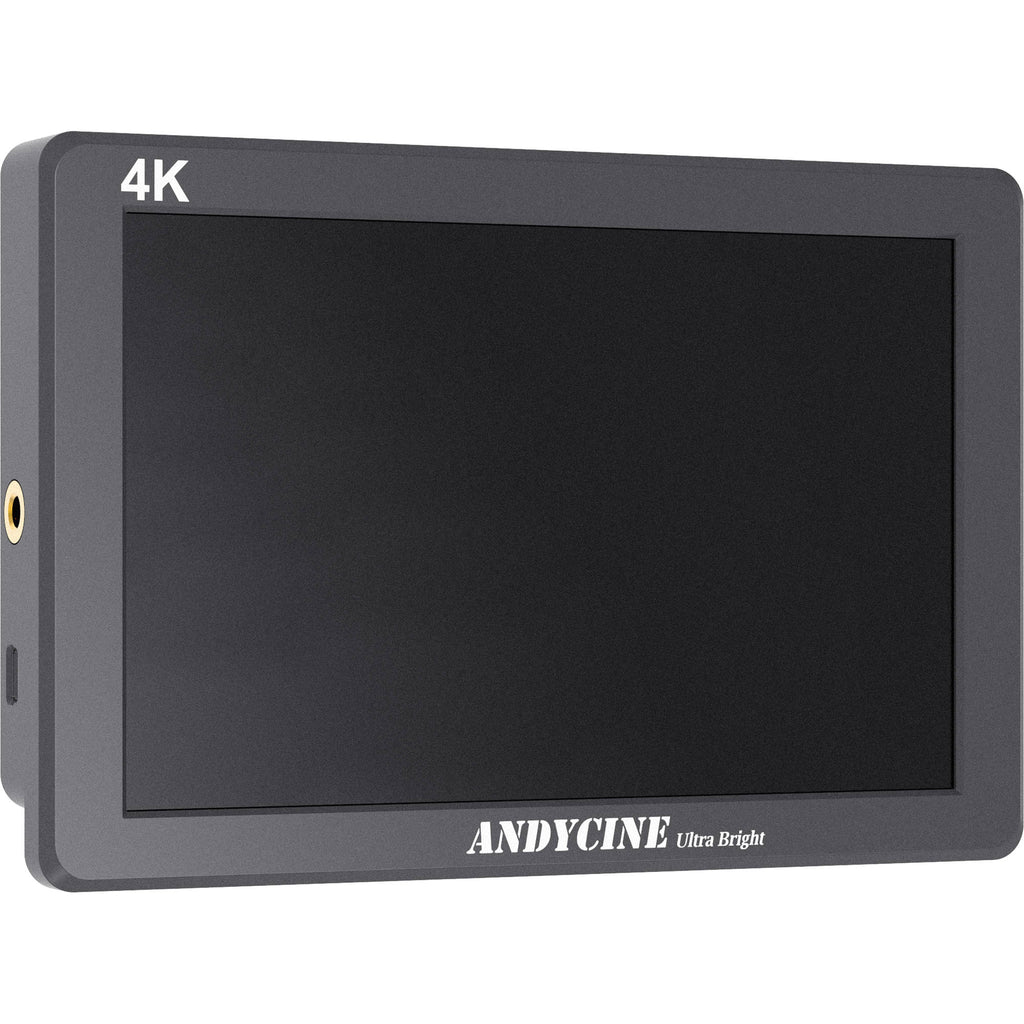

View up to DCI 4K video in bright locations with the X7S 7" Ultra-Bright 3G-SDI/HDMI 4K Monitor from ANDYCINE . Housed in rugged aluminum, this 1920 x 1200 LCD panel features both 3G-SDI and HDMI inputs and loop-through outputs, a 16:10 aspect ratio, a 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as inside. The IPS LCD provides a 160° viewing angle, enabling you to see an image without being directly in front of the monitor.

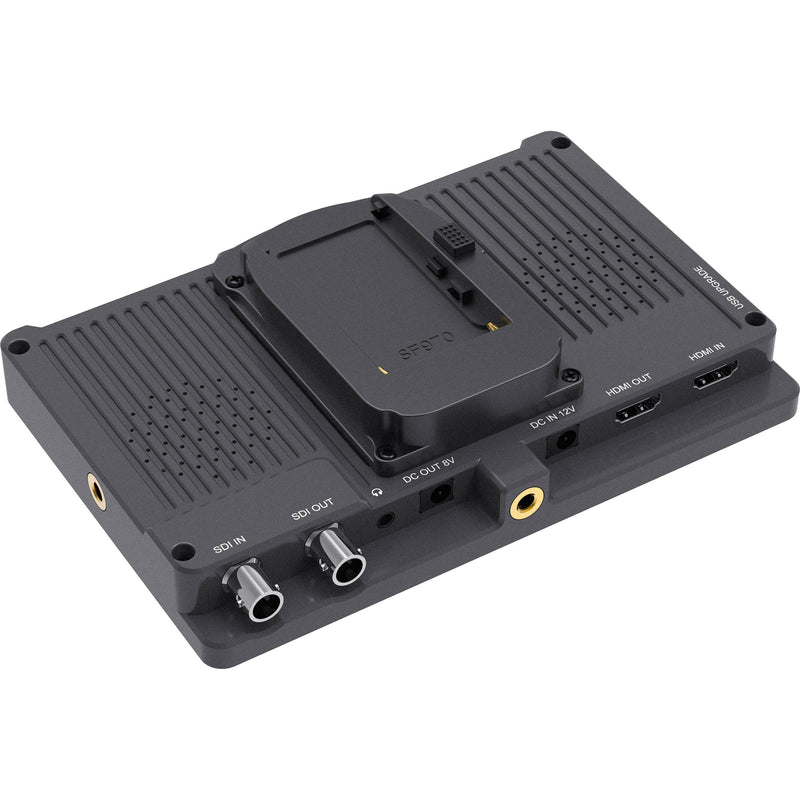

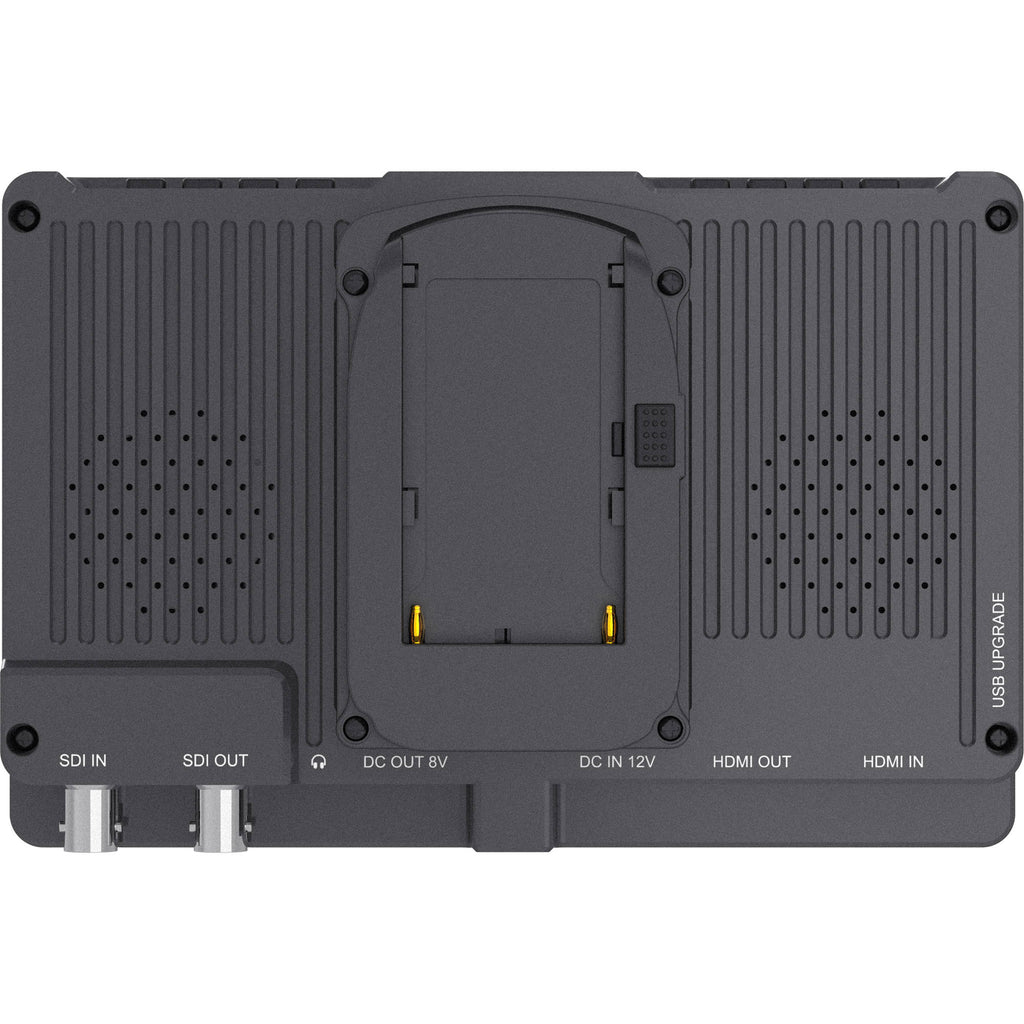

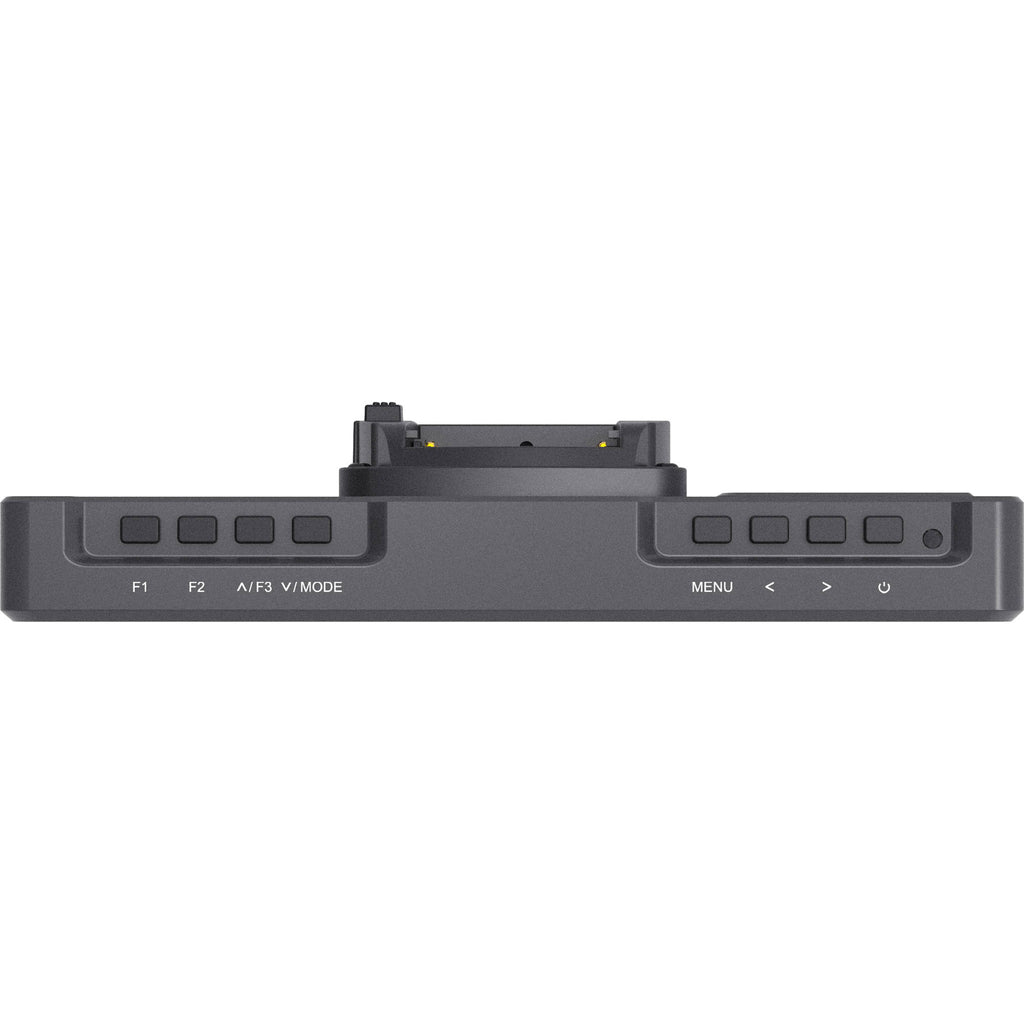

Power this lightweight, slim monitor using the included, removable Sony L-series-type battery plate and a separately available battery, or via a separately available 12V power supply. Select cameras can be powered using the X7S' 8 VDC output. Control buttons are located on top of the monitor with a built-in speaker and a headphone output situated on the back. The X7S monitor features a variety of image evaluating tools including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, anamorphic de-squeezing, and markers for ensuring correct framing.
Key Features
- High-resolution 1920 x 1200
- Both HDMI and 3G-SDI input and output
- High contrast of 1200:1
- Ultra-bright 2200 cd/m²
- IPS panel with 160° viewing angle
- Histogram
- Peaking focus assist (red, green, or blue)
- False colors
- Exposure zebra
- Nine-grid zoom
- Embedded audio
- Scan mode (underscan, overscan)
- Zoom (4x, 9x, 16x)
- Anamorphic mode (1.3x, 2.0x, 2.0x mag)
- Pixel-to-pixel
- Center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Aspect ratio markers (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom all
- U/D and L/R zoom
- Color temperature adjustment
In the Box
- ANDYCINE X7S 7" Ultra-Bright 3G-SDI/HDMI 4K Monitor
- HDMI to Micro-HDMI Cable
- D-Tap to DC Power Cable
- L-Series-Type Battery Plate
- Limited 1-Year Warranty
ANDYCINE X7S Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | No |
| Maximum Brightness | 2200 cd/m 2 |
| Contrast Ratio | 1200:1 |
| Dot Pitch | 0.07875 x 0.07875 mm |
| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | No |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers |

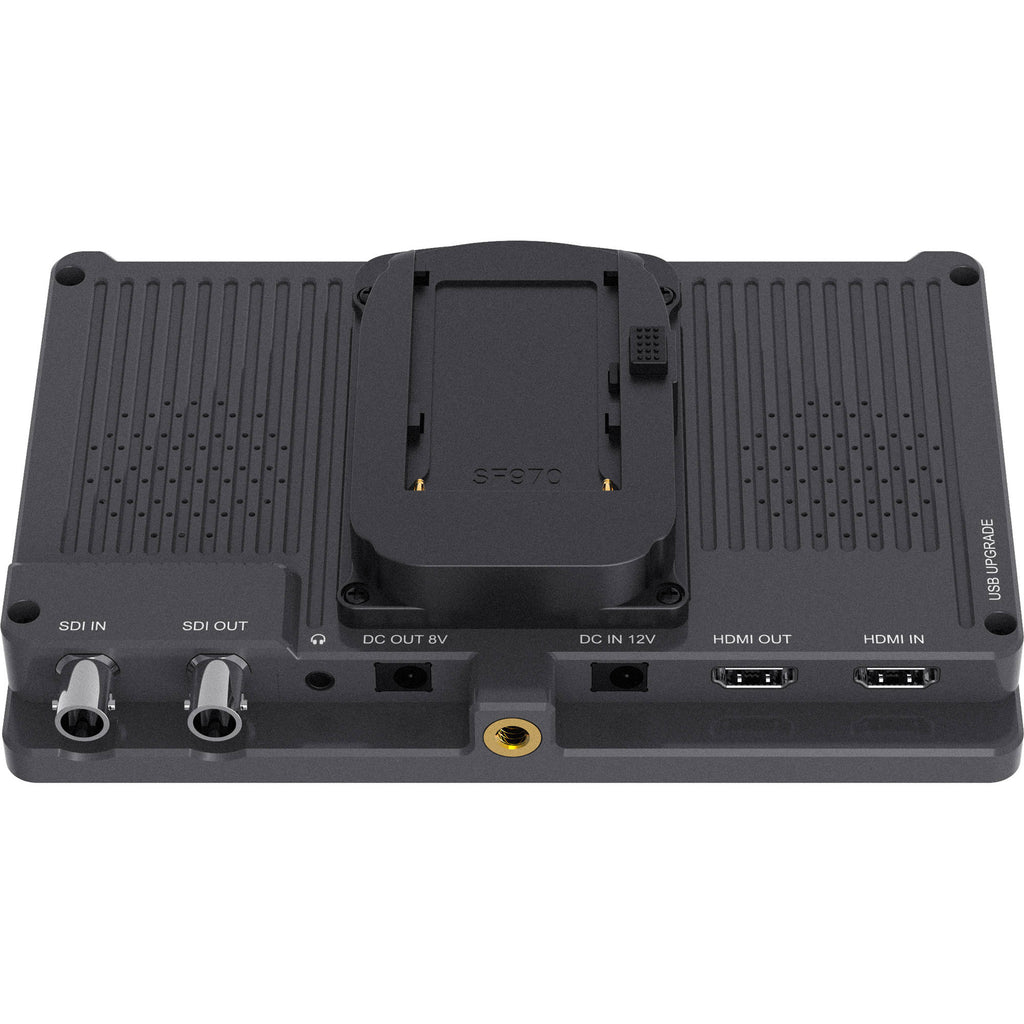

| Video | 1 x HDMI Type A Input 1 x BNC (3G-SDI) Input 1 x HDMI Type A Output 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI SDI |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power | 1 x Barrel (12 VDC) Input 1 x Barrel (8 VDC) Output |
| Card Slot | None |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i |
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x L-Series (Interchangeable Mount) |
| Power Consumption | 18 W |
| Mounting | 3 x 1/4"-20 Female |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Dimensions (W x H x D) | 7.09 x 4.72 x 0.87" / 180 x 120 x 22 mm |
| Weight | 15.70 oz / 445 g 16.76 oz / 475 g, Including Battery Plate |
| Package Weight | 2.19 lb |
| Box Dimensions (LxWxH) | 9.2 x 6.8 x 3.6" |
