Description

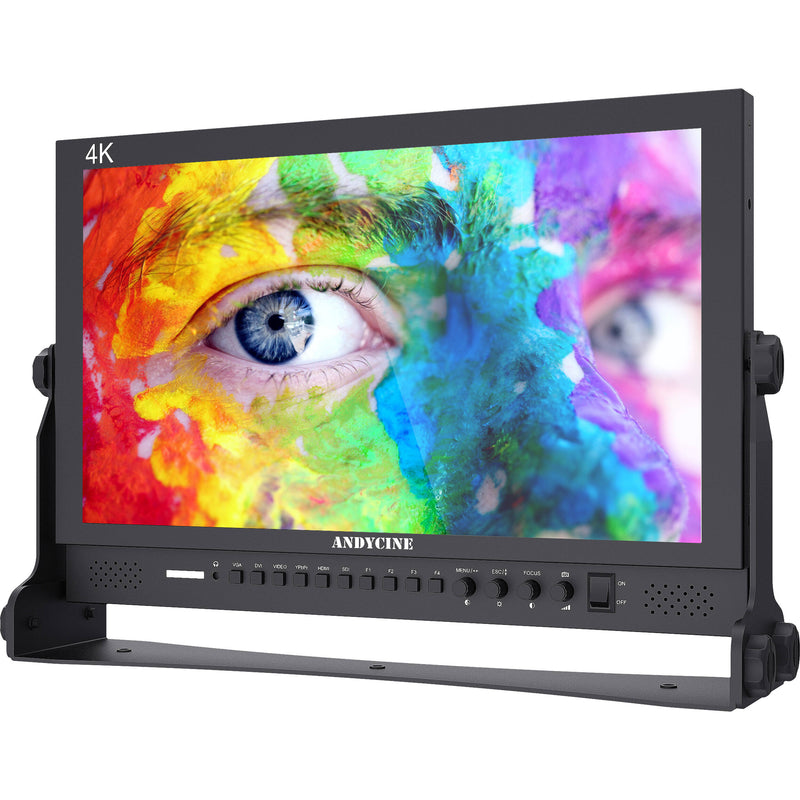

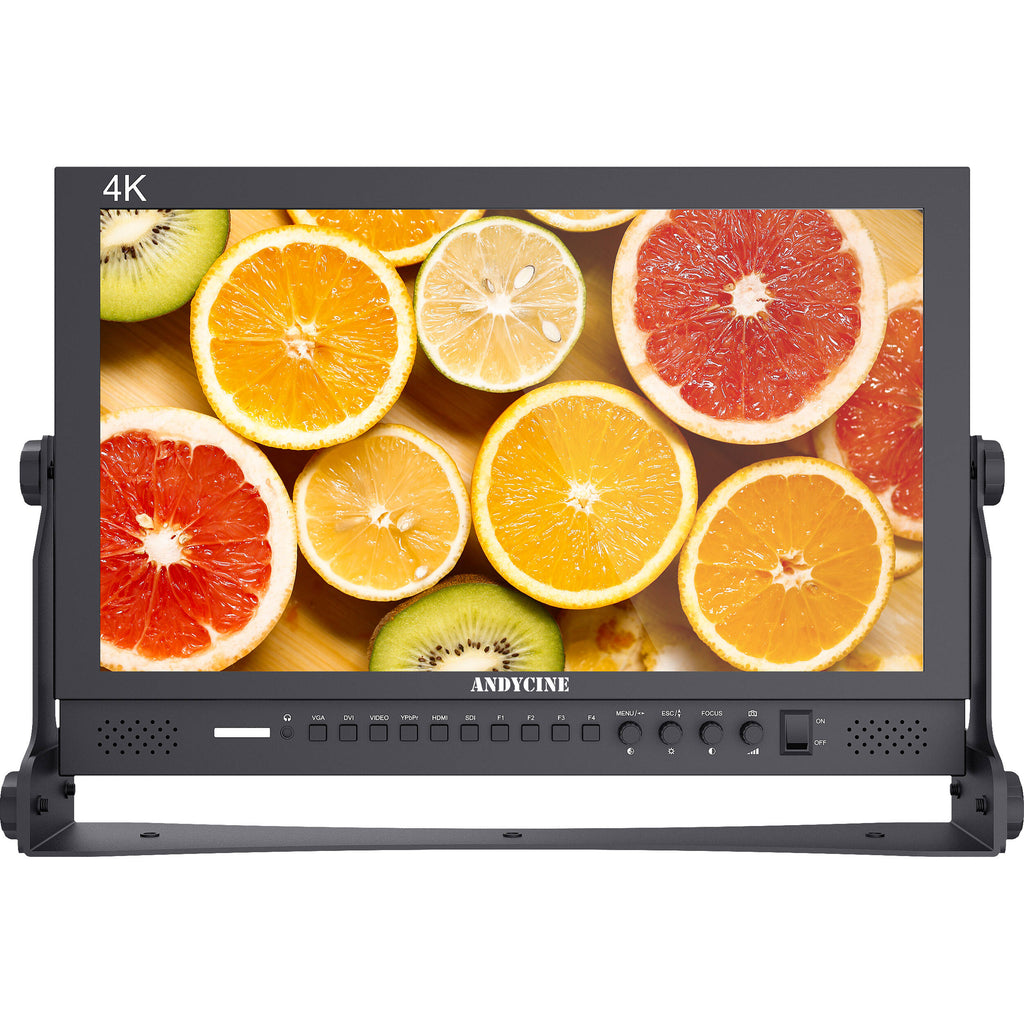

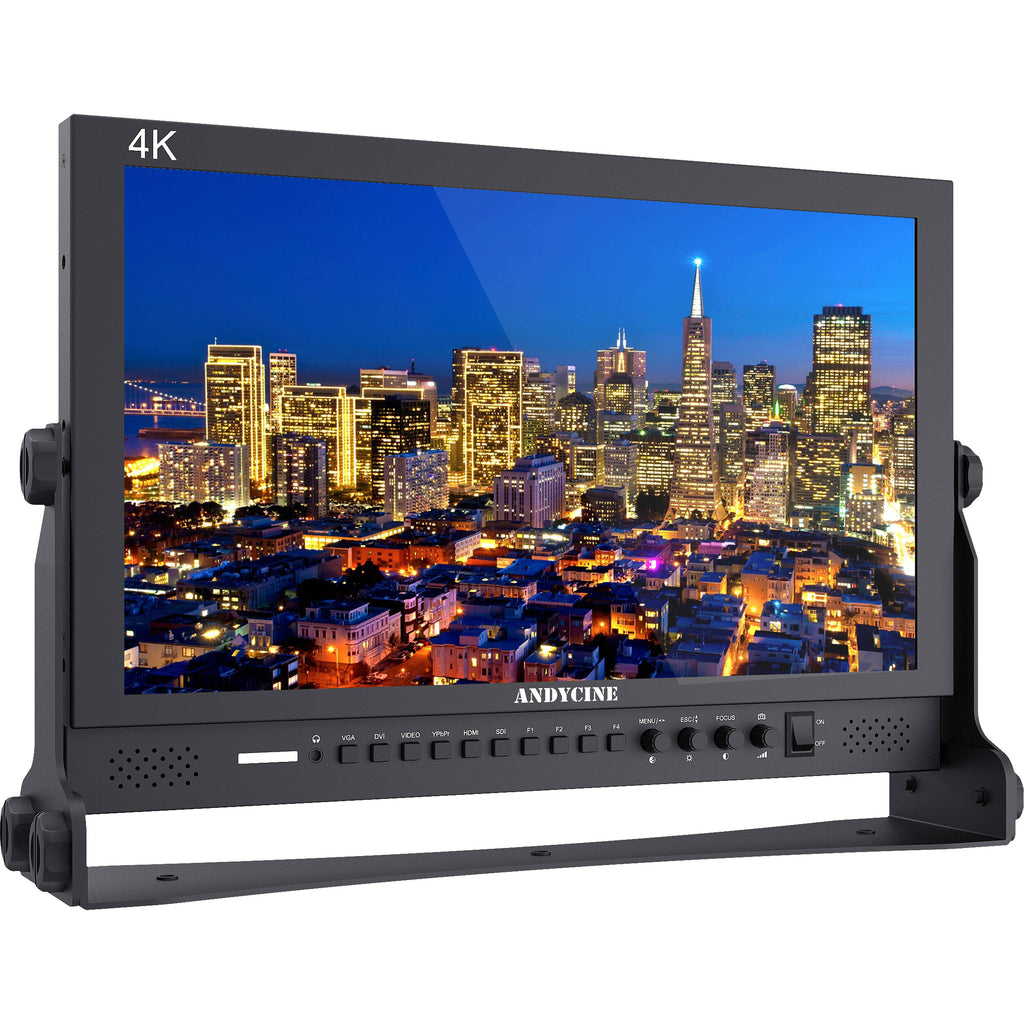

ANDYCINE C173S Overview

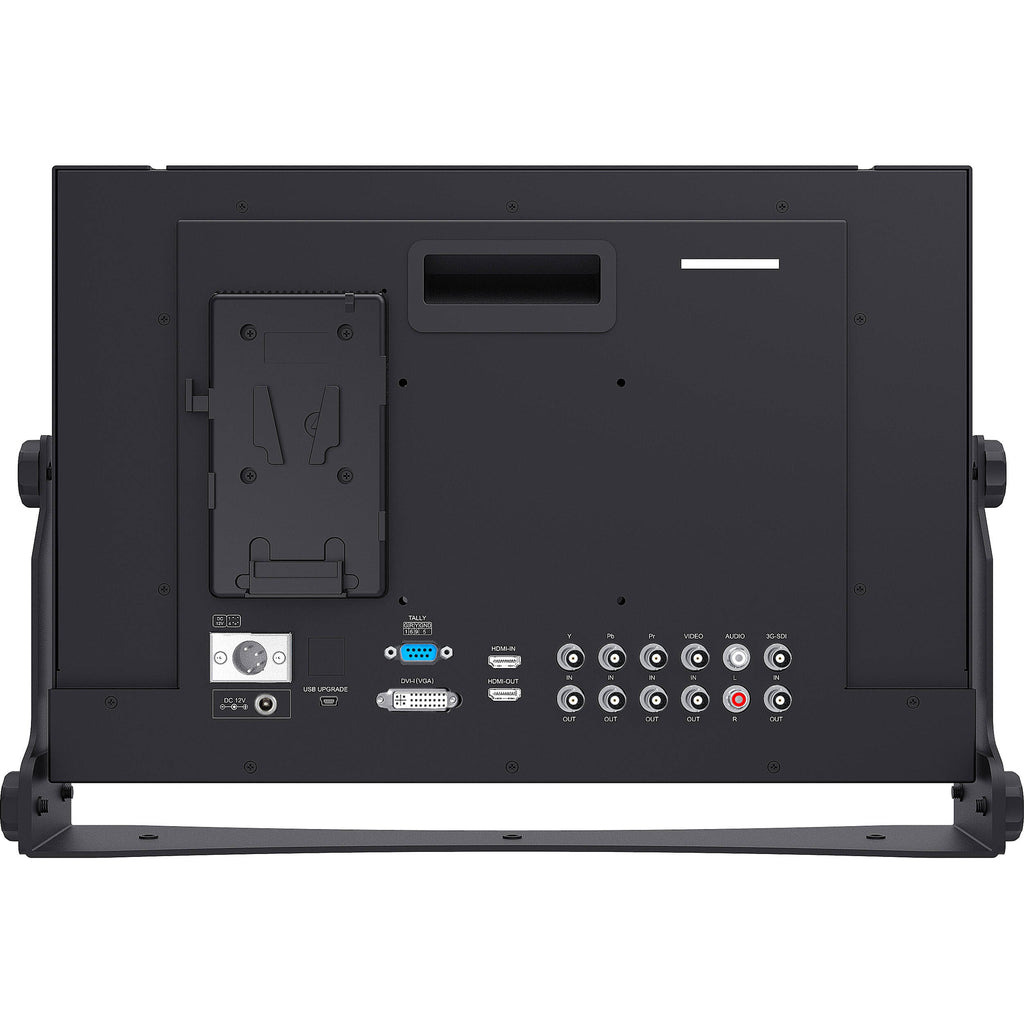

Add a professional broadcast monitor to your studio with the C173S 17.3" Broadcast Monitor from ANDYCINE. The versatile IPS LCD monitor is a 1920 x 1080 Full HD display capable of handling input signals up to 4K30. Its wide range of connectivity options includes HDMI, 3G-SDI, DVI, YPbPr, and Composite inputs and outputs. An integrated V-mount plate on the rear of the panel allows you to power the unit with an optional V-mount battery by way of its 4-pin XLR power input or via the 12V DC barrel connector. A built-in three-color LED indicator on the bottom of the front panel provides tally confirmation for talent or in-studio staff, depending on how the monitor is being used in your specific production.
Separate analog stereo audio may be brought in via two RCA input ports and all audio may be monitored via the integrated headphone output jack on the front of the panel or via its two integrated speakers. Professional video monitoring and analytic functions are accessible via front-panel buttons, including focus peaking, screen markers, pixel-to-pixel mapping, and image flip. To facilitate usage of the monitor outdoors or in brighter lighting conditions, a collapsible sunshade is included, along with a U-bracket that allows for tabletop mounting.
- Peaking focus assist
- Check field
- Camera mode
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, and horizontal and vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
In the Box
- ANDYCINE C173S 17.3'' Broadcast Monitor
- Sunhood
- U-Bracket
- Limited 1-Year Manufacturer Warranty
ANDYCINE C173S Specs
| Display Size |
17.3" / 43.9 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Compatibility |
No
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x 3BNC (Component) Input 1x 3BNC (Component) Output 1x BNC (Composite) Input 1x BNC (Composite) Output 1x DVI-I Input |
| Media/Memory Card Slot |
No
|
| Panel Type |
IPS-Type LCD
|
| Display Size |
17.3" / 43.9 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
No
|
| HDR Compatibility |
No
|
| Pixels Per Inch (ppi) |
127 ppi
|
| Image Controls |
Check Field, Focus Peaking, Green Only, Image Flip, Image Rotate, Pixel-to-Pixel Zoom, Red Only, Screen Markers
|
| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x 3BNC (Component) Input 1x 3BNC (Component) Output 1x BNC (Composite) Input 1x BNC (Composite) Output 1x DVI-I Input |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 2RCA Input
1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker |
2
|
| Power I/O |
1x XLR 4-Pin (12 VDC) Input
1x Barrel (12 VDC) Input |
| Other I/O |
1x DE-9/DB-9 (Tally) Input
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| DC Input Power |
12 VDC
|
| Package Weight |
11.325 lb
|
| Box Dimensions (LxWxH) |
20.9 x 16 x 6.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
