Description
ANDYCINE A7 Overview

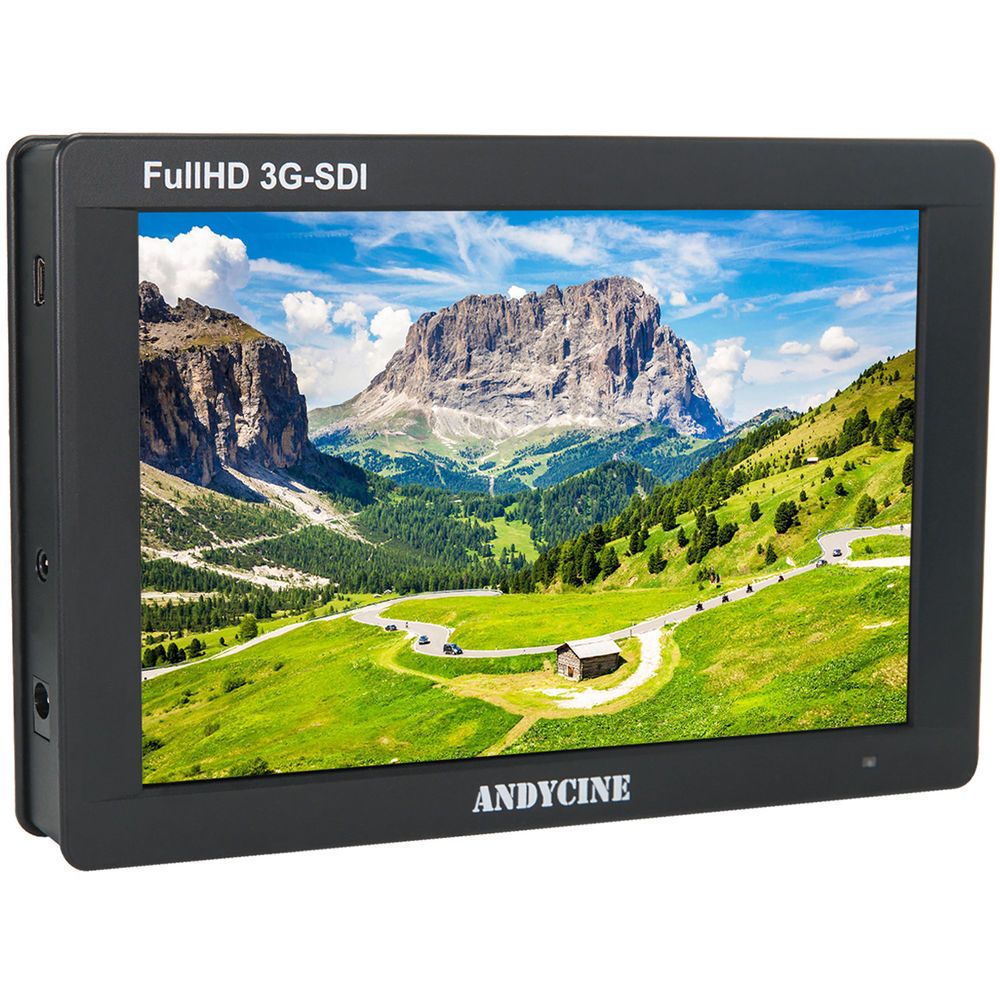

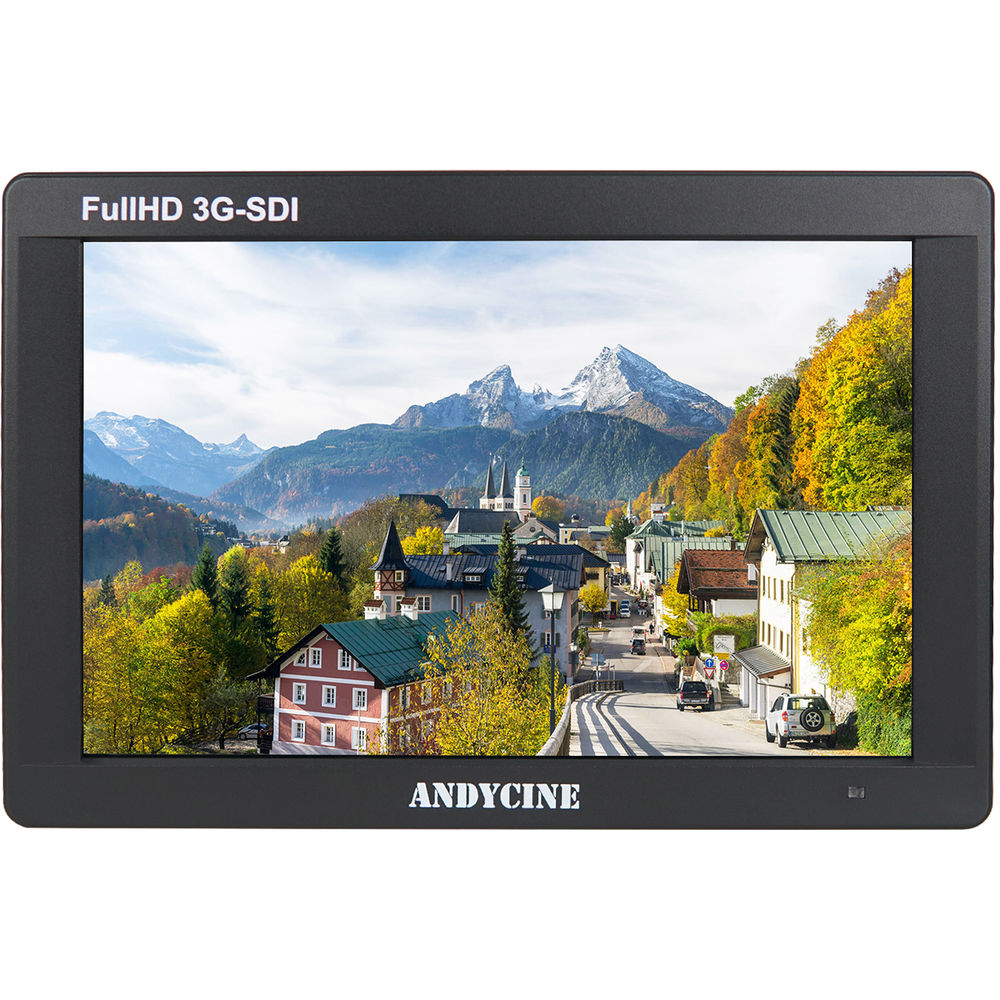

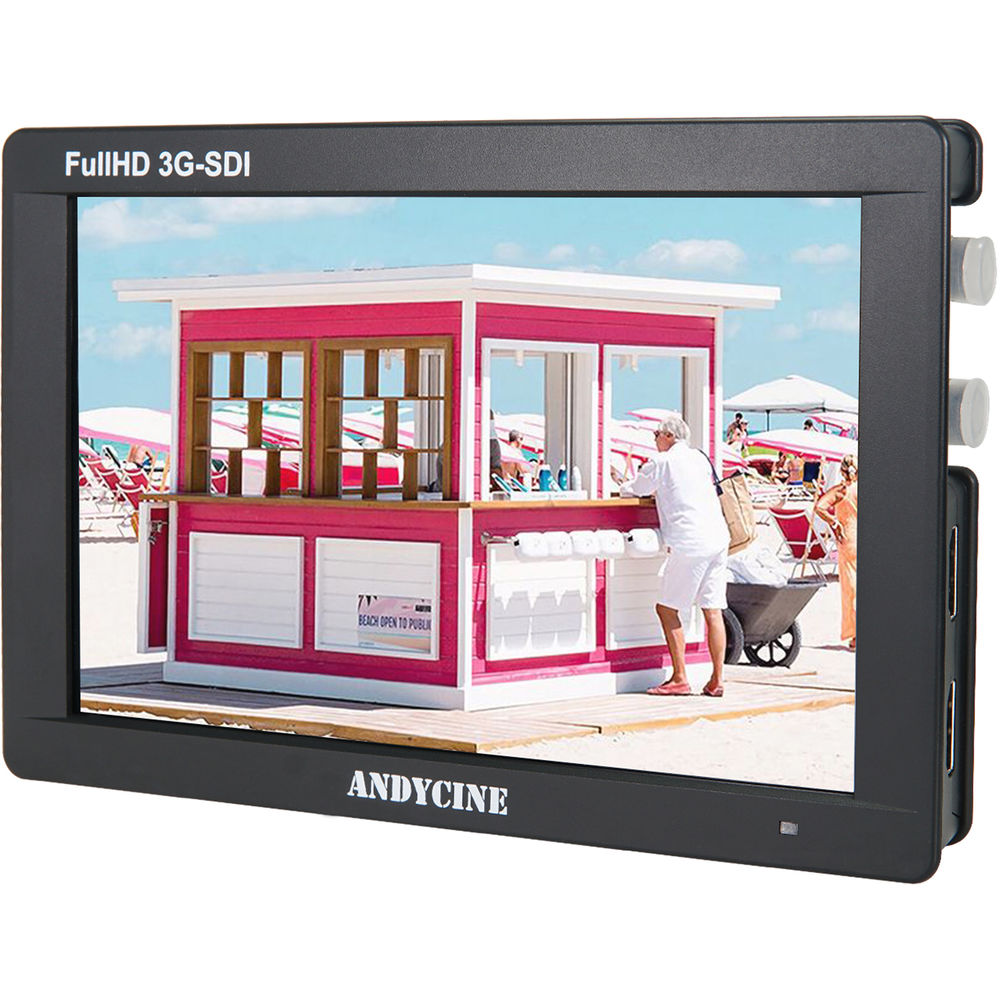

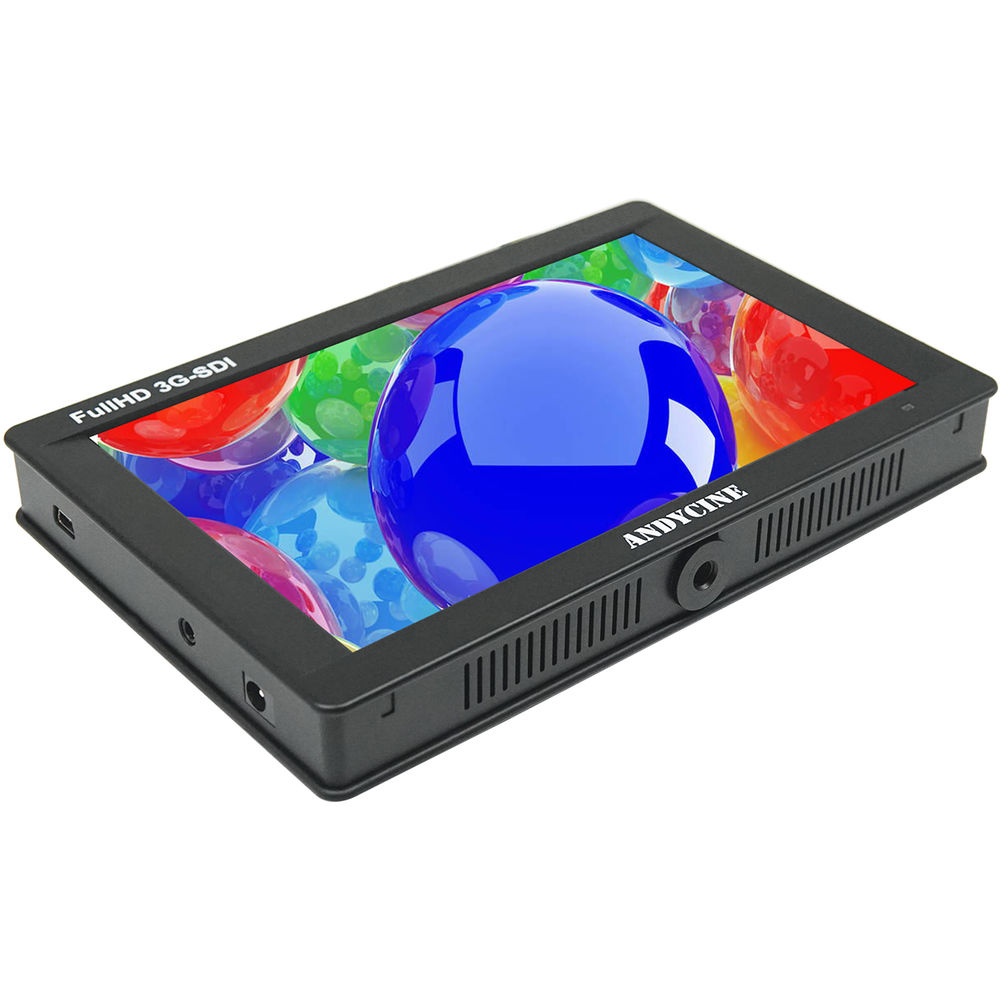

Accurately view your frame with the A7 7" 4K HDMI & 3G-SDI On-Camera Monitor from ANDYCINE . This compact, lightweight monitor features a 7" 1920 x 1200 display, up to 323 ppi density, and a removable L-Series battery plate. Both 3G-SDI and 4K HDMI inputs and outputs are provided, enabling you to loop-out your video feed to a separate monitor for director or client viewing.

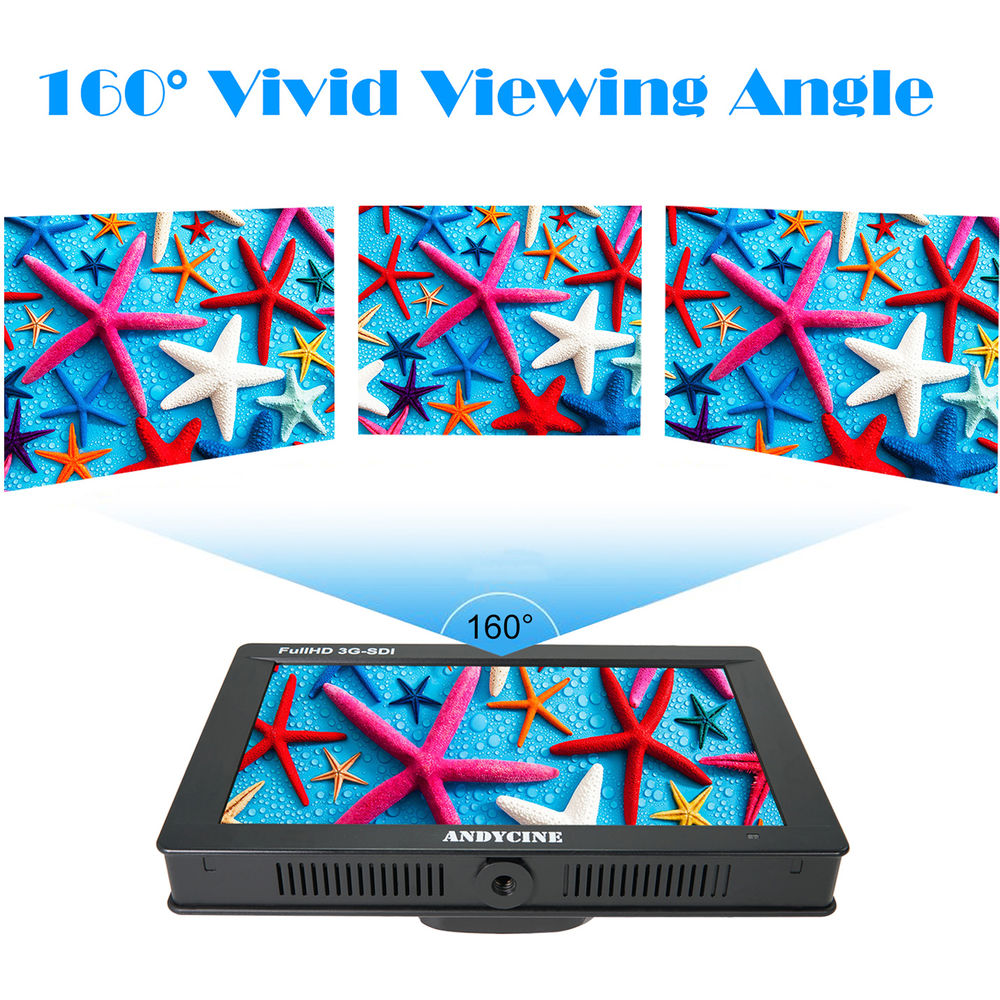

This IPS panel's 160° wide-viewing angle enables an operator to have a clear, easy-to-see image even as their position shifts and it features a brightness of 450 cd/m 2 with a contrast ratio of 1200:1. Input resolutions up to DCI 4K 60p are supported via HDMI and up to 1080p60 via the SDI input.

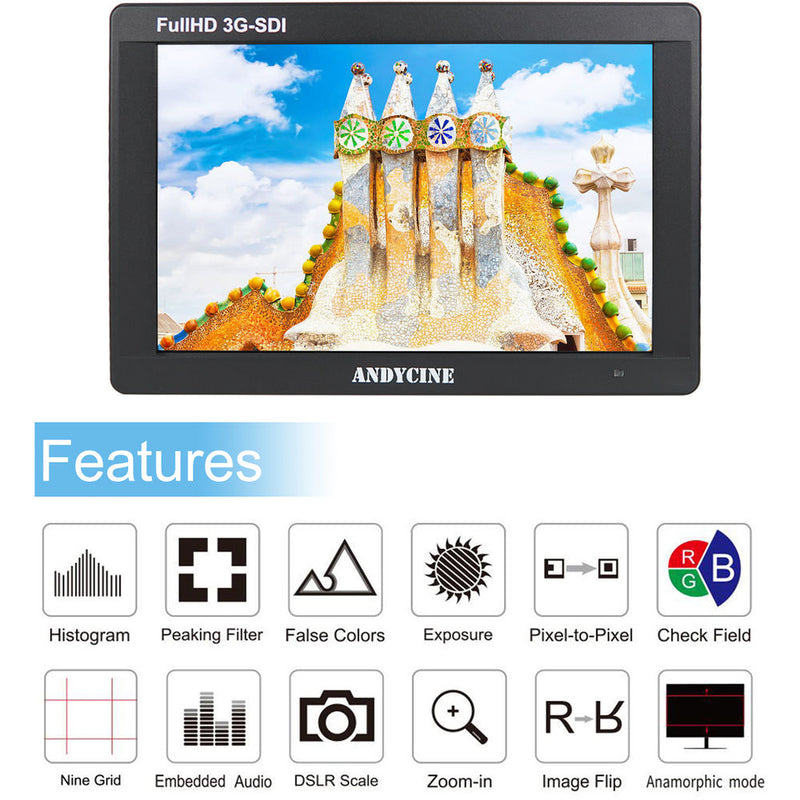

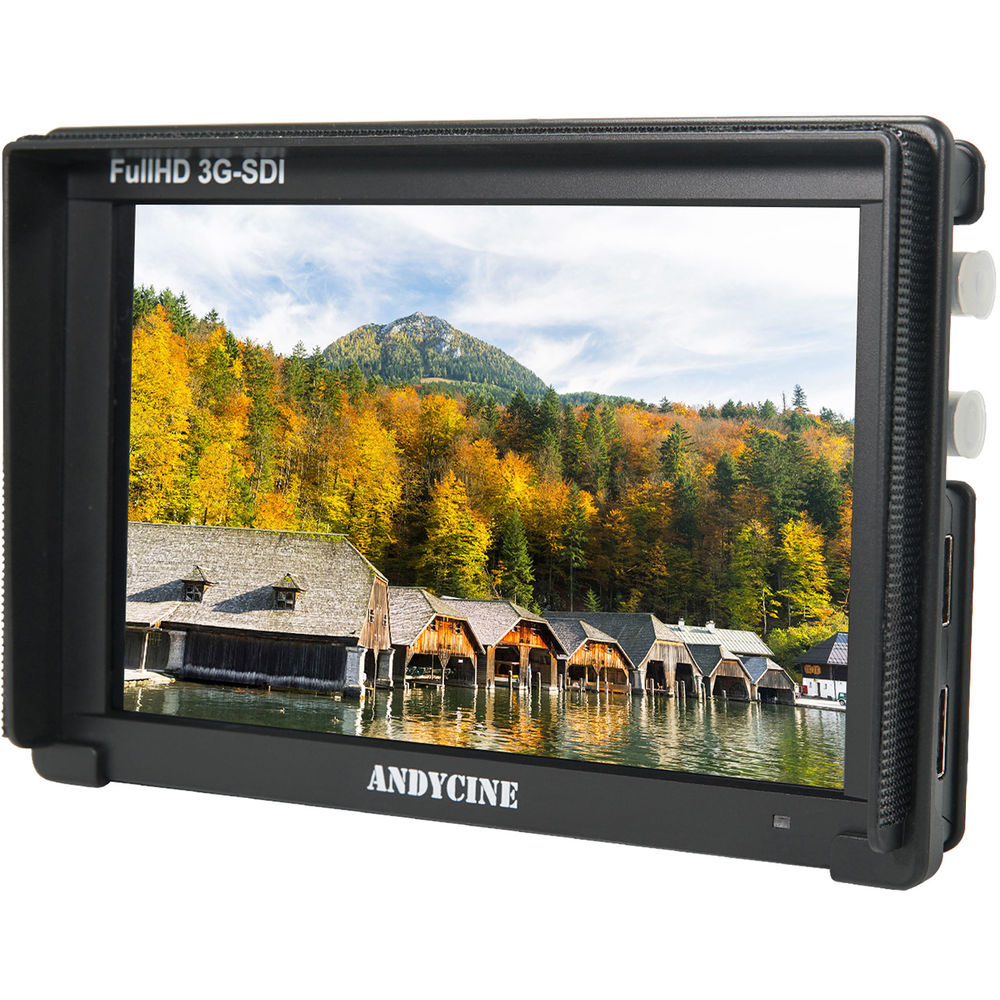

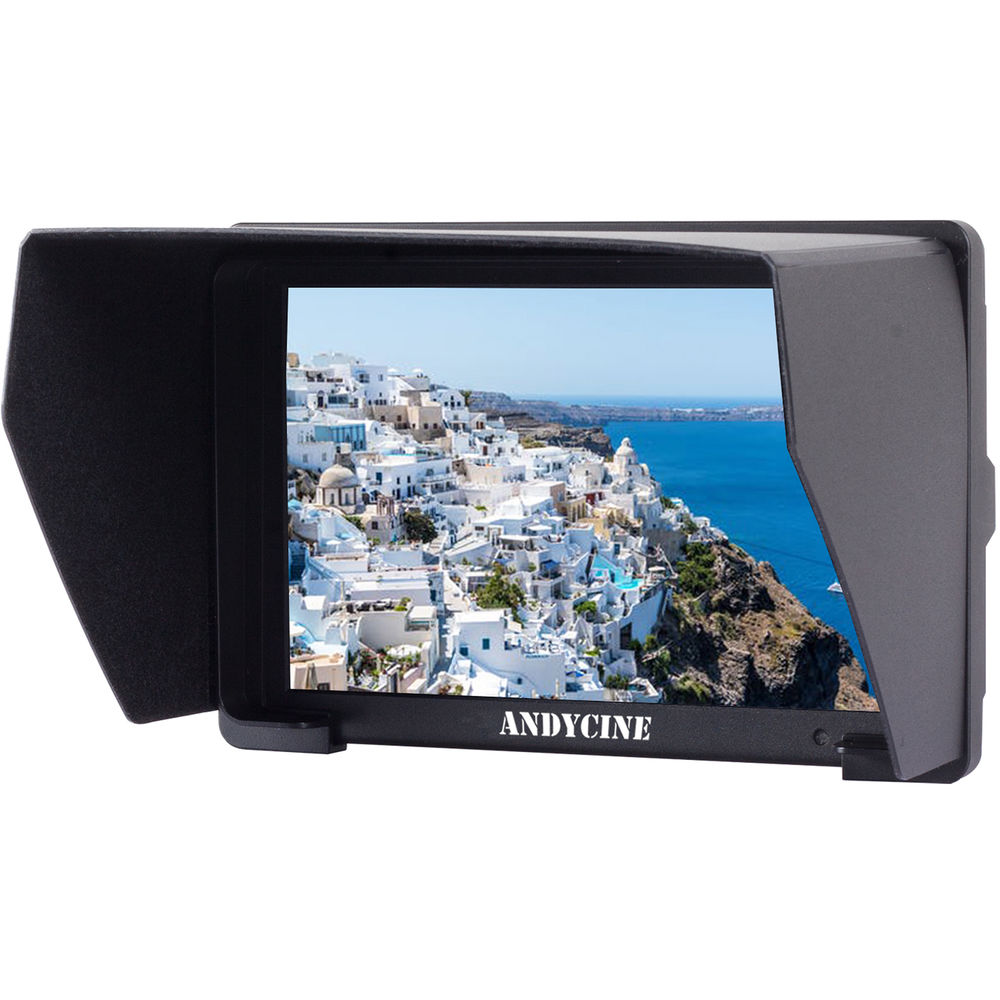

The A7 monitor also features pro display tools like focus peaking, zoom, anamorphic mode, frame markers, and image flip. The monitor includes an HDMI to Mini HDMI cable, sunshade, shoe mount adapter, L-series-type battery plate, and a soft case. Software upgrade on this monitor is done via its USB port.
Features

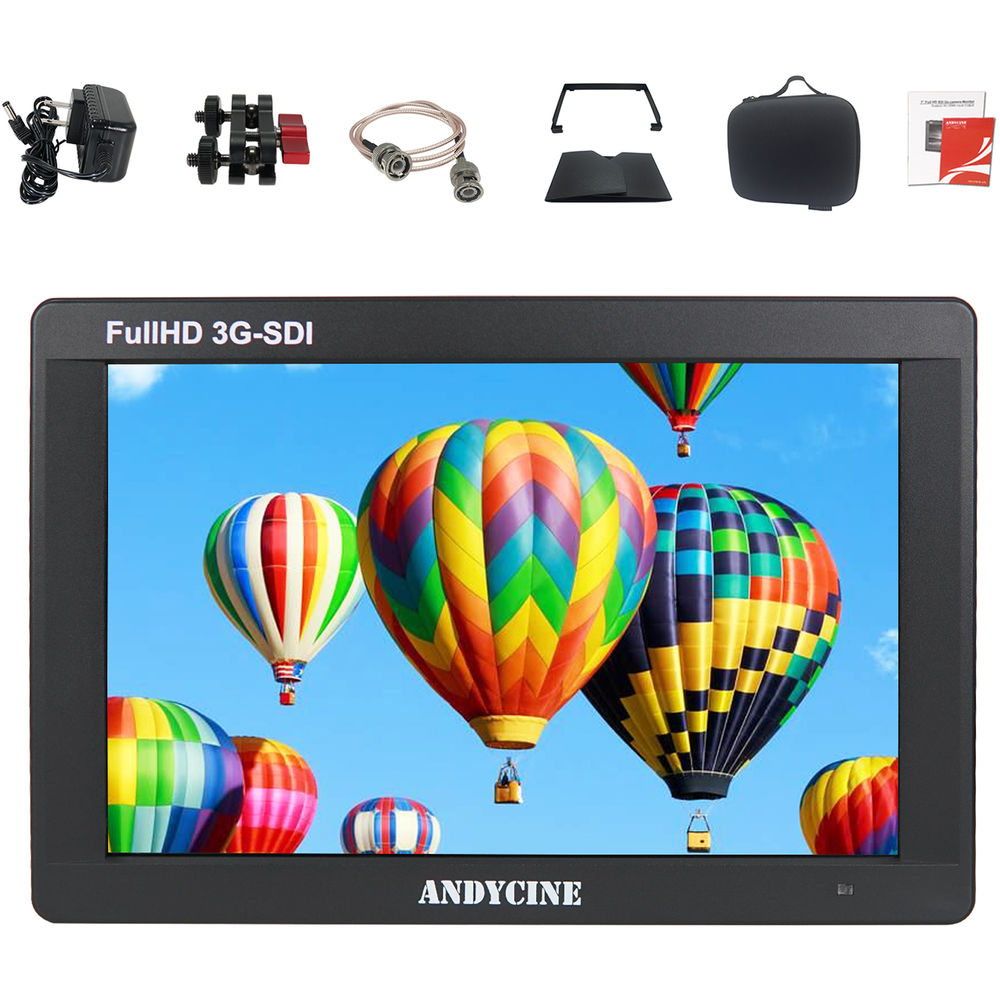

In the Box
- ANDYCINE A7 7" 4K HDMI & 3G-SDI Input/Output 1920x1200 On-Camera Monitor
- Shoe Mount Adapter
- HDMI to Mini HDMI Cable
- Sunshade
- L-Series Battery Plate
- Soft Carrying Case
- Limited 1-Year Warranty
ANDYCINE A7 Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | No |
| Maximum Brightness | 450 cd/m 2 |
| Contrast Ratio | 1200:1 |
| Pixels Per Inch (ppi) | 323 ppi |

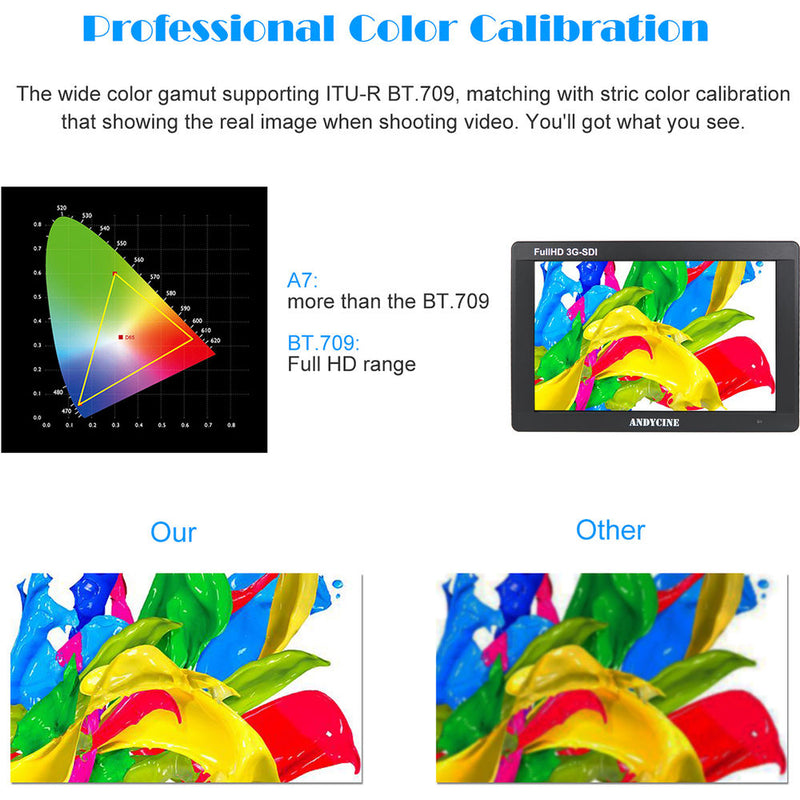

| Color Gamut | 100% Rec. 709 |
| Real-Time LUT Monitoring | No |

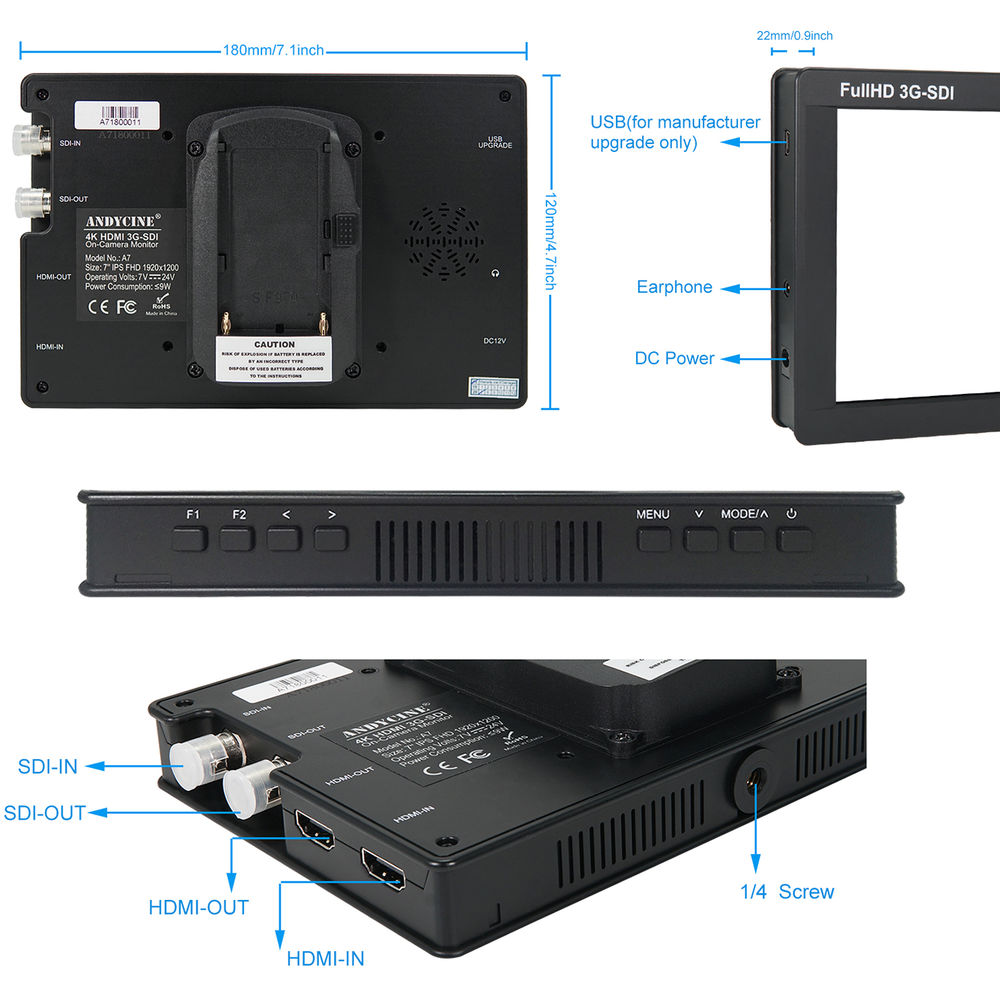

| Video | 1 x HDMI Type A Input 1 x HDMI Type A Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Other I/O | 1 x USB 2.0 (Mini-USB) |
| Card Slot | None |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 576p 480p 480i SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i |
| DC Input Power | 6.5 to 24 VDC |
| Battery Type | 1 x L-Series (Interchangeable Mount) |
| Power Consumption | 9 W |
| Mounting | 1 x 1/4"-20 Female |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Dimensions (W x H x D) | 7.09 x 4.72 x 0.81" / 180 x 120 x 20.5 mm |
| Weight | 15.70 oz / 445 g 16.76 oz / 475 g, Including Battery Plate |
| Package Weight | 2.49 lb |
| Box Dimensions (LxWxH) | 9.15 x 6.65 x 4.05" |
