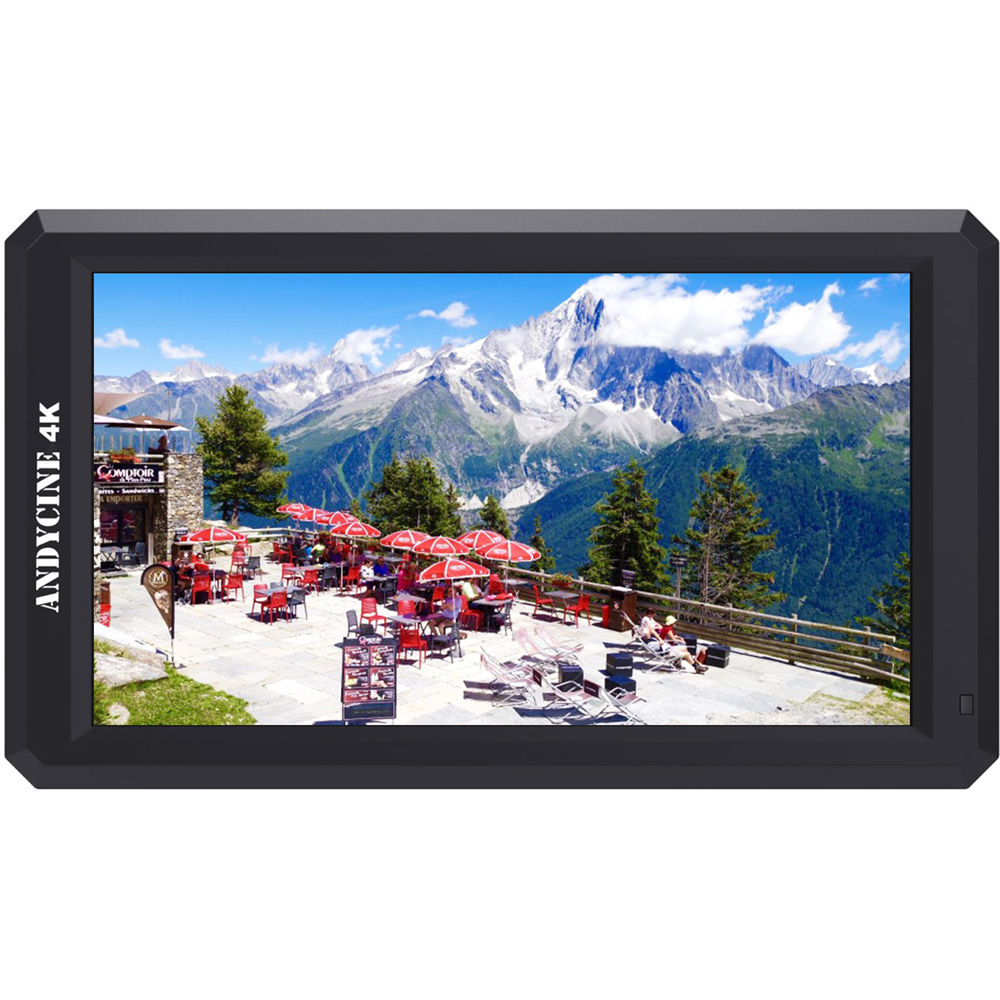

The A6 Lite 5" Full HD HDMI On-Camera Monitor with 4K Support from ANDYCINE offers a lightweight, compact way to view your footage when shooting with your mirrorless camera, DSLR, or small camcorder. This versatile 1920 x 1080 monitor has a built-in battery plate compatible with both Sony L-Series type and Canon LP-E6 type batteries; it can also be powered using a separately available 12VDC source. Equipped with an HDMI input and an HDMI loop-out, the A6 Lite will support video resolutions up to DCI 4K.

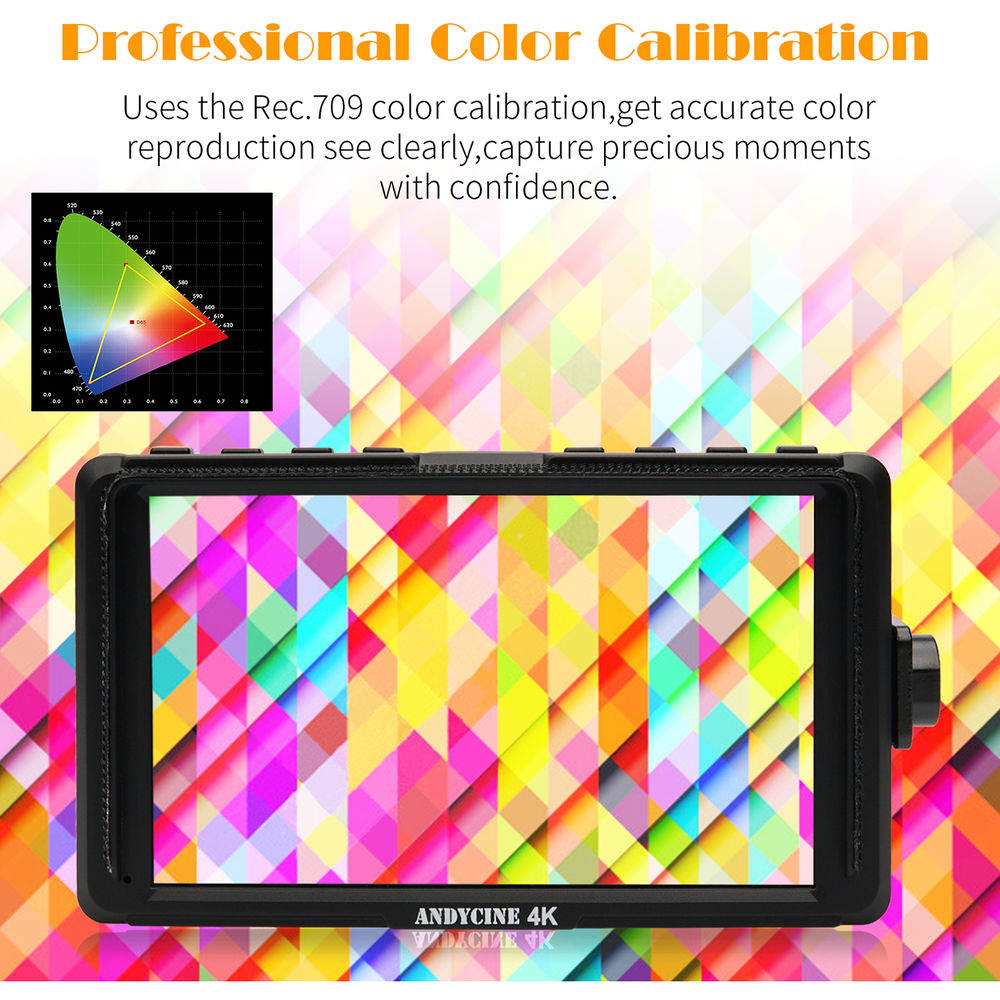

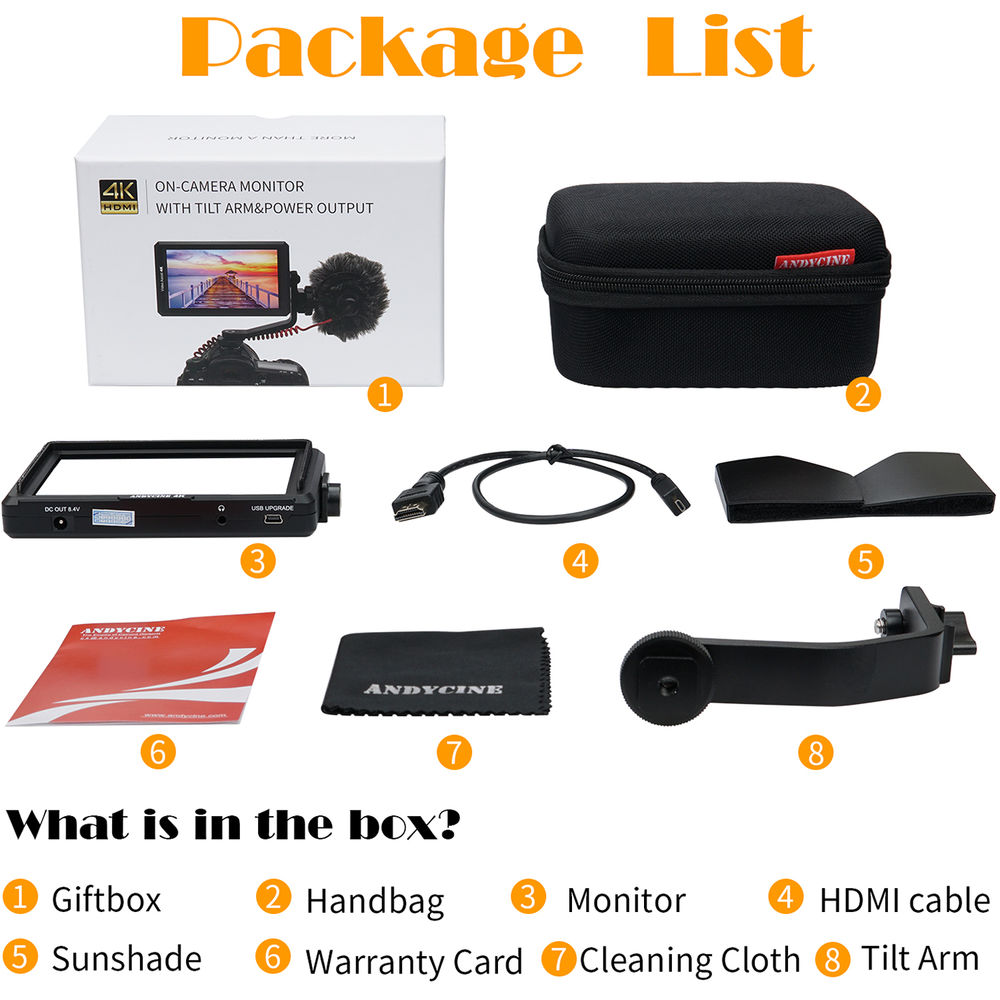

The included tilt arm enables you to easily position the A6 Lite at the optimal angle and includes a shoe for mounting an accessory. This compact, slim monitor's Rec 709 color gamut accurately reproduces your colors. An 8.4VDC output can be used with a separately available dummy battery to power select cameras. In addition to the tilt arm, a sunshade, an HDMI cable, and a cleaning cloth are included with the A6 Lite 5" monitor.
Focus and Exposure Tools
Tools include focus peaking indicators (red, green, and blue) and false color tools for properly setting your exposure
Connections

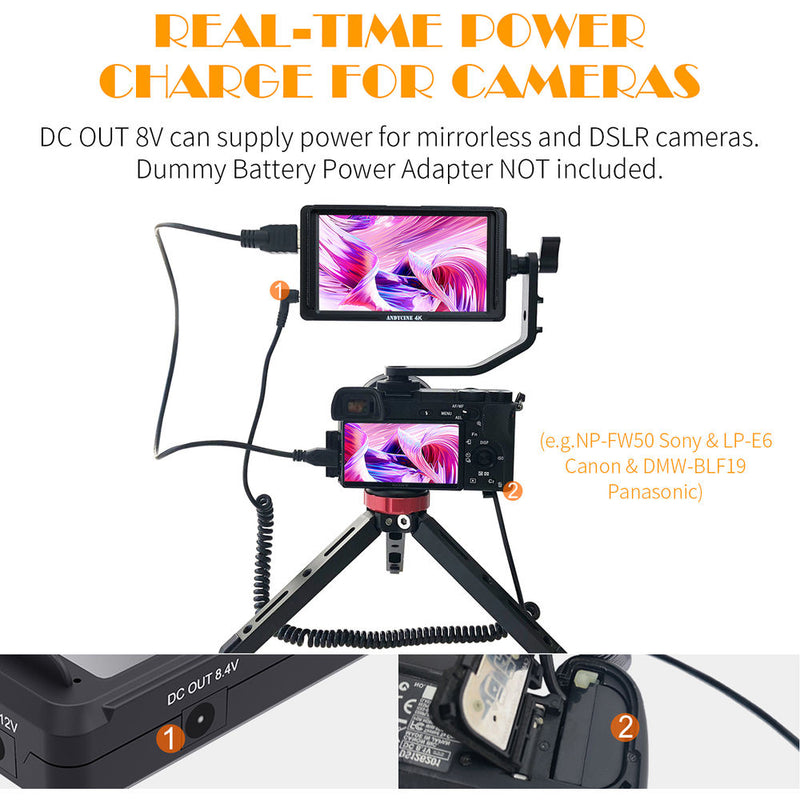

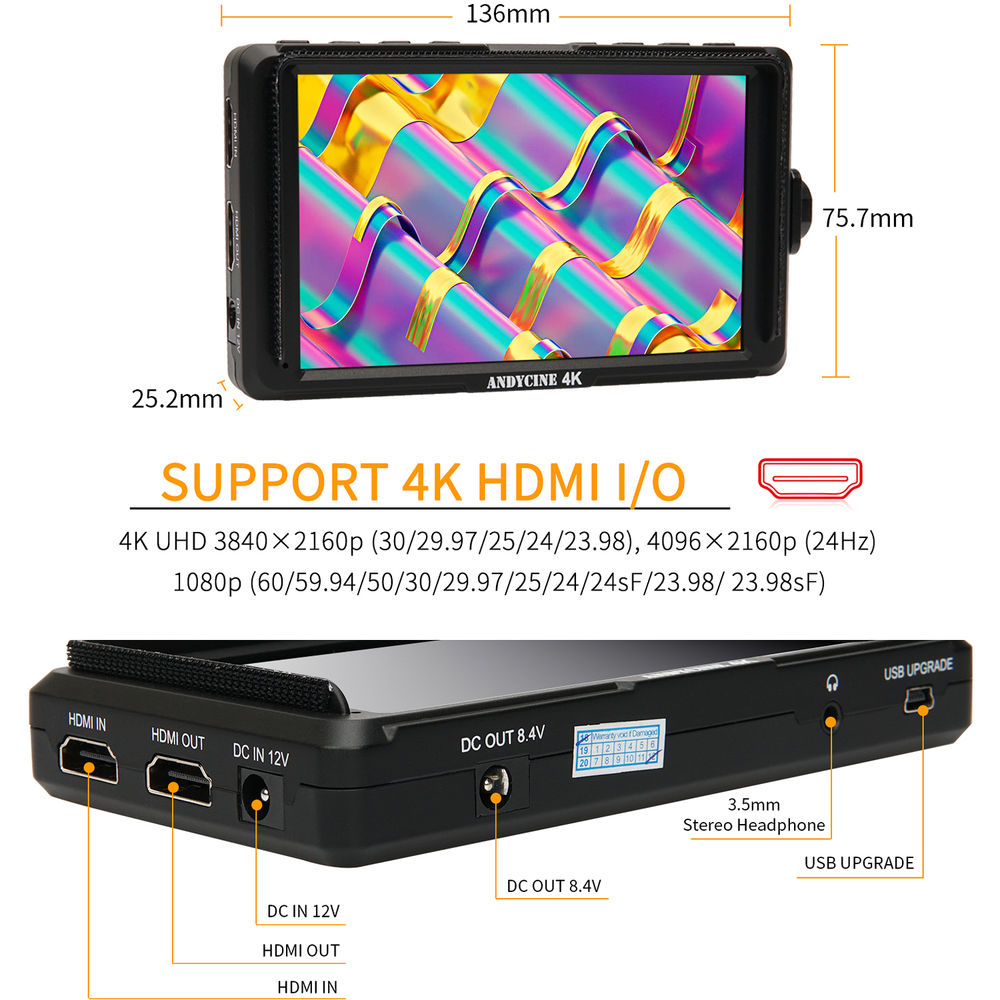

One HDMI input and one HDMI loop-out, a 3.5mm stereo headphone jack, and a DC output port for use with a dummy battery adapter cable (available separately) to extend your camera's runtime
Tilt Arm Mounting

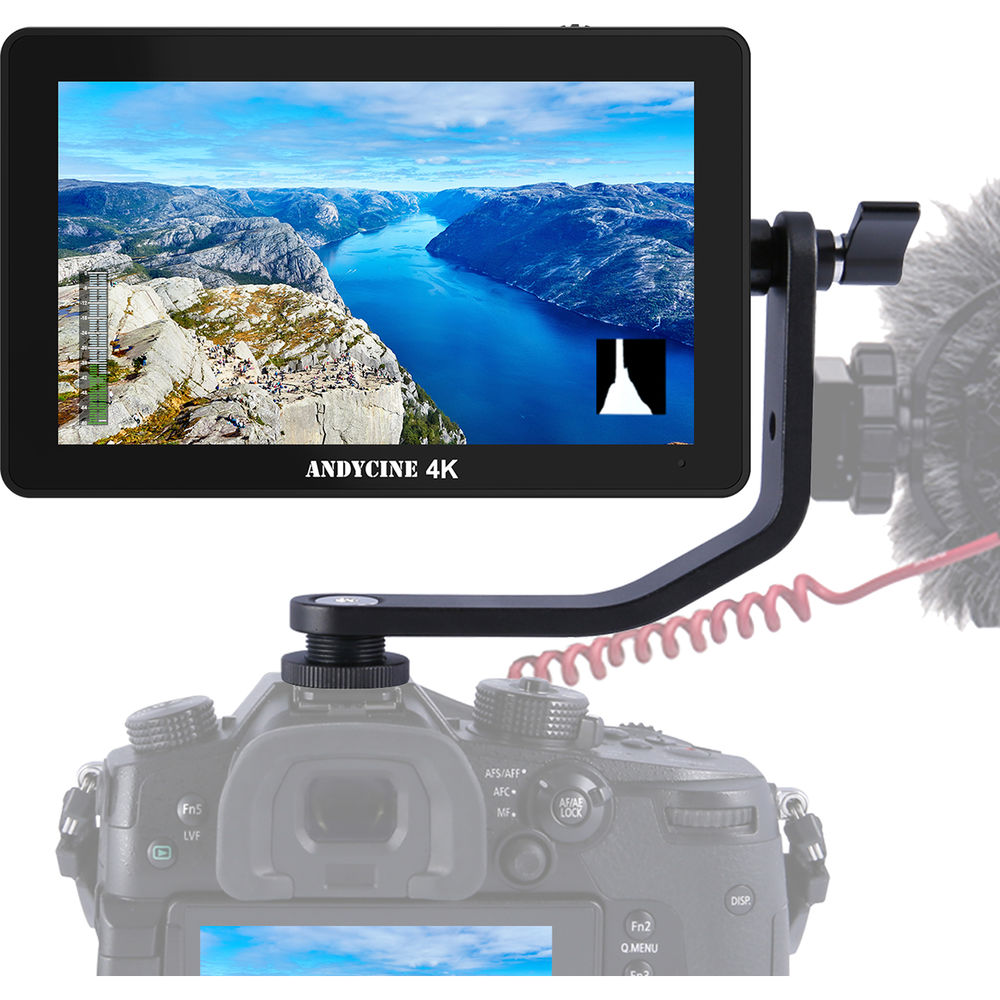

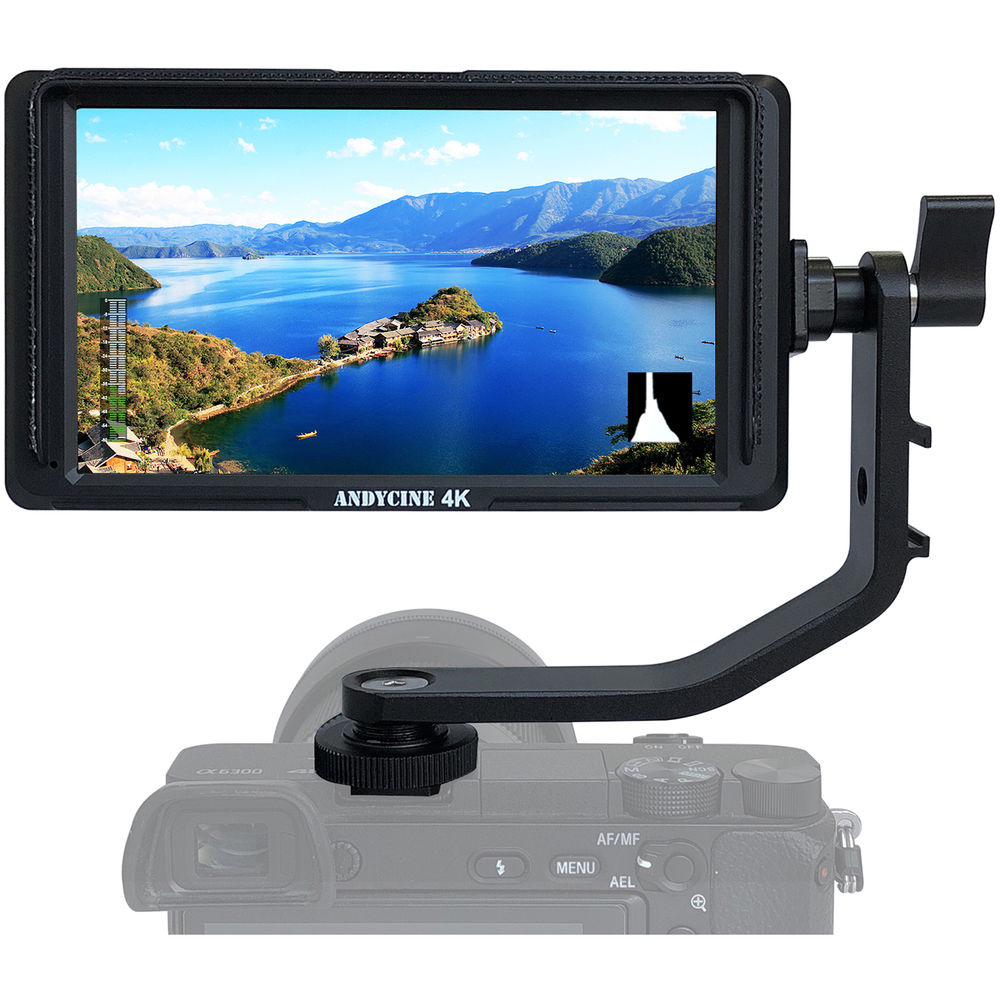

Mounts to your camera using the included tilt arm and your camera's shoe mount or 1/4"-20 thread
Power
Power the monitor via the built-in dual Sony L-Series type / Canon LP-E6 battery plate or the 12 VDC input
Sunshade
The included sunshade provides an effective monitoring environment when shooting in bright sunlight

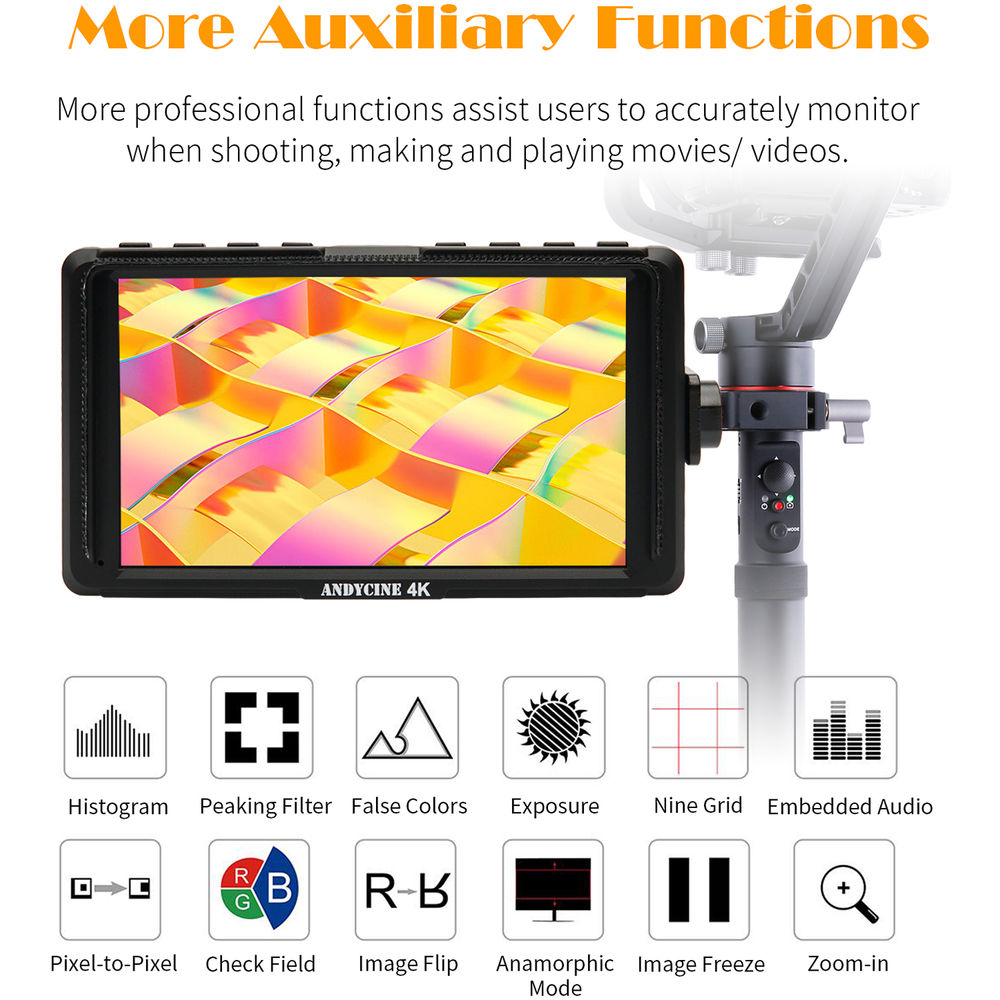

Features
- Brightness histogram
- Peaking focus assist
- False colors
- Exposure zebra
- Nine-grid zoom
- Anamorphic mode
- Pixel-to-pixel
- Embedded audio
- Check field (red/green/blue/mono)
- Image flip (H, V, H/V)
- Image freeze
- Zoom-all
![]()
UPC: 756244147321
Table of Contents
- Description
- Focus and Exposure Tools
- Connections
- Tilt Arm Mounting
- Power
- Sunshade
- Features
ANDYCINE A6 LITE Specs
Display
| Panel Type | IPS-Type LCD |
| Display Size | 5.0" / 12.7 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | No |
| Color Gamut | 100% Rec. 709 |
I/O
| Video | 1 x HDMI Type A Input
1 x HDMI Type A Output |
| Embedded Audio | HDMI |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power | 1 x Barrel Input
1 x Barrel (8.4 VDC) Output |
| Other I/O | 1 x USB 2.0 (USB Type-B) |
| Card Slot | None |
Format Support
| Video Format | HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98 |
Recording
| Pulldown Conversion | None |
| Camera Trigger | None |
Power
| DC Input Power | 12 VDC |
| Battery Type | 1 x LP-E6, L-Series |
Mounting
| Mounting | 3 x 1/4"-20 Female |
General
| Dimensions (W x H x D) | 5.35 x 2.98 x 0.99" / 136 x 75.7 x 25.2 mm |
| Weight | 0.31 lb / 141 g |
Packaging Info
| Package Weight | 1.495 lb |
| Box Dimensions (LxWxH) | 7.4 x 4.9 x 4.1" |
